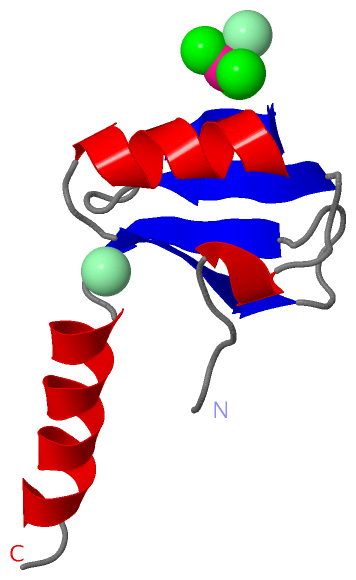

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

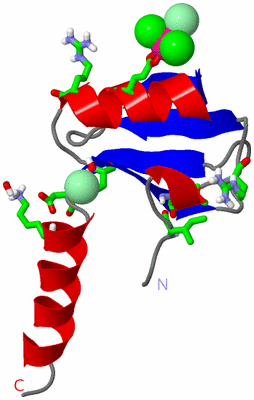

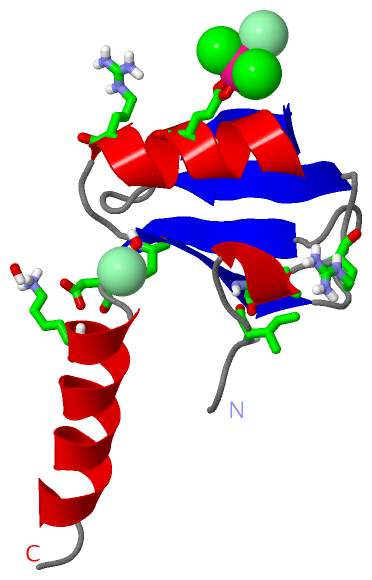

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  TRANSLATION INITIATION FACTOR 3 N-TERMINAL DOMAIN

Authors :  V. Biou, F. Shu, V. Ramakrishnan
Date :  16 Aug 95  (Deposition) - 07 Dec 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  If3 N-Terminal Domain, Ribosome Binding Factor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. Biou, F. Shu, V. Ramakrishnan
X-Ray Crystallography Shows That Translational Initiation Factor If3 Consists Of Two Compact Alpha/Beta Domains Linked By An Alpha-Helix.
Embo J. V. 14 4056 1995
PubMed-ID: 7664745
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TRANSLATION INITIATION FACTOR 3
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: T7
    Expression System Plasmid: T7 VECTOR PET13A
    Expression System Taxid: 562
    Expression System Vector Type: T7
    Gene: T7
    Organism Scientific: GEOBACILLUS STEAROTHERMOPHILUS
    Organism Taxid: 1422
    Synonym: IF3-N

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 3)

Asymmetric/Biological Unit (2, 3)
No.NameCountTypeFull Name
1CL2Ligand/IonCHLORIDE ION
2PBM1Ligand/IonTRIMETHYL LEAD ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREILE A:6 , GLU A:36 , ASP A:61 , LYS A:64 , CL A:102BINDING SITE FOR RESIDUE PBM A 101
2AC2SOFTWAREARG A:12 , LEU A:47 , PBM A:101 , HOH A:211BINDING SITE FOR RESIDUE CL A 102
3AC3SOFTWAREARG A:40 , ASP A:44 , HOH A:281BINDING SITE FOR RESIDUE CL A 103

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TIF)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Lys A:53 -Pro A:54

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TIF)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1IF3PS00938 Initiation factor 3 signature.IF3_GEOSE58-71  1A:58-71

(-) Exons   (0, 0)

(no "Exon" information available for 1TIF)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:76
 aligned with IF3_GEOSE | P03000 from UniProtKB/Swiss-Prot  Length:172

    Alignment length:76
                                    12        22        32        42        52        62        72
             IF3_GEOSE    3 KDFIINEQIRAREVRLIDQNGDQLGIKSKQEALEIAARRNLDLVLVAPNAKPPVCRIMDYGKFRFEQQKKEKEARK 78
               SCOP domains d1tifa_ A: Translation initiation factor IF3, N-terminal domain              SCOP domains
               CATH domains 1tifA00 A:3-78  [code=3.10.20.80, no name defined]                           CATH domains
               Pfam domains IF3_N-1tifA01 A:3-77                                                       - Pfam domains
         Sec.struct. author .....hhh....eeeee.....eeeeeehhhhhhhhhh...eeeeee......eeeee.hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------IF3           ------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                  1tif A  3 KDFIINEQIRAREVRLIDQNGDQLGIKSKQEALEIAARRNLDLVLVAPNAKPPVCRIMDYGKFRFEQQKKEKEARK 78
                                    12        22        32        42        52        62        72
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: IF3_N] (1)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (IF3_GEOSE | P03000)
molecular function
    GO:0003743    translation initiation factor activity    Functions in the initiation of ribosome-mediated translation of mRNA into a polypeptide.
biological process
    GO:0006412    translation    The cellular metabolic process in which a protein is formed, using the sequence of a mature mRNA or circRNA molecule to specify the sequence of amino acids in a polypeptide chain. Translation is mediated by the ribosome, and begins with the formation of a ternary complex between aminoacylated initiator methionine tRNA, GTP, and initiation factor 2, which subsequently associates with the small subunit of the ribosome and an mRNA or circRNA. Translation ends with the release of a polypeptide chain from the ribosome.
    GO:0006413    translational initiation    The process preceding formation of the peptide bond between the first two amino acids of a protein. This includes the formation of a complex of the ribosome, mRNA or circRNA, and an initiation complex that contains the first aminoacyl-tRNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PBM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys A:53 - Pro A:54   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1tif
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  IF3_GEOSE | P03000
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  IF3_GEOSE | P03000
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        IF3_GEOSE | P03000: 1tig 5me0 5me1

(-) Related Entries Specified in the PDB File

1tig C-TERMINAL DOMAIN OF IF3
