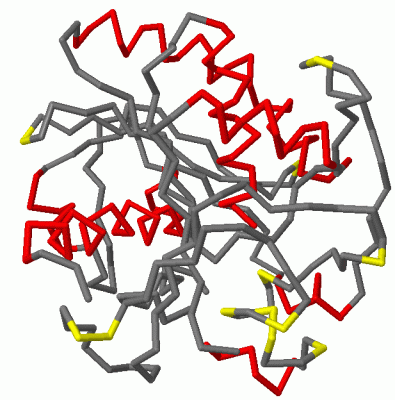

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

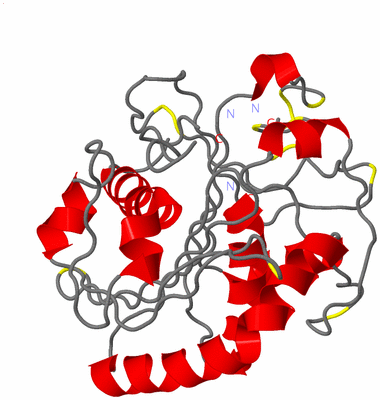

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  AN UNUSUAL BURIED POLAR CLUSTER IN A FAMILY OF FUNGAL LIPASES

Authors :  U. Derewenda, L. Swenson, S. Yamaguchi, Y. Wei, Z. S. Derewenda
Date :  06 Dec 93  (Deposition) - 26 Jan 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase(Carboxylic Esterase) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  U. Derewenda, L. Swenson, R. Green, Y. Wei, G. G. Dodson, S. Yamaguchi, M. J. Haas, Z. S. Derewenda
An Unusual Buried Polar Cluster In A Family Of Fungal Lipases.
Nat. Struct. Biol. V. 1 36 1994
PubMed-ID: 7656005  |  Reference-DOI: 10.1038/NSB0194-36
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LIPASE
    Chains: A
    EC Number: 3.1.1.3
    Engineered: YES
    Organism Scientific: PENICILLIUM CAMEMBERTI
    Organism Taxid: 5075

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1TIA)

(-) Sites  (0, 0)

(no "Site" information available for 1TIA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TIA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1TIA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TIA)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1LIPASE_SERPS00120 Lipases, serine active site.MDLA_PENCA165-174  1A:139-148

(-) Exons   (0, 0)

(no "Exon" information available for 1TIA)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:271
 aligned with MDLA_PENCA | P61870 from UniProtKB/Swiss-Prot  Length:305

    Alignment length:271
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296
           MDLA_PENCA    27 DVSTSELDQFEFWVQYAAASYYEADYTAQVGDKLSCSKGNCPEVEATGATVSYDFSDSTITDTAGYIAVDHTNSAVVLAFRGSYSVRNWVADATFVHTNPGLCDGCLAELGFWSSWKLVRDDIIKELKEVVAQNPNYELVVVGHSLGAAVATLAATDLRGKGYPSAKLYAYASPRVGNAALAKYITAQGNNFRFTHTNDPVPKLPLLSMGYVHVSPEYWITSPNNATVSTSDIKVIDGDVSFDGNTGTGLPLLTDFEAHIWYFVQVDAGKG 297
               SCOP domains d1tiaa_ A: Triacylglycerol lipase                                                                                                                                                                                                                                               SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............................................................................................................................................................................................................................................................................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------LIPASE_SER--------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1tia A   1 DVSTSELDQFEFWVQYAAASYYEADYTAQVGDKLSCSKGNCPEVEATGATVSYDFSDSTITDTAGYIAVDHTNSAVVLAFRGSYSVRNWVADATFVHTNPGLCDGCLAELGFWSSWKLVRDDIIKELKEVVAQNPNYELVVVGHSLGAAVATLAATDLRGKGYPSAKLYAYASPRVGNAALAKYITAQGNNFRFTHTNDPVPKLPLLSMGYVHVSPEYWITSPNNATVSTSDIKVIDGDVSFDGNTGTGLPLLTDFEAHIWYFVQVDAGKG 271
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1TIA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1TIA)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (MDLA_PENCA | P61870)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
biological process
    GO:0016042    lipid catabolic process    The chemical reactions and pathways resulting in the breakdown of lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent.
    GO:0006629    lipid metabolic process    The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1tia)

  Sites
(no "Sites" information available for 1tia)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1tia)


(-) Still Images

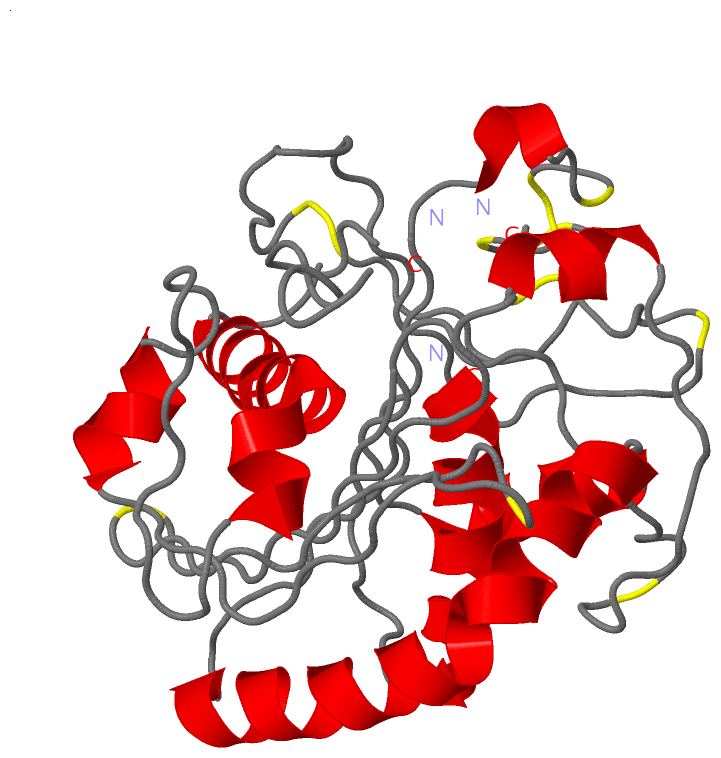

Jmol
