(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

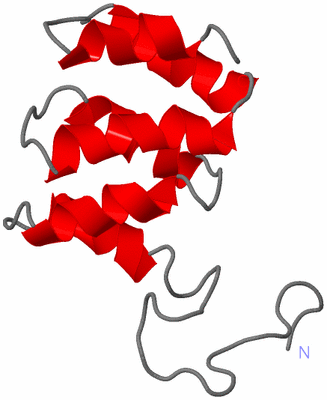

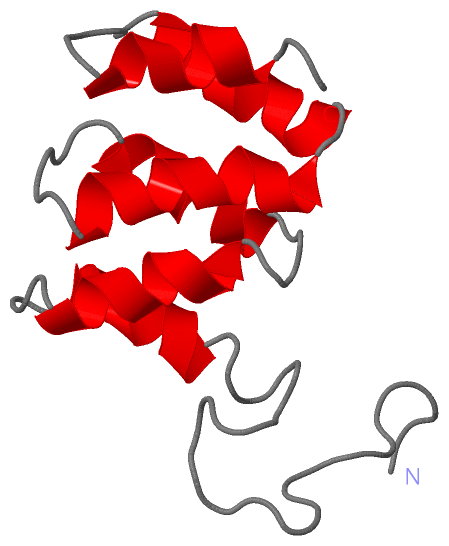

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

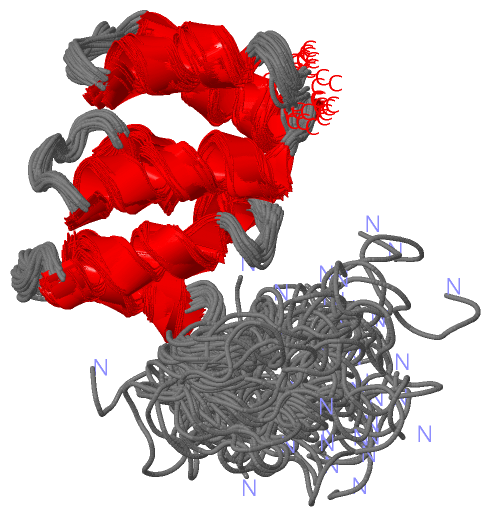

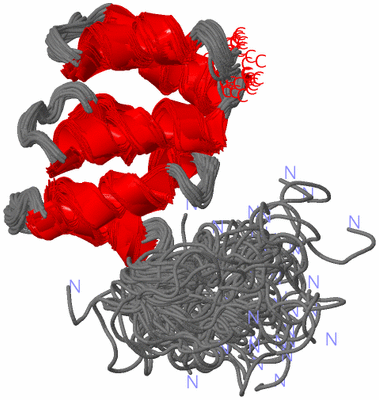

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF MTH187. ONTARIO CENTRE FOR STRUCTURAL PROTEOMICS TARGET MTH0187_1_111; NORTHEAST STRUCTURAL GENOMICS TARGET TT740

Authors :  I. Gignac, O. Julien, A. Yee, C. H. Arrowsmith, S. M. Gagne, Northeast Structural Genomics Consortium (Nesg)
Date :  24 May 04  (Deposition) - 13 Jul 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (40x)
Keywords :  Nmr, Mth187, Methanobacterium Thermoautotrophicum, Structural Proteomics, Heat-Like Repeat, Structural Genomics, Ocsp, Nesg, Protein Structure Initiative, Psi, Northeast Structural Genomics Consortium, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  O. Julien, I. Gignac, A. Hutton, A. Yee, C. H. Arrowsmith, S. M. Gagne
Mth187 From Methanobacterium Thermoautotrophicum Has Three Heat-Like Repeats.
J. Biomol. Nmr V. 35 149 2006
PubMed-ID: 16819590  |  Reference-DOI: 10.1007/S10858-006-0029-3
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CONSERVED PROTEIN MTH187
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-15B
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: MT0187
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262
    Other Details: THE PROTEIN WAS PURIFIED ON A NICKEL COLUMN.

 Structural Features

(-) Chains, Units


NMR Structure (40x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1TE4)

(-) Sites  (0, 0)

(no "Site" information available for 1TE4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TE4)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1TE4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TE4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TE4)

(-) Exons   (0, 0)

(no "Exon" information available for 1TE4)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:111
 aligned with O26289_METTH | O26289 from UniProtKB/TrEMBL  Length:111

    Alignment length:111
                                    10        20        30        40        50        60        70        80        90       100       110
         O26289_METTH     1 MADENKWVRRDVSTALSRMGDEAFEPLLESLSNEDWRIRGAAAWIIGNFQDERAVEPLIKLLEDDSGFVRSGAARSLEQIGGERVRAAMEKLAETGTGFARKVAVNYLETH 111
               SCOP domains d1te4a_ A: MTH187                                                                                               SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------HEAT_PBS-1te4A01 A:38-64   ----------------------------------------------- Pfam domains
         Sec.struct. author ........................hhhhhhhh....hhhhhhhhhh.....hhhhhhhhhh......hhhhhhhhhhhhh..hhhhhhhhhhh.....hhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------- Transcript
                 1te4 A   1 MADENKWVRRDVSTALSRMGDEAFEPLLESLSNEDWRIRGAAAWIIGNFQDERAVEPLIKLLEDDSGFVRSGAARSLEQIGGERVRAAMEKLAETGTGFARKVAVNYLETH 111
                                    10        20        30        40        50        60        70        80        90       100       110
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1TE4)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: TPR (230)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 1TE4)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1te4)

  Sites
(no "Sites" information available for 1te4)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1te4)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
