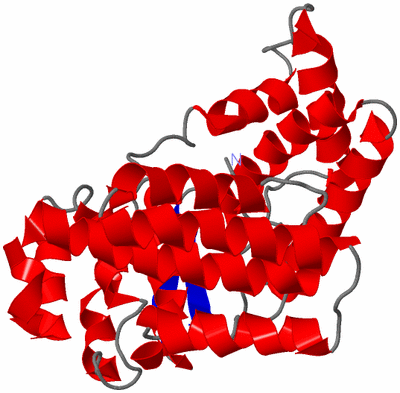

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE CONSERVED HYPOTHETICAL PROTEIN MP506/MPN330 (GI: 1674200)FROM MYCOPLASMA PNEUMONIAE

Authors :  D. Das, N. Oganesyan, H. Yokota, J. Jancarik, R. Kim, S. H. Kim, Berkeley Structural Genomics Center (Bsgc)
Date :  21 May 04  (Deposition) - 07 Dec 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Alpha Helical, Structural Genomics, Psi, Protein Structure Initiative, Berkeley Structural Genomics Center, Bsgc, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Das, N. Oganesyan, H. Yokota, R. Pufan, R. Kim, S. H. Kim
Crystal Structure Of The Conserved Hypothetical Protein Mpn330 (Gi: 1674200) From Mycoplasma Pneumoniae.
Proteins V. 58 504 2004
PubMed-ID: 15562512  |  Reference-DOI: 10.1002/PROT.20316
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN MG237 HOMOLOG
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PLIC (PET21A DERIVATIVE)
    Expression System Strain: B834
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: MPN330, MP506
    Organism Scientific: MYCOPLASMA PNEUMONIAE
    Organism Taxid: 2104
    Synonym: F10_ORF294

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1TD6)

(-) Sites  (0, 0)

(no "Site" information available for 1TD6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1TD6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1TD6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1TD6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1TD6)

(-) Exons   (0, 0)

(no "Exon" information available for 1TD6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:286
 aligned with Y330_MYCPN | P75455 from UniProtKB/Swiss-Prot  Length:294

    Alignment length:286
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
           Y330_MYCPN     5 PNQFVNHLSALKKHFASYKELREAFNDYHKHNGDELTTFFLHQFDKVMELVKQKDFKTAQSRCEEELAAPYLPKPLVSFFQSLLQLVNHDLLEQQNAALASLPAAKIIELVLQDYPNKLNMIHYLLPKTKAFVKPHLLQRLQFVLTDSELLELKRFSFFQALNQIPGFQGEQVEYFNSKLKQKFTLTLGEFEIAQQPDAKAYFEQLITQIQQLFLKEPVNAEFANEIIDAFLVSYFPLHPPVPLAQLAAKIYEYVSQIVLNEAVNLKDELIKLIVHTLYEQLDRPV 290
               SCOP domains d1td6a_ A: Hypothetical protein MPN330                                                                                                                                                                                                                                                         SCOP domains
               CATH domains 1td6A01 A:5-106 hypothetical protein mp506/mpn330, domain 1                                           1td6A02 A:107-198 hypothetical protein mp506/mpn330, domain 2                               1td6A03 A:199-290 Hypothetical protein mg237 homolog; domain 3                               CATH domains
               Pfam domains DUF3196-1td6A01 A:5-288                                                                                                                                                                                                                                                                     -- Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhh........hhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh..eeeeee....eeeeee........hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhh.......hhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1td6 A   5 PNQFVNHLSALKKHFASYKELREAFNDYHKHNGDELTTFFLHQFDKVMELVKQKDFKTAQSRCEEELAAPYLPKPLVSFFQSLLQLVNHDLLEQQNAALASLPAAKIIELVLQDYPNKLNMIHYLLPKTKAFVKPHLLQRLQFVLTDSELLELKRFSFFQALNQIPGFQGEQVEYFNSKLKQKFTLTLGEFEIAQQPDAKAYFEQLITQIQQLFLKEPVNAEFANEIIDAFLVSYFPLHPPVPLAQLAAKIYEYVSQIVLNEAVNLKDELIKLIVHTLYEQLDRPV 290
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (3, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: DUF3196] (1)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1TD6)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1td6)

  Sites
(no "Sites" information available for 1td6)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1td6)


(-) Still Images

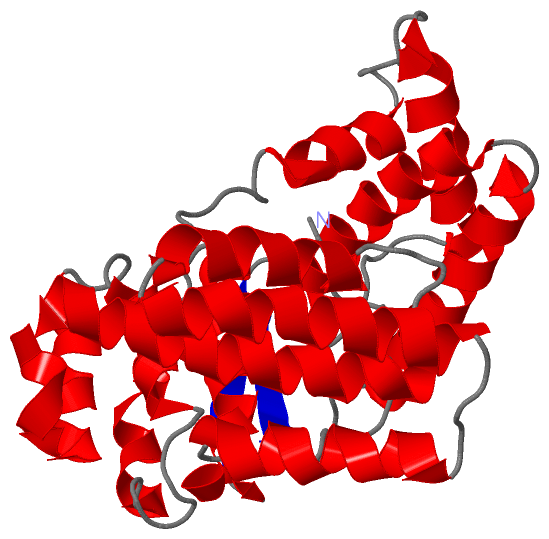

Jmol
