1TBU - JenaLib

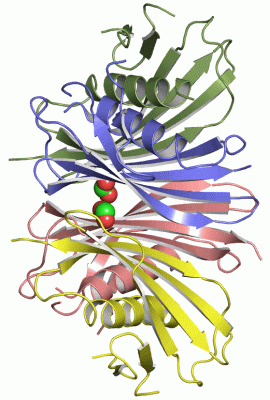

Asym./Biol. Unit - manually (Jmol Viewer)

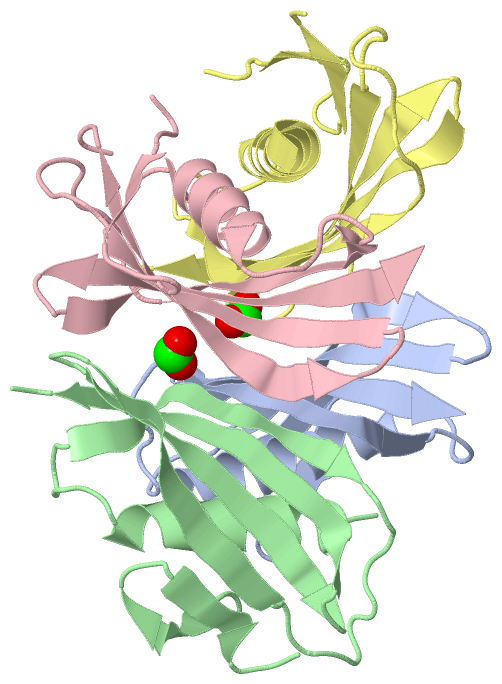

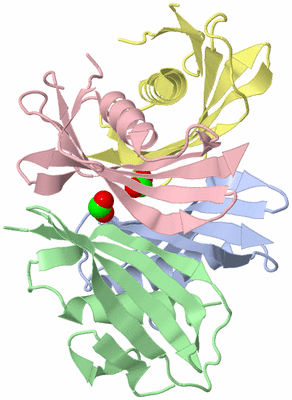

Asym./Biol. Unit (Jmol Viewer)

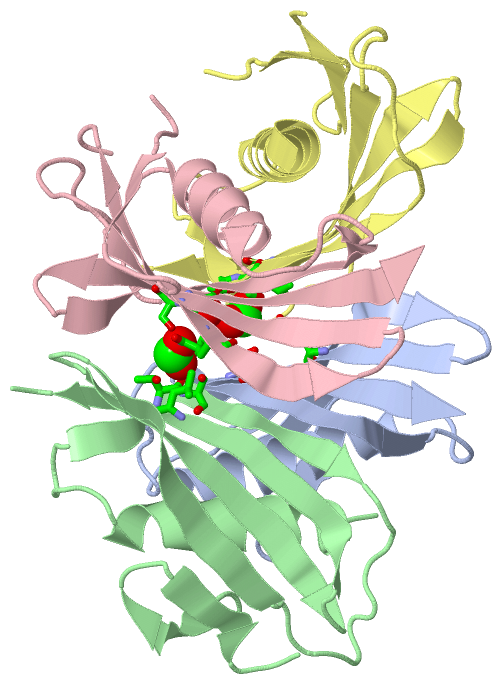

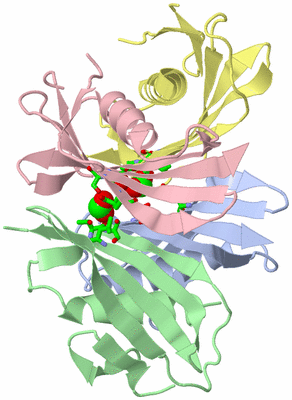

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF N-TERMINAL DOMAIN OF YEAST PEROXISOMAL THIOESTERASE-1

Authors :   Y. D. Devedjiev, J. Li, U. Derewenda, Z. S. Derewenda

Date :   20 May 04 (Deposition) - 04 Oct 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.20

Chains :   Asym./Biol. Unit : A,B,C,D

Keywords :   Yeast Peroxisomal Thioesterase; X-Ray Structure; Domain Swapping; Iodine Soak; Siras, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Y. D. Devedjiev, J. Li, U. Derewenda, Z. S. Derewenda
Crystal Structure Of N-Terminal Domain Of Yeast Peroxisomal Thioesterase-1
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - PEROXISOMAL ACYL-COENZYME A THIOESTER HYDROLASE 1
	Chains	:	A, B, C, D
	EC Number	:	3.1.2.2
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PET28
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	N-TERMINAL DOMAIN
	Gene	:	PTE1, TES1, YJR019C, J1456
	Organism Common	:	BAKER'S YEAST
	Organism Scientific	:	SACCHAROMYCES CEREVISIAE
	Organism Taxid	:	4932
	Synonym	:	PEROXISOMAL LONG-CHAIN ACYL-COA THIOESTERASE 1

		1	2	3	4
Asymmetric/Biological Unit	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 2)

No.	Name	Count	Type	Full Name
1	FMT	2	Ligand/Ion	FORMIC ACID

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	THR B:64 , SER B:65 , LEU B:113 , GLN C:85 , SER C:99 , THR C:109	BINDING SITE FOR RESIDUE FMT B 200
2	AC2	SOFTWARE	GLN A:97 , LEU A:106 , THR A:109 , THR D:64 , SER D:65 , LEU D:113 , HOH D:214	BINDING SITE FOR RESIDUE FMT D 201

(no "SS Bond" information available for 1TBU)

(no "Cis Peptide Bond" information available for 1TBU)

(no "SAP(SNP)/Variant" information available for 1TBU)

(no "PROSITE Motif" information available for 1TBU)

Asymmetric/Biological Unit (1, 4)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	YJR019C	1	YJR019C.1	X:468273-467224	1050	PTE1_YEAST	1-349	349	4	A:13-116 (gaps) B:13-118 (gaps) C:14-117 (gaps) D:14-118 (gaps)	104 106 104 105

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:96
 aligned with PTE1_YEAST | P41903 from UniProtKB/Swiss-Prot  Length:349

    Alignment length:104
                                    22        32        42        52        62        72        82        92       102       112
           PTE1_YEAST    13 KILELVPLSPTSFVTKYLPAAPVGSKGTFGGTLVSQSLLASLHTVPLNFFPTSLHSYFIKGGDPRTKITYHVQNLRNGRNFIHKQVSAYQHDKLIFTSMILFAV 116
               SCOP domains d1tbua1 A:13-116 Pe        roxisomal long-chain acyl-CoA thioesterase 1, TES1                            SCOP domains
               CATH domains 1tbuA00 A:13-116  [        code=3.10.129.10, no name defined]                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eee....eeee....--------.hhhhhhhhhhhhhhh......eeeeeeeee..........eeeeeeeee...eeeeeeeeee..eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: A:13-116 (gaps) UniProt: 1-349 [INCOMPLETE]                                               Transcript 1
                 1tbu A  13 KILELVPLSPTSFVTKYLP--------TFGGTLVSQSLLASLHTVPLNFFPTSLHSYFIKGGDPRTKITYHVQNLRNGRNFIHKQVSAYQHDKLIFTSMILFAV 116
                                    22        |-       |42        52        62        72        82        92       102       112
                                             31       40

Chain B from PDB  Type:PROTEIN  Length:98
 aligned with PTE1_YEAST | P41903 from UniProtKB/Swiss-Prot  Length:349

    Alignment length:106
                                    22        32        42        52        62        72        82        92       102       112
           PTE1_YEAST    13 KILELVPLSPTSFVTKYLPAAPVGSKGTFGGTLVSQSLLASLHTVPLNFFPTSLHSYFIKGGDPRTKITYHVQNLRNGRNFIHKQVSAYQHDKLIFTSMILFAVQR 118
               SCOP domains d1tbub_ B: Peroxis        omal long-chain acyl-CoA thioesterase 1, TES1                                    SCOP domains
               CATH domains 1tbuB00 B:13-118          [code=3.10.129.10, no name defined]                                              CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee..eeee...--------.hhhhhhhhhhhhhhhh.....eeeeeeeeee..........eeeeeeeee...eeeeeeeeee..eeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: B:13-118 (gaps) UniProt: 1-349 [INCOMPLETE]                                                 Transcript 1
                 1tbu B  13 KILELVPLSPTSFVTKYL--------GTFGGTLVSQSLLASLHTVPLNFFPTSLHSYFIKGGDPRTKITYHVQNLRNGRNFIHKQVSAYQHDKLIFTSMILFAVQR 118
                                    22       | -      | 42        52        62        72        82        92       102       112
                                            30       39

Chain C from PDB  Type:PROTEIN  Length:96
 aligned with PTE1_YEAST | P41903 from UniProtKB/Swiss-Prot  Length:349

    Alignment length:104
                                    23        33        43        53        63        73        83        93       103       113
           PTE1_YEAST    14 ILELVPLSPTSFVTKYLPAAPVGSKGTFGGTLVSQSLLASLHTVPLNFFPTSLHSYFIKGGDPRTKITYHVQNLRNGRNFIHKQVSAYQHDKLIFTSMILFAVQ 117
               SCOP domains d1tbuc_ C: Peroxis        omal long-chain acyl-CoA thioesterase 1, TES1                                  SCOP domains
               CATH domains 1tbuC00 C:14-117          [code=3.10.129.10, no name defined]                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee....eeee....--------.hhhhhhhhhhhhhhh.....eeeeeeeeee..........eeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: C:14-117 (gaps) UniProt: 1-349 [INCOMPLETE]                                               Transcript 1
                 1tbu C  14 ILELVPLSPTSFVTKYLP--------TFGGTLVSQSLLASLHTVPLNFFPTSLHSYFIKGGDPRTKITYHVQNLRNGRNFIHKQVSAYQHDKLIFTSMILFAVQ 117
                                    23       | -      | 43        53        63        73        83        93       103       113
                                            31       40

Chain D from PDB  Type:PROTEIN  Length:97
 aligned with PTE1_YEAST | P41903 from UniProtKB/Swiss-Prot  Length:349

    Alignment length:105
                                    23        33        43        53        63        73        83        93       103       113
           PTE1_YEAST    14 ILELVPLSPTSFVTKYLPAAPVGSKGTFGGTLVSQSLLASLHTVPLNFFPTSLHSYFIKGGDPRTKITYHVQNLRNGRNFIHKQVSAYQHDKLIFTSMILFAVQR 118
               SCOP domains d1tbud_ D: Peroxi        somal long-chain acyl-CoA thioesterase 1, TES1                                   SCOP domains
               CATH domains 1tbuD00 D:14-118          [code=3.10.129.10, no name defined]                                             CATH domains
           Pfam domains (1) ------Acyl_CoA_th        io-1tbuD01 D:20-118                                                              Pfam domains (1)
           Pfam domains (2) ------Acyl_CoA_th        io-1tbuD02 D:20-118                                                              Pfam domains (2)
           Pfam domains (3) ------Acyl_CoA_th        io-1tbuD03 D:20-118                                                              Pfam domains (3)
           Pfam domains (4) ------Acyl_CoA_th        io-1tbuD04 D:20-118                                                              Pfam domains (4)
         Sec.struct. author ...eee....eeee...--------hhhhhhhhhhhhhhhhh.....eeeeeeeeee..........eeeeee......eeeeeeeeee..eeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: D:14-118 (gaps) UniProt: 1-349 [INCOMPLETE]                                                Transcript 1
                 1tbu D  14 ILELVPLSPTSFVTKYL--------GTFGGTLVSQSLLASLHTVPLNFFPTSLHSYFIKGGDPRTKITYHVQNLRNGRNFIHKQVSAYQHDKLIFTSMILFAVQR 118
                                    23      |  -     |  43        53        63        73        83        93       103       113
                                           30       39

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Thioesterase/thiol ester dehydrase-isomerase (151)

Superfamily: Thioesterase/thiol ester dehydrase-isomerase (151)

Family: Acyl-CoA thioesterase (2)

Protein domain: Peroxisomal long-chain acyl-CoA thioesterase 1, TES1 (1)

Baker's yeast (Saccharomyces cerevisiae) [TaxId: 4932] (1)

1a	d1tbua1	A:13-116
1b	d1tbub_	B:
1c	d1tbuc_	C:
1d	d1tbud_	D:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Thiol Ester Dehydrase; Chain A (90)

Homologous Superfamily: [code=3.10.129.10, no name defined] (90)

Baker's yeast (Saccharomyces cerevisiae) (1)

1a	1tbuB00	B:13-118
1b	1tbuD00	D:14-118
1c	1tbuA00	A:13-116
1d	1tbuC00	C:14-117

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: HotDog (52)

Family: Acyl_CoA_thio (1)

Saccharomyces cerevisiae (strain ATCC 204508 / S288c) (Bakers yeast) (1)

1a	Acyl_CoA_thio-1tbuD01	D:20-118
1b	Acyl_CoA_thio-1tbuD02	D:20-118
1c	Acyl_CoA_thio-1tbuD03	D:20-118
1d	Acyl_CoA_thio-1tbuD04	D:20-118

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D (PTE1_YEAST | P41903)

molecular function
	GO:0047617	acyl-CoA hydrolase activity	Catalysis of the reaction: acyl-CoA + H2O = CoA + a carboxylate.
	GO:0052689	carboxylic ester hydrolase activity	Catalysis of the hydrolysis of a carboxylic ester bond.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0016290	palmitoyl-CoA hydrolase activity	Catalysis of the reaction: palmitoyl-CoA + H2O = CoA + palmitate.
biological process
	GO:0006637	acyl-CoA metabolic process	The chemical reactions and pathways involving acyl-CoA, any derivative of coenzyme A in which the sulfhydryl group is in thiolester linkage with an acyl group.
	GO:0006635	fatty acid beta-oxidation	A fatty acid oxidation process that results in the complete oxidation of a long-chain fatty acid. Fatty acid beta-oxidation begins with the addition of coenzyme A to a fatty acid, and occurs by successive cycles of reactions during each of which the fatty acid is shortened by a two-carbon fragment removed as acetyl coenzyme A; the cycle continues until only two or three carbons remain (as acetyl-CoA or propionyl-CoA respectively).
	GO:0019395	fatty acid oxidation	The removal of one or more electrons from a fatty acid, with or without the concomitant removal of a proton or protons, by reaction with an electron-accepting substance, by addition of oxygen or by removal of hydrogen.
cellular component
	GO:0005777	peroxisome	A small organelle enclosed by a single membrane, and found in most eukaryotic cells. Contains peroxidases and other enzymes involved in a variety of metabolic processes including free radical detoxification, lipid catabolism and biosynthesis, and hydrogen peroxide metabolism.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FMT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1tbu)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1tbu
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PTE1_YEAST \| P41903
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.1.2.2
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PTE1_YEAST \| P41903
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1TBU)

1c8u	BACTERIAL ISOFORM OF THE SAME ENZYME

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (1, 4)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (8, 8)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
