1T82 - JenaLib

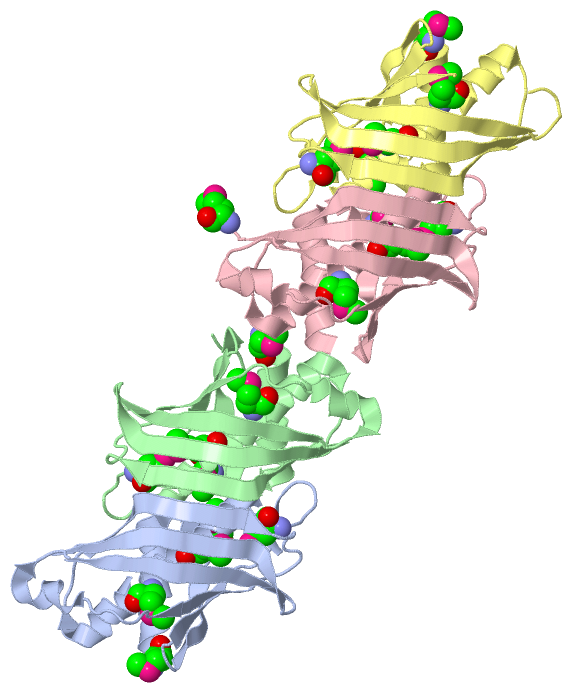

Asymmetric Unit (Jmol Viewer)

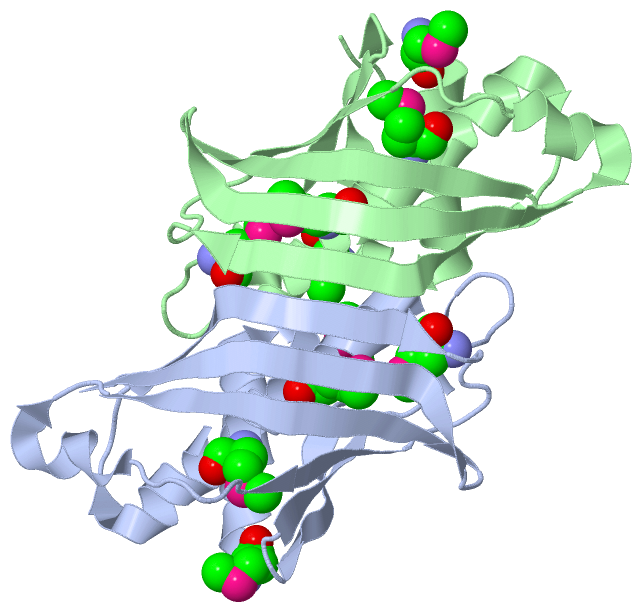

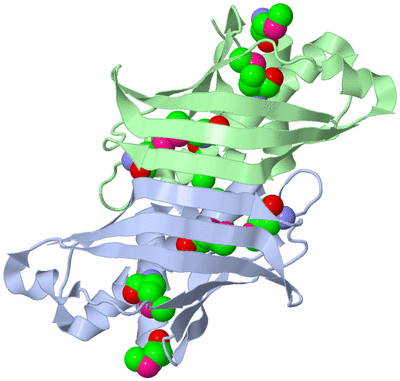

Biological Unit 1 (Jmol Viewer)

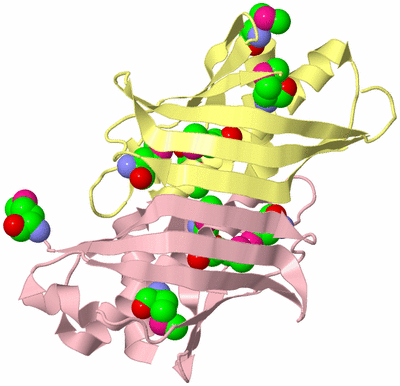

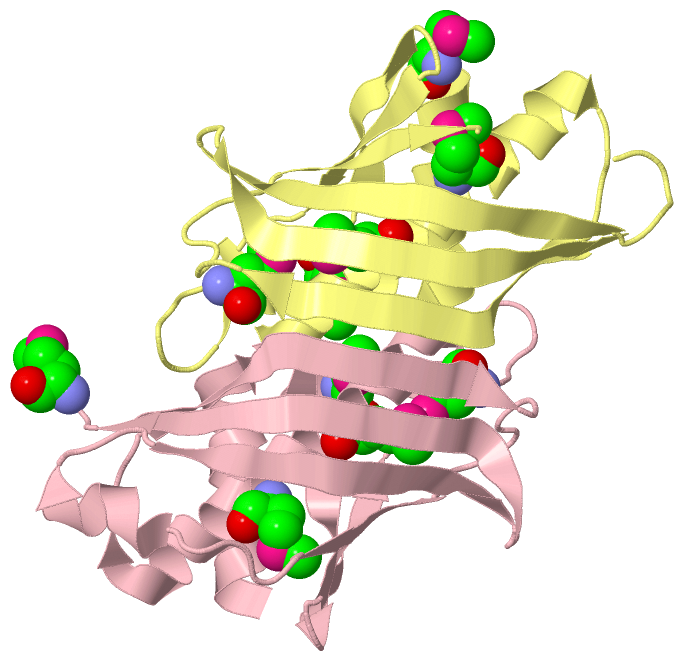

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE PUTATIVE THIOESTERASE FROM SHEWANELLA ONEIDENSIS, NORTHEAST STRUCTURAL GENOMICS TARGET SOR51

Authors :   F. Forouhar, I. Lee, S. M. Vorobiev, R. Xiao, T. B. Acton, G. T. Montelion J. F. Hunt, L. Tong, Northeast Structural Genomics Consortium (N

Date :   11 May 04 (Deposition) - 18 May 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.70

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)

Keywords :   Structural Genomics, Alpha-Beta Dimeric Protein With A Fold Resembling A Hotdog, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. Forouhar, I. Lee, S. M. Vorobiev, R. Xiao, T. B. Acton, G. T. Montelione, J. F. Hunt, L. Tong
Crystal Structure Of The Putative Thioesterase From Shewanella Oneidensis, Northeast Structural Genomics Target Sor51
To Be Published
PubMed: search

Molecule 1 - HYPOTHETICAL ACETYLTRANSFERASE
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21
	Expression System Plasmid	:	BL21(DE3)+MAGIC
	Expression System Strain	:	BL21
	Expression System Taxid	:	511693
	Expression System Vector	:	PET21
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	SHEWANELLA ONEIDENSIS
	Organism Taxid	:	211586
	Strain	:	MR-1

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 20)

No.	Name	Count	Type	Full Name
1	MSE	20	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (1, 10)

No.	Name	Count	Type	Full Name
1	MSE	10	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 2 (1, 10)

No.	Name	Count	Type	Full Name
1	MSE	10	Mod. Amino Acid	SELENOMETHIONINE

(no "Site" information available for 1T82)

(no "SS Bond" information available for 1T82)

(no "Cis Peptide Bond" information available for 1T82)

(no "SAP(SNP)/Variant" information available for 1T82)

(no "PROSITE Motif" information available for 1T82)

(no "Exon" information available for 1T82)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:143
 aligned with Q8E989_SHEON | Q8E989 from UniProtKB/TrEMBL  Length:145

    Alignment length:143
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q8E989_SHEON     1 MDELLNRLRQTWHSTIPVSEFMQIAPLSFTDGELSVSAPLAPNINLHHTMFAGSIYTIMTLTGWGMVWLQQQLLNVDGDIVLADAHIRYLAPVTSAPEVKVRWPDTNLSPLQRGRKAKVKLEVQLFCDGKLCAQFDGLYVSVP 143
               SCOP domains d1t82a_ A: Putative thioesterase SO4397                                                                                                         SCOP domains
               CATH domains -1t82A00 A:2-143  [code=3.10.129.10, no name defined]                                                                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh..eeeeee..eeeee..hhhhh......hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee........eeeee.....hhhhhhh..eeeeeeeeeee..eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1t82 A   1 mDELLNRLRQTWHSTIPVSEFmQIAPLSFTDGELSVSAPLAPNINLHHTmFAGSIYTImTLTGWGmVWLQQQLLNVDGDIVLADAHIRYLAPVTSAPEVKVRWPDTNLSPLQRGRKAKVKLEVQLFCDGKLCAQFDGLYVSVP 143
                            |       10        20 |      30        40        50        60     |  70        80        90       100       110       120       130       140
                            |                   22-MSE                      50-MSE   59-MSE 66-MSE
                            1-MSE

Chain B from PDB  Type:PROTEIN  Length:147
 aligned with Q8E989_SHEON | Q8E989 from UniProtKB/TrEMBL  Length:145

    Alignment length:147
                                1
                                |    6        16        26        36        46        56        66        76        86        96       106       116       126       136
         Q8E989_SHEON     - ----MDELLNRLRQTWHSTIPVSEFMQIAPLSFTDGELSVSAPLAPNINLHHTMFAGSIYTIMTLTGWGMVWLQQQLLNVDGDIVLADAHIRYLAPVTSAPEVKVRWPDTNLSPLQRGRKAKVKLEVQLFCDGKLCAQFDGLYVSVP 143
               SCOP domains d1t82b_ B: Putative thioesterase SO4397                                                                                                             SCOP domains
               CATH domains 1t82B00 B:-5-143  [code=3.10.129.10, no name defined]                                                                                               CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhh..eeeeee..eeeee..hhhhh......hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee........eeeee.....hhhhhhh..eeeeeeeeeee..eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1t82 B  -5 HHHHmDELLNRLRQTWHSTIPVSEFmQIAPLSFTDGELSVSAPLAPNINLHHTmFAGSIYTImTLTGWGmVWLQQQLLNVDGDIVLADAHIRYLAPVTSAPEVKVRWPDTNLSPLQRGRKAKVKLEVQLFCDGKLCAQFDGLYVSVP 143
                               ||    6        16     |  26        36        46   |    56  |     66        76        86        96       106       116       126       136
                              -2|                   22-MSE                      50-MSE   59-MSE 66-MSE
                                1-MSE

Chain C from PDB  Type:PROTEIN  Length:144
 aligned with Q8E989_SHEON | Q8E989 from UniProtKB/TrEMBL  Length:145

    Alignment length:144
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
         Q8E989_SHEON     2 DELLNRLRQTWHSTIPVSEFMQIAPLSFTDGELSVSAPLAPNINLHHTMFAGSIYTIMTLTGWGMVWLQQQLLNVDGDIVLADAHIRYLAPVTSAPEVKVRWPDTNLSPLQRGRKAKVKLEVQLFCDGKLCAQFDGLYVSVPKM 145
               SCOP domains d1t82c_ C: Putative thioesterase SO4397                                                                                                          SCOP domains
               CATH domains 1t82C00 C:2-144  [code=3.10.129.10, no name defined]                                                                                           - CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhh..eeeeee..eeeee..hhhhh......hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeee........eeeee.....hhhhhh...eeeeeeeeeee..eeeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1t82 C   2 DELLNRLRQTWHSTIPVSEFmQIAPLSFTDGELSVSAPLAPNINLHHTmFAGSIYTImTLTGWGmVWLQQQLLNVDGDIVLADAHIRYLAPVTSAPEVKVRWPDTNLSPLQRGRKAKVKLEVQLFCDGKLCAQFDGLYVSVPKm 145
                                    11        21|       31        41        51       |61    |   71        81        91       101       111       121       131       141   |
                                               22-MSE                      50-MSE   59-MSE 66-MSE                                                                        145-MSE

Chain D from PDB  Type:PROTEIN  Length:136
 aligned with Q8E989_SHEON | Q8E989 from UniProtKB/TrEMBL  Length:145

    Alignment length:143
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
         Q8E989_SHEON     1 MDELLNRLRQTWHSTIPVSEFMQIAPLSFTDGELSVSAPLAPNINLHHTMFAGSIYTIMTLTGWGMVWLQQQLLNVDGDIVLADAHIRYLAPVTSAPEVKVRWPDTNLSPLQRGRKAKVKLEVQLFCDGKLCAQFDGLYVSVP 143
               SCOP domains d1t82d_ D: Putative thioesterase SO4397                                                                                                         SCOP domains
               CATH domains -1t82D00 D:2-143  [code=3.10.129.10, no name defined]                                                                                           CATH domains
           Pfam domains (1) ----YiiD_Cterm-1t82D01 D:5-143                                                                                                                  Pfam domains (1)
           Pfam domains (2) ----YiiD_Cterm-1t82D02 D:5-143                                                                                                                  Pfam domains (2)
           Pfam domains (3) ----YiiD_Cterm-1t82D03 D:5-143                                                                                                                  Pfam domains (3)
           Pfam domains (4) ----YiiD_Cterm-1t82D04 D:5-143                                                                                                                  Pfam domains (4)
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh..eeeeee..eeeee..hhhhh......hhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeeeee........eeeee..-------.....eeeeeeeeeee..eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1t82 D   1 mDELLNRLRQTWHSTIPVSEFmQIAPLSFTDGELSVSAPLAPNINLHHTmFAGSIYTImTLTGWGmVWLQQQLLNVDGDIVLADAHIRYLAPVTSAPEVKVRWP-------QRGRKAKVKLEVQLFCDGKLCAQFDGLYVSVP 143
                            |       10        20 |      30        40        50        60     |  70        80        90       100   |     - |     120       130       140
                            |                   22-MSE                      50-MSE   59-MSE 66-MSE                               104     112
                            1-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Thioesterase/thiol ester dehydrase-isomerase (151)

Superfamily: Thioesterase/thiol ester dehydrase-isomerase (151)

Family: PaaI/YdiI-like (44)

Protein domain: Putative thioesterase SO4397 (1)

Shewanella oneidensis [TaxId: 70863] (1)

1a	d1t82a_	A:
1b	d1t82b_	B:
1c	d1t82c_	C:
1d	d1t82d_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Thiol Ester Dehydrase; Chain A (90)

Homologous Superfamily: [code=3.10.129.10, no name defined] (90)

Shewanella oneidensis mr-1. Organism_taxid: 211586. Strain: mr-1. (1)

1a	1t82A00	A:2-143
1b	1t82C00	C:2-144
1c	1t82B00	B:-5-143
1d	1t82D00	D:2-143

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: HotDog (52)

Family: YiiD_Cterm (1)

Shewanella oneidensis (1)

1a	YiiD_Cterm-1t82D01	D:5-143
1b	YiiD_Cterm-1t82D02	D:5-143
1c	YiiD_Cterm-1t82D03	D:5-143
1d	YiiD_Cterm-1t82D04	D:5-143

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (Q8E989_SHEON | Q8E989)

molecular function
	GO:0003674	molecular_function	Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
	GO:0008150	biological_process	Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
	GO:0005575	cellular_component	The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 1t82)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1t82)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1t82
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Q8E989_SHEON \| Q8E989
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Q8E989_SHEON \| Q8E989
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1T82)

(no "Related Entries Specified in the PDB File" available for 1T82)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 20)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (3, 3)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
