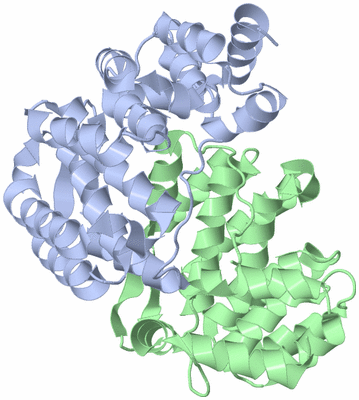

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  1.9 A CRYSTAL STRUCTURE OF A PROTEIN OF UNKNOWN FUNCTION FROM BACILLUS CEREUS ATCC 14579

Authors :  R. Zhang, R. Wu, S. Moy, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
Date :  07 Apr 04  (Deposition) - 03 Aug 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Hypothetical Protein, Bacillus Cereus, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, R. Wu, S. Moy, A. Joachimiak
1. 9A Crystal Structure Of A Hypothetical Protein From Bacillus Cereus Atcc 14579
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN
    Atcc: 14579
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PDM68
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: BACILLUS CEREUS
    Organism Taxid: 1396

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1T06)

(-) Sites  (0, 0)

(no "Site" information available for 1T06)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1T06)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Glu A:29 -Pro A:30
2Glu B:29 -Pro B:30

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1T06)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1T06)

(-) Exons   (0, 0)

(no "Exon" information available for 1T06)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:235
 aligned with Q81BA8_BACCR | Q81BA8 from UniProtKB/TrEMBL  Length:235

    Alignment length:235
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
         Q81BA8_BACCR     1 MDFKTVMQELEALGKERTKKIYISNGAHEPVFGVATGAMKPIAKKIKLNQELAEELYATGNYDAMYFAGIIADPKAMSESDFDRWIDGAYFYMLSDYVVAVTLSESNIAQDVADKWIASGDELKMSAGWSCYCWLLGNRKDNAFSESKISDMLEMVKDTIHHSPERTKSAMNNFLNTVAISYVPLHEKAVEIAKEVGIVEVKRDNKKSSLLNASESIQKELDRGRLGFKRKYVRC 235
               SCOP domains d1t06a_ A: Hypothetical protein BC3264                                                                                                                                                                                                      SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhh...hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh...hhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhheeeeee..eeeeeeehhhhhhhhhhh............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1t06 A   1 MDFKTVMQELEALGKERTKKIYISNGAHEPVFGVATGAMKPIAKKIKLNQELAEELYATGNYDAMYFAGIIADPKAMSESDFDRWIDGAYFYMLSDYVVAVTLSESNIAQDVADKWIASGDELKMSAGWSCYCWLLGNRKDNAFSESKISDMLEMVKDTIHHSPERTKSAMNNFLNTVAISYVPLHEKAVEIAKEVGIVEVKRDNKKSSLLNASESIQKELDRGRLGFKRKYVRC 235
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230


Chain B from PDB  Type:PROTEIN  Length:235
 aligned with Q81BA8_BACCR | Q81BA8 from UniProtKB/TrEMBL  Length:235

    Alignment length:235
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
         Q81BA8_BACCR     1 MDFKTVMQELEALGKERTKKIYISNGAHEPVFGVATGAMKPIAKKIKLNQELAEELYATGNYDAMYFAGIIADPKAMSESDFDRWIDGAYFYMLSDYVVAVTLSESNIAQDVADKWIASGDELKMSAGWSCYCWLLGNRKDNAFSESKISDMLEMVKDTIHHSPERTKSAMNNFLNTVAISYVPLHEKAVEIAKEVGIVEVKRDNKKSSLLNASESIQKELDRGRLGFKRKYVRC 235
               SCOP domains d1t06b_ B: Hypothetical protein BC3264                                                                                                                                                                                                      SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----DNA_alkylation-1t06B01 B:6-217                                                                                                                                                                                      ------------------ Pfam domains (1)
           Pfam domains (2) -----DNA_alkylation-1t06B02 B:6-217                                                                                                                                                                                      ------------------ Pfam domains (2)
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhh.....hhhhhhhhhhhh.hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh.eeeee..eeeeeehhhhhhhhhhhh............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1t06 B   1 MDFKTVMQELEALGKERTKKIYISNGAHEPVFGVATGAMKPIAKKIKLNQELAEELYATGNYDAMYFAGIIADPKAMSESDFDRWIDGAYFYMLSDYVVAVTLSESNIAQDVADKWIASGDELKMSAGWSCYCWLLGNRKDNAFSESKISDMLEMVKDTIHHSPERTKSAMNNFLNTVAISYVPLHEKAVEIAKEVGIVEVKRDNKKSSLLNASESIQKELDRGRLGFKRKYVRC 235
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1T06)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: TPR (230)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1T06)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1t06)

  Sites
(no "Sites" information available for 1t06)

  Cis Peptide Bonds
    Glu A:29 - Pro A:30   [ RasMol ]
    Glu B:29 - Pro B:30   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

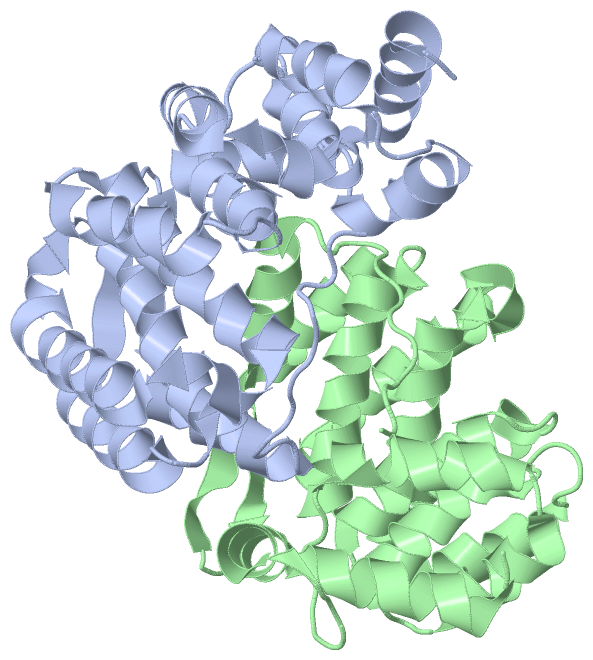

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
