1SUX - JenaLib

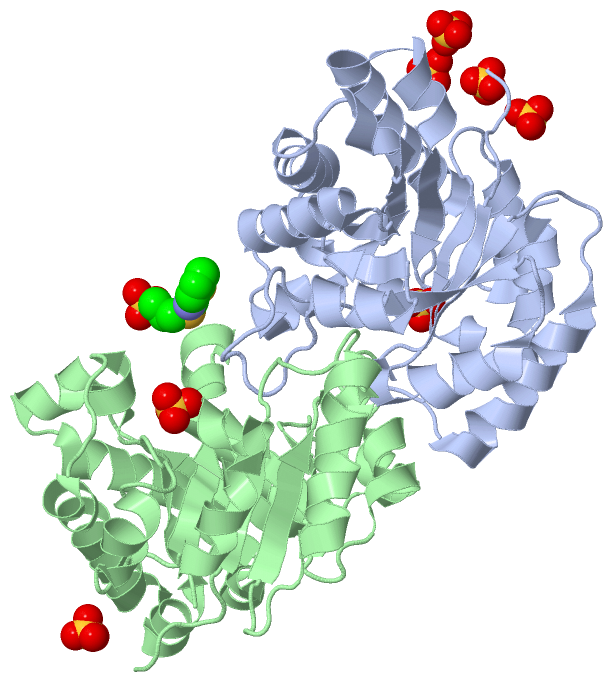

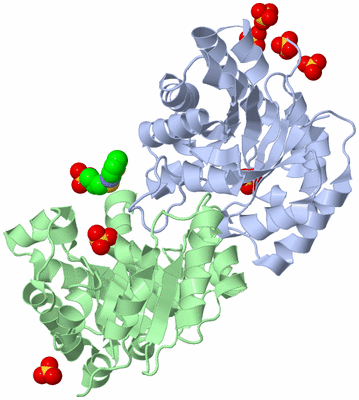

Asym./Biol. Unit (Jmol Viewer)

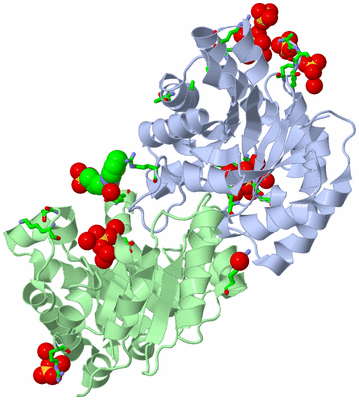

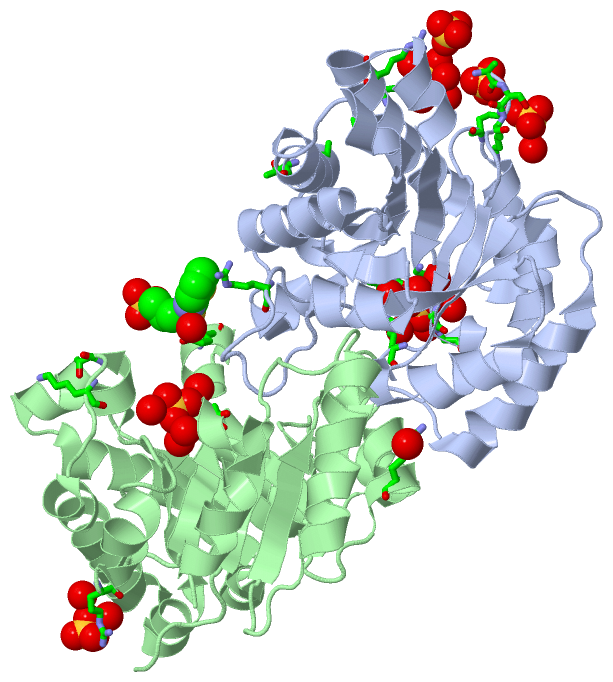

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CRYSTALLOGRAPHIC ANALYSIS OF THE COMPLEX BETWEEN TRIOSEPHOSPHATE ISOMERASE FROM TRYPANOSOMA CRUZI AND 3-(2-BENZOTHIAZOLYLTHIO)-1-PROPANESULFONIC ACID

Authors :   A. Tellez-Valencia, V. Olivares-Illana, A. Hernandez-Santoyo, R. Perez-Montfort, M. Costas, A. Rodriguez-Romero, M. Tuena De Gomez-Puyou, A. Gomez-Puyou

Date :   26 Mar 04 (Deposition) - 24 Aug 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym./Biol. Unit : A,B

Keywords :   Triosephosphate Isomerase, Trypanosoma Cruzi, Protein Interfaces, Benzothiazole Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Tellez-Valencia, V. Olivares-Illana, A. Hernandez-Santoyo, R. Perez-Montfort, M. Costas, A. Rodriguez-Romero, F. Lopez-Calahorra, M. Tuena De Gomez-Puyou, A. Gomez-Puyou
Inactivation Of Triosephosphate Isomerase From Trypanosoma Cruzi By An Agent That Perturbs Its Dimer Interface.
J. Mol. Biol. V. 341 1355 2004
PubMed-ID: 15321726 | Reference-DOI: 10.1016/J.JMB.2004.06.056
(for further references see the PDB file header)

Molecule 1 - TRIOSEPHOSPHATE ISOMERASE, GLYCOSOMAL
	Chains	:	A, B
	EC Number	:	5.3.1.1
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Cellular Location	:	CYTOPLASM
	Expression System Plasmid	:	PET23A
	Expression System Strain	:	BL23(DE3)
	Expression System Taxid	:	562
	Expression System Vector	:	PLASMID
	Organism Scientific	:	TRYPANOSOMA CRUZI
	Organism Taxid	:	5693
	Strain	:	MEXICAN NINOA STRAIN
	Synonym	:	TIM

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 8)

No.	Name	Count	Type	Full Name
1	BTS	1	Ligand/Ion	3-(2-BENZOTHIAZOLYLTHIO)-1-PROPANESULFONIC ACID
2	SO4	7	Ligand/Ion	SULFATE ION

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG A:193 , HOH A:592 , HOH A:594 , HOH A:633 , HOH A:635 , THR B:175 , LYS B:177	BINDING SITE FOR RESIDUE SO4 A 501
2	AC2	SOFTWARE	SER A:3 , LYS A:4 , ARG A:227 , HOH A:613	BINDING SITE FOR RESIDUE SO4 A 502
3	AC3	SOFTWARE	ALA A:2 , ARG A:227	BINDING SITE FOR RESIDUE SO4 A 503
4	AC4	SOFTWARE	LYS A:14 , ALA A:172 , ILE A:173 , GLY A:174 , GLY A:213 , SER A:214 , GLY A:235 , GLY A:236 , HOH A:526 , HOH A:527 , HOH A:529 , HOH A:530 , HOH A:588 , HOH A:590	BINDING SITE FOR RESIDUE SO4 A 504
5	AC5	SOFTWARE	GLY B:235 , GLY B:236 , HOH B:514 , HOH B:535 , HOH B:564 , HOH B:658	BINDING SITE FOR RESIDUE SO4 B 505
6	AC6	SOFTWARE	ARG A:196 , LYS B:177	BINDING SITE FOR RESIDUE SO4 A 506
7	AC7	SOFTWARE	ARG B:55 , ARG B:227 , HOH B:576 , HOH B:606 , HOH B:627	BINDING SITE FOR RESIDUE SO4 B 507
8	AC8	SOFTWARE	ARG A:71 , ALA A:141 , THR A:146 , LEU A:190 , TYR B:102 , HOH B:590	BINDING SITE FOR RESIDUE BTS B 401

(no "SS Bond" information available for 1SUX)

(no "Cis Peptide Bond" information available for 1SUX)

(no "SAP(SNP)/Variant" information available for 1SUX)

Asymmetric/Biological Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TIM_2	PS51440	Triosephosphate isomerase (TIM) family profile.	TPIS_TRYCR	6-249	2	A:6-249 B:6-249
2	TIM_1	PS00171	Triosephosphate isomerase active site.	TPIS_TRYCR	166-176	2	A:166-176 B:166-176

(no "Exon" information available for 1SUX)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:250
 aligned with TPIS_TRYCR | P52270 from UniProtKB/Swiss-Prot  Length:251

    Alignment length:250
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251
           TPIS_TRYCR     2 ASKPQPIAAANWKCNGSESLLVPLIETLNAATFDHDVQCVVAPTFLHIPMTKARLTNPKFQIAAQNAITRSGAFTGEVSLQILKDYGISWVVLGHSERRLYYGETNEIVAEKVAQACAAGFHVIVCVGETNEEREAGRTAAVVLTQLAAVAQKLSKEAWSRVVIAYEPVWAIGTGKVATPQQAQEVHELLRRWVRSKLGTDIAAQLRILYGGSVTAKNARTLYQMRDINGFLVGGASLKPEFVEIIEATK 251
               SCOP domains d1suxa_ A: Triosephosphate isomerase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1suxA00 A:2-251 Aldolase class I                                                                                                                                                                                                                           CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeee.....hhhhhhhhhhhhhhh......eeeee.hhhhhhhhhhhh....eeeee..............hhhhhhhh...eeee.hhhhhhhh..hhhhhhhhhhhhhhh..eeeeee..hhhhhhh.hhhhhhhhhhhhhhh...hhhhh.eeeee.hhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhheeeee...hhhhhhhhhh.....eeeehhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----TIM_2  PDB: A:6-249 UniProt: 6-249                                                                                                                                                                                                                  -- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      --------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1sux A   2 ASKPQPIAAANWKCNGSESLLVPLIETLNAATFDHDVQCVVAPTFLHIPMTKARLTNPKFQIAAQNAITRSGAFTGEVSLQILKDYGISWVVLGHSERRLYYGETNEIVAEKVAQACAAGFHVIVCVGETNEEREAGRTAAVVLTQLAAVAQKLSKEAWSRVVIAYEPVWAIGTGKVATPQQAQEVHELLRRWVRSKLGTDIAAQLRILYGGSVTAKNARTLYQMRDINGFLVGGASLKPEFVEIIEATK 251
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251

Chain B from PDB  Type:PROTEIN  Length:250
 aligned with TPIS_TRYCR | P52270 from UniProtKB/Swiss-Prot  Length:251

    Alignment length:250
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251
           TPIS_TRYCR     2 ASKPQPIAAANWKCNGSESLLVPLIETLNAATFDHDVQCVVAPTFLHIPMTKARLTNPKFQIAAQNAITRSGAFTGEVSLQILKDYGISWVVLGHSERRLYYGETNEIVAEKVAQACAAGFHVIVCVGETNEEREAGRTAAVVLTQLAAVAQKLSKEAWSRVVIAYEPVWAIGTGKVATPQQAQEVHELLRRWVRSKLGTDIAAQLRILYGGSVTAKNARTLYQMRDINGFLVGGASLKPEFVEIIEATK 251
               SCOP domains d1suxb_ B: Triosephosphate isomerase                                                                                                                                                                                                                       SCOP domains
               CATH domains 1suxB00 B:2-251 Aldolase class I                                                                                                                                                                                                                           CATH domains
           Pfam domains (1) -----TIM-1suxB01 B:7-247                                                                                                                                                                                                                              ---- Pfam domains (1)
           Pfam domains (2) -----TIM-1suxB02 B:7-247                                                                                                                                                                                                                              ---- Pfam domains (2)
         Sec.struct. author ......eeeee.....hhhhhhhhhhhhhhh......eeeee.hhhhhhhhhhhh....eeeee..............hhhhhhhhh..eeee.hhhhhhhh..hhhhhhhhhhhhhhh..eeeeee..hhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh.eeeee.hhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh.eee.......hhhhhhh.....eeeehhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----TIM_2  PDB: B:6-249 UniProt: 6-249                                                                                                                                                                                                                  -- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      --------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1sux B   2 ASKPQPIAAANWKCNGSESLLVPLIETLNAATFDHDVQCVVAPTFLHIPMTKARLTNPKFQIAAQNAITRSGAFTGEVSLQILKDYGISWVVLGHSERRLYYGETNEIVAEKVAQACAAGFHVIVCVGETNEEREAGRTAAVVLTQLAAVAQKLSKEAWSRVVIAYEPVWAIGTGKVATPQQAQEVHELLRRWVRSKLGTDIAAQLRILYGGSVTAKNARTLYQMRDINGFLVGGASLKPEFVEIIEATK 251
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: TIM beta/alpha-barrel (3956)

Superfamily: Triosephosphate isomerase (TIM) (148)

Family: Triosephosphate isomerase (TIM) (128)

Protein domain: Triosephosphate isomerase (126)

Trypanosoma cruzi [TaxId: 5693] (5)

1a	d1suxa_	A:
1b	d1suxb_	B:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Alpha-Beta Barrel (2994)

Topology: TIM Barrel (2806)

Homologous Superfamily: Aldolase class I (887)

Trypanosoma cruzi. Organism_taxid: 5693. Strain: mexican ninoa strain. (3)

1a	1suxA00	A:2-251
1b	1suxB00	B:2-251

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: TIM_barrel (694)

Family: TIM (80)

Trypanosoma cruzi (3)

1a	TIM-1suxB01	B:7-247
1b	TIM-1suxB02	B:7-247

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (TPIS_TRYCR | P52270)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0004807	triose-phosphate isomerase activity	Catalysis of the reaction: D-glyceraldehyde 3-phosphate = glycerone phosphate.
biological process
	GO:0006094	gluconeogenesis	The formation of glucose from noncarbohydrate precursors, such as pyruvate, amino acids and glycerol.
	GO:0006096	glycolytic process	The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
	GO:0006098	pentose-phosphate shunt	The glucose-6-phosphate catabolic process in which, coupled to NADPH synthesis, glucose-6-P is oxidized with the formation of carbon dioxide (CO2) and ribulose 5-phosphate; ribulose 5-P then enters a series of reactions interconverting sugar phosphates. The pentose phosphate pathway is a major source of reducing equivalents for biosynthesis reactions and is also important for the conversion of hexoses to pentoses.
cellular component
	GO:0020015	glycosome	A membrane-bounded organelle found in organisms from the order Kinetoplastida that houses the enzymes of glycolysis.
	GO:0005777	peroxisome	A small organelle enclosed by a single membrane, and found in most eukaryotic cells. Contains peroxidases and other enzymes involved in a variety of metabolic processes including free radical detoxification, lipid catabolism and biosynthesis, and hydrogen peroxide metabolism.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		BTS	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1sux)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1sux
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	TPIS_TRYCR \| P52270
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	5.3.1.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	TPIS_TRYCR \| P52270
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	TPIS_TRYCR \| P52270	:	1ci1 1tcd 2oma 2v5b 3q37 4hhp
