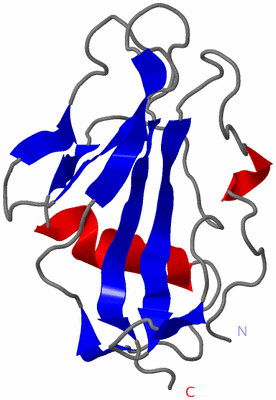

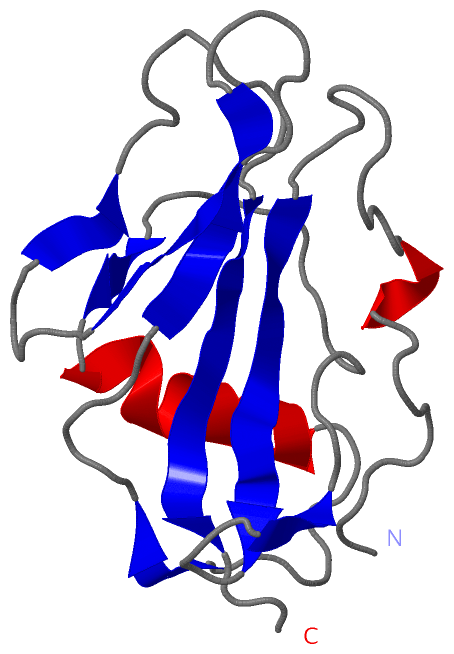

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

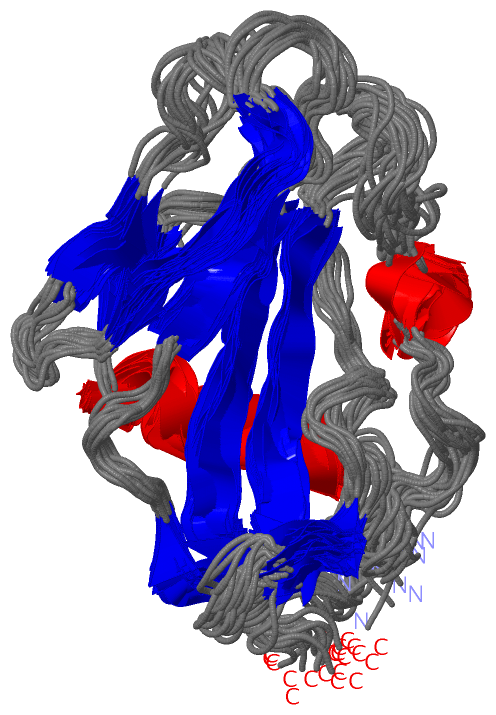

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STAPHYLOKINASE, SAKSTAR VARIANT, NMR, 20 STRUCTURES

Authors :  O. Ohlenschlager, R. Ramachandran, K. H. Guhrs, B. Schlott, L. R. Brown
Date :  07 Jun 98  (Deposition) - 02 Dec 98  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Hydrolase, Staphylokinase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  O. Ohlenschlager, R. Ramachandran, K. H. Guhrs, B. Schlott, L. R. Brown
Nuclear Magnetic Resonance Solution Structure Of The Plasminogen-Activator Protein Staphylokinase.
Biochemistry V. 37 10635 1998
PubMed-ID: 9692953  |  Reference-DOI: 10.1021/BI980673I
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - STAPHYLOKINASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: TAQ PROMOTOR
    Expression System Plasmid: PMEX602SAKB
    Expression System Strain: TG1
    Expression System Taxid: 562
    Gene: TAQ PROMOTOR
    Mutation: YES
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Synonym: SAK

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1SSN)

(-) Sites  (0, 0)

(no "Site" information available for 1SSN)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SSN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SSN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SSN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1SSN)

(-) Exons   (0, 0)

(no "Exon" information available for 1SSN)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:136
 aligned with SAK_STAAU | P68802 from UniProtKB/Swiss-Prot  Length:163

    Alignment length:136
                                    37        47        57        67        77        87        97       107       117       127       137       147       157
            SAK_STAAU    28 SSSFDKGKYKKGDDASYFEPTGPYLMVNVTGVDGKGNELLSPHYVEFPIKPGTTLTKEKIEYYVEWALDATAYKEFRVVELDPSAKIEVTYYDKNKKKEETKSFPITEKGFVVPDLSEHIKNPGFNLITKVVIEKK 163
               SCOP domains d1ssna_ A: Staphylokinase                                                                                                                SCOP domains
               CATH domains 1ssnA00 A:1-136  [code=3.10.20.130, no name defined]                                                                                     CATH domains
               Pfam domains -------------Staphylokinase-1ssnA01 A:14-136                                                                                             Pfam domains
         Sec.struct. author .........hhh...........eeeeeeeee....eee.............eee.hhhhhhhhhhhhh........eee......eeee.......eeeeeee......eee..........eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ssn A   1 SSSFDKGKYKKGDDASYFEPTGPYLMVNVTGVDSKGNELLSPHYVEFPIKPGTTLTKEKIEYYVEWALDATAYKEFRVVELDPSAKIEVTYYDKNKKKEETKSFPITEKGFVVPDLSEHIKNPGFNLITKVVIEKK 136
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: Staphylokinase] (5)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (SAK_STAAU | P68802)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0031639    plasminogen activation    The process in which inactive plasminogen is processed to active plasmin. This process includes cleavage at an internal Arg-Val site to form an N-terminal A-chain and C-terminal B-chain held together by a disulfide bond, and can include further proteolytic cleavage events to remove the preactivation peptide.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ssn)

  Sites
(no "Sites" information available for 1ssn)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ssn)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ssn
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SAK_STAAU | P68802
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SAK_STAAU | P68802
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SAK_STAAU | P68802: 1c76 1c77 1c78 1c79 2sak
