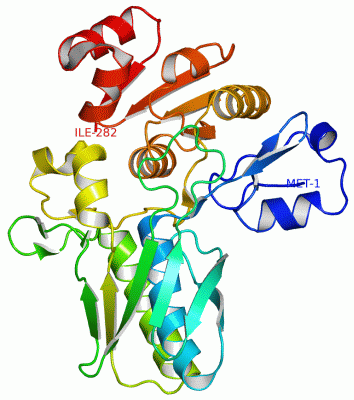

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

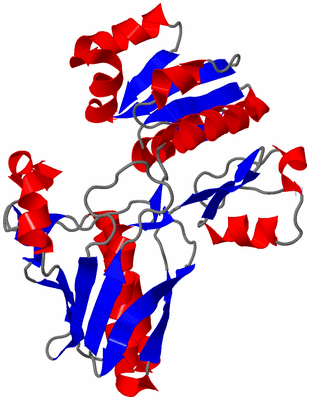

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURAL GENOMICS, 1.9A CRYSTAL STRUCTURE OF COBALAMIN BIOSYNTHESIS PROTEIN (CBID) FROM ARCHAEOGLOBUS FULGIDUS

Authors :  R. Zhang, T. Skarina, A. Savchenko, A. Edwards, A. Joachimiak, Midwest For Structural Genomics (Mcsg)
Date :  22 Mar 04  (Deposition) - 03 Aug 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Cobalamin Biosynthesis Protein (Cbid), Archaeoglobus Fulgidus, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Biosynthetic Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, T. Skarina, A. Savchenko, A. Edwards, A. Joachimiak
1. 9A Crystal Structure Of Cobalamin Biosynthesis Protein (Cbid) From Archaeoglobus Fulgidus
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - COBALAMIN BIOSYNTHESIS PROTEIN (CBID)
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET15B
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: ARCHAEOGLOBUS FULGIDUS
    Organism Taxid: 224325
    Strain: DSM 4304

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1SR8)

(-) Sites  (0, 0)

(no "Site" information available for 1SR8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SR8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SR8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SR8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1SR8)

(-) Exons   (0, 0)

(no "Exon" information available for 1SR8)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:282
 aligned with CBID_ARCFU | O29535 from UniProtKB/Swiss-Prot  Length:298

    Alignment length:282
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280
           CBID_ARCFU     1 MLIDPIELYRYPEKWIKDRDAEKKVRSGLYILTEDGYLRRGITTGTTASAAAVAAIASLKEKVEKVKVSTPAGVDVEVEVEAEKGFARVRKFSGDHEFDVTNGIIFEAEVCETSGIFFGRGVGVKAGEKAVSRSAKLQILENFIKASREFNFSGGVRISVPDGEEVAKKTGNEKVGIKGGISILGTTGFVEPWCKKLVETKLKIAMQYHRIAITTGRKAWLYARKKFPEYQPFVFGVHIDEALKHPGEKIIVGFPGLLKIWAGSRDRIEERAREEGVRVVVI 282
               SCOP domains d1sr8a_ A: Cobalamin biosynthesis protein CbiD                                                                                                                                                                                                                                             SCOP domains
               CATH domains 1sr8A01 A:1-39 CbiD-like               ---------------------------------------------------------------------------------------------------------------------------------------------------------1sr8A03 A:193-282 CbiD-like domains                                                        CATH domains
               Pfam domains ----------------------------------CbiD-1sr8A01 A:35-263                                                                                                                                                                                                                ------------------- Pfam domains
         Sec.struct. author ...........hhhhh...hhhhhhhh..eeee..eeee.eehhhhhhhhhhhhhhhhhhh.eeeeee.......eeeeeeee..eeeee..............eeeeeee...eeee..ee.ee..ee..hhhhhhhhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhh...ee.......ee...hhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhhh...eeee...hhhhhh....eeeeeehhhhhhhhhhhhhhhhhhhhh...eeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1sr8 A   1 MLIDPIELYRYPEKWIKDRDAEKKVRSGLYILTEDGYLRRGITTGTTASAAAVAAIASLKEKVEKVKVSTPAGVDVEVEVEAEKGFARVRKFSGDHEFDVTNGIIFEAEVCETSGIFFGRGVGVKAGEKAVSRSAKLQILENFIKASREFNFSGGVRISVPDGEEVAKKTGNEKVGIKGGISILGTTGFVEPWCKKLVETKLKIAMQYHRIAITTGRKAWLYARKKFPEYQPFVFGVHIDEALKHPGEKIIVGFPGLLKIWAGSRDRIEERAREEGVRVVVI 282
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Multi-domain proteins (alpha and beta) (2421)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: CbiD] (1)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CBID_ARCFU | O29535)
molecular function
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0009236    cobalamin biosynthetic process    The chemical reactions and pathways resulting in the formation of cobalamin (vitamin B12), a water-soluble vitamin characterized by possession of a corrin nucleus containing a cobalt atom.
    GO:0046140    corrin biosynthetic process    The chemical reactions and pathways resulting in the formation of corrin, C19H22N4, the fundamental heterocyclic skeleton of the corrinoids. It consists of four reduced pyrrole rings joined into a macrocyclic ring. Corrin is the core of the vitamin B12 molecule.
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1sr8)

  Sites
(no "Sites" information available for 1sr8)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1sr8)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

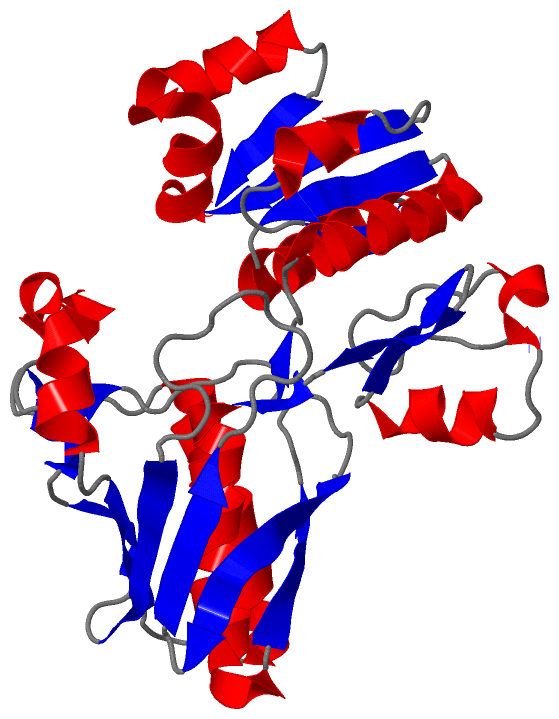

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
