1SQD - JenaLib

Title :   STRUCTURAL BASIS FOR INHIBITOR SELECTIVITY REVEALED BY CRYSTAL STRUCTURES OF PLANT AND MAMMALIAN 4-HYDROXYPHENYLPYRUVATE DIOXYGENASES

Authors :   C. Yang, J. W. Pflugrath, D. L. Camper, M. L. Foster, D. J. Pernich, T. A. Walsh

Date :   18 Mar 04 (Deposition) - 17 Aug 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.80

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. Yang, J. W. Pflugrath, D. L. Camper, M. L. Foster, D. J. Pernich, T. A. Walsh
Structural Basis For Herbicidal Inhibitor Selectivity Revealed By Comparison Of Crystal Structures Of Plant And Mammalian 4-Hydroxyphenylpyruvate Dioxygenases
Biochemistry V. 43 10414 2004
PubMed-ID: 15301540 | Reference-DOI: 10.1021/BI049323O
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (1, 1)

SS Bonds (1, 1)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:373
 aligned with HPPD_ARATH | P93836 from UniProtKB/Swiss-Prot  Length:445

    Alignment length:397
                                    44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424
           HPPD_ARATH    35 KNPKSDKFKVKRFHHIEFWCGDATNVARRFSWGLGMRFSAKSDLSTGNMVHASYLLTSGDLRFLFTAPYSPSLSAGEIKPTTTASIPSFDHGSCRSFFSSHGLGVRAVAIEVEDAESAFSISVANGAIPSSPPIVLNEAVTIAEVKLYGDVVLRYVSYKAEDTEKSEFLPGFERVEDASSFPLDYGIRRLDHAVGNVPELGPALTYVAGFTGFHQFAEFTADDVGTAESGLNSAVLASNDEMVLLPINEPVHGTKRKSQIQTYLEHNEGAGLQHLALMSEDIFRTLREMRKRSSIGGFDFMPSPPPTYYQNLKKRVGDVLSDDQIKECEELGILVDRDDQGTLLQIFTKPLGDRPTIFIEIIQRVGCMMKDEEGKAYQSGGCGGFGKGNFSELFKSI 431
               SCOP domains d1sqda1 A:14-195 4-hydroxyphenylpyruvate dioxygenase, HppD                                                                                                                            d1sqda2 A:196-410 4-hydroxyphenylpyruv        ate dioxygenase, HppD                                                                                                                                                     SCOP domains
               CATH domains 1sqdA01 A:14-197 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                                                                        1sqdA02 A:198-410 2,3-Dihydroxybiphe        nyl 1,2-Dioxygenase, doma   in 1                                                                                                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeeeee..hhhhhhhhhhhhhh.eeeeeehhhhh...eeeeeeee..eeeeeeee.hhhhh...hhhhh.......hhhhhhhhhhhhh.eeeeeeeee.hhhhhhhhhhhh...eeeeeeee...eeeeeeeee..eeeeeeee..------......ee............eeeeeeeeee..hhhhhhhhhhhhhh.eeeeee.--------..eeeeeee......eeeeeee...---.hhhhhhhhhhh..eeeeeeeee.hhhhhhhhhhhhhhhh........hhhhhhhhhhhhh...hhhhhhhhhhhh.eeee...eeeeeee..........eeeeeeeee...-------...........hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------VOC  PDB: A:25-171 UniProt: 46-192                                                                                                                 ------------------------------VOC  PDB: A:202-362 UniProt: 223-383                                                                                                                             ------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1sqd A  14 KNPKSDKFKVKRFHHIEFWCGDATNVARRFSWGLGMRFSAKSDLSTGNMVHASYLLTSGDLRFLFTAPYSPSLSAGEIKPTTTASIPSFDHGSCRSFFSSHGLGVRAVAIEVEDAESAFSISVANGAIPSSPPIVLNEAVTIAEVKLYGDVVLRYVSYKA------EFLPGFERVEDASSFPLDYGIRRLDHAVGNVPELGPALTYVAGFTGFHQFAEFT--------SGLNSAVLASNDEMVLLPINEPVHG---KSQIQTYLEHNEGAGLQHLALMSEDIFRTLREMRKRSSIGGFDFMPSPPPTYYQNLKKRVGDVLSDDQIKECEELGILVDRDDQGTLLQIFTKPLGDRPTIFIEIIQRVGCMM-------YQSGGCGGFGKGNFSELFKSI 410
                                    23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173      |183       193       203       213       223       233       243       253       263  |   |273       283       293       303       313       323       333       343       353       363       373        |-      |393       403
                                                                                                                                                                                         173    180                                                  233      242                     266 270                                                                                                             382     390

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 2)

Pfam Domains (0, 0)

Gene Ontology (11, 11)

Asymmetric Unit(hide GO term definitions)

Chain A (HPPD_ARATH | P93836)

molecular function
	GO:0003868	4-hydroxyphenylpyruvate dioxygenase activity	Catalysis of the reaction: 4-hydroxyphenylpyruvate + O2 = homogentisate + CO2.
	GO:0051213	dioxygenase activity	Catalysis of an oxidation-reduction (redox) reaction in which both atoms of oxygen from one molecule of O2 are incorporated into the (reduced) product(s) of the reaction. The two atoms of oxygen may be distributed between two different products.
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0016701	oxidoreductase activity, acting on single donors with incorporation of molecular oxygen	Catalysis of an oxidation-reduction (redox) reaction in which hydrogen or electrons are transferred from one donor, and molecular oxygen is incorporated into a donor.
biological process
	GO:0006559	L-phenylalanine catabolic process	The chemical reactions and pathways resulting in the breakdown of phenylalanine, 2-amino-3-phenylpropanoic acid.
	GO:0009072	aromatic amino acid family metabolic process	The chemical reactions and pathways involving aromatic amino acid family, amino acids with aromatic ring (phenylalanine, tyrosine, tryptophan).
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0006572	tyrosine catabolic process	The chemical reactions and pathways resulting in the breakdown of tyrosine, an aromatic amino acid, 2-amino-3-(4-hydroxyphenyl)propanoic acid.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Visualization

Interactive Views

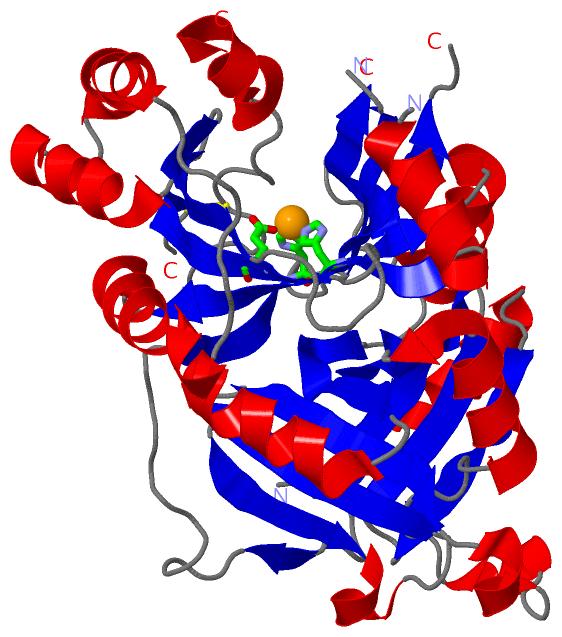

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1sqd)

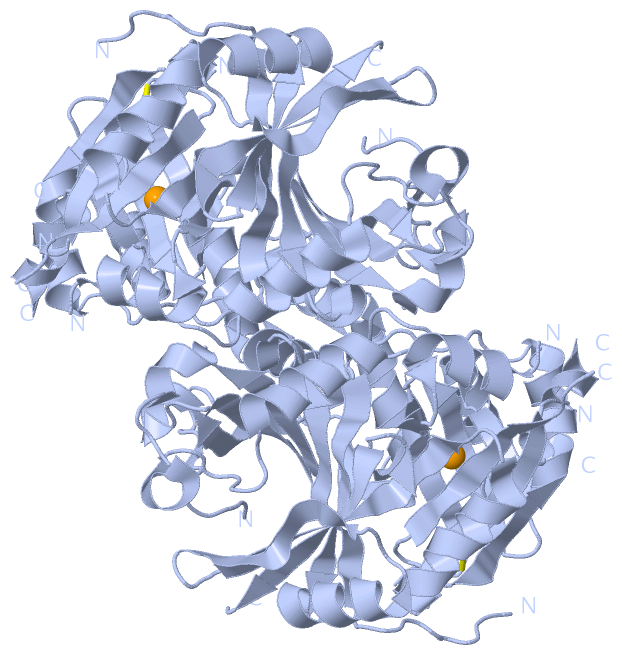

Biological Unit
	Complete Structure

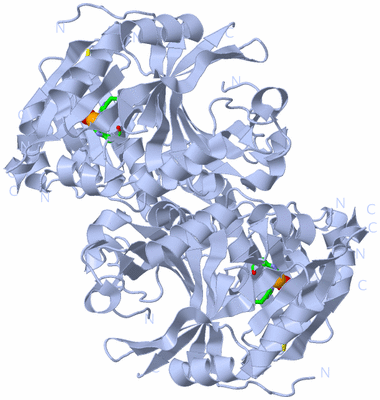

		Biological Unit 1	[ Jena3D ]

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1sqd
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	HPPD_ARATH \| P93836
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.13.11.27
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge
