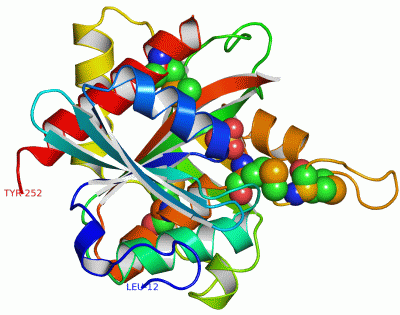

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

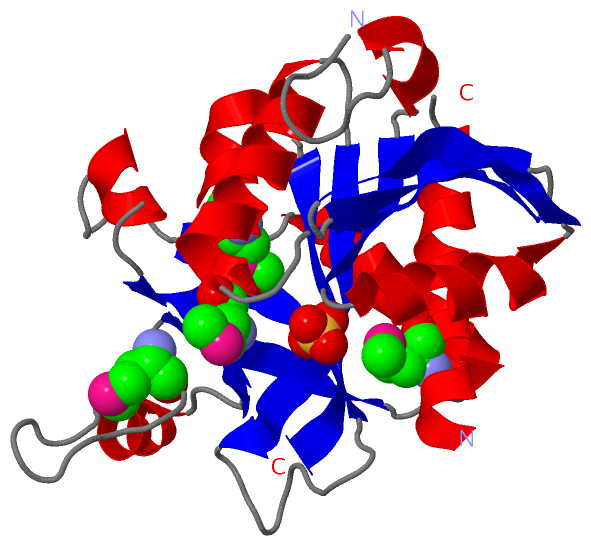

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

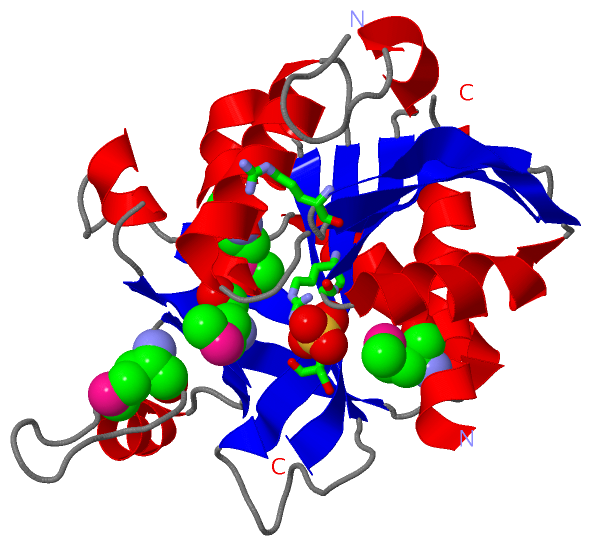

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

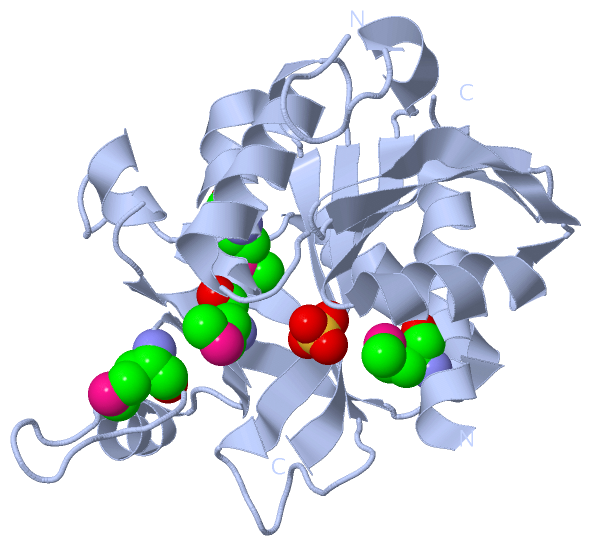

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

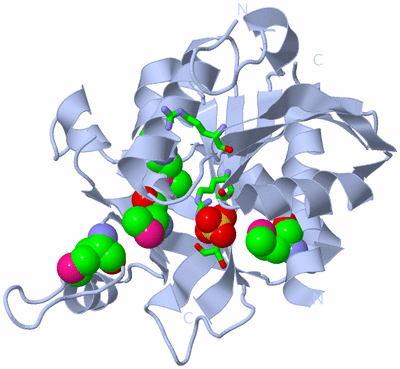

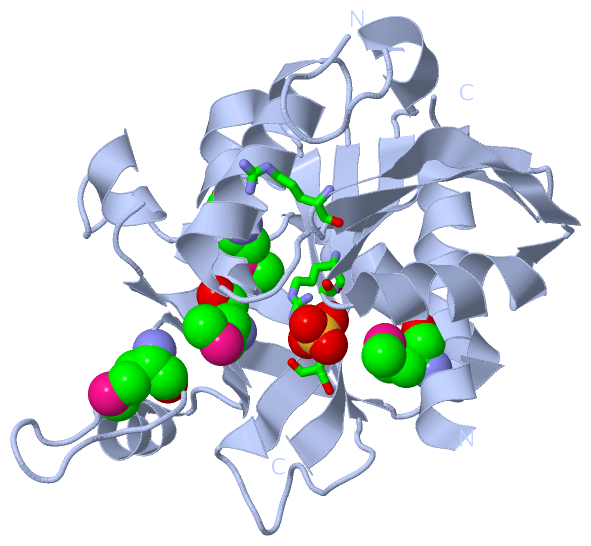

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

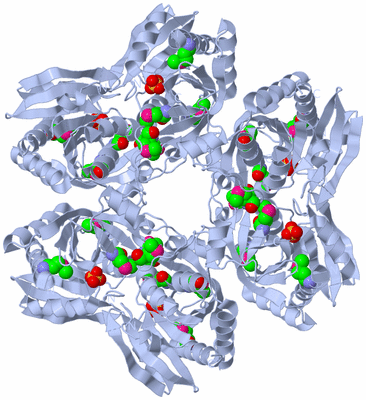

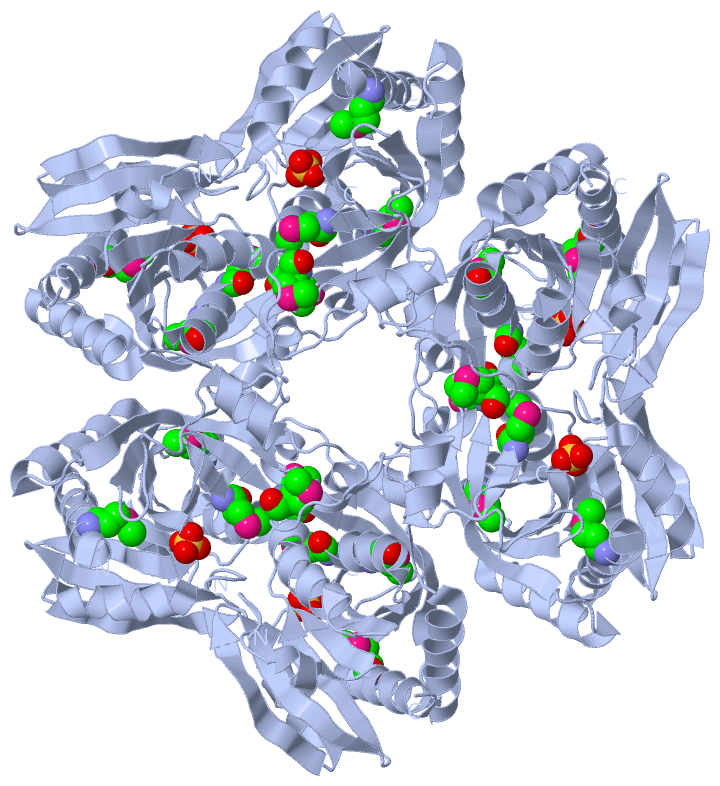

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  PLASMODIUM FALCIPARUM HOMOLOG OF URIDINE PHOSPHORYLASE/PURINE NUCLEOSIDE PHOSPHORYLASE

Authors :  M. A. Robien, W. G. J. Hol, Structural Genomics Of Pathogenic Proto Consortium (Sgpp)
Date :  17 Mar 04  (Deposition) - 06 Apr 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (6x)
Keywords :  Structural Genomics, Alpha+Beta, Psi, Protein Structure Initiative, Structural Genomics Of Pathogenic Protozoa Consortium, Sgpp, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Schnick, M. A. Robien, A. M. Brzozowski, E. J. Dodson, G. N. Murshudov, L. Anderson, J. R. Luft, C. Mehlin, W. G. Hol, J. A. Brannigan, A. J. Wilkinson
Structures Of Plasmodium Falciparum Purine Nucleoside Phosphorylase Complexed With Sulfate And Its Natural Substrate Inosine.
Acta Crystallogr. , Sect. D V. 61 1245 2005
PubMed-ID: 16131758  |  Reference-DOI: 10.1107/S0907444905020251

(-) Compounds

Molecule 1 - URIDINE PHOSPHORYLASE, PUTATIVE
    Chains: A
    EC Number: 2.4.2.3
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET14B
    Expression System Strain: BL21STAR/DE3
    Expression System Taxid: 562
    Expression System Vector Type: T7 SYSTEM
    Gene: PLASMODB CHR5.GEN_243
    Organism Scientific: PLASMODIUM FALCIPARUM
    Organism Taxid: 36329
    Strain: 3D7

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (6x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2SO41Ligand/IonSULFATE ION
Biological Unit 1 (2, 5)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2SO41Ligand/IonSULFATE ION
Biological Unit 2 (2, 30)
No.NameCountTypeFull Name
1MSE24Mod. Amino AcidSELENOMETHIONINE
2SO46Ligand/IonSULFATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:31 , ARG A:53 , ARG A:96 , GLY A:98 , SER A:99BINDING SITE FOR RESIDUE SO4 A 401

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SQ6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SQ6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SQ6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1SQ6)

(-) Exons   (0, 0)

(no "Exon" information available for 1SQ6)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:225
 aligned with Q8I3X4_PLAF7 | Q8I3X4 from UniProtKB/TrEMBL  Length:245

    Alignment length:241
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
         Q8I3X4_PLAF7     4 LLRHLKISKEQITPVVLVVGDPGRVDKIKVVCDSYVDLAYNREYKSVECHYKGQKFLCVSHGVGSAGCAVCFEELCQNGAKVIIRAGSCGSLQPDLIKRGDICICNAAVREDRVSHLLIHGDFPAVGDFDVYDTLNKCAQELNVPVFNGISVSSDMYYPNKIIPSRLEDYSKANAAVVEMELATLMVIGTLRKVKTGGILIVDGCPFKWDEGDFDNNLVPHQLENMIKIALGACAKLATKY 244
               SCOP domains d1sq6a_ A: Putative uridine phosphorylase                                                                                                                                                                                                         SCOP domains
               CATH domains 1sq6A00 A:12-252  [code=3.40.50.1580, no name defined]                                                                                                                                                                                            CATH domains
               Pfam domains -------------PNP_UDP_1-1sq6A01 A:25-252                                                                                                                                                                                                           Pfam domains
         Sec.struct. author .......hhhhh..eeeee.hhhhhhhhhhhh.eeeeeeee..eeeeeeee..eeeeeee...hhhhhhhhhhhhhh....eeeeeeeeee..........eeeeeeeeee..hhhhh......ee.hhhhhhhhhhhhhhh...eeeeeeeee...........hhhhhhhh...eee.hhhhhhhhhhhhh.eeeeeeeeee----------------hhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1sq6 A  12 LLRHLKISKEQITPVVLVVGDPGRVDKIKVVCDSYVDLAYNREYKSVECHYKGQKFLCVSHGVGSAGCAVCFEELCQNGAKVIIRAGSCGSLQPDLIKRGDICICNAAVREDRVSHLLIHGDFPAVGDFDVYDTLNKCAQELNVPVFNGISVSSDmYYPNKIIPSRLEDYSKANAAVVEmELATLmVIGTLRKVKTGGILIVDG----------------HQLENmIKIALGACAKLATKY 252
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161     | 171       181       191     | 201       211   |     -         -|    | 241       251
                                                                                                                                                                                     167-MSE                 191-MSE |               215              232    |
                                                                                                                                                                                                                   197-MSE                                 237-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: PUP (121)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q8I3X4_PLAF7 | Q8I3X4)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
    GO:0004850    uridine phosphorylase activity    Catalysis of the reaction: uridine + phosphate = uracil + alpha-D-ribose 1-phosphate.
biological process
    GO:0009116    nucleoside metabolic process    The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
