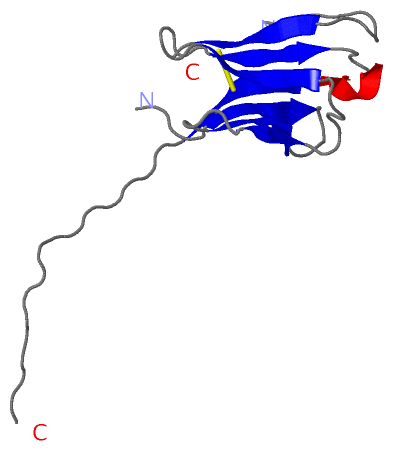

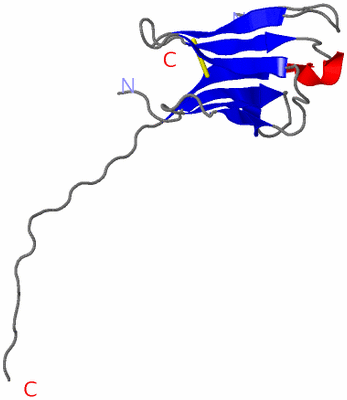

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

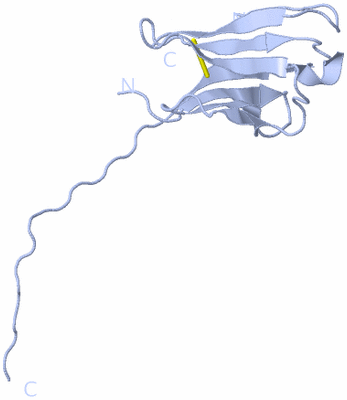

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

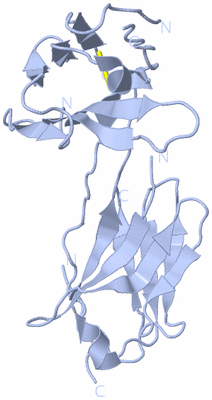

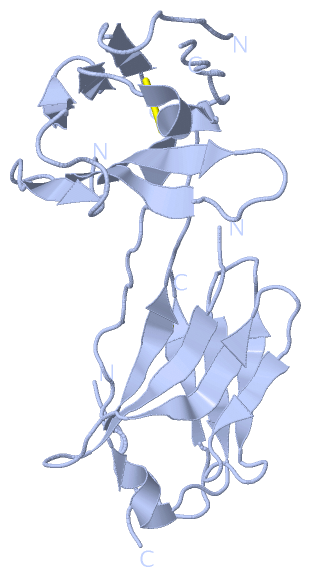

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THREE-DIMENSIONAL STRUCTURE OF A LLAMA VHH DOMAIN SWAPPING

Authors :  S. Spinelli, A. Desmyter, L. Frenken, T. Verrips, C. Cambillau
Date :  04 Mar 04  (Deposition) - 01 Jun 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.94
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (2x)
Keywords :  Camelids Antibody, Domain Swapping, Heavy Chain Antibody, Antibiotic (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Spinelli, A. Desmyter, L. Frenken, T. Verrips, M. Tegoni, C. Cambillau
Domain Swapping Of A Llama Vhh Domain Builds A Crystal-Wide Beta-Sheet Structure.
Febs Lett. V. 564 35 2004
PubMed-ID: 15094039  |  Reference-DOI: 10.1016/S0014-5793(04)00304-7

(-) Compounds

Molecule 1 - R9
    Chains: A
    Engineered: YES
    Expression System: SACCHAROMYCES CEREVISIAE
    Expression System Common: BAKER'S YEAST
    Expression System Strain: VWK18
    Expression System Taxid: 4932
    Expression System Vector Type: PLASMID
    Organism Common: LLAMA
    Organism Scientific: LAMA GLAMA
    Organism Taxid: 9844
    Other Details: LLAMA VHH SINGLE DOMAIN ANTIBODY

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1SJV)

(-) Sites  (0, 0)

(no "Site" information available for 1SJV)

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:22 -A:91

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SJV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SJV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1SJV)

(-) Exons   (0, 0)

(no "Exon" information available for 1SJV)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:102

               SCOP domains d1sjva_ A: Camelid IG heavy chain variable domain, VHh                                                 SCOP domains
               CATH domains 1sjvA00 A:8-110 Immunoglobulins                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..........eeeee......eeeeee......eeeeee.....eee.......eeeee......eeeee...hhhhh.eeeeee................. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 1sjv A   8 GGGLVQAGESLKLSCAASGGFMGWYRQAPGKQRELVATINSRGITNYADFVKGRFTISRDNAKKTVYLEMNSLEPEDTAVYYCYTHYFRSYWGQGTQVTVSS 110
                                    17      ||28        38        48        58        68        78        88        98       108
                                           24|
                                            26
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1SJV)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1SJV)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1sjv)

  Sites
(no "Sites" information available for 1sjv)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1sjv)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
