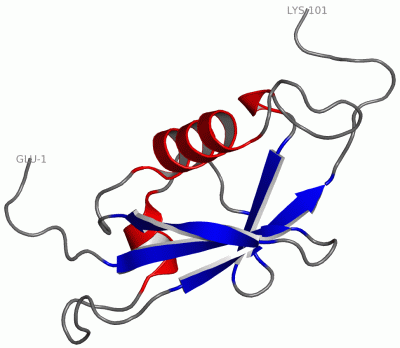

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

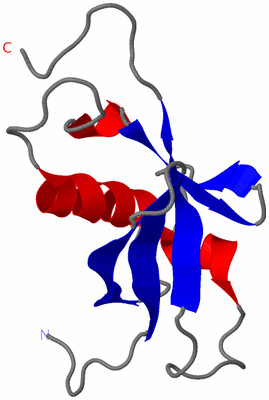

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

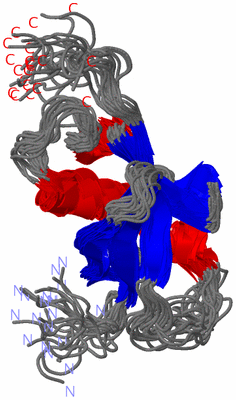

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF AT3G01050, A UBIQUITIN-FOLD PROTEIN FROM ARABIDOPSIS THALIANA

Authors :  B. F. Volkman, B. L. Lytle, F. C. Peterson, Center For Eukaryotic Structural Genomics (Cesg)
Date :  16 Feb 04  (Deposition) - 24 Feb 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Ubiquitin-Like, Cell-Free, Wheat Germ, Structural Genomics, Protein Structure Initiative, Cesg, Psi, Center For Eukaryotic Structural Genomics, Plant Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. A. Vinarov, B. L. Lytle, F. C. Peterson, E. M. Tyler, B. F. Volkman, J. L. Markley
Cell-Free Protein Production And Labeling Protocol For Nmr-Based Structural Proteomics.
Nat. Methods V. 1 149 2004
PubMed-ID: 15782178  |  Reference-DOI: 10.1038/NMETH716
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UBIQUITIN FAMILY
    Chains: A
    Engineered: YES
    Expression System: CELL-FREE SYNTHESIS
    Expression System Plasmid: PEU-AT3G01050
    Expression System Vector Type: PLASMID
    Gene: AT3G01050
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Other Details: AT3G01050
    Other Details - Source: WHEAT GERM CELL-FREE, IN VITRO EXPRESSION

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1SE9)

(-) Sites  (0, 0)

(no "Site" information available for 1SE9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SE9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SE9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SE9)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1UBIQUITIN_2PS50053 Ubiquitin domain profile.MUB1_ARATH8-74  1A:8-74

(-) Exons   (0, 0)

(no "Exon" information available for 1SE9)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:101
 aligned with MUB1_ARATH | Q9MAB9 from UniProtKB/Swiss-Prot  Length:117

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
           MUB1_ARATH     1 MAEVHNQLEIKFRLTDGSDIGPKAFPDATTVSALKETVISEWPREKENGPKTVKEVKLISAGKVLENSKTVKDYRSPVSNLAGAVTTMHVIIQAPVTEKEK 101
               SCOP domains d1se9a_ A: Hypothetical protein At3g01050                                                             SCOP domains
               CATH domains 1se9A00 A:1-101 Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1                    CATH domains
               Pfam domains -----Rad60-SLD_2-1se9A01 A:6-101                                                                      Pfam domains
         Sec.struct. author .......eeeeeee....eeeeeee....hhhhhhhhhhhhh.........hhh.eeeee..ee.....hhhhhh..........eeeeeee......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------UBIQUITIN_2  PDB: A:8-74 UniProt: 8-74                             --------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 1se9 A   1 EAEVHNQLEIKFRLTDGSDIGPKAFPDATTVSALKETVISEWPREKENGPKTVKEVKLISAGKVLENSKTVKDYRSPVSNLAGAVTTMHVIIQAPVTEKEK 101
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: Ubiquitin (279)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (MUB1_ARATH | Q9MAB9)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1se9)

  Sites
(no "Sites" information available for 1se9)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1se9)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

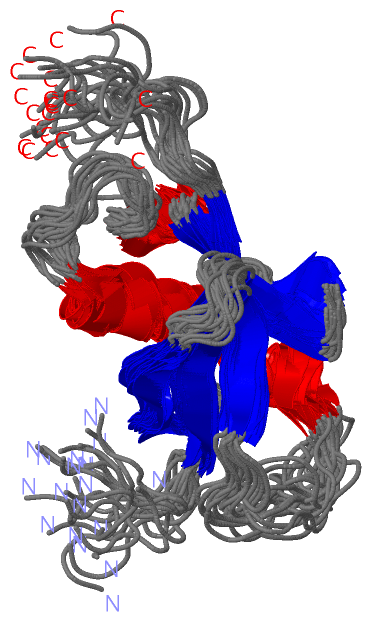

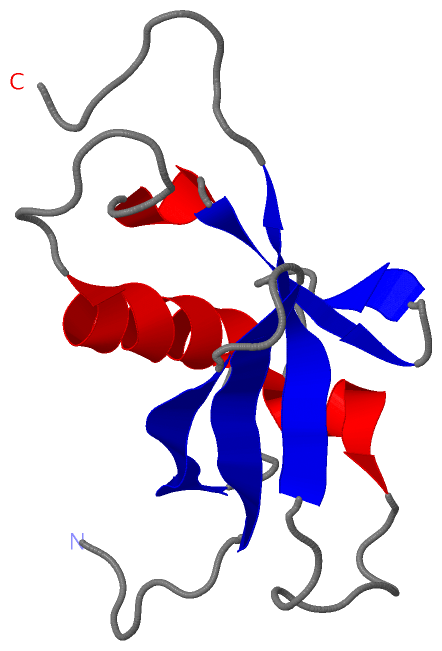

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
