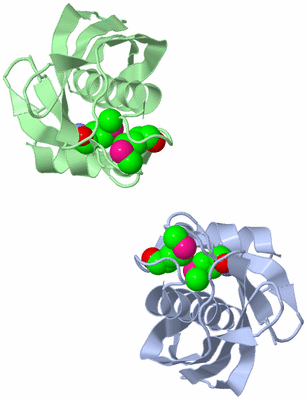

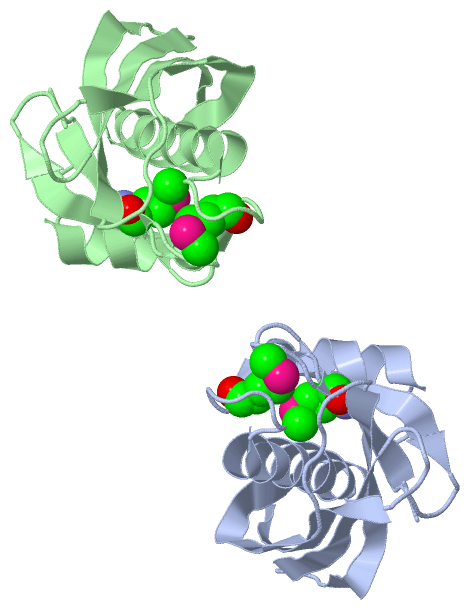

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

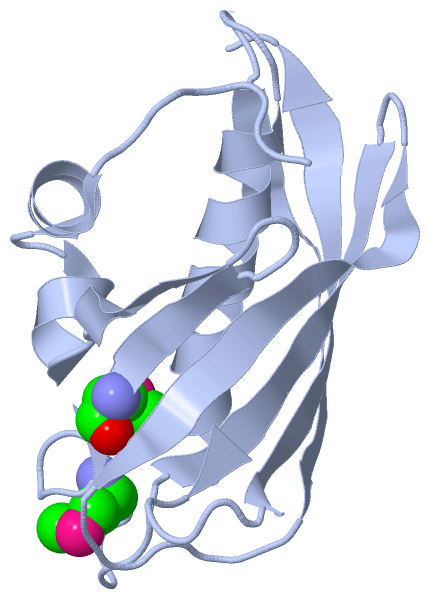

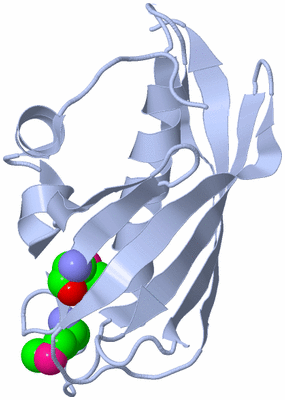

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

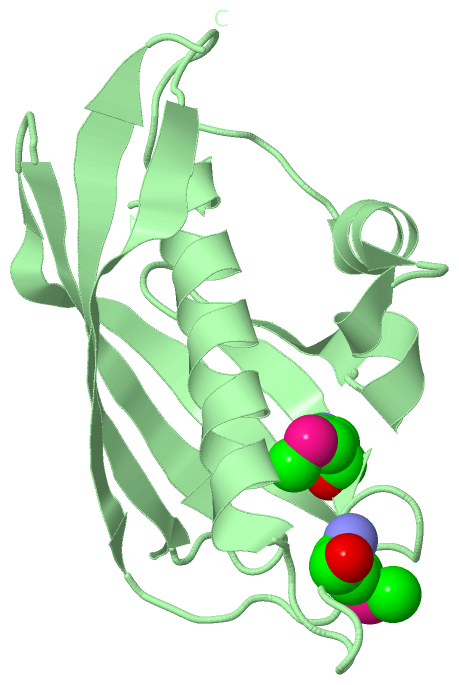

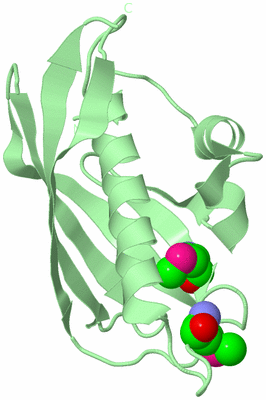

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  X-RAY STRUCTURE OF YB61_HAEIN NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET IR63

Authors :  A. P. Kuzin, I. Lee, Y. Chiang, T. B. Acton, G. T. Montelione, J. F. Hunt, L. Tong, Northeast Structural Genomics Consortium (Nesg)
Date :  11 Feb 04  (Deposition) - 30 Mar 04  (Release) - 31 Mar 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Structural Genomics, Unknown Function, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. P. Kuzin, I. Lee, Y. Chiang, T. B. Acton, G. T. Montelione, J. F. Hunt, L. Tong
X-Ray Structure Of Yb61_haein Northeast Structural Genomics Consortium Target Ir63.
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN HI1161
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PIR63-21-1
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PET21D
    Gene: HI1161
    Organism Scientific: HAEMOPHILUS INFLUENZAE
    Organism Taxid: 727

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1MSE2Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1MSE2Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1SC0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1SC0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SC0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1SC0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1SC0)

(-) Exons   (0, 0)

(no "Exon" information available for 1SC0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:137
 aligned with Y1161_HAEIN | P45083 from UniProtKB/Swiss-Prot  Length:138

    Alignment length:137
                                    11        21        31        41        51        61        71        81        91       101       111       121       131
          Y1161_HAEIN     2 LWKKTFTLENLNQLCSNSAVSHLGIEISAFGEDWIEATMPVDHRTMQPFGVLHGGVSVALAETIGSLAGSLCLEEGKTVVGLDINANHLRPVRSGKVTARATPINLGRNIQVWQIDIRTEENKLCCVSRLTLSVINL 138
               SCOP domains d1sc0a_ A: Hypothetical protein HI1161                                                                                                    SCOP domains
               CATH domains 1sc0A00 A:2-138  [code=3.10.129.10, no name defined]                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhh..hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1sc0 A   2 LWKKTFTLENLNQLCSNSAVSHLGIEISAFGEDWIEATmPVDHRTmQPFGVLHGGVSVALAETIGSLAGSLCLEEGKTVVGLDINANHLRPVRSGKVTARATPINLGRNIQVWQIDIRTEENKLCCVSRLTLSVINL 138
                                    11        21        31        41     |  51        61        71        81        91       101       111       121       131
                                                                 40-MSE 47-MSE


Chain B from PDB  Type:PROTEIN  Length:137
 aligned with Y1161_HAEIN | P45083 from UniProtKB/Swiss-Prot  Length:138

    Alignment length:137
                                    11        21        31        41        51        61        71        81        91       101       111       121       131
          Y1161_HAEIN     2 LWKKTFTLENLNQLCSNSAVSHLGIEISAFGEDWIEATMPVDHRTMQPFGVLHGGVSVALAETIGSLAGSLCLEEGKTVVGLDINANHLRPVRSGKVTARATPINLGRNIQVWQIDIRTEENKLCCVSRLTLSVINL 138
               SCOP domains d1sc0b_ B: Hypothetical protein HI1161                                                                                                    SCOP domains
               CATH domains 1sc0B00 B:2-138  [code=3.10.129.10, no name defined]                                                                                      CATH domains
           Pfam domains (1) ------------------------------------------------4HBT-1sc0B01 B:50-127                                                         ----------- Pfam domains (1)
           Pfam domains (2) ------------------------------------------------4HBT-1sc0B02 B:50-127                                                         ----------- Pfam domains (2)
         Sec.struct. author ......hhhhhhhhh..hhhhhh..eeeee....eeeeee............hhhhhhhhhhhhhhhhhhh......eeeeeeeeeee.......eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1sc0 B   2 LWKKTFTLENLNQLCSNSAVSHLGIEISAFGEDWIEATmPVDHRTmQPFGVLHGGVSVALAETIGSLAGSLCLEEGKTVVGLDINANHLRPVRSGKVTARATPINLGRNIQVWQIDIRTEENKLCCVSRLTLSVINL 138
                                    11        21        31        41     |  51        61        71        81        91       101       111       121       131
                                                                 40-MSE 47-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: HotDog (52)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Y1161_HAEIN | P45083)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1sc0)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1sc0)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1sc0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y1161_HAEIN | P45083
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y1161_HAEIN | P45083
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y1161_HAEIN | P45083: 2b6e 3lz7

(-) Related Entries Specified in the PDB File

1o0i THE SAME PROTEIN MODEL WITH POOR GEOMETRY.
ir63
