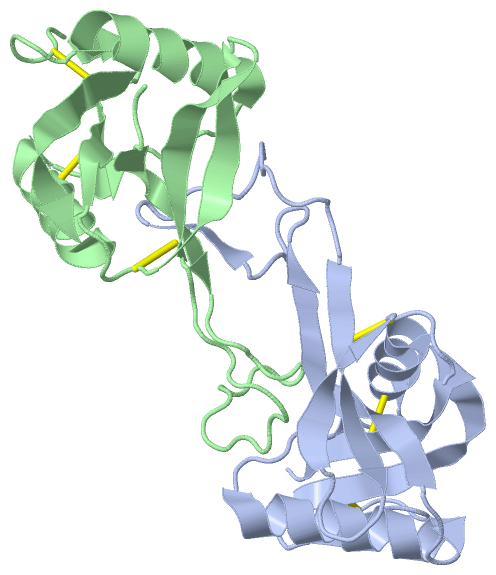

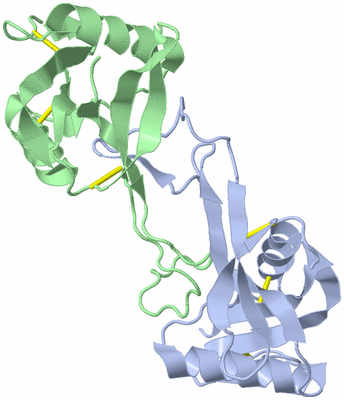

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  HIGH RESOLUTION STRUCTURE DETERMINATION OF RHODOCETIN

Authors :  P. Paaventhan, C. G. Kong, J. S. Joseph, M. C. M. Chung, P. R. Kolatkar
Date :  10 Feb 04  (Deposition) - 01 Feb 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B
Keywords :  C-Type Lectin; Domain Swapping, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Paaventhan, C. G. Kong, J. S. Joseph, M. C. M. Chung, P. R. Kolatkar
Structure Of Rhodocetin Reveals Noncovalently Bound Heterodimer Interface
Protein Sci. V. 14 169 2005
PubMed-ID: 15576563  |  Reference-DOI: 10.1110/PS.04945605
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RHODOCETIN ALPHA SUBUNIT
    Chains: A
    Organism Common: MALAYAN PIT VIPER
    Organism Scientific: CALLOSELASMA RHODOSTOMA
    Organism Taxid: 8717
    Other Details: ORGANISM NAME SYNONYM: AGKISTRODON RHODOSTOMA

Molecule 2 - RHODOCETIN BETA SUBUNIT
    Chains: B
    Organism Common: MALAYAN PIT VIPER
    Organism Scientific: CALLOSELASMA RHODOSTOMA
    Organism Taxid: 8717
    Other Details: ORGANISM NAME SYNONYM: AGKISTRODON RHODOSTOMA

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1SB2)

(-) Sites  (0, 0)

(no "Site" information available for 1SB2)

(-) SS Bonds  (6, 6)

Asymmetric/Biological Unit
No.Residues
1A:2 -A:13
2A:30 -A:127
3A:102 -A:119
4B:4 -B:15
5B:32 -B:123
6B:98 -B:115

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1SB2)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (3, 3)

Asymmetric/Biological Unit (3, 3)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_SLEA_CALRH_001 *I63KSLEA_CALRH  ---  ---AI63K
2UniProtVAR_SLEA_CALRH_002 *L70KSLEA_CALRH  ---  ---AL70K
3UniProtVAR_SLEB_CALRH_001 *E88DSLEB_CALRH  ---  ---BE88D
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1C_TYPE_LECTIN_2PS50041 C-type lectin domain profile.SLEA_CALRH9-128  1A:9-128
SLEB_CALRH11-124  1B:11-124

(-) Exons   (0, 0)

(no "Exon" information available for 1SB2)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:132
 aligned with SLEA_CALRH | P81397 from UniProtKB/Swiss-Prot  Length:133

    Alignment length:132
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
           SLEA_CALRH     1 DCPDGWSSTKSYCYRPFKEKKTWEEAERFCTEQEKEAHLVSMENRLEAVFVDMVMENNFENKIYRSWIGLKIENKGQRSNLEWSDGSSISYENLYEPYMEKCFLMDHQSGLPKWHTADCEEKNVFMCKFQLP 132
               SCOP domains d1sb2a1 A:1-132 Snake coagglutinin alpha chain                                                                                       SCOP domains
               CATH domains 1sb2A00 A:1-132 Mannose-Binding Protein A, subunit A                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......ee...eeeeeeeeeehhhhhhhhhhh.....ee....hhhhhhhhhhhhhhhh....eeeeeeeeee.......eee................eeeeeeee.....eeeee.....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------K------K-------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------C_TYPE_LECTIN_2  PDB: A:9-128 UniProt: 9-128                                                                            ---- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1sb2 A   1 DCPDGWSSTKSYCYRPFKEKKTWEEAERFCTEQEKEAHLVSMENRLEAVFVDMVMENNFENKIYRSWIGLKIENKGQRSNLEWSDGSSISYENLYEPYMEKCFLMDHQSGLPKWHTADCEEKNVFMCKFQLP 132
                                    10        20        30        40        50        60        70        80        90       100       110       120       130


Chain B from PDB  Type:PROTEIN  Length:124
 aligned with SLEB_CALRH | P81398 from UniProtKB/Swiss-Prot  Length:129

    Alignment length:127
                                    11        21        31        41        51        61        71        81        91       101       111       121
           SLEB_CALRH     2 FRCPTTWSASKLYCYKPFKEKKTWIEAERFCAKQAENGHLVSIGSAAEADFLDLVIVVNFDKQRYRAWTGLTERNLKWTNGASVSYENLYEPYIRKCFVVQPWEGKSKWYKADCEEKNAFLCKFPKP 128
               SCOP domains d1sb2b1 B:2-128 Snake coagglutinin beta chain                                                                                   SCOP domains
               CATH domains 1sb2B00 B:2-128 Mannose-Binding Protein A, subunit A                                                                            CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......ee...eeeeeeeeeehhhhhhhhhhhhh...ee....hhhhhhhhhhhhhhhh---...eeeeeee.......................eeeeeee..eeeeeee.....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------D---------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------C_TYPE_LECTIN_2  PDB: B:11-124 UniProt: 11-124                                                                    ---- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1sb2 B   2 FRCPTTWSASKLYCYKPFKEKKTWIEAERFCAKQAENGHLVSIGSAAEADFLDLVIVVNF---RYRAWTGLTERNLKWTNGASVSYENLYEPYIRKCFVVQPWEGKSKWYKADCEEKNAFLCKFPKP 128
                                    11        21        31        41        51        61   |    71        81        91       101       111       121
                                                                                      61  65
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1SB2)

(-) Gene Ontology  (1, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (SLEA_CALRH | P81397)
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Chain B   (SLEB_CALRH | P81398)
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
