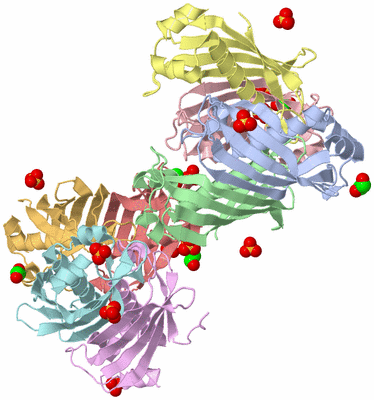

Asymmetric Unit (Jmol Viewer)

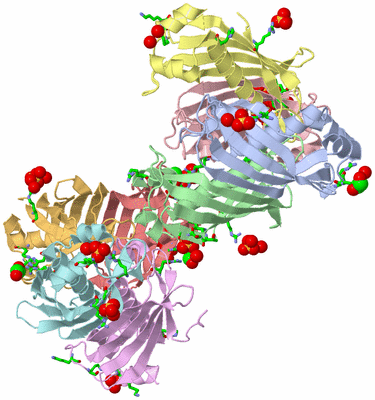

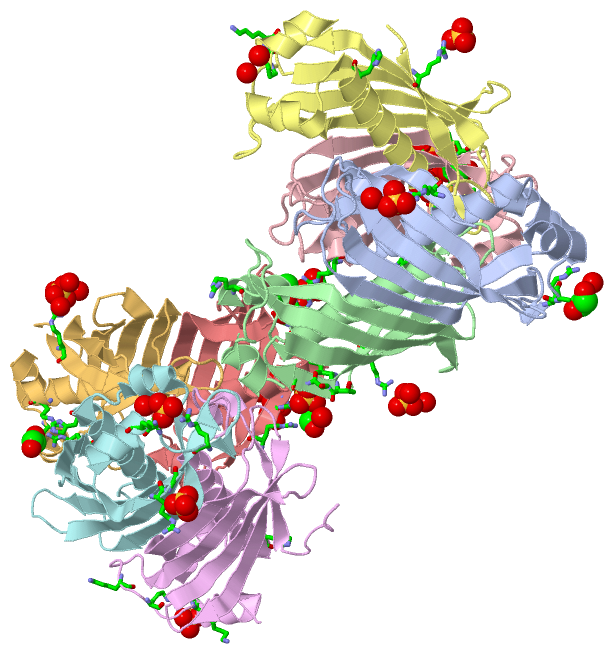

Asym. Unit - sites (Jmol Viewer)

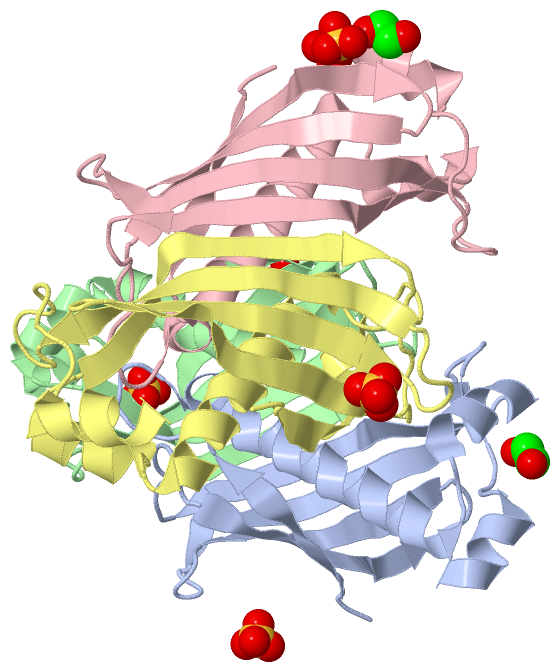

Biological Unit 1 (Jmol Viewer)

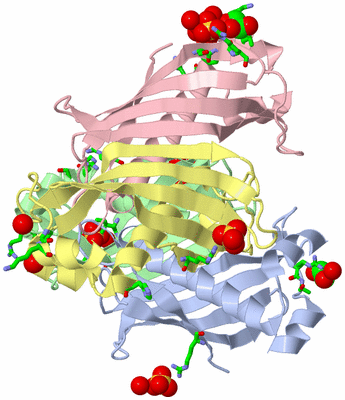

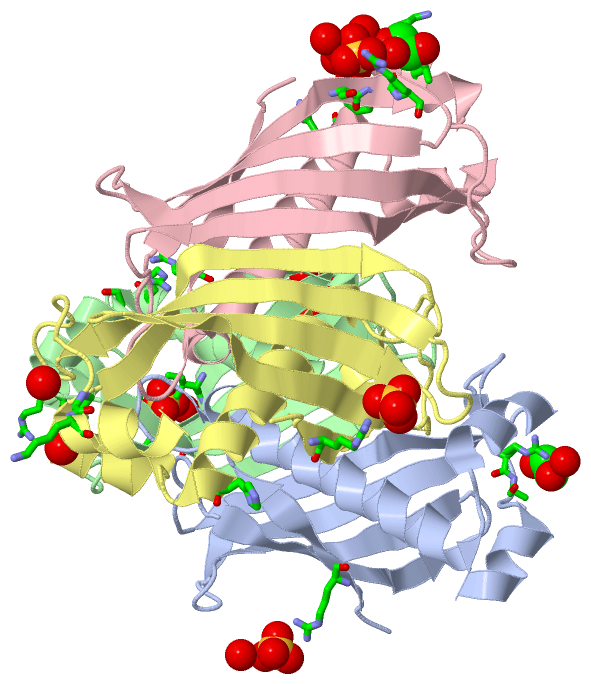

Biol. Unit 1 - sites (Jmol Viewer)

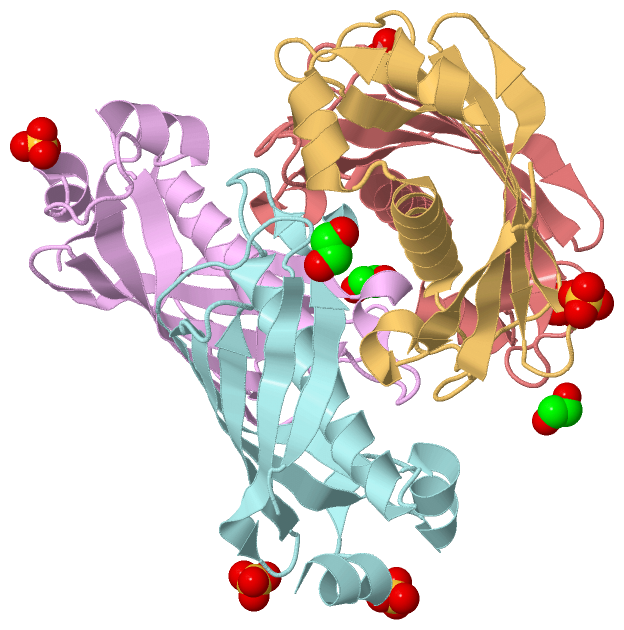

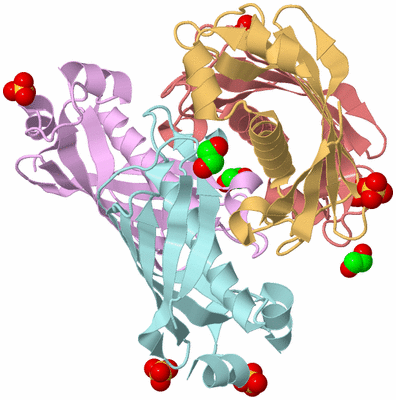

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

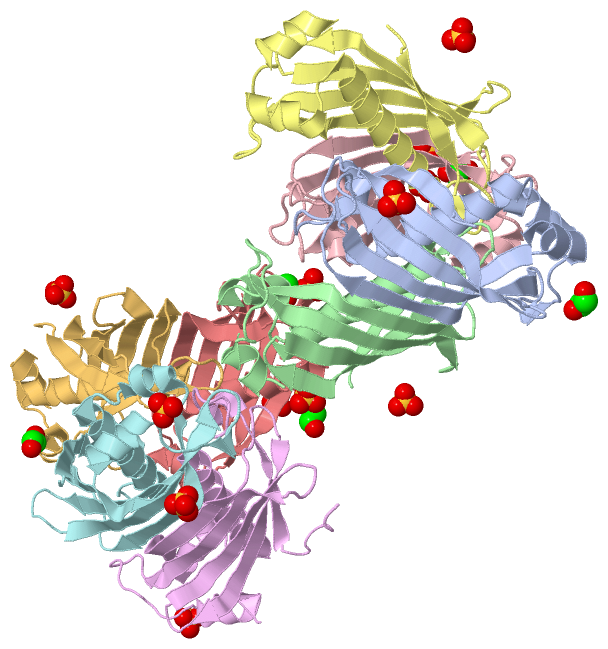

Biological Unit 4 (Jmol Viewer)

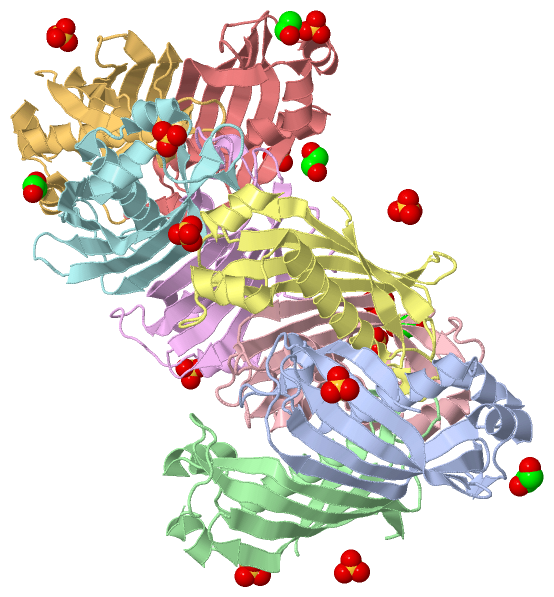

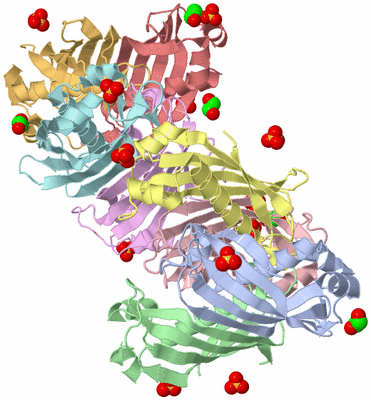

Biological Unit 5 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF HYPOTHETICAL PROTEIN EC709 FROM ESCHERICHIA COLI

Authors :   Y. Kim, A. Joachimiak, T. Skarina, A. Savchenko, A. Edwards, Midwest Center For Structural Genomics (Mcsg)

Date :   21 Jan 04 (Deposition) - 11 May 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.70

Chains :   Asym. Unit : A,B,C,D,E,F,G,H
Biol. Unit 1: A,B,C,D  (1x)
Biol. Unit 2: E,F,G,H  (1x)
Biol. Unit 3: A (1x),B (1x),C (1x),D (1x),E (1x),F (1x),G (1x),H (1x)
Biol. Unit 4: A,B,C,D,E,F,G,H  (1x)
Biol. Unit 5: A (1x),B (1x),C (1x),D (1x),E (1x),F (1x),G (1x),H (1x)

Keywords :   Structural Genomics, Hypothetical Protein, Thioesterase Fold, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Y. Kim, A. Joachimiak, T. Skarina, A. Savchenko, A. Edwards
Crystal Structure Of Hypothetical Protein Ec709 From Escherichia Coli
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - PROTEIN YBGC
	Chains	:	A, B, C, D, E, F, G, H
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Strain	:	BL21DE3
	Expression System Taxid	:	469008
	Gene	:	YBGC, B0736, C0815, Z0904, ECS0771, SF0561, S0574
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	HYPOTHETICAL PROTEIN EC709

		1	2	3	4	5	6	7	8
Asymmetric Unit	:	A	B	C	D	E	F	G	H
Biological Unit 1 (1x)	:	A	B	C	D
Biological Unit 2 (1x)	:					E	F	G	H
Biological Unit 3 (1x)	:	A (1x)	B (1x)	C (1x)	D (1x)	E (1x)	F (1x)	G (1x)	H (1x)
Biological Unit 4 (1x)	:	A	B	C	D	E	F	G	H
Biological Unit 5 (1x)	:	A (1x)	B (1x)	C (1x)	D (1x)	E (1x)	F (1x)	G (1x)	H (1x)

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 17)

No.	Name	Count	Type	Full Name
1	EDO	5	Ligand/Ion	1,2-ETHANEDIOL
2	SO4	12	Ligand/Ion	SULFATE ION

Biological Unit 1 (2, 8)

No.	Name	Count	Type	Full Name
1	EDO	2	Ligand/Ion	1,2-ETHANEDIOL
2	SO4	6	Ligand/Ion	SULFATE ION

Biological Unit 2 (2, 9)

No.	Name	Count	Type	Full Name
1	EDO	3	Ligand/Ion	1,2-ETHANEDIOL
2	SO4	6	Ligand/Ion	SULFATE ION

Biological Unit 3 (2, 8)

No.	Name	Count	Type	Full Name
1	EDO	2	Ligand/Ion	1,2-ETHANEDIOL
2	SO4	6	Ligand/Ion	SULFATE ION

Biological Unit 4 (2, 17)

No.	Name	Count	Type	Full Name
1	EDO	5	Ligand/Ion	1,2-ETHANEDIOL
2	SO4	12	Ligand/Ion	SULFATE ION

Biological Unit 5 (2, 8)

No.	Name	Count	Type	Full Name
1	EDO	2	Ligand/Ion	1,2-ETHANEDIOL
2	SO4	6	Ligand/Ion	SULFATE ION

Asymmetric Unit (17, 17)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ARG A:7 , HOH A:924 , HIS E:42	BINDING SITE FOR RESIDUE SO4 A 801
02	AC2	SOFTWARE	ARG B:7 , HOH B:834 , HOH B:869 , HIS F:42	BINDING SITE FOR RESIDUE SO4 B 802
03	AC3	SOFTWARE	ARG D:7	BINDING SITE FOR RESIDUE SO4 D 803
04	AC4	SOFTWARE	HIS C:42 , ARG G:7 , HOH G:821 , HOH G:850 , HOH G:857	BINDING SITE FOR RESIDUE SO4 G 804
05	AC5	SOFTWARE	HIS D:42 , ARG H:7 , HOH H:917 , HOH H:963 , HOH H:969 , HOH H:974	BINDING SITE FOR RESIDUE SO4 H 805
06	AC6	SOFTWARE	ARG E:122 , PRO E:125 , LYS E:126	BINDING SITE FOR RESIDUE SO4 E 806
07	AC7	SOFTWARE	PRO D:125 , LYS D:126 , HOH D:840 , HOH D:881 , ARG F:86 , GLY F:87	BINDING SITE FOR RESIDUE SO4 F 807
08	AC8	SOFTWARE	ARG F:122 , PRO F:125 , LYS F:126 , HOH F:977	BINDING SITE FOR RESIDUE SO4 F 808
09	AC9	SOFTWARE	ARG H:122 , PRO H:125 , LYS H:126 , HOH H:997	BINDING SITE FOR RESIDUE SO4 H 809
10	BC1	SOFTWARE	SER C:84 , MET C:85 , PHE C:132 , LYS C:133 , EDO C:905 , HOH C:906 , HOH C:958	BINDING SITE FOR RESIDUE SO4 C 810
11	BC2	SOFTWARE	ILE B:82 , THR B:83 , SER B:84 , MET B:85 , HOH B:861	BINDING SITE FOR RESIDUE SO4 B 811
12	BC3	SOFTWARE	SER C:84 , MET C:85 , ARG C:86 , HOH C:962 , HOH C:968	BINDING SITE FOR RESIDUE SO4 C 812
13	BC4	SOFTWARE	ARG B:41 , SER B:46 , ARG C:11 , ARG H:54 , HOH H:955	BINDING SITE FOR RESIDUE EDO H 901
14	BC5	SOFTWARE	ARG E:11 , ARG H:41 , HOH H:905	BINDING SITE FOR RESIDUE EDO E 902
15	BC6	SOFTWARE	ARG F:11 , ARG G:41 , SER G:46	BINDING SITE FOR RESIDUE EDO F 903
16	BC7	SOFTWARE	ARG A:122 , ALA A:123 , HOH A:957 , ARG B:54	BINDING SITE FOR RESIDUE EDO A 904
17	BC8	SOFTWARE	MET C:85 , VAL C:129 , SO4 C:810 , HOH C:958 , LYS E:120	BINDING SITE FOR RESIDUE EDO C 905

(no "SS Bond" information available for 1S5U)

Asymmetric Unit

No.	Residues
1	Lys E:133	-	Gln E:134

(no "SAP(SNP)/Variant" information available for 1S5U)

Asymmetric Unit (1, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4HBCOA_THIOESTERASE	PS01328	4-hydroxybenzoyl-CoA thioesterase family active site.	YBGC_ECOLI	11-28	8	A:11-28 B:11-28 C:11-28 D:11-28 E:11-28 F:11-28 G:11-28 H:11-28

Biological Unit 1 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4HBCOA_THIOESTERASE	PS01328	4-hydroxybenzoyl-CoA thioesterase family active site.	YBGC_ECOLI	11-28	4	A:11-28 B:11-28 C:11-28 D:11-28 - - - -

Biological Unit 2 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4HBCOA_THIOESTERASE	PS01328	4-hydroxybenzoyl-CoA thioesterase family active site.	YBGC_ECOLI	11-28	4	- - - - E:11-28 F:11-28 G:11-28 H:11-28

Biological Unit 3 (1, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4HBCOA_THIOESTERASE	PS01328	4-hydroxybenzoyl-CoA thioesterase family active site.	YBGC_ECOLI	11-28	8	A:11-28 B:11-28 C:11-28 D:11-28 E:11-28 F:11-28 G:11-28 H:11-28

Biological Unit 4 (1, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4HBCOA_THIOESTERASE	PS01328	4-hydroxybenzoyl-CoA thioesterase family active site.	YBGC_ECOLI	11-28	8	A:11-28 B:11-28 C:11-28 D:11-28 E:11-28 F:11-28 G:11-28 H:11-28

Biological Unit 5 (1, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4HBCOA_THIOESTERASE	PS01328	4-hydroxybenzoyl-CoA thioesterase family active site.	YBGC_ECOLI	11-28	8	A:11-28 B:11-28 C:11-28 D:11-28 E:11-28 F:11-28 G:11-28 H:11-28

(no "Exon" information available for 1S5U)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:129
 aligned with YBGC_ECOLI | P0A8Z3 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:129
                                    13        23        33        43        53        63        73        83        93       103       113       123
           YBGC_ECOLI     4 TLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
               SCOP domains d1s5ua_ A: Hypothetical protein YbgC                                                                                              SCOP domains
               CATH domains 1s5uA00 A:4-132  [code=3.10.129.10, no name defined]                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhh..hhhhhhhh..eeeeeeeeeee........eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeeee....ee...hhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------4HBCOA_THIOESTERAS-------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5u A   4 TLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
                                    13        23        33        43        53        63        73        83        93       103       113       123

Chain B from PDB  Type:PROTEIN  Length:128
 aligned with YBGC_ECOLI | P0A8Z3 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:128
                                    14        24        34        44        54        64        74        84        94       104       114       124
           YBGC_ECOLI     5 LFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
               SCOP domains d1s5ub_ B: Hypothetical protein YbgC                                                                                             SCOP domains
               CATH domains 1s5uB00 B:5-132  [code=3.10.129.10, no name defined]                                                                             CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhh..hhhhhhhh..eeeeeeeeeee........eeeeeeeeeeee..eeeeeeeee.....eeeeeeeeeeee..........hhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------4HBCOA_THIOESTERAS-------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5u B   5 LFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
                                    14        24        34        44        54        64        74        84        94       104       114       124

Chain C from PDB  Type:PROTEIN  Length:130
 aligned with YBGC_ECOLI | P0A8Z3 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:130
                                    13        23        33        43        53        63        73        83        93       103       113       123       133
           YBGC_ECOLI     4 TLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEFK 133
               SCOP domains d1s5uc_ C: Hypothetical protein YbgC                                                                                               SCOP domains
               CATH domains 1s5uC00 C:4-133  [code=3.10.129.10, no name defined]                                                                               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhh..hhhhhhhh..eeeeeeeeeee........eeeeeeeeeeee..eeeeeeeee.....eeeeeeeeeeee..........hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------4HBCOA_THIOESTERAS--------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5u C   4 TLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEFK 133
                                    13        23        33        43        53        63        73        83        93       103       113       123       133

Chain D from PDB  Type:PROTEIN  Length:129
 aligned with YBGC_ECOLI | P0A8Z3 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:129
                                    13        23        33        43        53        63        73        83        93       103       113       123
           YBGC_ECOLI     4 TLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
               SCOP domains d1s5ud_ D: Hypothetical protein YbgC                                                                                              SCOP domains
               CATH domains 1s5uD00 D:4-132  [code=3.10.129.10, no name defined]                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhh..hhhhhhhh..eeeeeeeeeee........eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee..........hhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------4HBCOA_THIOESTERAS-------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5u D   4 TLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
                                    13        23        33        43        53        63        73        83        93       103       113       123

Chain E from PDB  Type:PROTEIN  Length:136
 aligned with YBGC_ECOLI | P0A8Z3 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:136
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108       118       128
           YBGC_ECOLI     - --MNTTLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEFKQ 134
               SCOP domains d1s5ue_ E: Hypothetical protein YbgC                                                                                                     SCOP domains
               CATH domains 1s5uE00 E:-1-134  [code=3.10.129.10, no name defined]                                                                                    CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhh..hhhhhhhh..eeeeeeeeeee........eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee..........hhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------4HBCOA_THIOESTERAS---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5u E  -1 GHMNTTLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEFKQ 134
                                     8        18        28        38        48        58        68        78        88        98       108       118       128

Chain F from PDB  Type:PROTEIN  Length:130
 aligned with YBGC_ECOLI | P0A8Z3 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:130
                                    13        23        33        43        53        63        73        83        93       103       113       123       133
           YBGC_ECOLI     4 TLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEFK 133
               SCOP domains d1s5uf_ F: Hypothetical protein YbgC                                                                                               SCOP domains
               CATH domains 1s5uF00 F:4-133  [code=3.10.129.10, no name defined]                                                                               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhh..hhhhhhhh..eeeeeeeeeee........eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeeee....ee...hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------4HBCOA_THIOESTERAS--------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5u F   4 TLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEFK 133
                                    13        23        33        43        53        63        73        83        93       103       113       123       133

Chain G from PDB  Type:PROTEIN  Length:130
 aligned with YBGC_ECOLI | P0A8Z3 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:130
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
           YBGC_ECOLI     3 TTLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
               SCOP domains d1s5ug_ G: Hypothetical protein YbgC                                                                                               SCOP domains
               CATH domains 1s5uG00 G:3-132  [code=3.10.129.10, no name defined]                                                                               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhh..hhhhhhhh..eeeeeeeeeee........eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee..........hhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------4HBCOA_THIOESTERAS-------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5u G   3 TTLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
                                    12        22        32        42        52        62        72        82        92       102       112       122       132

Chain H from PDB  Type:PROTEIN  Length:130
 aligned with YBGC_ECOLI | P0A8Z3 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:130
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
           YBGC_ECOLI     3 TTLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
               SCOP domains d1s5uh_ H: Hypothetical protein YbgC                                                                                               SCOP domains
               CATH domains 1s5uH00 H:3-132  [code=3.10.129.10, no name defined]                                                                               CATH domains
           Pfam domains (1) -----------------4HBT-1s5uH01 H:20-105                                                                 --------------------------- Pfam domains (1)
           Pfam domains (2) -----------------4HBT-1s5uH02 H:20-105                                                                 --------------------------- Pfam domains (2)
           Pfam domains (3) -----------------4HBT-1s5uH03 H:20-105                                                                 --------------------------- Pfam domains (3)
           Pfam domains (4) -----------------4HBT-1s5uH04 H:20-105                                                                 --------------------------- Pfam domains (4)
           Pfam domains (5) -----------------4HBT-1s5uH05 H:20-105                                                                 --------------------------- Pfam domains (5)
           Pfam domains (6) -----------------4HBT-1s5uH06 H:20-105                                                                 --------------------------- Pfam domains (6)
           Pfam domains (7) -----------------4HBT-1s5uH07 H:20-105                                                                 --------------------------- Pfam domains (7)
           Pfam domains (8) -----------------4HBT-1s5uH08 H:20-105                                                                 --------------------------- Pfam domains (8)
         Sec.struct. author ...eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhh..hhhhhhhh..eeeeeeeeeee........eeeeeeeeeee...eeeeeeeee.....eeeeeeeeeeee..........hhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------4HBCOA_THIOESTERAS-------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5u H   3 TTLFRWPVRVYYEDTDAGGVVYHASYVAFYERARTEMLRHHHFSQQALMAERVAFVVRKMTVEYYAPARLDDMLEIQTEITSMRGTSLVFTQRIVNAENTLLNEAEVLVVCVDPLKMKPRALPKSIVAEF 132
                                    12        22        32        42        52        62        72        82        92       102       112       122       132

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Thioesterase/thiol ester dehydrase-isomerase (151)

Superfamily: Thioesterase/thiol ester dehydrase-isomerase (151)

Family: 4HBT-like (28)

Protein domain: Hypothetical protein YbgC (1)

Escherichia coli [TaxId: 562] (1)

1a	d1s5ua_	A:
1b	d1s5ub_	B:
1c	d1s5uc_	C:
1d	d1s5ud_	D:
1e	d1s5ue_	E:
1f	d1s5uf_	F:
1g	d1s5ug_	G:
1h	d1s5uh_	H:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Thiol Ester Dehydrase; Chain A (90)

Homologous Superfamily: [code=3.10.129.10, no name defined] (90)

Escherichia coli. Organism_taxid: 562. (8)

1a	1s5uE00	E:-1-134
1b	1s5uC00	C:4-133
1c	1s5uF00	F:4-133
1d	1s5uG00	G:3-132
1e	1s5uH00	H:3-132
1f	1s5uA00	A:4-132
1g	1s5uD00	D:4-132
1h	1s5uB00	B:5-132

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: HotDog (52)

Family: 4HBT (31)

Escherichia coli (strain K12) (2)

1a	4HBT-1s5uH01	H:20-105
1b	4HBT-1s5uH02	H:20-105
1c	4HBT-1s5uH03	H:20-105
1d	4HBT-1s5uH04	H:20-105
1e	4HBT-1s5uH05	H:20-105
1f	4HBT-1s5uH06	H:20-105
1g	4HBT-1s5uH07	H:20-105
1h	4HBT-1s5uH08	H:20-105

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H (YBGC_ECOLI | P0A8Z3)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0016790	thiolester hydrolase activity	Catalysis of the reaction: RCO-SR' + H2O = RCOOH + HSR'. This reaction is the hydrolysis of a thiolester bond, an ester formed from a carboxylic acid and a thiol (i.e., RCO-SR'), such as that found in acetyl-coenzyme A.
biological process
	GO:0006629	lipid metabolic process	The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
cellular component
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		EDO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Lys E:133 - Gln E:134	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1s5u
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	YBGC_ECOLI \| P0A8Z3
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	YBGC_ECOLI \| P0A8Z3
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	YBGC_ECOLI \| P0A8Z3	:	5kl9 5t06 5t07

(no "Related Entries Specified in the PDB File" available for 1S5U)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 17)

Sites (17, 17)

SS Bonds (0, 0)

Cis Peptide Bonds (1, 1)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 8)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 8)

CATH Domains (1, 8)

Pfam Domains (1, 8)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
