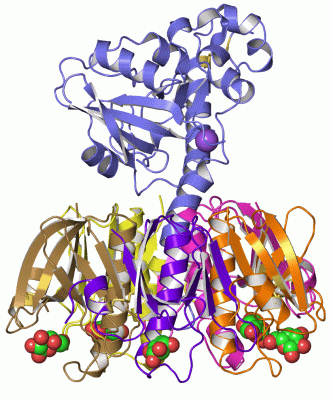

Asym.Unit - manually (Jmol Viewer)

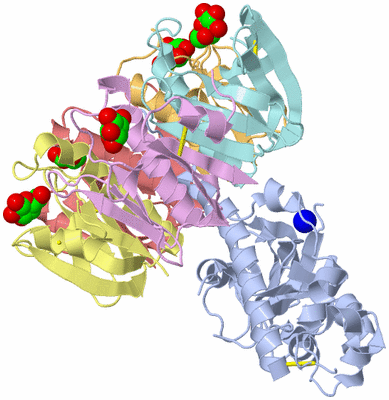

Asymmetric Unit (Jmol Viewer)

Asym. Unit - sites (Jmol Viewer)

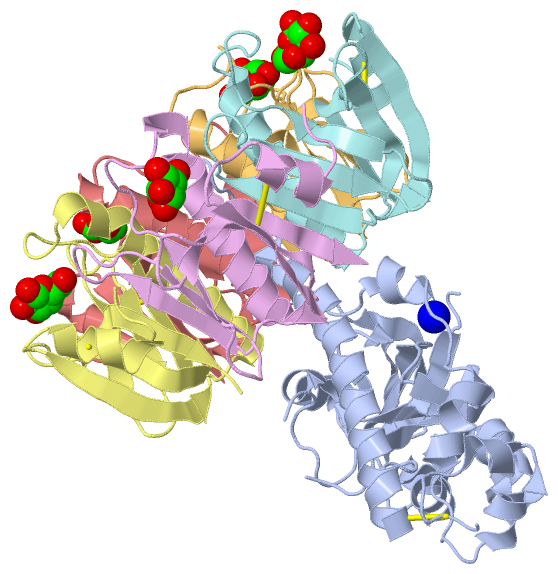

Biological Unit 1 (Jmol Viewer)

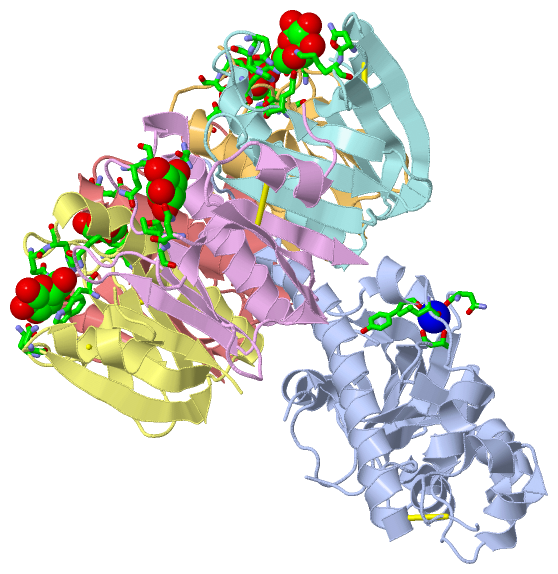

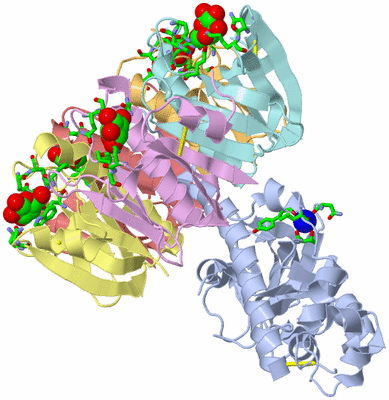

Biol. Unit 1 - sites (Jmol Viewer)

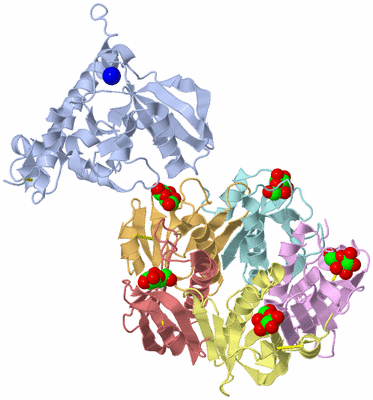

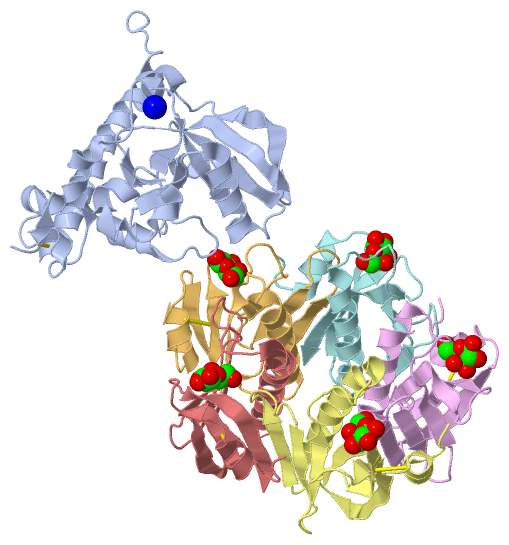

Biological Unit 2 (Jmol Viewer)

Title :   CHOLERA HOLOTOXIN, CRYSTAL FORM 2

Authors :   C. J. O'Neal, E. I. Amaya, M. G. Jobling, R. K. Holmes, W. G. Hol

Date :   20 Jan 04 (Deposition) - 06 Apr 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.60

Chains :   Asym. Unit : A,D,E,F,G,H
Biol. Unit 1: A,D,E,F,G,H  (1x)
Biol. Unit 2: A (1x),D (1x),E (1x),F (1x),G (1x),H (1x)

Keywords :   Cholera Toxin, Heat-Labile Enterotoxin, Adp Ribose Transferases, Ab5 Toxins, Transferase, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. J. O'Neal, E. I. Amaya, M. G. Jobling, R. K. Holmes, W. G. Hol
Crystal Structures Of An Intrinsically Active Cholera Toxin Mutant Yield Insight Into The Toxin Activation Mechanism
Biochemistry V. 43 3772 2004
PubMed-ID: 15049684 | Reference-DOI: 10.1021/BI0360152

Molecule 1 - CHOLERA ENTEROTOXIN, A CHAIN
	Chains	:	A
	EC Number	:	2.4.2.36
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PARCT5
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Gene	:	CTXA, TOXA, VC1457
	Organism Scientific	:	VIBRIO CHOLERAE
	Organism Taxid	:	666
	Synonym	:	NAD(+)--DIPHTHAMIDE ADP- RIBOSYLTRANSFERASE, CHOLERA ENTEROTOXIN A SUBUNIT

Molecule 2 - CHOLERA TOXIN B PROTEIN (CTB)
	Chains	:	D, E, F, G, H
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PARCT5
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Gene	:	CTXB, TOXB, VC1456
	Organism Scientific	:	VIBRIO CHOLERAE
	Organism Taxid	:	666

		1	2	3	4	5	6
Asymmetric Unit	:	A	D	E	F	G	H
Biological Unit 1 (1x)	:	A	D	E	F	G	H
Biological Unit 2 (1x)	:	A (1x)	D (1x)	E (1x)	F (1x)	G (1x)	H (1x)

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 6)

No.	Name	Count	Type	Full Name
1	GAL	5	Ligand/Ion	BETA-D-GALACTOSE
2	NA	1	Ligand/Ion	SODIUM ION

Biological Unit 1 (1, 5)

No.	Name	Count	Type	Full Name
1	GAL	5	Ligand/Ion	BETA-D-GALACTOSE
2	NA	-1	Ligand/Ion	SODIUM ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	GAL	-1	Ligand/Ion	BETA-D-GALACTOSE
2	NA	-1	Ligand/Ion	SODIUM ION

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN D:14 , GLU D:51 , GLN D:56 , HIS D:57 , GLN D:61 , TRP D:88 , ASN D:90	BINDING SITE FOR RESIDUE GAL D 104
2	AC2	SOFTWARE	GLU E:51 , GLN E:56 , HIS E:57 , GLN E:61 , ASN E:90 , LYS E:91	BINDING SITE FOR RESIDUE GAL E 105
3	AC3	SOFTWARE	GLU F:51 , GLN F:56 , HIS F:57 , GLN F:61 , ASN F:90 , LYS F:91	BINDING SITE FOR RESIDUE GAL F 106
4	AC4	SOFTWARE	GLU G:51 , GLN G:56 , HIS G:57 , GLN G:61 , TRP G:88 , ASN G:90	BINDING SITE FOR RESIDUE GAL G 107
5	AC5	SOFTWARE	GLU H:51 , GLN H:56 , HIS H:57 , GLN H:61 , TRP H:88 , ASN H:90 , LYS H:91	BINDING SITE FOR RESIDUE GAL H 108
6	AC6	SOFTWARE	ASN A:1 , THR A:90 , TYR A:150 , LEU A:153 , HOH A:243	BINDING SITE FOR RESIDUE NA A 241

Asymmetric Unit

No.	Residues
1	A:187	-	A:199
2	D:9	-	D:86
3	E:9	-	E:86
4	F:9	-	F:86
5	G:9	-	G:86
6	H:9	-	H:86

Asymmetric Unit

No.	Residues
1	Glu A:177	-	Pro A:178
2	Thr D:92	-	Pro D:93
3	Thr E:92	-	Pro E:93
4	Thr F:92	-	Pro F:93
5	Thr G:92	-	Pro G:93
6	Thr H:92	-	Pro H:93

(no "SAP(SNP)/Variant" information available for 1S5F)

(no "PROSITE Motif" information available for 1S5F)

(no "Exon" information available for 1S5F)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:224
 aligned with CHTA_VIBCH | P01555 from UniProtKB/Swiss-Prot  Length:258

    Alignment length:235
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248
           CHTA_VIBCH    19 NDDKLYRADSRPPDEIKQSGGLMPRGQSEYFDRGTQMNINLYDHARGTQTGFVRHDDGYVSTSISLRSAHLVGQTILSGHSTYYIYVIATAPNMFNVNDVLGAYSPHPDEQEVSALGGIPYSQIYGWYRVHFGVLDEQLHRNRGYRDRYYSNLDIAPAADGYGLAGFPPEHRAWREEPWIHHAPPGCGNAPRSSMSNTCDEKTQSLGVKFLDEYQSKVKRQIFSGYQSDIDTHNR 253
               SCOP domains d1s5fa_ A: Cholera toxin                                                                                                                                                                                                                    SCOP domains
               CATH domains 1s5fA00 A:1-235 Heat-Labile Ente   rotoxin, subunit A                                                                                                                                                                                       CATH domains
               Pfam domains Enterotoxin_a-1s5fA01 A:1-235                                                                                                                                                                                                               Pfam domains
         Sec.struct. author ...eeeeee..hhhhhhhhhee..........---....hhhhhhhh...........eeee..hhhhhhhhhhhhh....eeeeeeee....eeehhhhhhhhh.hhhhh.eeee..ee...eeeeeeee..eeeeeeee....hhhhhh.....hhhhhhhhh.....hhhhhh.hhhhh.......--------hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1s5f A   1 NDDKLYRADSRPPDEIKQSGGLMPRGQSEYFD---QMNINLYDHARGTQTGFVRHDDGYVSTSISLRSAHLVGQTILSGHSTYYIYVIATAPNMFNVNDVLGAYSPHPDEQEVSALGGIPYSQIYGWYRVHFGVLDEQLHRNRGYRDRYYSNLDIAPAADGYGLAGFPPEHRAWREEPWIHHAPPGCGN--------TCDEKTQSLGVKFLDEYQSKVKRQIFSGYQSDIDTHNR 235
                                    10        20        30 |   |  40        50        60        70        80        90       100       110       120       130       140       150       160       170       180        |-       200       210       220       230
                                                          32  36                                                                                                                                                      189      198

Chain D from PDB  Type:PROTEIN  Length:103
 aligned with CHTB_VIBCH | P01556 from UniProtKB/Swiss-Prot  Length:124

    Alignment length:103
                                    31        41        51        61        71        81        91       101       111       121
           CHTB_VIBCH    22 TPQNITDLCAEYHNTQIYTLNDKIFSYTESLAGKREMAIITFKNGAIFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN 124
               SCOP domains d1s5fd_ D: Cholera toxin                                                                                SCOP domains
               CATH domains 1s5fD00 D:1-103  [code=2.40.50.110, no name defined]                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhh...eeeeeeee...eeeee.......eeee.....eeee.......hhhhhhhhhhhhhhhhhhhhhh..eeeeeee.....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 1s5f D   1 TPQNITDLCAEYHNTQIHTLNDKIFSYTESLAGKREMAIITFKNGATFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN 103
                                    10        20        30        40        50        60        70        80        90       100

Chain E from PDB  Type:PROTEIN  Length:103
 aligned with CHTB_VIBCH | P01556 from UniProtKB/Swiss-Prot  Length:124

    Alignment length:103
                                    31        41        51        61        71        81        91       101       111       121
           CHTB_VIBCH    22 TPQNITDLCAEYHNTQIYTLNDKIFSYTESLAGKREMAIITFKNGAIFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN 124
               SCOP domains d1s5fe_ E: Cholera toxin                                                                                SCOP domains
               CATH domains 1s5fE00 E:1-103  [code=2.40.50.110, no name defined]                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhh....eeeeeeee...eeeee.......eeee.....eeee.......hhhhhhhhhhhhhhhhhhhhhh..eeeeeee.....eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 1s5f E   1 TPQNITDLCAEYHNTQIHTLNDKIFSYTESLAGKREMAIITFKNGATFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN 103
                                    10        20        30        40        50        60        70        80        90       100

Chain F from PDB  Type:PROTEIN  Length:103
 aligned with CHTB_VIBCH | P01556 from UniProtKB/Swiss-Prot  Length:124

    Alignment length:103
                                    31        41        51        61        71        81        91       101       111       121
           CHTB_VIBCH    22 TPQNITDLCAEYHNTQIYTLNDKIFSYTESLAGKREMAIITFKNGAIFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN 124
               SCOP domains d1s5ff_ F: Cholera toxin                                                                                SCOP domains
               CATH domains 1s5fF00 F:1-103  [code=2.40.50.110, no name defined]                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhh...eeeeeeee...eeeee......eeeee.....eeee.........hhhhhhhhhhhhhhhhhhh...eeeeeee.....eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 1s5f F   1 TPQNITDLCAEYHNTQIHTLNDKIFSYTESLAGKREMAIITFKNGATFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN 103
                                    10        20        30        40        50        60        70        80        90       100

Chain G from PDB  Type:PROTEIN  Length:102
 aligned with CHTB_VIBCH | P01556 from UniProtKB/Swiss-Prot  Length:124

    Alignment length:102
                                    31        41        51        61        71        81        91       101       111       121
           CHTB_VIBCH    22 TPQNITDLCAEYHNTQIYTLNDKIFSYTESLAGKREMAIITFKNGAIFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMA 123
               SCOP domains d1s5fg_ G: Cholera toxin                                                                               SCOP domains
               CATH domains 1s5fG00 G:1-102  [code=2.40.50.110, no name defined]                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhh....eeeeeeee...eeeee......eeeee.....eeee.........hhhhhhhhhhhhhhhhhh....eeeeeee.....eeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 1s5f G   1 TPQNITDLCAEYHNTQIHTLNDKIFSYTESLAGKREMAIITFKNGATFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMA 102
                                    10        20        30        40        50        60        70        80        90       100

Chain H from PDB  Type:PROTEIN  Length:103
 aligned with CHTB_VIBCH | P01556 from UniProtKB/Swiss-Prot  Length:124

    Alignment length:103
                                    31        41        51        61        71        81        91       101       111       121
           CHTB_VIBCH    22 TPQNITDLCAEYHNTQIYTLNDKIFSYTESLAGKREMAIITFKNGAIFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN 124
               SCOP domains d1s5fh_ H: Cholera toxin                                                                                SCOP domains
               CATH domains 1s5fH00 H:1-103  [code=2.40.50.110, no name defined]                                                    CATH domains
           Pfam domains (1) Enterotoxin_b-1s5fH01 H:1-102                                                                         - Pfam domains (1)
           Pfam domains (2) Enterotoxin_b-1s5fH02 H:1-102                                                                         - Pfam domains (2)
           Pfam domains (3) Enterotoxin_b-1s5fH03 H:1-102                                                                         - Pfam domains (3)
           Pfam domains (4) Enterotoxin_b-1s5fH04 H:1-102                                                                         - Pfam domains (4)
           Pfam domains (5) Enterotoxin_b-1s5fH05 H:1-102                                                                         - Pfam domains (5)
         Sec.struct. author ...hhhhhhhh...eeeeeeeee..eeeee.......eeee.....eeee.......hhhhhhhhhhhhhhhhhhhhh..eeeeeeee.....eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 1s5f H   1 TPQNITDLCAEYHNTQIHTLNDKIFSYTESLAGKREMAIITFKNGATFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN 103
                                    10        20        30        40        50        60        70        80        90       100

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: OB-fold (1179)

Superfamily: Bacterial enterotoxins (188)

Family: Bacterial AB5 toxins, B-subunits (85)

Protein domain: Cholera toxin (24)

Vibrio cholerae [TaxId: 666] (24)

1a	d1s5fd_	D:
1b	d1s5fe_	E:
1c	d1s5ff_	F:
1d	d1s5fg_	G:
1e	d1s5fh_	H:

Class: Alpha and beta proteins (a+b) (23004)

Fold: ADP-ribosylation (157)

Superfamily: ADP-ribosylation (157)

Family: ADP-ribosylating toxins (85)

Protein domain: Cholera toxin (9)

Vibrio cholerae [TaxId: 666] (9)

d1s5fa_

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Alpha-Beta Complex (3881)

Topology: Heat-Labile Enterotoxin; Chain A (22)

Homologous Superfamily: Heat-Labile Enterotoxin, subunit A (22)

Vibrio cholerae. Organism_taxid: 666. (5)

1s5fA00

A:1-235

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: OB fold (Dihydrolipoamide Acetyltransferase, E2P) (1040)

Homologous Superfamily: [code=2.40.50.110, no name defined] (136)

Vibrio cholerae. Organism_taxid: 666. (15)

2a	1s5fG00	G:1-102
2b	1s5fD00	D:1-103
2c	1s5fE00	E:1-103
2d	1s5fF00	F:1-103
2e	1s5fH00	H:1-103

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: ADP-ribosyl (56)

Family: Enterotoxin_a (14)

Vibrio cholerae (6)

Enterotoxin_a-1s5fA01

A:1-235

Clan: no clan defined [family: Enterotoxin_b] (23)

Family: Enterotoxin_b (23)

Vibrio cholerae (11)

2a	Enterotoxin_b-1s5fH01	H:1-102
2b	Enterotoxin_b-1s5fH02	H:1-102
2c	Enterotoxin_b-1s5fH03	H:1-102
2d	Enterotoxin_b-1s5fH04	H:1-102
2e	Enterotoxin_b-1s5fH05	H:1-102

Asymmetric Unit(hide GO term definitions)

Chain A (CHTA_VIBCH | P01555)

molecular function
	GO:0003950	NAD+ ADP-ribosyltransferase activity	Catalysis of the reaction: NAD+ + (ADP-D-ribosyl)(n)-acceptor = nicotinamide + (ADP-D-ribosyl)(n+1)-acceptor.
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016757	transferase activity, transferring glycosyl groups	Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
biological process
	GO:0031640	killing of cells of other organism	Any process in an organism that results in the killing of cells of another organism, including in some cases the death of the other organism. Killing here refers to the induction of death in one cell by another cell, not cell-autonomous death due to internal or other environmental conditions.
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
	GO:0030819	positive regulation of cAMP biosynthetic process	Any process that activates or increases the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of the nucleotide cAMP (cyclic AMP, adenosine 3',5'-cyclophosphate).
	GO:0006471	protein ADP-ribosylation	The transfer, from NAD, of ADP-ribose to protein amino acids.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Chain D,E,F,G,H (CHTB_VIBCH | P01556)

molecular function
	GO:0046812	host cell surface binding	Interacting selectively and non-covalently with the surface of a host cell.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0031640	killing of cells of other organism	Any process in an organism that results in the killing of cells of another organism, including in some cases the death of the other organism. Killing here refers to the induction of death in one cell by another cell, not cell-autonomous death due to internal or other environmental conditions.
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
	GO:0006471	protein ADP-ribosylation	The transfer, from NAD, of ADP-ribose to protein amino acids.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0033644	host cell membrane	Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
	GO:0020002	host cell plasma membrane	The plasma membrane surrounding a host cell.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GAL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Glu A:177 - Pro A:178	[ RasMol ]
		Thr D:92 - Pro D:93	[ RasMol ]
		Thr E:92 - Pro E:93	[ RasMol ]
		Thr F:92 - Pro F:93	[ RasMol ]
		Thr G:92 - Pro G:93	[ RasMol ]
		Thr H:92 - Pro H:93	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1s5f
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CHTA_VIBCH \| P01555
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	CHTB_VIBCH \| P01556
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.4.2.36
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CHTA_VIBCH \| P01555
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	CHTB_VIBCH \| P01556
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1lta	HEAT-LABILE ENTEROTOXIN COMPLEXED WITH GALACTOSE
1ltg	HEAT-LABILE ENTEROTOXIN WITH AN A-SUBUNIT R7K MUTATION
1lts	HEAT-LABILE ENTEROTOXIN
1xtc	CHOLERA HOLOTOXIN

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 6)

Sites (6, 6)

SS Bonds (6, 6)

Cis Peptide Bonds (6, 6)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 6)

CATH Domains (2, 6)

Pfam Domains (2, 6)

Gene Ontology (14, 19)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
