1S4K - JenaLib

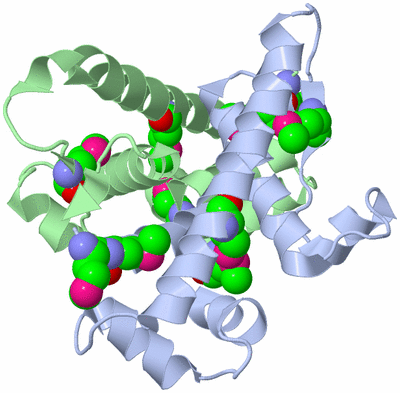

Asym./Biol. Unit (Jmol Viewer)

Title :   PUTATIVE CYTOPLASMIC PROTEIN FROM SALMONELLA TYPHIMURIUM

Authors :   M. E. Cuff, H. Li, F. Collart, A. Joachimiak, Midwest Center For Stru Genomics (Mcsg)

Date :   16 Jan 04 (Deposition) - 29 Jun 04 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.90

Chains :   Asym./Biol. Unit : A,B

Keywords :   Structural Genomics, Mcsg, Salmonella Typhimurium, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. E. Cuff, H. Li, F. Collart, A. Joachimiak
Putative Cytoplasmic Protein From Salmonella Typhimurium
To Be Published
PubMed: search

Molecule 1 - PUTATIVE CYTOPLASMIC PROTEIN YDIL
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21
	Expression System Plasmid	:	PMAGIC
	Expression System Strain	:	BL21
	Expression System Taxid	:	511693
	Expression System Vector Type	:	PLASMID
	Gene	:	YDIL
	Organism Scientific	:	SALMONELLA TYPHIMURIUM
	Organism Taxid	:	99287
	Strain	:	LT2

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 10)

No.	Name	Count	Type	Full Name
1	MSE	10	Mod. Amino Acid	SELENOMETHIONINE

(no "Site" information available for 1S4K)

(no "SS Bond" information available for 1S4K)

(no "Cis Peptide Bond" information available for 1S4K)

(no "SAP(SNP)/Variant" information available for 1S4K)

(no "PROSITE Motif" information available for 1S4K)

(no "Exon" information available for 1S4K)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:120
 aligned with Q8ZPR1_SALTY | Q8ZPR1 from UniProtKB/TrEMBL  Length:119

    Alignment length:120
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119
         Q8ZPR1_SALTY     - -MMNALELQALRRIFDMTIEECTIYITQDNNSATWQRWEAGDIPISPEIIARLKEMKARRQRRINAIVDKINNRIGNNTMRYFPDLSSFQSIYTEGDFIEWKIYQSVAAELFAHDLERLC 119
               SCOP domains d1s4ka_ A: Putative cytoplasmic protein YdiL                                                                             SCOP domains
               CATH domains 1s4kA00 A:0-119 Putative cytoplasmic protein                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhh..hhhhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh......eee...hhhhhhh.....hhhhhhhhhhhhhhhhhh...eee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 1s4k A   0 AmmNALELQALRRIFDmTIEECTIYITQDNNSATWQRWEAGDIPISPEIIARLKEmKARRQRRINAIVDKINNRIGNNTmRYFPDLSSFQSIYTEGDFIEWKIYQSVAAELFAHDLERLC 119
                             ||      9      | 19        29        39        49     |  59        69        79        89        99       109       119
                             ||            16-MSE                                 55-MSE                  79-MSE
                             1-MSE
                              2-MSE

Chain B from PDB  Type:PROTEIN  Length:120
 aligned with Q8ZPR1_SALTY | Q8ZPR1 from UniProtKB/TrEMBL  Length:119

    Alignment length:120
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119
         Q8ZPR1_SALTY     - -MMNALELQALRRIFDMTIEECTIYITQDNNSATWQRWEAGDIPISPEIIARLKEMKARRQRRINAIVDKINNRIGNNTMRYFPDLSSFQSIYTEGDFIEWKIYQSVAAELFAHDLERLC 119
               SCOP domains d1s4kb_ B: Putative cytoplasmic protein YdiL                                                                             SCOP domains
               CATH domains 1s4kB00 B:0-119 Putative cytoplasmic protein                                                                             CATH domains
           Pfam domains (1) --DUF1870-1s4kB01 B:2-119                                                                                                Pfam domains (1)
           Pfam domains (2) --DUF1870-1s4kB02 B:2-119                                                                                                Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhhh..hhhhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....ee....hhhhhhh.....hhhhhhhhhhhhhhhhhh...ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 1s4k B   0 AmmNALELQALRRIFDmTIEECTIYITQDNNSATWQRWEAGDIPISPEIIARLKEmKARRQRRINAIVDKINNRIGNNTmRYFPDLSSFQSIYTEGDFIEWKIYQSVAAELFAHDLERLC 119
                             ||      9      | 19        29        39        49     |  59        69        79        89        99       109       119
                             1-MSE         16-MSE                                 55-MSE                  79-MSE
                              2-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: lambda repressor-like DNA-binding domains (180)

Superfamily: lambda repressor-like DNA-binding domains (180)

Family: YdiL-like (2)

Protein domain: Putative cytoplasmic protein YdiL (1)

Salmonella typhimurium [TaxId: 90371] (1)

1a	d1s4ka_	A:
1b	d1s4kb_	B:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Putative cytoplasmic protein (2)

Homologous Superfamily: Putative cytoplasmic protein (2)

Salmonella typhimurium lt2. Organism_taxid: 99287. Strain: lt2. (1)

1a	1s4kA00	A:0-119
1b	1s4kB00	B:0-119

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: HTH (544)

Family: DUF1870 (1)

Salmonella typhimurium (1)

1a	DUF1870-1s4kB01	B:2-119
1b	DUF1870-1s4kB02	B:2-119

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (Q8ZPR1_SALTY | Q8ZPR1)

molecular function
	GO:0003677		DNA binding		Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 1s4k)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1s4k)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1s4k
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Q8ZPR1_SALTY \| Q8ZPR1
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Q8ZPR1_SALTY \| Q8ZPR1
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1S4K)

(no "Related Entries Specified in the PDB File" available for 1S4K)
