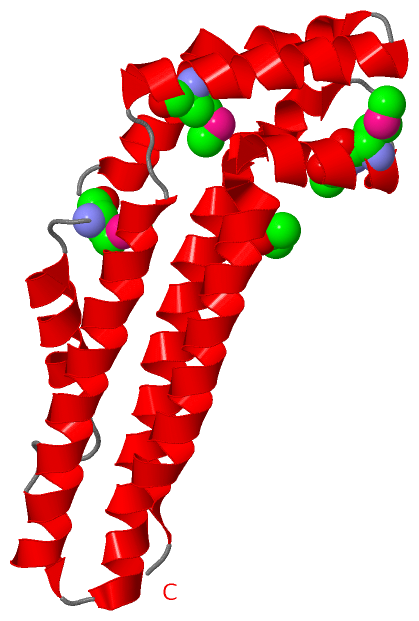

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CAG-Z FROM HELICOBACTER PYLORI

Authors :  L. Cendron, A. Seydel, A. Angelini, R. Battistutta, G. Zanotti
Date :  12 Jan 04  (Deposition) - 27 Jul 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Cag-Z, Helicobacter Pylori, Cag Pathogenicity Island, Type Iv Secretion System, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Cendron, A. Seydel, A. Angelini, R. Battistutta, G. Zanotti
Crystal Structure Of Cagz, A Protein From The Helicobacter Pylori Pathogenicity Island That Encodes For A Type Iv Secretion System
J. Mol. Biol. V. 340 881 2004
PubMed-ID: 15223328  |  Reference-DOI: 10.1016/J.JMB.2004.05.016
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CAG-Z
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PGEX-4T-3
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: CAGZ
    Mutation: YES
    Organism Scientific: HELICOBACTER PYLORI
    Organism Taxid: 210

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric/Biological Unit (2, 5)
No.NameCountTypeFull Name
1IPA1Ligand/IonISOPROPYL ALCOHOL
2MSE4Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:124BINDING SITE FOR RESIDUE IPA A 201

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1S2X)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1S2X)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1S2X)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1S2X)

(-) Exons   (0, 0)

(no "Exon" information available for 1S2X)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:180
 aligned with Q9JMX9_HELPX | Q9JMX9 from UniProtKB/TrEMBL  Length:199

    Alignment length:180
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179
         Q9JMX9_HELPX     - -MELGFNEAERQKILDSNSSLMRNANEVRDKFIQNYATSLKDSNDPQDFLRRVQELRINMQKNFISFDAYYNYLNNLVLASYNRCKQEKTFAESTIKNELTLGEFVAEISDNFNNFTCDEVARISDLVASYLPREYLPPFIDGNMMGVAFQILGIDDFGKKLNEIVQDIGTKYIILSKNK 179
               SCOP domains d1s2xa_ A: Cag-Z                                                                                                                                                                     SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......hhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1s2x A   0 VDELGFNEAERQKILDSNSSLmRNANEVRDKFIQNYATSLKDSNDPQDFLRRVQELRINmQKNFISFDAYYNYLNNLVLASYNRCKQEKTFAESTIKNELTLGEFVAEISDNFNNFTCDEVARISDLVASYLPREYLPPFIDGNmmGVAFQILGIDDFGKKLNEIVQDIGTKYIILSKNK 179
                                     9        19 |      29        39        49        59        69        79        89        99       109       119       129       139    || 149       159       169       179
                                                21-MSE                                59-MSE                                                                              144-MSE
                                                                                                                                                                           145-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1S2X)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1S2X)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1S2X)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    IPA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1s2x)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1s2x
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9JMX9_HELPX | Q9JMX9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9JMX9_HELPX | Q9JMX9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
