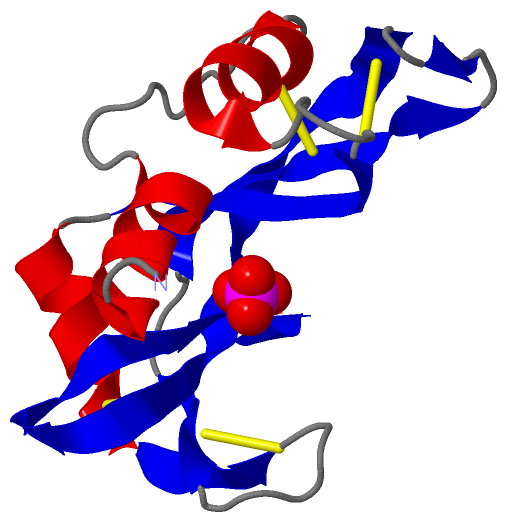

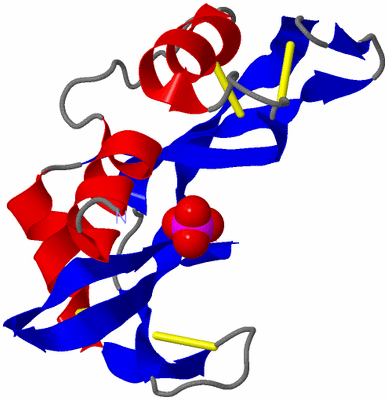

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

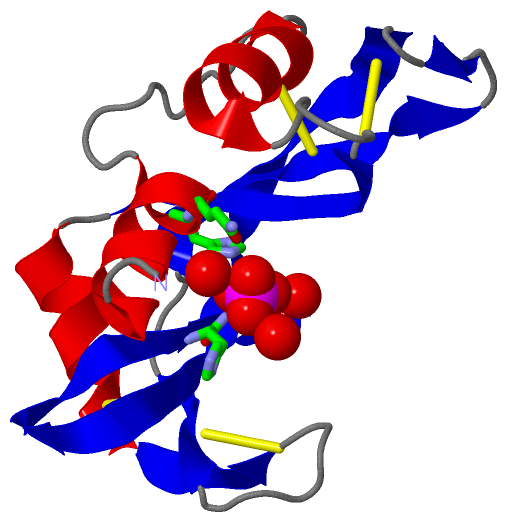

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  RIBONUCLEASE A FROM RATTUS NORVEGICUS (COMMON RAT)

Authors :  V. Gupta, S. Muyldermans, L. Wyns, D. Salunke
Date :  04 Dec 98  (Deposition) - 09 Dec 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase(Phosphoric Diester), Ribonuclease (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. Gupta, S. Muyldermans, L. Wyns, D. M. Salunke
The Crystal Structure Of Recombinant Rat Pancreatic Rnase A.
Proteins V. 35 1 1999 (for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (RIBONUCLEASE)
    Chains: A
    EC Number: 3.1.27.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Cellular Location: PERIPLASM
    Expression System Plasmid: PMA19
    Expression System Strain: JM101
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organ: PANCREAS
    Organism Common: NORWAY RAT
    Organism Scientific: RATTUS NORVEGICUS
    Organism Taxid: 10116
    Synonym: RNASE A

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1PO41Ligand/IonPHOSPHATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:11 , HIS A:12 , HIS A:119 , PHE A:120 , HOH A:131 , HOH A:180 , HOH A:227BINDING SITE FOR RESIDUE PO4 A 125

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1A:26 -A:84
2A:40 -A:95
3A:58 -A:110
4A:65 -A:72

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Tyr A:92 -Pro A:93
2Asn A:113 -Pro A:114

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RRA)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RNASE_PANCREATICPS00127 Pancreatic ribonuclease family signature.RNS1B_RAT68-74  1A:40-46

(-) Exons   (0, 0)

(no "Exon" information available for 1RRA)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:124
 aligned with RNS1B_RAT | P00684 from UniProtKB/Swiss-Prot  Length:152

    Alignment length:124
                                    38        48        58        68        78        88        98       108       118       128       138       148
            RNS1B_RAT    29 RESSADKFKRQHMDTEGPSKSSPTYCNQMMKRQGMTKGSCKPVNTFVHEPLEDVQAICSQGQVTCKNGRNNCHKSSSTLRITDCRLKGSSKYPNCDYTTTDSQKHIIIACDGNPYVPVHFDASV 152
               SCOP domains d1rraa_ A: Ribonuclease A (also ribonuclease B, S)                                                                           SCOP domains
               CATH domains 1rraA00 A:1-124 P-30 Protein                                                                                                 CATH domains
               Pfam domains -RnaseA-1rraA01 A:2-121                                                                                                  --- Pfam domains
         Sec.struct. author ..hhhhhhhhhhh..........hhhhhhhhhhh......eeeeeeee.hhhhhhhhhhheeee......eeeee...eeeeeeeee..ee..eeeeeeeeeeeeeeeeeeeeeeeeee.eeee Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------RNASE_P------------------------------------------------------------------------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------- Transcript
                 1rra A   1 AESSADKFKRQHMDTEGPSKSSPTYCNQMMKRQGMTKGSCKPVNTFVHEPLEDVQAICSQGQVTCKNGRNNCHKSSSTLRITDCRLKGSSKYPNCDYTTTDSQKHIIIACDGNPYVPVHFDASV 124
                                    10        20        30        40        50        60        70        80        90       100       110       120
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: RnaseA] (125)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RNS1B_RAT | P00684)
molecular function
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0004522    ribonuclease A activity    Catalysis of the endonucleolytic cleavage of RNA to 3'-phosphomononucleotides and 3'-phosphooligonucleotides ending in C-P or U-P with 2',3'-cyclic phosphate intermediates.
biological process
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
