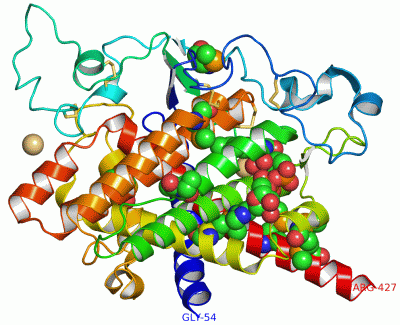

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

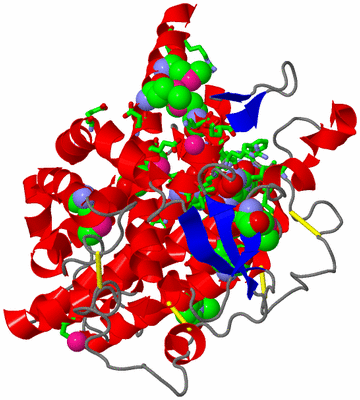

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF ERO1P, SOURCE OF DISULFIDE BONDS FOR OXIDATIVE PROTEIN FOLDING IN THE CELL

Authors :  E. Gross, D. B. Kastner, C. A. Kaiser, D. Fass
Date :  03 Dec 03  (Deposition) - 08 Jun 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A
Keywords :  Flavoenzyme, Disulfide Bonds, Cxxcxxc, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Gross, D. B. Kastner, C. A. Kaiser, D. Fass
Structure Of Ero1P, Source Of Disulfide Bonds For Oxidative Protein Folding In The Cell.
Cell(Cambridge, Mass. ) V. 117 601 2004
PubMed-ID: 15163408  |  Reference-DOI: 10.1016/S0092-8674(04)00418-0
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL 65.0 KDA PROTEIN IN COX14-COS3 INTERGENIC REGION PRECURSOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX-4T1
    Expression System Strain: ORIGAMI(DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: ERO1P-C
    Gene: YML130C, YM4987.05C
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 11)

Asymmetric/Biological Unit (4, 11)
No.NameCountTypeFull Name
1CD2Ligand/IonCADMIUM ION
2FAD1Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE
3MSE7Mod. Amino AcidSELENOMETHIONINE
4NEN1Ligand/Ion1-ETHYL-PYRROLIDINE-2,5-DIONE

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:64 , HIS A:386 , GLU A:411 , HOH A:832BINDING SITE FOR RESIDUE CD A 801
2AC2SOFTWARELYS A:240 , GLU A:241 , GLU A:408 , HOH A:886BINDING SITE FOR RESIDUE CD A 802
3AC3SOFTWARECYS A:208 , ARG A:423 , LEU A:424BINDING SITE FOR RESIDUE NEN A 501
4AC4SOFTWAREVAL A:107 , GLU A:186 , ARG A:187 , PHE A:188 , THR A:189 , TYR A:191 , ALA A:196 , ILE A:199 , TRP A:200 , TYR A:204 , TYR A:224 , SER A:228 , HIS A:231 , ALA A:232 , ILE A:234 , LEU A:238 , ARG A:260 , ARG A:267 , MSE A:347 , CYS A:355 , HOH A:805 , HOH A:810 , HOH A:819 , HOH A:844 , HOH A:848 , HOH A:849 , HOH A:881BINDING SITE FOR RESIDUE FAD A 634

(-) SS Bonds  (5, 5)

Asymmetric/Biological Unit
No.Residues
1A:90 -A:349
2A:100 -A:105
3A:143 -A:166
4A:150 -A:295
5A:352 -A:355

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1RP4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RP4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1RP4)

(-) Exons   (1, 1)

Asymmetric/Biological Unit (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YML130C1YML130C.1XIII:13175-114841692ERO1_YEAST1-5635631A:54-427374

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:374
 aligned with ERO1_YEAST | Q03103 from UniProtKB/Swiss-Prot  Length:563

    Alignment length:374
                                    63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423
           ERO1_YEAST    54 VTFNELNAINENIRDDLSALLKSDFFKYFRLDLYKQCSFWDANDGLCLNRACSVDVVEDWDTLPEYWQPEILGSFNNDTMKEADDSDDECKFLDQLCQTSKKPVDIEDTINYCDVNDFNGKNAVLIDLTANPERFTGYGGKQAGQIWSTIYQDNCFTIGETGESLAKDAFYRLVSGFHASIGTHLSKEYLNTKTGKWEPNLDLFMARIGNFPDRVTNMYFNYAVVAKALWKIQPYLPEFSFCDLVNKEIKNKMDNVISQLDTKIFNEDLVFANDLSLTLKDEFRSRFKNVTKIMDCVQCDRCRLWGKIQTTGYATALKILFEINDADEFTKQHIVGKLTKYELIALLQTFGRLSESIESVNMFEKMYGKRLNGS 427
               SCOP domains d1rp4a_ A: Endoplasmic oxidoreductin 1, Ero1p                                                                                                                                                                                                                                                                                                                                          SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------ERO1-1rp4A01 A:64-414                                                                                                                                                                                                                                                                                                                                          ------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh.....eeeee..........................hhhhhhhhhhhhhhh.......ee....hhhhh...................hhhhhh......eeeee...........hhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhee......ee.hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: A:54-427 UniProt: 1-563 [INCOMPLETE]                                                                                                                                                                                                                                                                                                                                    Transcript 1
                 1rp4 A  54 GSFNELNAINENIRDDLSALLKSDFFKYFRLDLYKQCSFWDANDGLCLNRACSVDVVEDWDTLPEYWQPEILGSFNNDTmKEADDSDDECKFLDQLCQTSKKPVDIEDTINYCDVNDFNGKNAVLIDLTANPERFTGYGGKQAGQIWSTIYQDNCFTIGETGESLAKDAFYRLVSGFHASIGTHLSKEYLNTKTGKWEPNLDLFmARIGNFPDRVTNmYFNYAVVAKALWKIQPYLPEFSFCDLVNKEIKNKmDNVISQLDTKIFNEDLVFANDLSLTLKDEFRSRFKNVTKImDCVQCDRCRLWGKIQTTGYATALKILFEINDADEFTKQHIVGKLTKYELIALLQTFGRLSESIESVNmFEKmYGKRLLER 427
                                    63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253    |  263       273       283       293       303  |    313       323       333       343   |   353       363       373       383       393       403       413 |   | 423
                                                                                                         133-MSE                                                                                                                      258-MSE      271-MSE                            306-MSE                                  347-MSE                                                             415-MSE
                                                                                                                                                                                                                                                                                                                                                                                                       419-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1RP4)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: ERO1] (4)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ERO1_YEAST | Q03103)
molecular function
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016671    oxidoreductase activity, acting on a sulfur group of donors, disulfide as acceptor    Catalysis of an oxidation-reduction (redox) reaction in which a sulfur-containing group acts as a hydrogen or electron donor and reduces disulfide.
    GO:0003756    protein disulfide isomerase activity    Catalysis of the rearrangement of both intrachain and interchain disulfide bonds in proteins.
    GO:0016972    thiol oxidase activity    Catalysis of the reaction: 4 R'C(R)SH + O2 = 2 R'C(R)S-S(R)CR' + 2 H2O.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0034975    protein folding in endoplasmic reticulum    A protein folding process that takes place in the endoplasmic reticulum (ER). Secreted, plasma membrane and organelle proteins are folded in the ER, assisted by chaperones and foldases (protein disulphide isomerases), and additional factors required for optimal folding (ATP, Ca2+ and an oxidizing environment to allow disulfide bond formation).
cellular component
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005789    endoplasmic reticulum membrane    The lipid bilayer surrounding the endoplasmic reticulum.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FAD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NEN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1rp4)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

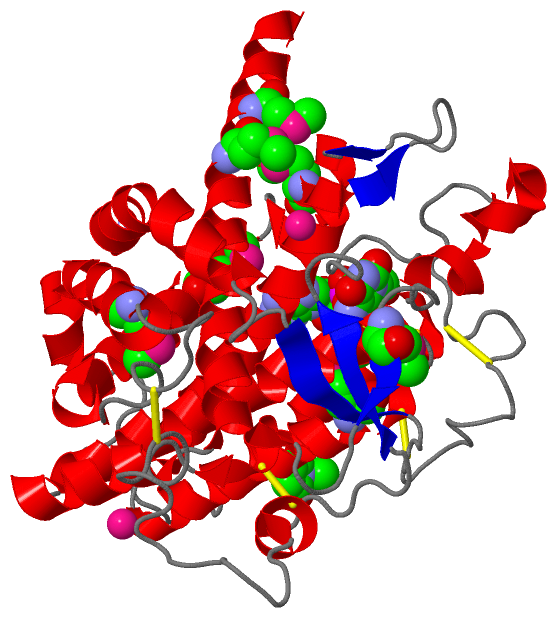

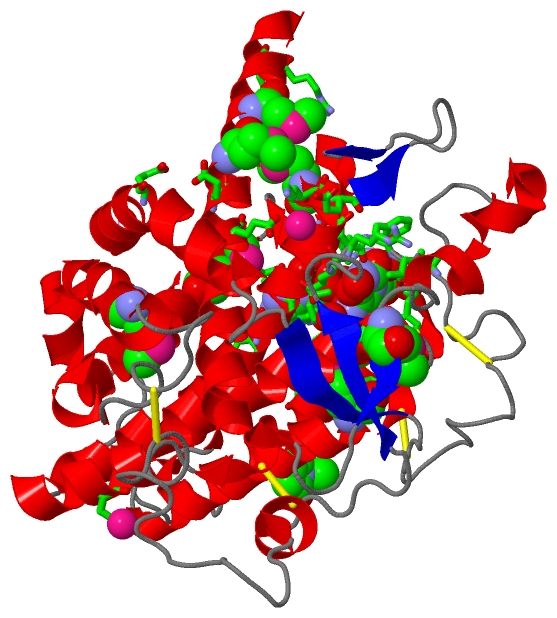

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
