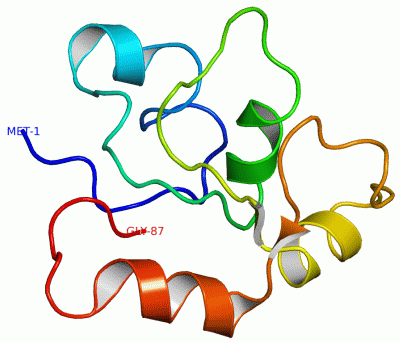

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

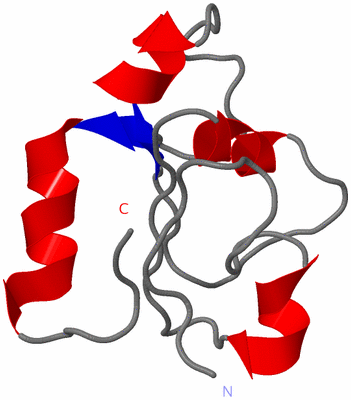

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

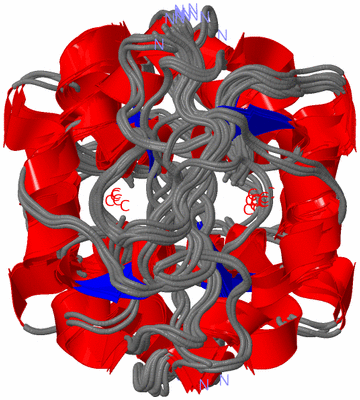

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  HIGH-RESOLUTION NMR STRUCTURE OF A PUTATIVE SULFUR TRANSFERASE (TM0979) FROM THERMOTOGA MARITIMA

Authors :  W. Peti, T. Herrmann, K. Wuthrich, Joint Center For Structural Gen (Jcsg)
Date :  14 Nov 03  (Deposition) - 21 Dec 04  (Release) - 28 Jul 10  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Dsrh, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  W. Peti, T. Herrmann, O. Zagnitko, S. K. Grzechnik, K. Wuthrich
Nmr Structure Of The Conserved Hypothetical Protein Tm0979 From Thermotoga Maritima.
Proteins V. 59 387 2005
PubMed-ID: 15723348  |  Reference-DOI: 10.1002/PROT.20352

(-) Compounds

Molecule 1 - CONSERVED HYPOTHETICAL PROTEIN TM0979
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1RHX)

(-) Sites  (0, 0)

(no "Site" information available for 1RHX)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1RHX)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1RHX)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RHX)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1RHX)

(-) Exons   (0, 0)

(no "Exon" information available for 1RHX)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:87
 aligned with Q9X074_THEMA | Q9X074 from UniProtKB/TrEMBL  Length:87

    Alignment length:87
                                    10        20        30        40        50        60        70        80
          Q9X074_THEMA    1 MALVLVKYGTDHPVEKLKIRSAKAEDKIVLIQNGVFWALEELETPAKVYAIKDDFLARGYSEEDSKVPLITYSEFIDLLEGEEKFIG 87
               SCOP domains d1rhxa_ A: Hypothetical protein TM0979                                                  SCOP domains
               CATH domains 1rhxA00 A:1-87  [code=3.40.1260.10, no name defined]                                    CATH domains
               Pfam domains ------------DsrH-1rhxA01 A:13-86                                                      - Pfam domains
         Sec.struct. author ...............hhhhhh...........hhhhhh...........eehhhhhh...........eehhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                  1rhx A  1 MALVLVKYGTDHPVEKLKIRSAKAEDKIVLIQNGVFWALEELETPAKVYAIKDDFLARGYSEEDSKVPLITYSEFIDLLEGEEKFIG 87
                                    10        20        30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: DsrEFH-like (7)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (Q9X074_THEMA | Q9X074)
biological process
    GO:0002143    tRNA wobble position uridine thiolation    The process in which a uridine residue at position 34 in the anticodon of a tRNA is post-transcriptionally thiolated at the C2 position. This process involves transfer of a sulfur from cysteine to position C2 by several steps.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1rhx)

  Sites
(no "Sites" information available for 1rhx)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1rhx)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

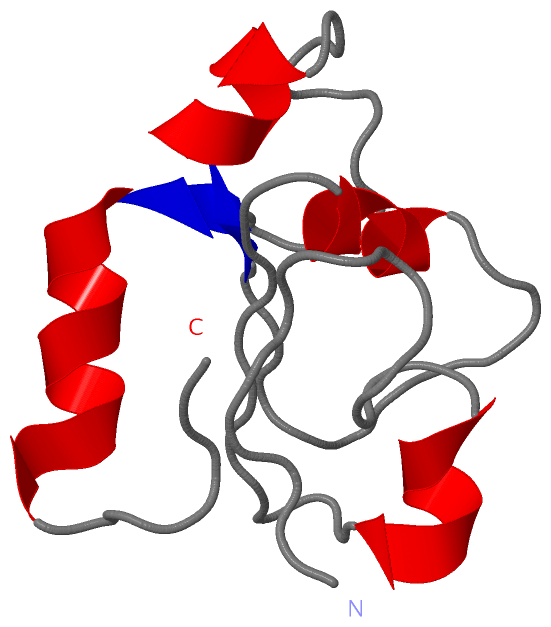

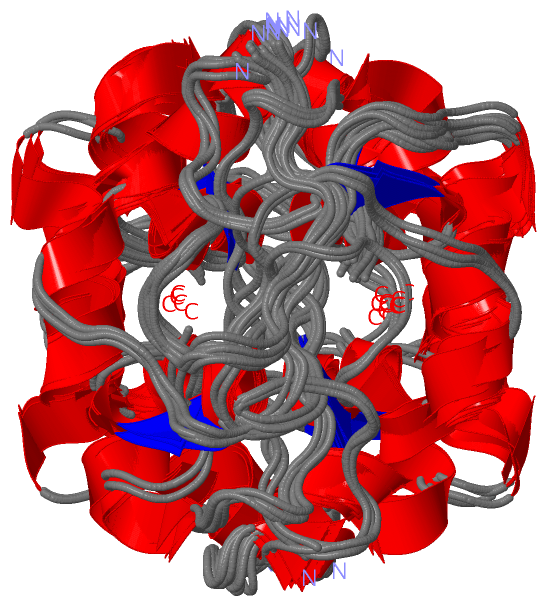

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1rhx
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9X074_THEMA | Q9X074
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9X074_THEMA | Q9X074
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q9X074_THEMA | Q9X074: 1x9a

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1RHX)
