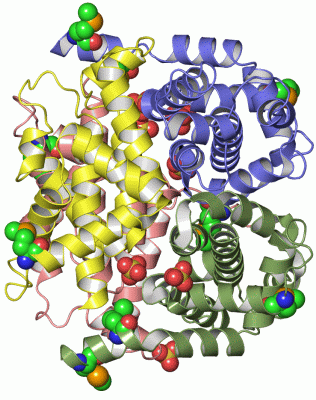

Asym./Biol. Unit - manually (Jmol Viewer)

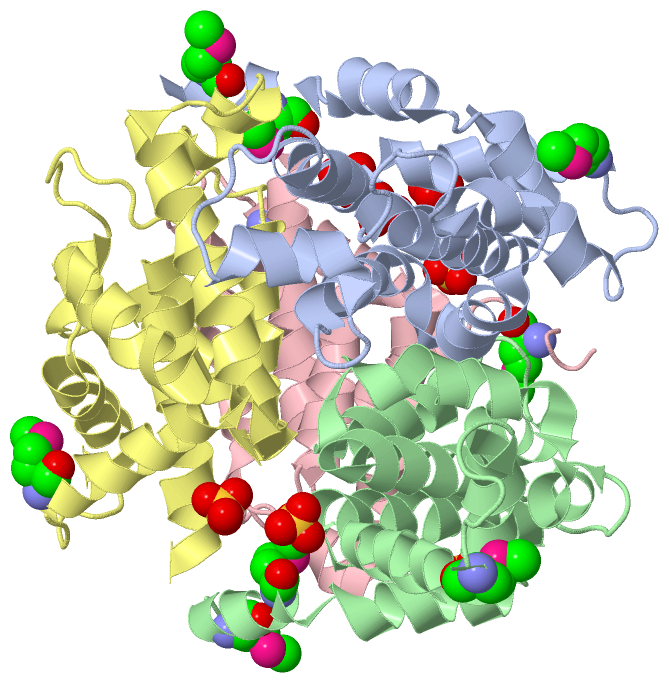

Asym./Biol. Unit (Jmol Viewer)

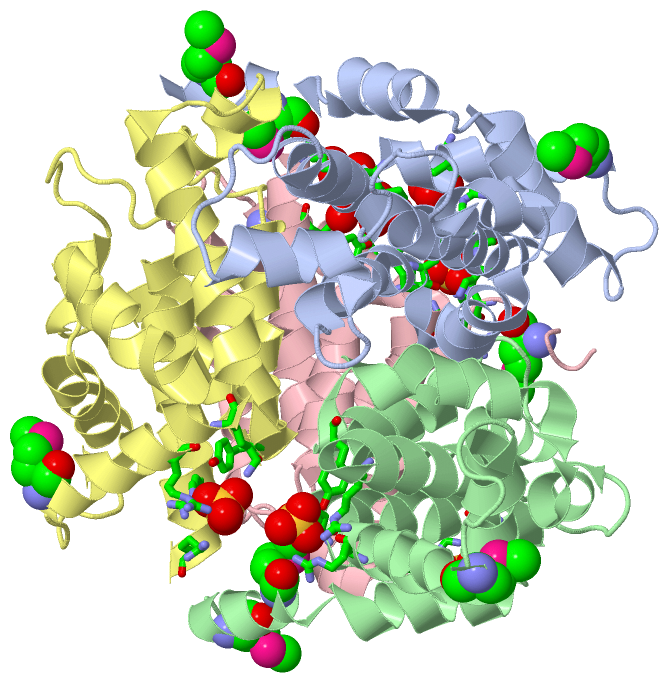

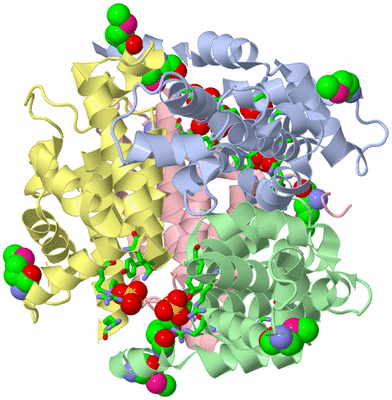

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   STRUCTURE OF PROTEIN OF UNKNOWN FUNCTION FROM BACILLUS STEAROTHERMOPHILUS

Authors :   Y. Kim, R. Wu, M. E. Cuff, P. Quartey, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)

Date :   10 Nov 03 (Deposition) - 02 Mar 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym./Biol. Unit : A,B,C,D

Keywords :   Structural Genomics, Hypothetical Protein, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Y. Kim, R. Wu, M. E. Cuff, P. Quartey, A. Joachimiak
Structure Of Hypothetical Protein Apc35681 From Bacillus Stearothermophilus
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - HYPOTHETICAL PROTEIN APC35681
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PMCSG7
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	GEOBACILLUS STEAROTHERMOPHILUS
	Organism Taxid	:	1422

		1	2	3	4
Asymmetric/Biological Unit	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 16)

No.	Name	Count	Type	Full Name
1	MSE	9	Mod. Amino Acid	SELENOMETHIONINE
2	SO4	7	Ligand/Ion	SULFATE ION

Asymmetric Unit (7, 7)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG A:53 , LYS A:57 , TYR A:108 , ARG A:156	BINDING SITE FOR RESIDUE SO4 A 401
2	AC2	SOFTWARE	ARG B:53 , LYS B:57 , TYR B:108 , ARG B:156	BINDING SITE FOR RESIDUE SO4 B 402
3	AC3	SOFTWARE	ARG C:53 , LYS C:57 , TYR C:108 , ARG C:156	BINDING SITE FOR RESIDUE SO4 C 403
4	AC4	SOFTWARE	ARG D:53 , LYS D:57 , TYR D:108 , ARG D:156 , ARG D:160	BINDING SITE FOR RESIDUE SO4 D 404
5	AC5	SOFTWARE	LYS A:57 , ARG A:58 , HOH A:422 , HOH A:434	BINDING SITE FOR RESIDUE SO4 A 405
6	AC6	SOFTWARE	HIS A:159 , ASN C:8 , SER C:56 , ARG C:58	BINDING SITE FOR RESIDUE SO4 A 406
7	AC7	SOFTWARE	ARG B:78 , ARG C:78	BINDING SITE FOR RESIDUE SO4 C 407

(no "SS Bond" information available for 1RFZ)

Asymmetric/Biological Unit

No.	Residues
1	Glu A:81	-	Pro A:82
2	Glu B:81	-	Pro B:82
3	Glu C:81	-	Pro C:82
4	Glu D:81	-	Pro D:82

(no "SAP(SNP)/Variant" information available for 1RFZ)

(no "PROSITE Motif" information available for 1RFZ)

(no "Exon" information available for 1RFZ)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:164
 aligned with P84133_GEOSE | P84133 from UniProtKB/TrEMBL  Length:168

    Alignment length:164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
         P84133_GEOSE     1 SNAMSEFIMNNLEQTARRWLEERGVTVEKIAELVYYLQSKYHPDLTMEECIENVNRVISKREVQNAILTGIQLDKLAEDGRLDEPLQSIIRRDEGLYGVDEILALSIVNVYGSIGFTNYGYIDKQKPGILQYLNDKSTGKCNTFLDDIVGAIAAAASSRLAHRA 164
               SCOP domains d1rfza_ A: YutG homologue                                                                                                                                            SCOP domains
               CATH domains 1rfzA00 A:-2-161 YutG-like                                                                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhh.hhhhhhhhhhhh..hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhh........hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1rfz A  -2 SNAmSEFImNNLEQTARRWLEERGVTVEKIAELVYYLQSKYHPDLTmEECIENVNRVISKREVQNAILTGIQLDKLAEDGRLDEPLQSIIRRDEGLYGVDEILALSIVNVYGSIGFTNYGYIDKQKPGILQYLNDKSTGKCNTFLDDIVGAIAAAASSRLAHRA 161
                               |    |7        17        27        37      | 47        57        67        77        87        97       107       117       127       137       147       157
                               |    |                                    44-MSE
                               1-MSE|
                                    6-MSE

Chain B from PDB  Type:PROTEIN  Length:164
 aligned with P84133_GEOSE | P84133 from UniProtKB/TrEMBL  Length:168

    Alignment length:164
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
         P84133_GEOSE     1 SNAMSEFIMNNLEQTARRWLEERGVTVEKIAELVYYLQSKYHPDLTMEECIENVNRVISKREVQNAILTGIQLDKLAEDGRLDEPLQSIIRRDEGLYGVDEILALSIVNVYGSIGFTNYGYIDKQKPGILQYLNDKSTGKCNTFLDDIVGAIAAAASSRLAHRA 164
               SCOP domains d1rfzb_ B: YutG homologue                                                                                                                                            SCOP domains
               CATH domains 1rfzB00 B:-2-161 YutG-like                                                                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1rfz B  -2 SNAmSEFImNNLEQTARRWLEERGVTVEKIAELVYYLQSKYHPDLTmEECIENVNRVISKREVQNAILTGIQLDKLAEDGRLDEPLQSIIRRDEGLYGVDEILALSIVNVYGSIGFTNYGYIDKQKPGILQYLNDKSTGKCNTFLDDIVGAIAAAASSRLAHRA 161
                               |    |7        17        27        37      | 47        57        67        77        87        97       107       117       127       137       147       157
                               1-MSE|                                    44-MSE
                                    6-MSE

Chain C from PDB  Type:PROTEIN  Length:161
 aligned with P84133_GEOSE | P84133 from UniProtKB/TrEMBL  Length:168

    Alignment length:161
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164
         P84133_GEOSE     5 SEFIMNNLEQTARRWLEERGVTVEKIAELVYYLQSKYHPDLTMEECIENVNRVISKREVQNAILTGIQLDKLAEDGRLDEPLQSIIRRDEGLYGVDEILALSIVNVYGSIGFTNYGYIDKQKPGILQYLNDKSTGKCNTFLDDIVGAIAAAASSRLAHRAA 165
               SCOP domains d1rfzc_ C: YutG homologue                                                                                                                                         SCOP domains
               CATH domains 1rfzC00 C:2-162 YutG-like                                                                                                                                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhh...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhh.....hhhhhhhhhhhhh...hhhhhhhhhhhhh.hhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1rfz C   2 SEFImNNLEQTARRWLEERGVTVEKIAELVYYLQSKYHPDLTmEECIENVNRVISKREVQNAILTGIQLDKLAEDGRLDEPLQSIIRRDEGLYGVDEILALSIVNVYGSIGFTNYGYIDKQKPGILQYLNDKSTGKCNTFLDDIVGAIAAAASSRLAHRAA 162
                                |   11        21        31        41  |     51        61        71        81        91       101       111       121       131       141       151       161
                                6-MSE                                44-MSE

Chain D from PDB  Type:PROTEIN  Length:154
 aligned with P84133_GEOSE | P84133 from UniProtKB/TrEMBL  Length:168

    Alignment length:154
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
         P84133_GEOSE    11 NLEQTARRWLEERGVTVEKIAELVYYLQSKYHPDLTMEECIENVNRVISKREVQNAILTGIQLDKLAEDGRLDEPLQSIIRRDEGLYGVDEILALSIVNVYGSIGFTNYGYIDKQKPGILQYLNDKSTGKCNTFLDDIVGAIAAAASSRLAHRA 164
               SCOP domains d1rfzd_ D: YutG homologue                                                                                                                                  SCOP domains
               CATH domains 1rfzD00 D:8-161 YutG-like                                                                                                                                  CATH domains
           Pfam domains (1) ----PgpA-1rfzD01 D:12-159                                                                                                                               -- Pfam domains (1)
           Pfam domains (2) ----PgpA-1rfzD02 D:12-159                                                                                                                               -- Pfam domains (2)
           Pfam domains (3) ----PgpA-1rfzD03 D:12-159                                                                                                                               -- Pfam domains (3)
           Pfam domains (4) ----PgpA-1rfzD04 D:12-159                                                                                                                               -- Pfam domains (4)
         Sec.struct. author hhhhhhhhhhhhhh.hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhh..........hhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1rfz D   8 NLEQTARRWLEERGVTVEKIAELVYYLQSKYHPDLTmEECIENVNRVISKREVQNAILTGIQLDKLAEDGRLDEPLQSIIRRDEGLYGVDEILALSIVNVYGSIGFTNYGYIDKQKPGILQYLNDKSTGKCNTFLDDIVGAIAAAASSRLAHRA 161
                                    17        27        37      | 47        57        67        77        87        97       107       117       127       137       147       157
                                                               44-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: YutG-like (3)

Superfamily: YutG-like (3)

Family: YutG-like (3)

Protein domain: YutG homologue (1)

Bacillus stearothermophilus [TaxId: 1422] (1)

1a	d1rfza_	A:
1b	d1rfzb_	B:
1c	d1rfzc_	C:
1d	d1rfzd_	D:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: YutG-like (3)

Homologous Superfamily: YutG-like (3)

Geobacillus stearothermophilus. Organism_taxid: 1422. (1)

1a	1rfzC00	C:2-162
1b	1rfzA00	A:-2-161
1c	1rfzB00	B:-2-161
1d	1rfzD00	D:8-161

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: PgpA] (3)

Family: PgpA (3)

Geobacillus stearothermophilus (Bacillus stearothermophilus) (1)

1a	PgpA-1rfzD01	D:12-159
1b	PgpA-1rfzD02	D:12-159
1c	PgpA-1rfzD03	D:12-159
1d	PgpA-1rfzD04	D:12-159

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D (P84133_GEOSE | P84133)

molecular function
	GO:0008962	phosphatidylglycerophosphatase activity	Catalysis of the reaction: phosphatidylglycerophosphate + H2O = phosphatidylglycerol + phosphate.
biological process
	GO:0016311	dephosphorylation	The process of removing one or more phosphoric (ester or anhydride) residues from a molecule.
	GO:0006629	lipid metabolic process	The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Glu A:81 - Pro A:82	[ RasMol ]
		Glu B:81 - Pro B:82	[ RasMol ]
		Glu C:81 - Pro C:82	[ RasMol ]
		Glu D:81 - Pro D:82	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1rfz
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	P84133_GEOSE \| P84133
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	P84133_GEOSE \| P84133
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1RFZ)

(no "Related Entries Specified in the PDB File" available for 1RFZ)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 16)

Sites (7, 7)

SS Bonds (0, 0)

Cis Peptide Bonds (4, 4)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (3, 3)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
