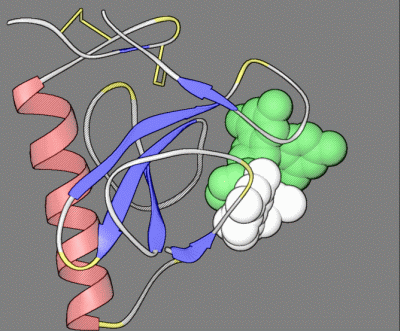

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

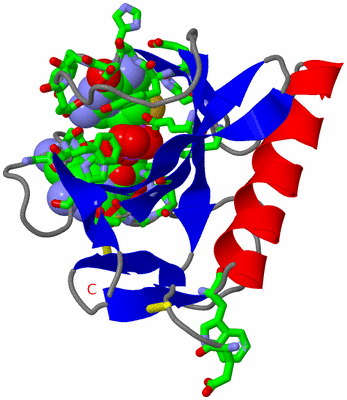

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF RIBONUCLEASE MS (AS RIBONUCLEASE T1 HOMOLOGUE) COMPLEXED WITH A GUANYLYL-3',5'-CYTIDINE ANALOGUE

Authors :  T. Nonaka, K. T. Nakamura, Y. Mitsui
Date :  14 May 93  (Deposition) - 31 Oct 93  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase(Endoribonuclease) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Nonaka, K. T. Nakamura, S. Uesugi, M. Ikehara, M. Irie, Y. Mitsui
Crystal Structure Of Ribonuclease Ms (As A Ribonuclease T1 Homologue) Complexed With A Guanylyl-3', 5'-Cytidine Analogue.
Biochemistry V. 32 11825 1993
PubMed-ID: 8218254  |  Reference-DOI: 10.1021/BI00095A011
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RIBONUCLEASE MS
    Chains: A
    EC Number: 3.1.27.3
    Engineered: YES
    Organism Scientific: ASPERGILLUS PHOENICIS
    Organism Taxid: 5063

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1GPC1Ligand/Ion2'-FLUOROGUANYLYL-(3'-5')-PHOSPHOCYTIDINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:1 , TRP A:13 , TYR A:37 , HIS A:39 , GLU A:40 , TYR A:41 , HIS A:42 , ASP A:43 , TYR A:44 , GLU A:45 , GLU A:57 , PRO A:72 , GLY A:73 , ALA A:74 , ARG A:76 , HIS A:91 , GLY A:96 , ASP A:97 , PHE A:99 , CYS A:102 , HOH A:135BINDING SITE FOR RESIDUE GPC A 106

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:3 -A:11
2A:7 -A:102

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Tyr A:37 -Pro A:38
2Gly A:53 -Thr A:54

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1RDS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1RDS)

(-) Exons   (0, 0)

(no "Exon" information available for 1RDS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:105
 aligned with RNMS_ASPPH | P00653 from UniProtKB/Swiss-Prot  Length:105

    Alignment length:105
                                    10        20        30        40        50        60        70        80        90       100
           RNMS_ASPPH     1 ESCEYTCGSTCYWSSDVSAAKAKGYSLYESGDTIDDYPHGYHDYEGFDFPVSGTYYEYPIMSDYDVYTGGSPGADRVIFNGDDELAGVITHTGASGDDFVACSSS 105
               SCOP domains d1rdsa_ A: RNase Ms                                                                                       SCOP domains
               CATH domains 1rdsA00 A:1-105  [code=3.10.450.30, no name defined]                                                      CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eee.hhhhhhhhhhhhhhhhh........eee.............eeeeee..............eeeeee..eeeeeeee.........eeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------- Transcript
                 1rds A   1 ESCEYTCGSTCYWSSDVSAAKAKGYSLYESGDTIDDYPHEYHDYEGFDFPVSGTYYEYPIMSDYDVYTGGSPGADRVIFNGDDELAGVITHTGASGDDFVACSSS 105
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1RDS)

(-) Gene Ontology  (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RNMS_ASPPH | P00653)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004521    endoribonuclease activity    Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0046589    ribonuclease T1 activity    Catalysis of the endonucleolytic cleavage to nucleoside 3'-phosphates and 3'-phosphooligonucleotides ending in Gp with 2',3'-cyclic phosphate intermediates.
    GO:0004540    ribonuclease activity    Catalysis of the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
    GO:0090501    RNA phosphodiester bond hydrolysis    The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GPC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gly A:53 - Thr A:54   [ RasMol ]
    Tyr A:37 - Pro A:38   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

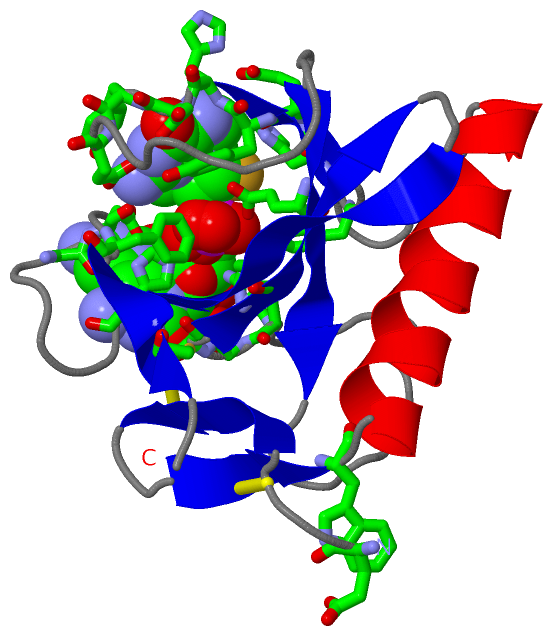

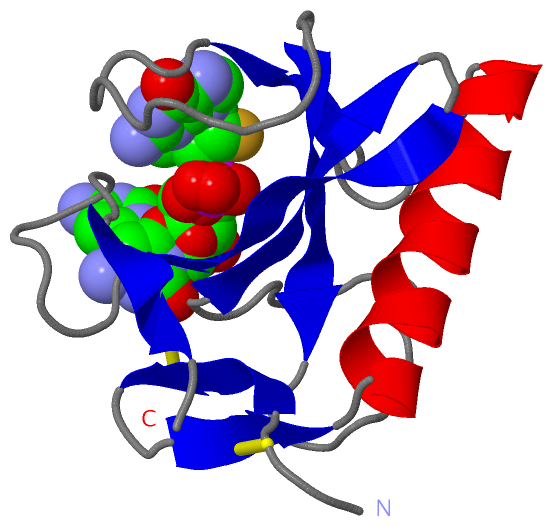

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

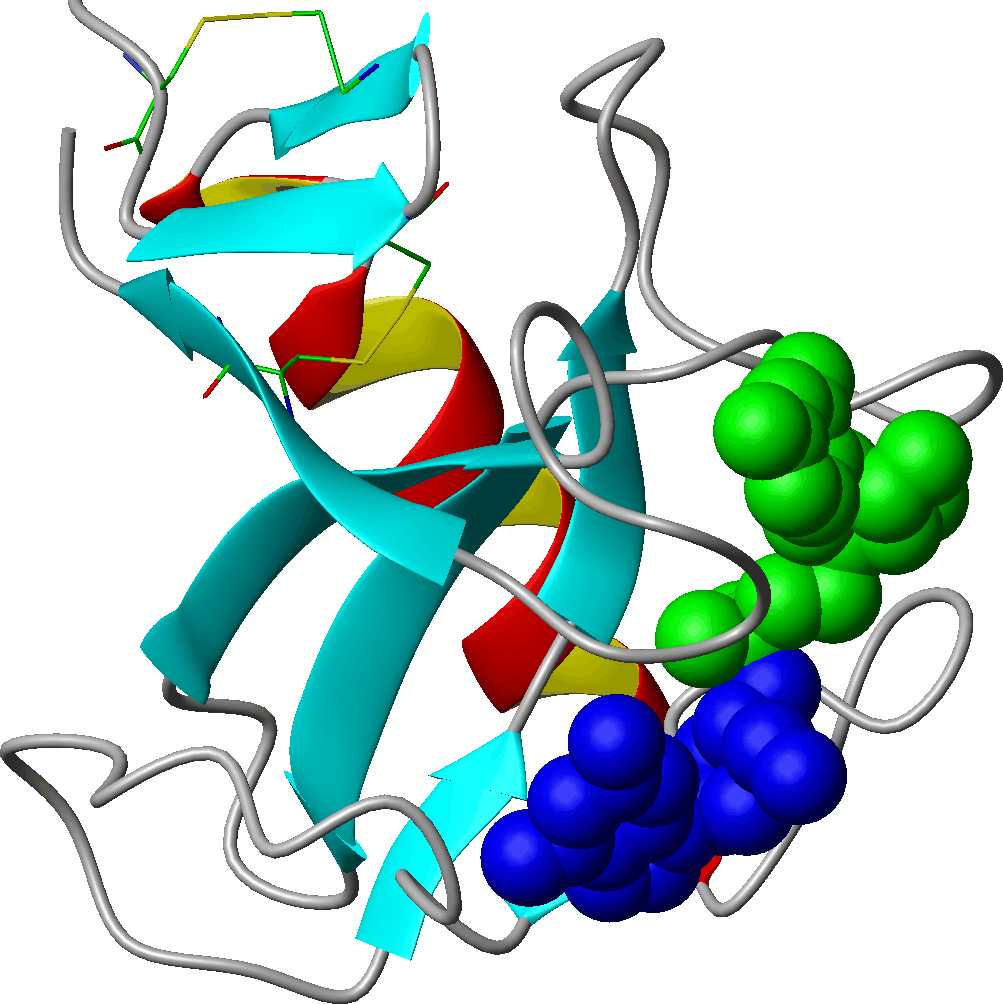

Molmol
  protein, nucleic acid: cartoon; ligands: spacefill; active site: sticks

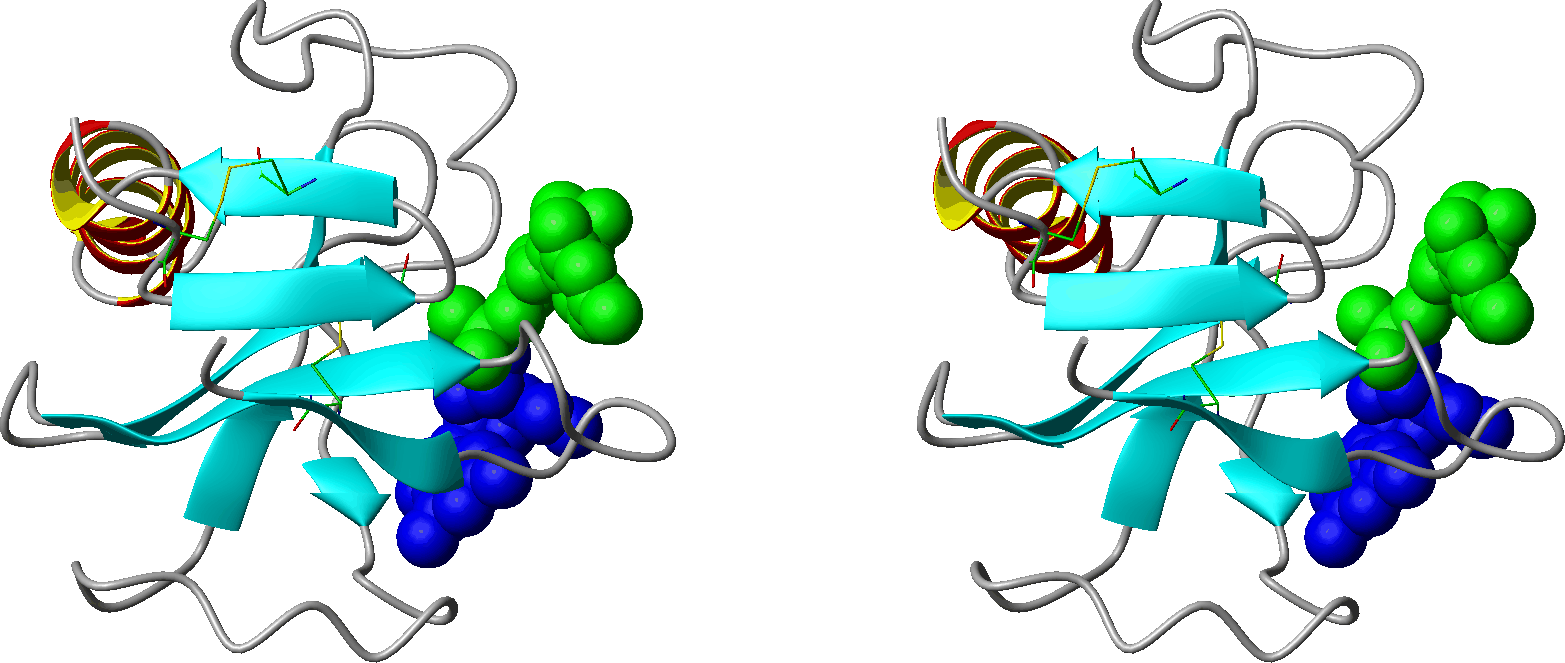

[ mono GIF format | stereo GIF format ] (automatic, in case of more than 1 NMR structures only model 1 is shown)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1rds
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RNMS_ASPPH | P00653
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.27.3
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RNMS_ASPPH | P00653
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RNMS_ASPPH | P00653: 1rms

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1RDS)
