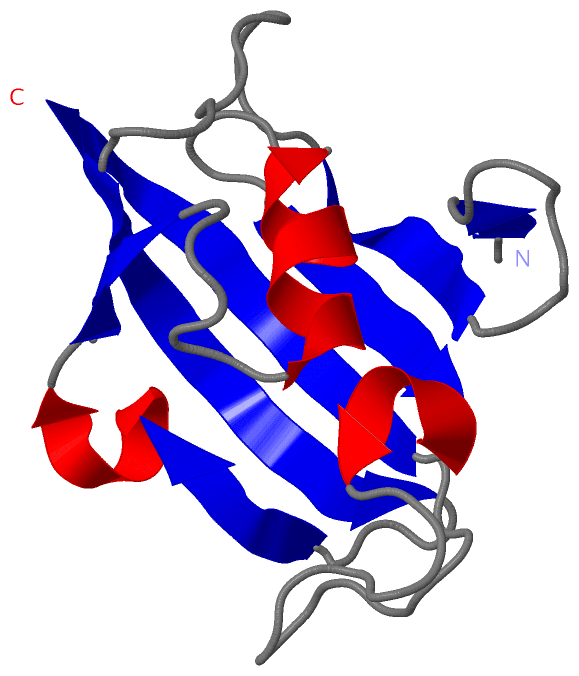

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURAL GENOMICS OF C.ELEGANS: FKBP-TYPE PEPTIDYLPROLYL ISOMERASE

Authors :  S. Li, The Structural Genomics Of C. Elegans Team, Southeast Collaboratory For Structural Genomics (Secsg)
Date :  29 Oct 03  (Deposition) - 02 Dec 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Peptidylprolyl Isomerase, Psi, Protein Structure Initiative, Southeast Collaboratory For Structural Genomics, Secsg (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Li, J. Finley, C. -H. Luan, S. Qiu, R. Gray, Q. Shang, D. Luo, C. Hongli, J. Zhao, W. -Y. Huang, L. J. Delucas, L. Nagy, A. Stanton, M. Luo, J. Symersky, N. Schormann, G. Lin, J. Tsao, D. H. Johnson, W. M. Carson
Structural Genomics Of C. Elegans: Fkbp-Type Peptidylprolyl Isomerase
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - FK506 BINDING PROTEIN FAMILY
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Taxid: 562
    Expression System Vector: PLASMID
    Gene: F31D4.3
    Organism Scientific: CAENORHABDITIS ELEGANS
    Organism Taxid: 6239
    Synonym: FKB-6

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1R9H)

(-) Sites  (0, 0)

(no "Site" information available for 1R9H)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1R9H)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Pro A:102 -Pro A:103

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1R9H)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1R9H)

(-) Exons   (0, 0)

(no "Exon" information available for 1R9H)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:118
 aligned with O45418_CAEEL | O45418 from UniProtKB/TrEMBL  Length:431

    Alignment length:118
                                    14        24        34        44        54        64        74        84        94       104       114
         O45418_CAEEL     5 KIDITPKKDGGVLKLIKKEGQGVVKPTTGTTVKVHYVGTLENGTKFDSSRDRGDQFSFNLGRGNVIKGWDLGVATMTKGEVAEFTIRSDYGYGDAGSPPKIPGGATLIFEVELFEWSA 122
               SCOP domains d1r9ha_ A: FKB-6, N-terminal domain                                                                                    SCOP domains
               CATH domains 1r9hA00 A:5-122  [code=3.10.50.40, no name defined]                                                                    CATH domains
               Pfam domains ---------------------FKBP_C-1r9hA01 A:26-118                                                                      ---- Pfam domains
         Sec.struct. author .ee........eeeeeee............eeeeeeeeee....eeeehhhhh..eeee......hhhhhhhhh......eeeeee.hhhh...............eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------- Transcript
                 1r9h A   5 KIDITPKKDGGVLKLIKKEGQGVVKPTTGTTVKVHYVGTLENGTKFDSSRDRGDQFSFNLGRGNVIKGWDLGVATMTKGEVAEFTIRSDYGYGDAGSPPKIPGGATLIFEVELFEWSA 122
                                    14        24        34        44        54        64        74        84        94       104       114
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: FKBP_C] (58)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (O45418_CAEEL | O45418)
molecular function
    GO:0005528    FK506 binding    Interacting selectively and non-covalently with the 23-membered macrolide lactone FK506.
    GO:0051879    Hsp90 protein binding    Interacting selectively and non-covalently with Hsp90 proteins, any of a group of heat shock proteins around 90kDa in size.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
biological process
    GO:0061077    chaperone-mediated protein folding    The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.
cellular component
    GO:0005789    endoplasmic reticulum membrane    The lipid bilayer surrounding the endoplasmic reticulum.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1r9h)

  Sites
(no "Sites" information available for 1r9h)

  Cis Peptide Bonds
    Pro A:102 - Pro A:103   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
