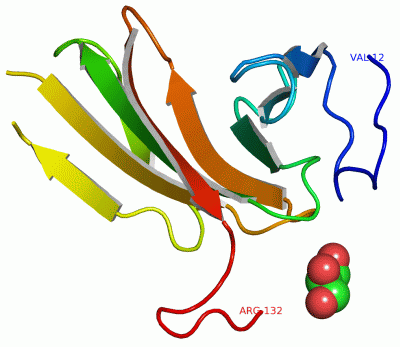

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

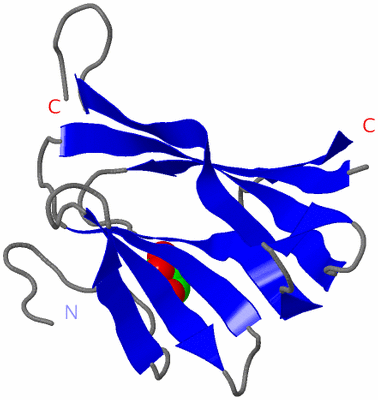

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

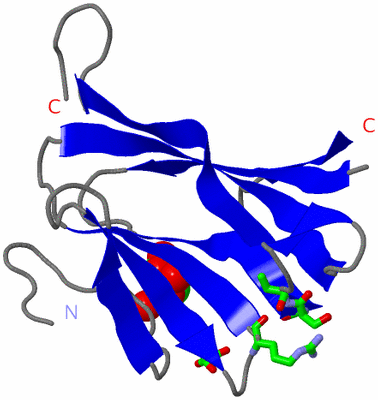

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  LEISHMANIA MAJOR HYPOTHETICAL PROTEIN

Authors :  G. W. Han, E. A. Merritt, Structural Genomics Of Pathogenic Protoz Consortium (Sgpp)
Date :  17 Oct 03  (Deposition) - 02 Dec 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.86
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Unknown Function, Psi, Protein Structure Initiative, Structural Genomics Of Pathogenic Protozoa Consortium, Sgpp (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. W. Han, E. A. Merritt
Leishmania Major Hypothetical Protein
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET14B
    Expression System Strain: BL-21 STAR, T7 SYSTEM
    Expression System Taxid: 562
    Expression System Vector: PLASMID
    Organism Scientific: LEISHMANIA MAJOR
    Organism Taxid: 5664

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:39 , ARG A:43 , GLY A:110 , SER A:111 , VAL A:112 , HOH A:261 , HOH A:281BINDING SITE FOR RESIDUE GOL A 200

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1R75)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1R75)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1R75)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1R75)

(-) Exons   (0, 0)

(no "Exon" information available for 1R75)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:110
 aligned with P84150_LEIMA | P84150 from UniProtKB/TrEMBL  Length:133

    Alignment length:121
                                    21        31        41        51        61        71        81        91       101       111       121       131
         P84150_LEIMA    12 VTFKNGKPTVKGTKTYPMFSNILYRIADTEARRWAFYNDSKELIIHVAVLFDYDSQIVPLGDTTAFRIDDPDEGNEDDFGKYLCEVDVRPLETQMFVEGSVTGWRVDTLEARTAEDERGYR 132
               SCOP domains d1r75a_ A: Unnamed hypothetical protein                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---DUF1935-1r75A01 A:15-124                                                                                      -------- Pfam domains
         Sec.struct. author .............eeee.....eeeeee....eeeeee....eeeeeeeeee...eeee....eeee.-----------.eeeeeeee....eeeeeeee...eeeeeeeeee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r75 A  12 VTFKNGKPTVKGTKTYPMFSNILYRIADTEARRWAFYNDSKELIIHVAVLFDYDSQIVPLGDTTAFRI-----------GKYLCEVDVRPLETQMFVEGSVTGWRVDTLEARTAEDERGYR 132
                                    21        31        41        51        61        71       | -        91       101       111       121       131
                                                                                              79          91
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1R75)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: DUF1935] (1)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1R75)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1r75)


(-) Still Images

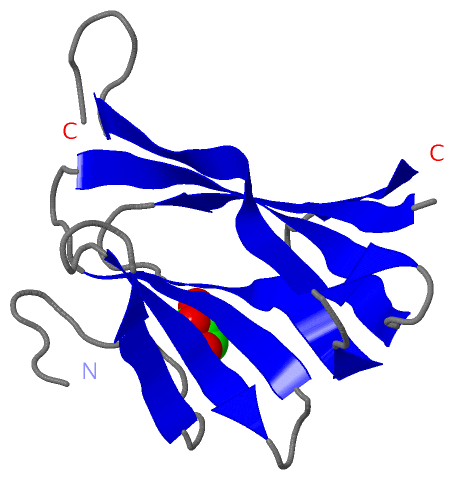

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1r75
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  P84150_LEIMA | P84150
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  P84150_LEIMA | P84150
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1R75)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1R75)
