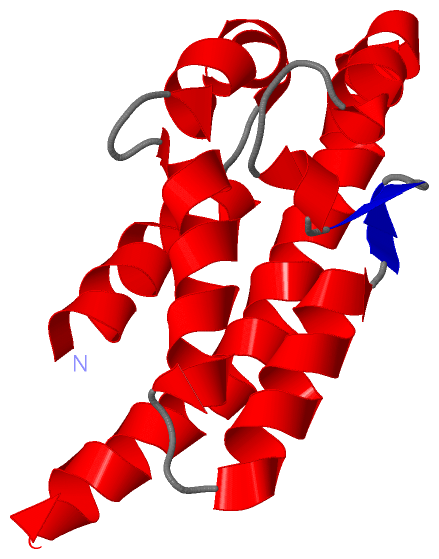

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

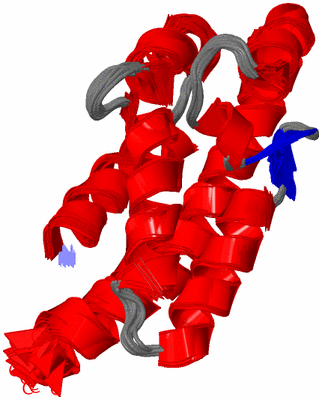

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF EXOENZYME S

Authors :  G. M. Langdon, D. Leitner, D. Labudde, R. Kuhne, P. Schmieder, K. Aktories, H. O. Oschkinat, G. Schmidt
Date :  08 Oct 03  (Deposition) - 12 Apr 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (23x)
Keywords :  Exos, Pseudomonas Aeruginosa, Gap, Toxin, Virulence Factor, Signal Transduction (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. M. Langdon, D. Leitner, D. Labudde, R. Kuhne, P. Schmieder, K. Aktories, H. O. Oschkinat, G. Schmidt
Solution Structure Of The N-Terminal Gtpase Activating Domain Of Pseudomonas Aeruginosa Exoenzyme S
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - EXOENZYME S
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PGEX-2T
    Expression System Strain: BL21-DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: GAP-DOMAIN (RESIDUES 96-234)
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 287

 Structural Features

(-) Chains, Units


NMR Structure (23x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1R4T)

(-) Sites  (0, 0)

(no "Site" information available for 1R4T)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1R4T)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1R4T)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1R4T)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1R4T)

(-) Exons   (0, 0)

(no "Exon" information available for 1R4T)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:122
 aligned with Q93SQ1_PSEAI | Q93SQ1 from UniProtKB/TrEMBL  Length:453

    Alignment length:122
                                   120       130       140       150       160       170       180       190       200       210       220       230
         Q93SQ1_PSEAI   111 PMTLKGLDKASELATLTPEGLAREHSRLASGDGALRSLSTALAGIRAGSQVEESRIQAGRLLERSIGGIALQQWGTTGGAASQLVLDASPELRREITDQLHQVMSEVALLRQAVESEVSRVS 232
               SCOP domains d1r4ta_ A: automated matches                                                                                               SCOP domains
               CATH domains 1r4tA00 A:111-232  [code=1.20.120.260, no name defined]                                                                    CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhh..hhhhhhhhhhhhh...hhhhhhhhhhhhhhh...hhhhhhhhhhhhh.ee..ee.hhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r4t A 111 PMTLKGLDKASELATLTPEGLAREHSRLASGDGALRSLSTALAGIRAGSQVEESRIQAGRLLERSIGGIALQQWGTTGGAASQLVLDASPELRREITDQLHQVMSEVALLRQAVESEVSRVS 232
                                   120       130       140       150       160       170       180       190       200       210       220       230
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1R4T)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (Q93SQ1_PSEAI | Q93SQ1)
molecular function
    GO:0005096    GTPase activator activity    Binds to and increases the activity of a GTPase, an enzyme that catalyzes the hydrolysis of GTP.
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0043547    positive regulation of GTPase activity    Any process that activates or increases the activity of a GTPase.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1r4t)

  Sites
(no "Sites" information available for 1r4t)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1r4t)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

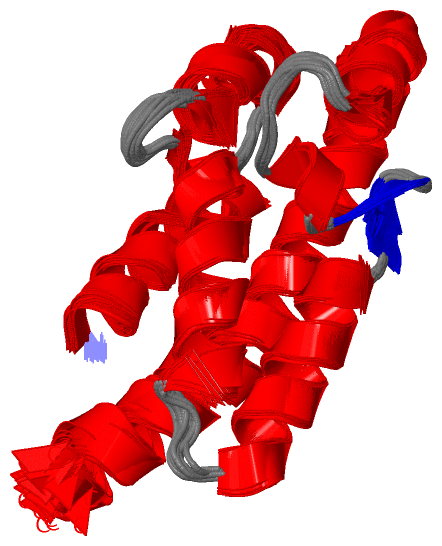

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
