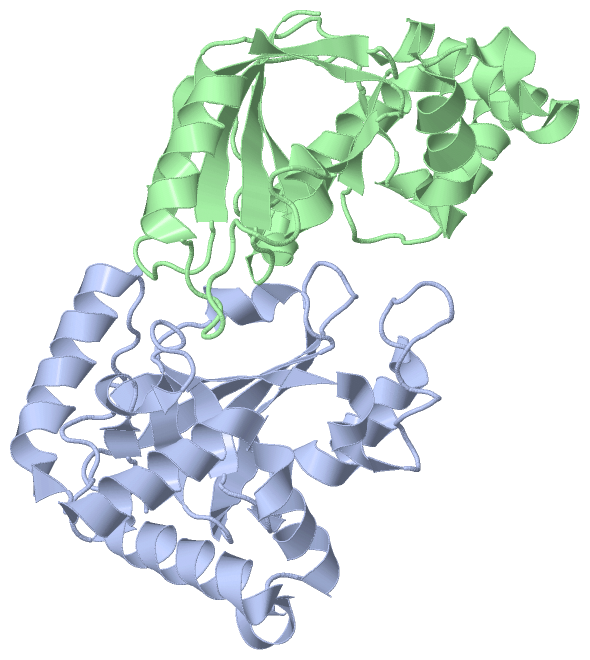

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

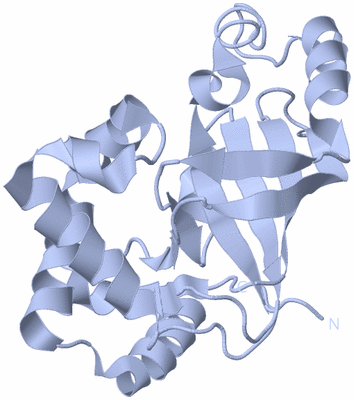

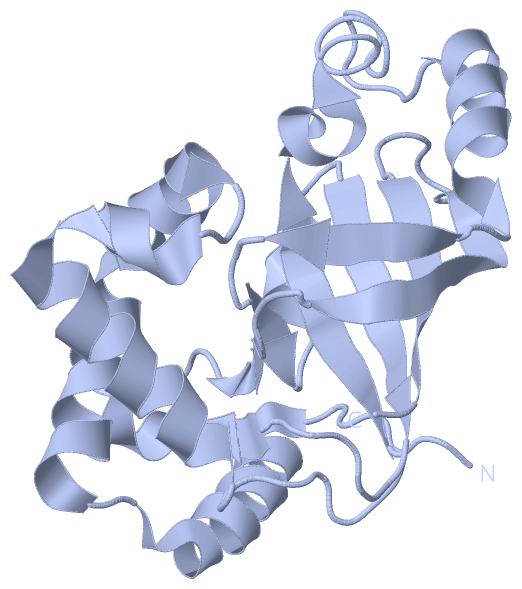

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

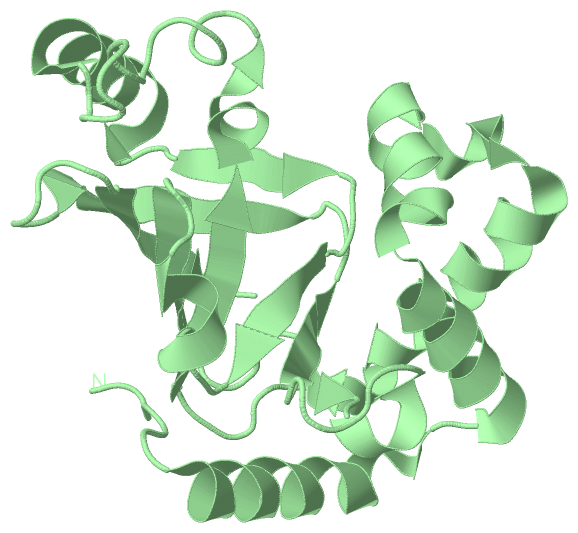

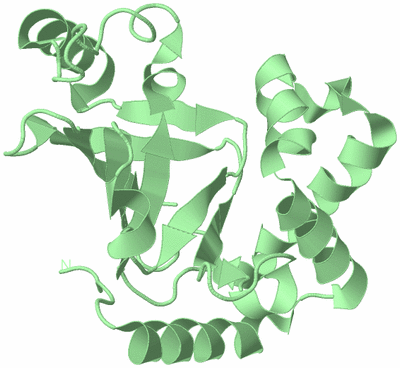

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  ADP-RIBOSYLTRANSFERASE C3BOT2 FROM CLOSTRIDIUM BOTULINUM, MONOCLINIC FORM

Authors :  A. Teplyakov, G. Obmolova, G. L. Gilliland, S. Narumiya
Date :  04 Oct 03  (Deposition) - 16 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Adp-Ribosyltransferase, Binary Toxin, C3 Exoenzyme (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Teplyakov, G. Obmolova, G. L. Gilliland, S. Narumiya
Crystal Structure Of Adp-Ribosyltransferase C3Bot2 From Clostridium Botulinum
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MONO-ADP-RIBOSYLTRANSFERASE C3
    Chains: A, B
    EC Number: 2.4.2.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET3A
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: MATURE PROTEIN
    Organism Scientific: CLOSTRIDIUM PHAGE C-ST
    Organism Taxid: 12336
    Synonym: EXOENZYME C3

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1R4B)

(-) Sites  (0, 0)

(no "Site" information available for 1R4B)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1R4B)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1R4B)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1R4B)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1R4B)

(-) Exons   (0, 0)

(no "Exon" information available for 1R4B)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:200
 aligned with ARC3_CBCP | Q00901 from UniProtKB/Swiss-Prot  Length:244

    Alignment length:200
                                    54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244
            ARC3_CBCP    45 TFTEFTNVEEAKKWGNAQYKKYGLSKPEQEAIKFYTRDASKINGPLRANQGNENGLPADILQKVKLIDQSFSKMKMPQNIILFRGDDPAYLGPEFQDKILNKDGTINKTVFEQVKAKFLKKDRTEYGYISTSLMSAQFGGRPIVTKFKVTNGSKGGYIDPISYFPGQLEVLLPRNNSYYISDMQISPNNRQIMITAMIFK 244
               SCOP domains d1r4ba_ A: Exoenzyme c3                                                                                                                                                                                  SCOP domains
               CATH domains 1r4bA00 A:45-244 Toxin ADP-ribosyltransferase; Chain A, domain 1                                                                                                                                         CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh........eeeeeeehhhhhh..............hhhhhhhhhhhhh..eeee...eeee..hhhhh...eeeeeee......ee.hhhh......eeee...eeeeeeeeee......eeeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r4b A  45 TFTEFTNVEEAKKWGNAQYKKYGLSKPEQEAIKFYTRDASKINGPLRANQGNENGLPADILQKVKLIDQSFSKMKMPQNIILFRGDDPAYLGPEFQDKILNKDGTINKTVFEQVKAKFLKKDRTEYGYISTSLMSAQFGGRPIVTKFKVTNGSKGGYIDPISYFPGQLEVLLPRNNSYYISDMQISPNNRQIMITAMIFK 244
                                    54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244


Chain B from PDB  Type:PROTEIN  Length:200
 aligned with ARC3_CBCP | Q00901 from UniProtKB/Swiss-Prot  Length:244

    Alignment length:200
                                    54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244
            ARC3_CBCP    45 TFTEFTNVEEAKKWGNAQYKKYGLSKPEQEAIKFYTRDASKINGPLRANQGNENGLPADILQKVKLIDQSFSKMKMPQNIILFRGDDPAYLGPEFQDKILNKDGTINKTVFEQVKAKFLKKDRTEYGYISTSLMSAQFGGRPIVTKFKVTNGSKGGYIDPISYFPGQLEVLLPRNNSYYISDMQISPNNRQIMITAMIFK 244
               SCOP domains d1r4bb_ B: Exoenzyme c3                                                                                                                                                                                  SCOP domains
               CATH domains 1r4bB00 B:45-244 Toxin ADP-ribosyltransferase; Chain A, domain 1                                                                                                                                         CATH domains
           Pfam domains (1) ----------ADPrib_exo_Tox-1r4bB01 B:55-244                                                                                                                                                                Pfam domains (1)
           Pfam domains (2) ----------ADPrib_exo_Tox-1r4bB02 B:55-244                                                                                                                                                                Pfam domains (2)
         Sec.struct. author ......hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.....eeeeeeehhhhhh..............hhhhhhhhhhhhh..eeee...eeee..hhhhh...eeeeeee......ee.hhhh......eeee...eeeeeeeeee......eeeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1r4b B  45 TFTEFTNVEEAKKWGNAQYKKYGLSKPEQEAIKFYTRDASKINGPLRANQGNENGLPADILQKVKLIDQSFSKMKMPQNIILFRGDDPAYLGPEFQDKILNKDGTINKTVFEQVKAKFLKKDRTEYGYISTSLMSAQFGGRPIVTKFKVTNGSKGGYIDPISYFPGQLEVLLPRNNSYYISDMQISPNNRQIMITAMIFK 244
                                    54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: ADP-ribosyl (56)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (ARC3_CBCP | Q00901)
molecular function
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
    GO:0016763    transferase activity, transferring pentosyl groups    Catalysis of the transfer of a pentosyl group from one compound (donor) to another (acceptor).
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0006471    protein ADP-ribosylation    The transfer, from NAD, of ADP-ribose to protein amino acids.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1r4b)

  Sites
(no "Sites" information available for 1r4b)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1r4b)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1r4b
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ARC3_CBCP | Q00901
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.4.2.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ARC3_CBCP | Q00901
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ARC3_CBCP | Q00901: 1r45

(-) Related Entries Specified in the PDB File

1g24 ADP-RIBOSYLTRANSFERASE C3BOT1
1gze ADP-RIBOSYLTRANSFERASE C3BOT1 L177C MUTANT
1gzf ADP-RIBOSYLTRANSFERASE C3BOT1 WITH NAD
1r45 ADP-RIBOSYLTRANSFERASE C3BOT2, TRICLINIC FORM
