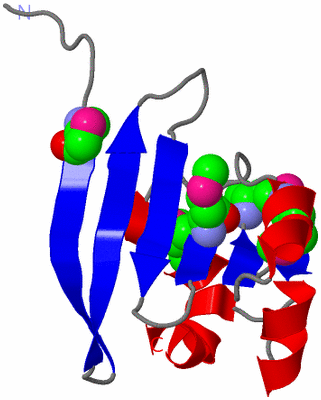

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

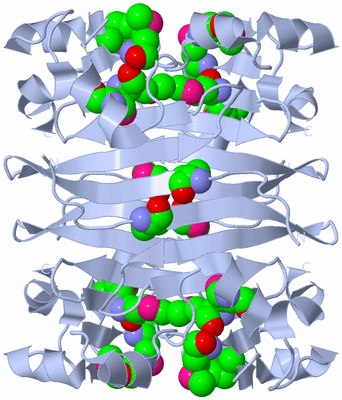

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PROTEIN OF UNKNOWN FUNCTION TA1206 FROM THERMOPLASMA ACIDOPHILUM

Authors :  A. Savchenko, E. Evdokimova, M. Kudrytska, A. E. Edwards, D. Christend Midwest Center For Structural Genomics (Mcsg)
Date :  30 Aug 03  (Deposition) - 09 Mar 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (4x)
Keywords :  Structural Genomics, Beta/Alpha, Antiparallel Beta Sandwich, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Savchenko, E. Evdokimova, M. Kudrytska, A. E. Edwards, D. Christendat
Crystal Structure Of A Hypothetical Protein "Ta1206" From Thermoplasma Acidophilum
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - CONSERVED HYPOTHETICAL PROTEIN TA1206
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Strain: BL21-DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PET15B
    Gene: TA1206
    Organism Scientific: THERMOPLASMA ACIDOPHILUM
    Organism Taxid: 2303

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (4x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 5)

Asymmetric Unit (1, 5)
No.NameCountTypeFull Name
1MSE5Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 20)
No.NameCountTypeFull Name
1MSE20Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1QW2)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1QW2)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1QW2)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1QW2)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1QW2)

(-) Exons   (0, 0)

(no "Exon" information available for 1QW2)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:102
 aligned with Q9HIX0_THEAC | Q9HIX0 from UniProtKB/TrEMBL  Length:95

    Alignment length:102
                                  1                                                                                            95
                                  |  4        14        24        34        44        54        64        74        84        94|
         Q9HIX0_THEAC     - ------MMQIDSIEIGGKVYQFFKSDLGNAPLLFIKGSKGYAMCGYLNMETSNKVGDIAVRVMGVKTLDDMLSAKVVEASQEAQKVGINPGDVLRNVIDKL-   -
               SCOP domains d1qw2a_ A: Hypothetical protein Ta1206                                                                 SCOP domains
               CATH domains 1qw2A00 A:14-115 Hypothetical protein Ta1206 like domains                                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......eeeeeeee..eeeeeeee......eeeee....eee....hhhhhhhh...eee.....hhhhhhhh...eehhhhhhh......hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 1qw2 A  14 NYFQGHMmQIDSIEIGGKVYQFFKSDLGNAPLLFIKGSKGYAmCGYLNmETSNKVGDIAVRVmGVKTLDDmLSAKVVEASQEAQKVGINPGDVLRNVIDKLG 115
                                   |23        33        43        53  |     63        73  |     83|       93       103       113
                                  21-MSE                             56-MSE |            76-MSE  84-MSE
                                                                           62-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1QW2)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1QW2)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1qw2)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1qw2)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

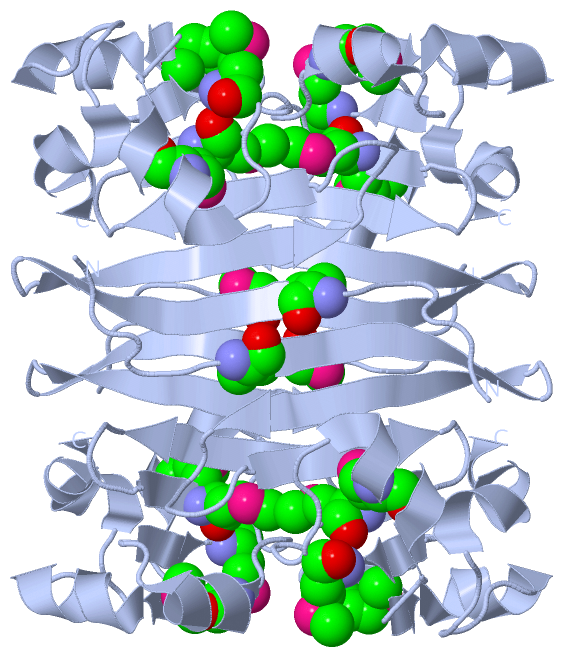

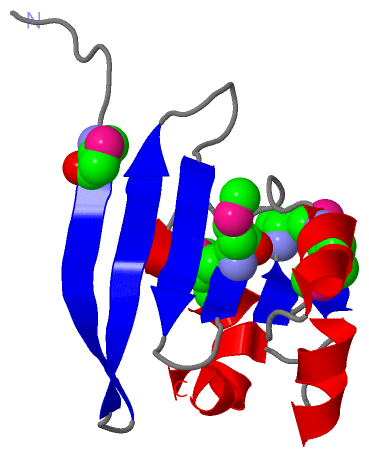

[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
