1QR9 - JenaLib

Title :   INHIBITION OF HIV-1 INFECTIVITY BY THE GP41 CORE: ROLE OF A CONSERVED HYDROPHOBIC CAVITY IN MEMBRANE FUSION

Authors :   H. Ji, W. Shu, F. T. Burling, S. B. Jiang, M. Lu

Date :   18 Jun 99 (Deposition) - 26 Nov 99 (Release) - 16 Nov 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.60

Chains :   Asym. Unit : A
Biol. Unit 1: A  (3x)

Keywords :   Gp41, Hiv-1 Envelope Protein, Membrane Fusion, Hiv-1 Inhibition, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   H. Ji, W. Shu, F. T. Burling, S. Jiang, M. Lu
Inhibition Of Human Immunodeficiency Virus Type 1 Infectivity By The Gp41 Core: Role Of A Conserved Hydrophobic Cavity In Membrane Fusion.
J. Virol. V. 73 8578 1999
PubMed-ID: 10482611

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:68
 aligned with Q76270_9HIV1 | Q76270 from UniProtKB/TrEMBL  Length:124

    Alignment length:88
                                    37        47        57        67        77        87        97       107
         Q76270_9HIV1    28 SGIVQQQNNLLRAIEAQQHLLQLTVWGIKQLQARVLAVERYLQDQQLLGIWGCSGKHICTTTVPWNSSWSNKSLEEIWQNMTWMEWER 115
               SCOP domains d1qr9a_ A: Retrovius gp41 protease-resistan       t    core                              SCOP domains
               CATH domains 1qr9A00 A:1-68  [code=1.10.287.210, no name           defined]                           CATH domains
               Pfam domains GP41-1qr9A01 A:1-68                        ------- ---             ------         ----   Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhh-------h---hhhhhhhhhhhhh------hhhhhhhhh----h. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                 1qr9 A   1 SGIVQQQNNLLRAIEAQQHLLQATVWGIKQLQARSGGRGGWME-------W---DREINNYTSLIHS------LIEESQNQQ----EK  68
                                    10        20        30        40  |      -|   |   50      |  -   |    64 |    |
                                                                     43      44  45          57     58      66   67

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (1, 1)

Gene Ontology (2, 2)

Asymmetric Unit(hide GO term definitions)

Chain A (Q76270_9HIV1 | Q76270)

molecular function
	GO:0005198	structural molecule activity	The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
cellular component
	GO:0019031	viral envelope	The lipid bilayer of a virion that surrounds the protein capsid. May also contain glycoproteins.

Visualization

Interactive Views

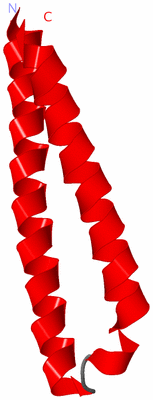

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1qr9)

	Sites
(no "Sites" information available for 1qr9)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1qr9)

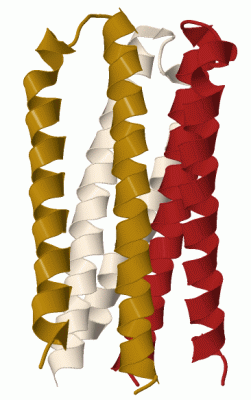

Biological Unit
	Complete Structure

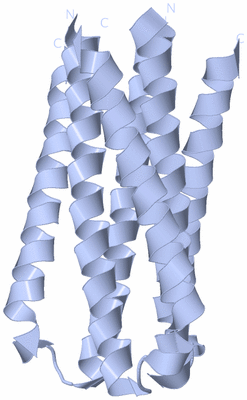

		Biological Unit 1	[ Jena3D ]

Still Images

Jmol

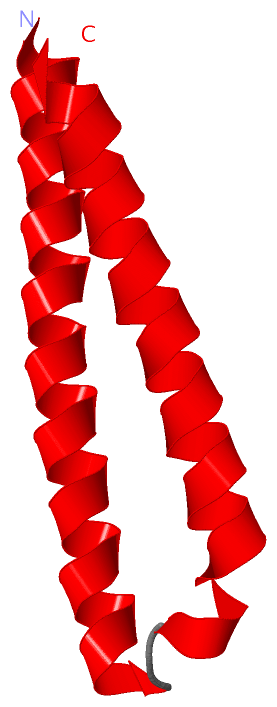

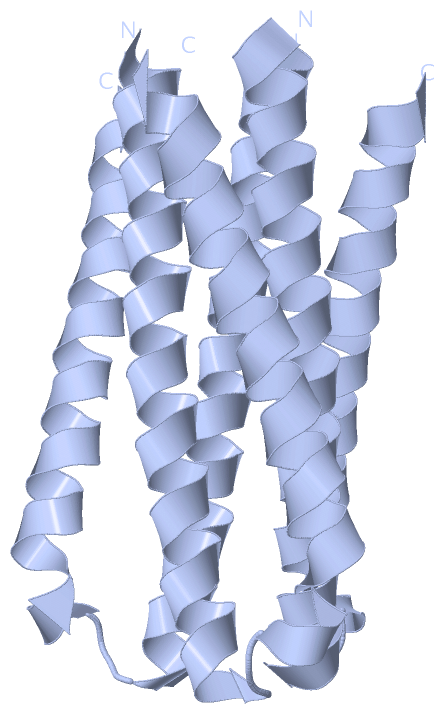

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
