1QOA - JenaLib

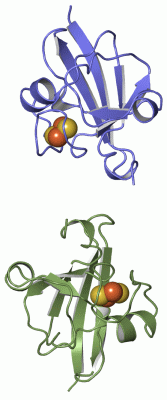

Asym.Unit - manually (Jmol Viewer)

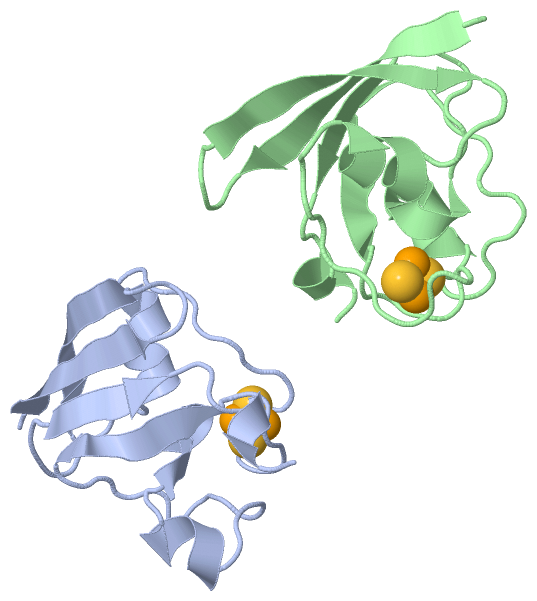

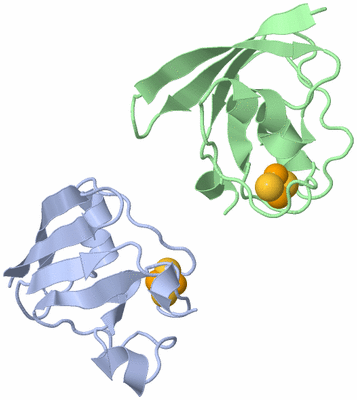

Asymmetric Unit (Jmol Viewer)

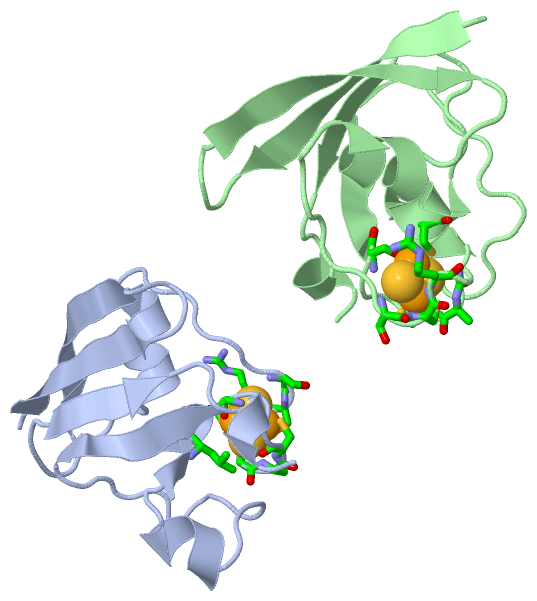

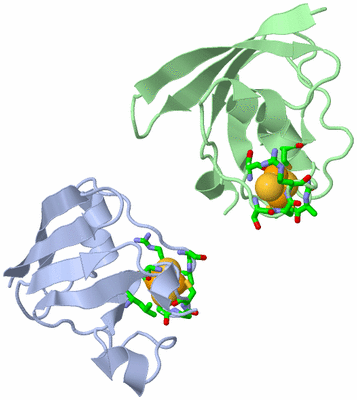

Asym. Unit - sites (Jmol Viewer)

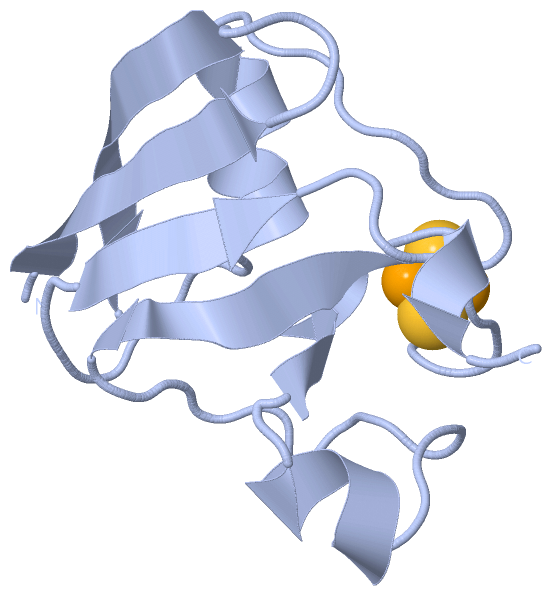

Biological Unit 1 (Jmol Viewer)

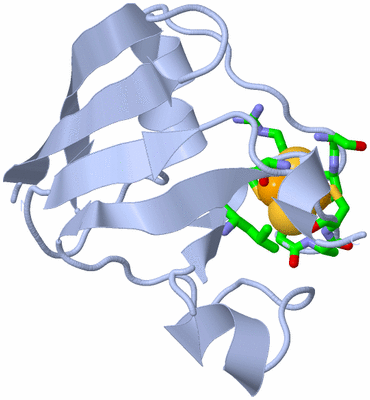

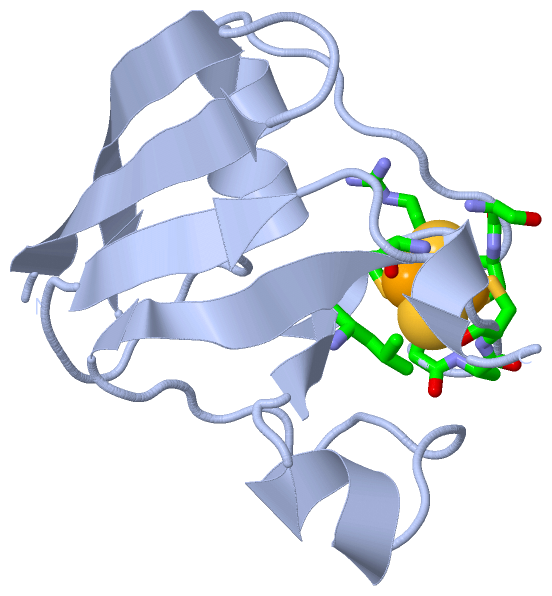

Biol. Unit 1 - sites (Jmol Viewer)

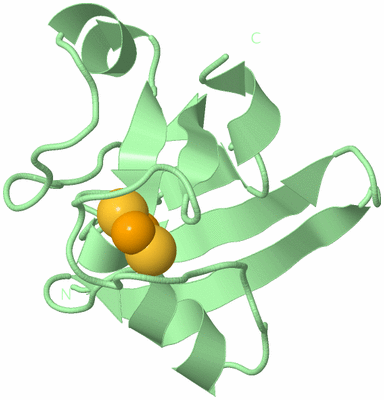

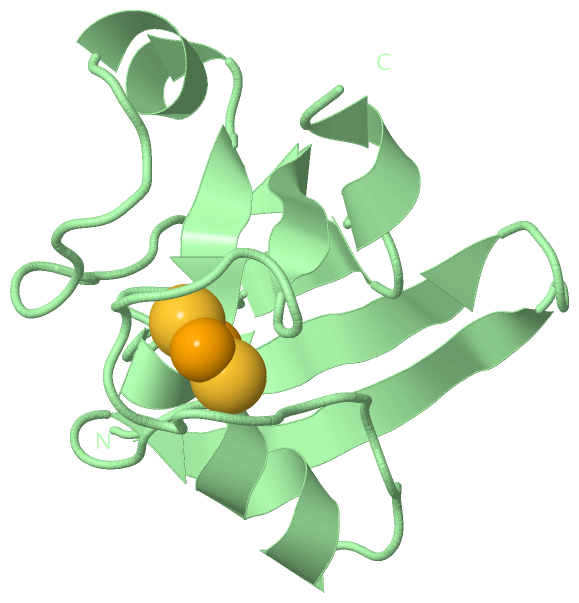

Biological Unit 2 (Jmol Viewer)

Title :   FERREDOXIN MUTATION C49S

Authors :   H. M. Holden, M. M. Benning

Date :   14 Aug 97 (Deposition) - 14 Jan 98 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.70

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Electron Transport, Iron-Sulfur, Ferredoxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. K. Hurley, A. M. Weber-Main, A. E. Hodges, M. T. Stankovich, M. M. Benning, H. M. Holden, H. Cheng, B. Xia, J. L. Markley, C. Genzor, C. Gomez-Moreno, R. Hafezi, G. Tollin
Iron-Sulfur Cluster Cysteine-To-Serine Mutants Of Anabaena -2Fe-2S- Ferredoxin Exhibit Unexpected Redox Properties And Are Competent In Electron Transfer To Ferredoxin:Nadp+ Reductase.
Biochemistry V. 36 15109 1997
PubMed-ID: 9398238 | Reference-DOI: 10.1021/BI972001I

Molecule 1 - FERREDOXIN
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PAN662
	Expression System Strain	:	JM109
	Expression System Taxid	:	562
	Mutation	:	YES
	Organism Scientific	:	NOSTOC SP.
	Organism Taxid	:	103690
	Other Details	:	2FE-2S FERREDOXIN
	Strain	:	PCC 7120

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	FES	2	Ligand/Ion	FE2/S2 (INORGANIC) CLUSTER

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	FES	1	Ligand/Ion	FE2/S2 (INORGANIC) CLUSTER

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	FES	1	Ligand/Ion	FE2/S2 (INORGANIC) CLUSTER

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	SER A:40 , CYS A:41 , ARG A:42 , GLY A:44 , ALA A:45 , CYS A:46 , SER A:49 , LEU A:77 , CYS A:79	BINDING SITE FOR RESIDUE FES A 100
2	AC2	SOFTWARE	SER B:40 , CYS B:41 , ARG B:42 , GLY B:44 , ALA B:45 , CYS B:46 , SER B:49 , CYS B:79	BINDING SITE FOR RESIDUE FES B 100

(no "SS Bond" information available for 1QOA)

(no "Cis Peptide Bond" information available for 1QOA)

(no "SAP(SNP)/Variant" information available for 1QOA)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	FER1_NOSS1	4-96	2	A:3-95 B:3-95
2	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	FER1_NOSS1	42-50	2	A:41-48 B:41-48

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	FER1_NOSS1	4-96	1	A:3-95 -
2	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	FER1_NOSS1	42-50	1	A:41-48 -

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	FER1_NOSS1	4-96	1	- B:3-95
2	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	FER1_NOSS1	42-50	1	- B:41-48

(no "Exon" information available for 1QOA)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:98
 aligned with FER1_NOSS1 | P0A3C7 from UniProtKB/Swiss-Prot  Length:99

    Alignment length:98
                                    11        21        31        41        51        61        71        81        91
            FER1_NOSS1    2 ATFKVTLINEAEGTKHEIEVPDDEYILDAAEEQGYDLPFSCRAGACSTCAGKLVSGTVDQSDQSFLDDDQIEAGYVLTCVAYPTSDVVIQTHKEEDLY 99
               SCOP domains d1qoaa_ A: 2Fe-2S ferredoxin                                                                       SCOP domains
               CATH domains 1qoaA00 A:1-98  [code=3.10.20.30, no name defined]                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeee....eeeeeeee....hhhhhhh.................eeeeee............hhhhh..eeehhh......eeee...hhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --2FE2S_FER_2  PDB: A:3-95 UniProt: 4-96                                                       --- PROSITE (1)
                PROSITE (2) ----------------------------------------2FE2S_FER------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                  1qoa A  1 ATFKVTLINEAEGTKHEIEVPDDEYILDAAEEQGYDLPFSCRAGACSTSAGKLVSGTVDQSDQSFLDDDQIEAGYVLTCVAYPTSDVVIQTHKEEDLY 98
                                    10        20        30        40        50        60        70        80        90

Chain B from PDB  Type:PROTEIN  Length:98
 aligned with FER1_NOSS1 | P0A3C7 from UniProtKB/Swiss-Prot  Length:99

    Alignment length:98
                                    11        21        31        41        51        61        71        81        91
            FER1_NOSS1    2 ATFKVTLINEAEGTKHEIEVPDDEYILDAAEEQGYDLPFSCRAGACSTCAGKLVSGTVDQSDQSFLDDDQIEAGYVLTCVAYPTSDVVIQTHKEEDLY 99
               SCOP domains d1qoab_ B: 2Fe-2S ferredoxin                                                                       SCOP domains
               CATH domains 1qoaB00 B:1-98  [code=3.10.20.30, no name defined]                                                 CATH domains
           Pfam domains (1) --------Fer2-1qoaB01 B:9-84                                                         -------------- Pfam domains (1)
           Pfam domains (2) --------Fer2-1qoaB02 B:9-84                                                         -------------- Pfam domains (2)
         Sec.struct. author .eeeeeeee....eeeeeeee....hhhhhhh.................eeeeee............hhhhh..eeehhh......eeee...hhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --2FE2S_FER_2  PDB: B:3-95 UniProt: 4-96                                                       --- PROSITE (1)
                PROSITE (2) ----------------------------------------2FE2S_FER------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                  1qoa B  1 ATFKVTLINEAEGTKHEIEVPDDEYILDAAEEQGYDLPFSCRAGACSTSAGKLVSGTVDQSDQSFLDDDQIEAGYVLTCVAYPTSDVVIQTHKEEDLY 98
                                    10        20        30        40        50        60        70        80        90

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: beta-Grasp (ubiquitin-like) (1032)

Superfamily: 2Fe-2S ferredoxin-like (174)

Family: 2Fe-2S ferredoxin-related (74)

Protein domain: 2Fe-2S ferredoxin (54)

Anabaena sp., pcc 7119 and 7120 [TaxId: 1167] (12)

1a	d1qoaa_	A:
1b	d1qoab_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Ubiquitin-like (UB roll) (674)

Homologous Superfamily: [code=3.10.20.30, no name defined] (153)

Pcc 7120 (Nostoc sp) (9)

1a	1qoaA00	A:1-98
1b	1qoaB00	B:1-98

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Fer2 (69)

Family: Fer2 (60)

Nostoc sp. (strain PCC 7120 / UTEX 2576) (4)

1a	Fer2-1qoaB01	B:9-84
1b	Fer2-1qoaB02	B:9-84

Asymmetric Unit(hide GO term definitions)

Chain A,B (FER1_NOSS1 | P0A3C7)

molecular function
	GO:0051537	2 iron, 2 sulfur cluster binding	Interacting selectively and non-covalently with a 2 iron, 2 sulfur (2Fe-2S) cluster; this cluster consists of two iron atoms, with two inorganic sulfur atoms found between the irons and acting as bridging ligands.
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0051536	iron-sulfur cluster binding	Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0022900	electron transport chain	A process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FES	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1qoa)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1qoa
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	FER1_NOSS1 \| P0A3C7
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	FER1_NOSS1 \| P0A3C7
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	FER1_NOSS1 \| P0A3C7	:	1fxa 1j7a 1j7b 1j7c 1lyu 1qob 1qof 1qog
