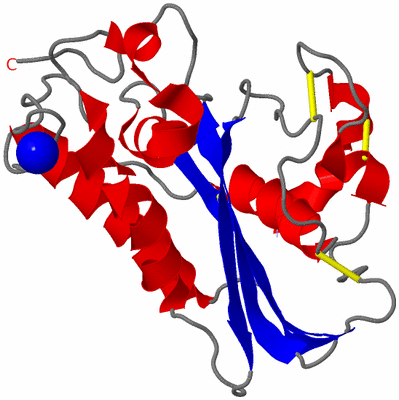

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

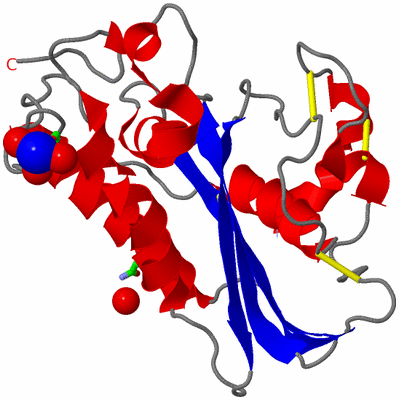

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  VES V 5, AN ALLERGEN FROM VESPULA VULGARIS VENOM

Authors :  A. Henriksen, M. Gajhede, M. D. Spangfort
Date :  25 Oct 99  (Deposition) - 26 Oct 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Antigen 5, Allergen, Vespid Venom (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Henriksen, T. P. King, O. Mirza, R. I. Monsalve, K. Meno, H. Ipsen, J. N. Larsen, M. Gajhede, M. D. Spangfort
Major Venom Allergen Of Yellow Jackets, Ves V 5: Structural Characterization Of A Pathogenesis- Related Protein Superfamily.
Proteins: Struct. , Funct. , V. 45 438 2001 Genet.
PubMed-ID: 11746691  |  Reference-DOI: 10.1002/PROT.1160

(-) Compounds

Molecule 1 - VES V 5
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Common: YELLOW JACKET
    Organism Scientific: VESPULA VULGARIS
    Organism Taxid: 7454
    Secretion: VENOM
    Synonym: ANTIGEN 5

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1NA1Ligand/IonSODIUM ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN A:42 , GLY A:63 , HOH A:2092 , HOH A:2129 , HOH A:2135 , HOH A:2203BINDING SITE FOR RESIDUE NA A 458

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1A:4 -A:17
2A:8 -A:101
3A:26 -A:94
4A:170 -A:187

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Asn A:64 -Pro A:65
2Gly A:66 -Pro A:67
3Gly A:190 -Pro A:191

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1QNX)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CRISP_1PS01009 CRISP family signature 1.VA5_VESVU178-188  1A:155-165
2CRISP_2PS01010 CRISP family signature 2.VA5_VESVU207-218  1A:184-195

(-) Exons   (0, 0)

(no "Exon" information available for 1QNX)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:209
 aligned with VA5_VESVU | Q05110 from UniProtKB/Swiss-Prot  Length:227

    Alignment length:209
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218
            VA5_VESVU    19 PYGKANNYCKIKCLKGGVHTACKYGSLKPNCGNKVVVSYGLTKQEKQDILKEHNDFRQKIARGLETRGNPGPQPPAKNMKNLVWNDELAYVAQVWANQCQYGHDTCRDVAKYQVGQNVALTGSTAAKYDDPVKLVKMWEDEVKDYNPKKKFSGNDFLKTGHYTQMVWANTKEVGCGSIKYIQEKWHKHYLVCNYGPSGNFMNEELYQTK 227
               SCOP domains d1qnxa_ A: Insect allergen 5 (AG5)                                                                                                                                                                                SCOP domains
               CATH domains 1qnxA00 A:-4-204 Pathogenesis-related Protein p14a                                                                                                                                                                CATH domains
               Pfam domains -------------------------------------------------CAP-1qnxA01 A:45-189                                                                                                                             --------------- Pfam domains
         Sec.struct. author hhhhhhhhhhh.......hhhhhh..........eeeee..hhhhhhhhhhhhhhhhhhhhh......................hhhhhhhhhhhhh.................eeeeeeeee......hhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh.....eeeeeeeeeee..eeeeeeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------CRISP_1    ------------------CRISP_2     --------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1qnx A  -4 AEAEFNNYCKIKCLKGGVHTACKYGSLKPNCGNKVVVSYGLTKQEKQDILKEHNDFRQKIARGLETRGNPGPQPPAKNMKNLVWNDELAYVAQVWANQCQYGHDTCRDVAKYQVGQNVALTGSTAAKYDDPVKLVKMWEDEVKDYNPKKKFSGNDFLKTGHYTQMVWANTKEVGCGSIKYIQEKWHKHYLVCNYGPSGNFKNEELYQTK 204
                                     5        15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: CAP] (7)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (VA5_VESVU | Q05110)
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn A:64 - Pro A:65   [ RasMol ]
    Gly A:190 - Pro A:191   [ RasMol ]
    Gly A:66 - Pro A:67   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

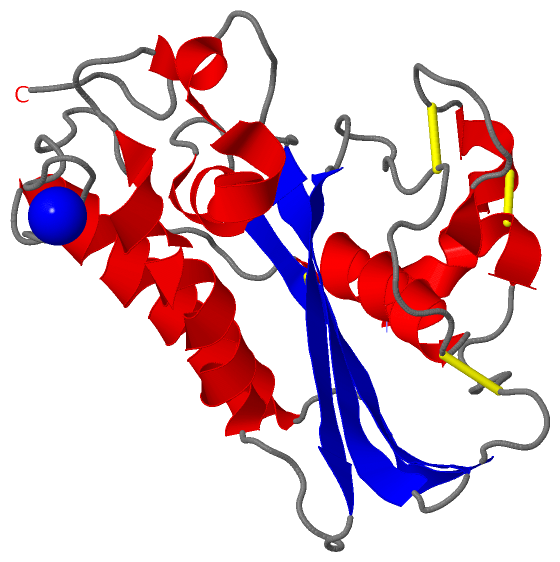

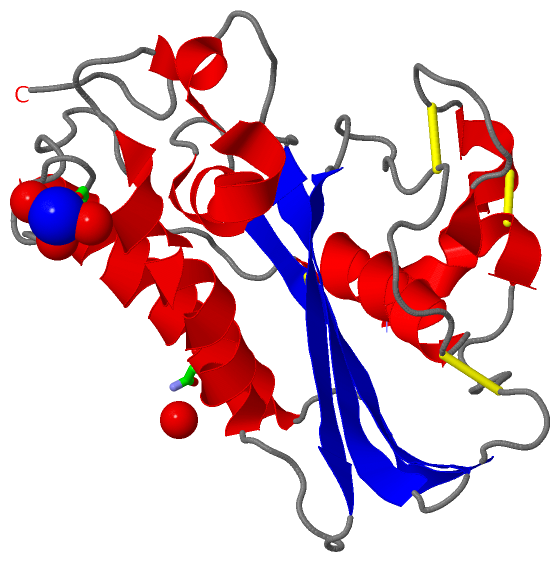

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
