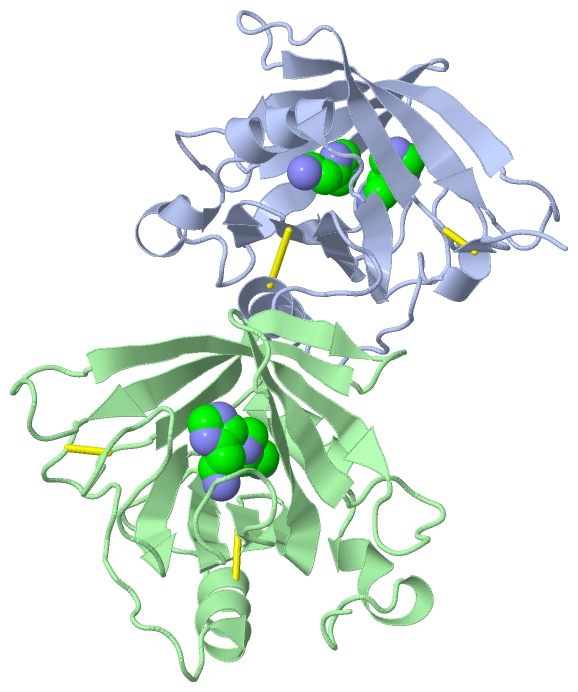

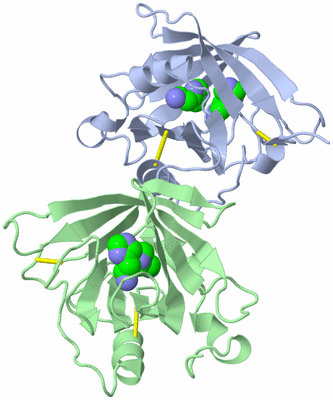

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

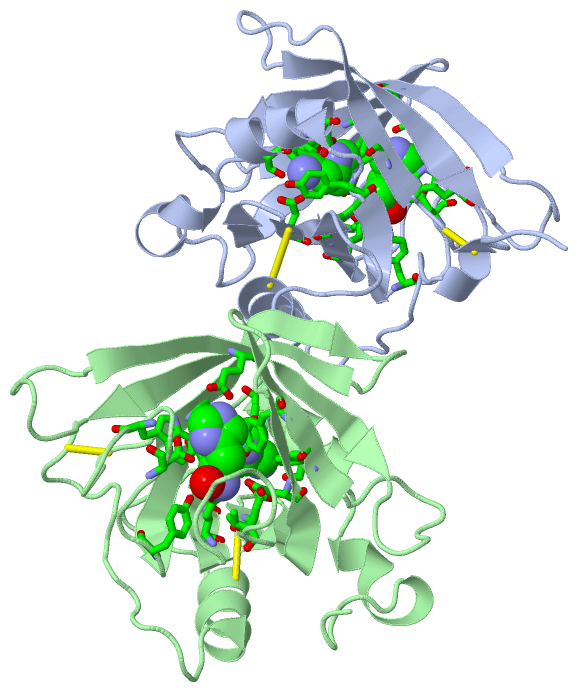

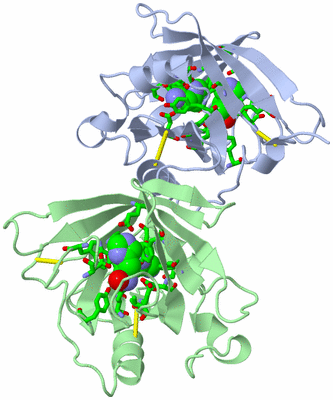

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

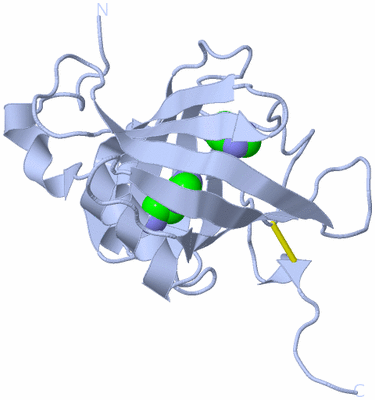

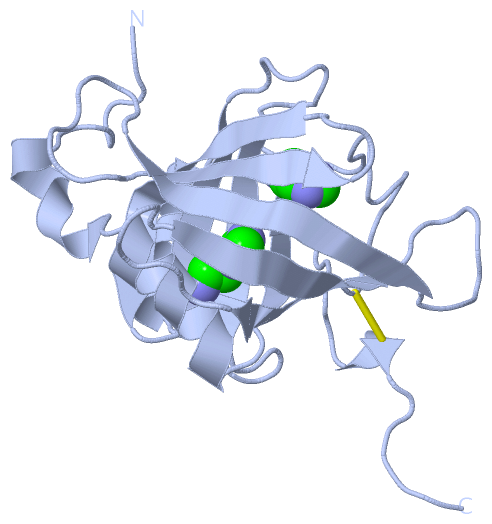

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

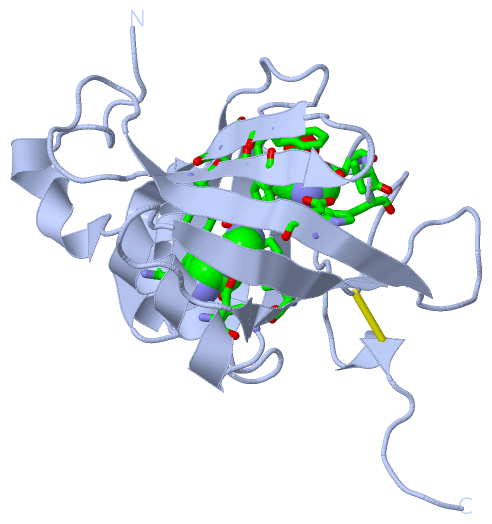

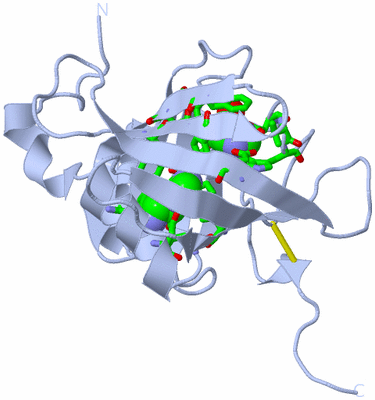

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

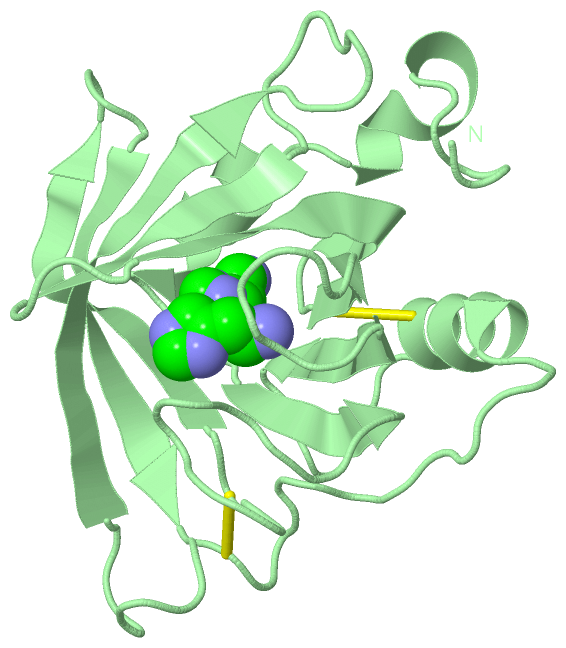

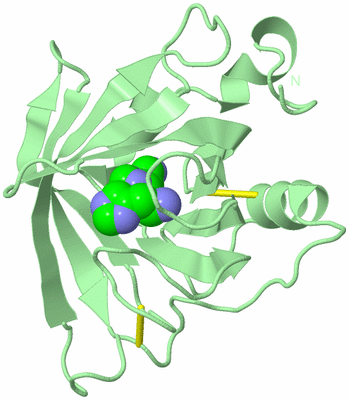

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  HISTAMINE BINDING PROTEIN FROM FEMALE BROWN EAR RHIPICEPHALUS APPENDICULATUS

Authors :  G. C. Paesen, P. L. Adams, K. Harlos, P. A. Nuttal, D. I. Stuart
Date :  14 Apr 99  (Deposition) - 19 Apr 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.25
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Lipocalin, Ligand Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. C. Paesen, P. L. Adams, K. Harlos, P. A. Nuttall, D. I. Stuart
Tick Histamine-Binding Proteins: Isolation, Cloning, And Three-Dimensional Structure.
Mol. Cell V. 3 661 1999
PubMed-ID: 10360182  |  Reference-DOI: 10.1016/S1097-2765(00)80359-7
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (FEMALE-SPECIFIC HISTAMINE BINDING PROTEIN 2)
    Chains: A, B
    Engineered: YES
    Expression System: SPODOPTERA
    Expression System Cell Line: SPODOPTERA
    Expression System Plasmid: PACC129.1
    Expression System Strain: SF21
    Expression System Taxid: 7106
    Organ: SALIVARY GLAND
    Organism Scientific: RHIPICEPHALUS APPENDICULATUS
    Organism Taxid: 34631

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1HSM4Ligand/IonHISTAMINE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1HSM2Ligand/IonHISTAMINE
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1HSM2Ligand/IonHISTAMINE

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:20 , ASP A:24 , TYR A:29 , VAL A:51 , PHE A:98 , TYR A:100 , ASP A:120 , TRP A:137BINDING SITE FOR RESIDUE HSM A 176
2AC2SOFTWARETYR A:36 , ASP A:39 , VAL A:41 , TRP A:42 , GLU A:82 , TYR A:100 , PHE A:108 , ASP A:110 , VAL A:124 , GLU A:135 , HOH A:201BINDING SITE FOR RESIDUE HSM A 177
3AC3SOFTWARESER B:20 , ASP B:24 , TYR B:29 , VAL B:51 , PHE B:98 , TYR B:100 , ASP B:120 , TRP B:137BINDING SITE FOR RESIDUE HSM B 176
4AC4SOFTWARETYR B:36 , ASP B:39 , TRP B:42 , GLU B:82 , TYR B:100 , ASP B:110 , VAL B:124 , GLU B:135 , HOH B:205BINDING SITE FOR RESIDUE HSM B 177

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:48 -A:169
2A:119 -A:148
3B:48 -B:169
4B:119 -B:148

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1QFT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1QFT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1QFT)

(-) Exons   (0, 0)

(no "Exon" information available for 1QFT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:175
 aligned with HBP2_RHIAP | O77421 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:175
                                                                                                                                                                                                    190
                                    29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189|
           HBP2_RHIAP    20 NQPDWADEAANGAHQDAWKSLKADVENVYYMVKATYKNDPVWGNDFTCVGVMANDVNEDEKSIQAEFLFMNNADTNMQFATEKVTAVKMYGYNRENAFRYETEDGQVFTDVIAYSDDNCDVIYVPGTDGNEEGYELWTTDYDNIPANCLNKFNEYAVGRETRDVFTSACLE----   -
               SCOP domains d1qfta_ A: Histamine binding protein                                                                                                                                            SCOP domains
               CATH domains 1qftA00 A:1-175  [code=2.40.128.20, no name defined]                                                                                                                            CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhh..hhhhhhhhhh...eeeee...............eeeee.......eeeeeeee........eeeeeeeeee.........eeeeee....eeeeeeeeee..eeeeee........eeeeee.......hhhhhhhhhh...........hhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1qft A   1 NQPDWADEAANGAHQDAWKSLKADVENVYYMVKATYKNDPVWGNDFTCVGVMANDVNEDEKSIQAEFLFMNNADTNMQFATEKVTAVKMYGYNRENAFRYETEDGQVFTDVIAYSDDNCDVIYVPGTDGNEEGYELWTTDYDNIPANCLNKFNEYAVGRETRDVFTSACLEIAAA 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170


Chain B from PDB  Type:PROTEIN  Length:170
 aligned with HBP2_RHIAP | O77421 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:170
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190
           HBP2_RHIAP    21 QPDWADEAANGAHQDAWKSLKADVENVYYMVKATYKNDPVWGNDFTCVGVMANDVNEDEKSIQAEFLFMNNADTNMQFATEKVTAVKMYGYNRENAFRYETEDGQVFTDVIAYSDDNCDVIYVPGTDGNEEGYELWTTDYDNIPANCLNKFNEYAVGRETRDVFTSACLE 190
               SCOP domains d1qftb_ B: Histamine binding protein                                                                                                                                       SCOP domains
               CATH domains 1qftB00 B:2-171  [code=2.40.128.20, no name defined]                                                                                                                       CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhh..hhhhhhhh.....eeeee...............eeeeeeee....eeeeeeee........eeeeeeeeee.........eeeeee....eeeeeeeeee..eeeeee........eeeeee.......hhhhhhhhhh................ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1qft B   2 QPDWADEAANGAHQDAWKSLKADVENVYYMVKATYKNDPVWGNDFTCVGVMANDVNEDEKSIQAEFLFMNNADTNMQFATEKVTAVKMYGYNRENAFRYETEDGQVFTDVIAYSDDNCDVIYVPGTDGNEEGYELWTTDYDNIPANCLNKFNEYAVGRETRDVFTSACLE 171
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1QFT)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (HBP2_RHIAP | O77421)
molecular function
    GO:0043176    amine binding    Interacting selectively and non-covalently with any organic compound that is weakly basic in character and contains an amino or a substituted amino group.
biological process
    GO:0030682    evasion or tolerance of host defense response    Any process, either active or passive, by which an organism avoids or tolerates the effects of its host organism's defense response. The host defense response is mounted by the host in response to the presence of the organism. The host is defined as the larger of the organisms involved in a symbiotic interaction.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    HSM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1qft)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1qft
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HBP2_RHIAP | O77421
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HBP2_RHIAP | O77421
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HBP2_RHIAP | O77421: 1qfv 3g7x 3gaq

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1QFT)
