1QEZ - JenaLib

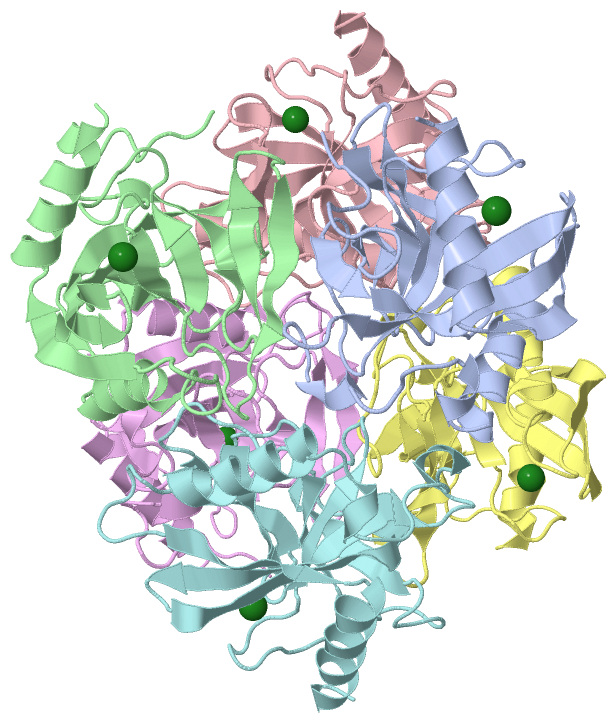

Asym./Biol. Unit (Jmol Viewer)

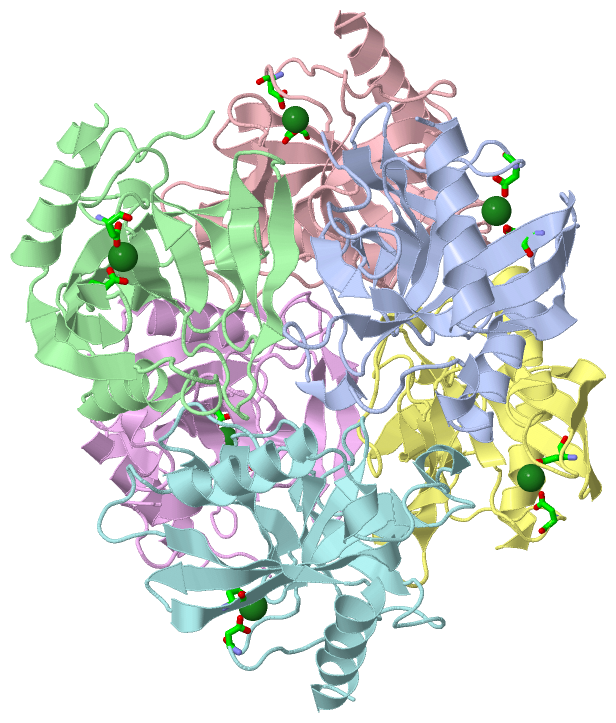

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   SULFOLOBUS ACIDOCALDARIUS INORGANIC PYROPHOSPHATASE: AN ARCHAEL PYROPHOSPHATASE.

Authors :   V. -M. Leppanen, H. Nummelin, T. Hansen, R. Lahti, G. Schafer, A. Goldman

Date :   06 Apr 99 (Deposition) - 14 Apr 99 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.70

Chains :   Asym./Biol. Unit : A,B,C,D,E,F

Keywords :   Inorganic Pyrophosphatase, Thermostability, Magnesium, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   V. M. Leppanen, H. Nummelin, T. Hansen, R. Lahti, G. Schafer, A. Goldman
Sulfolobus Acidocaldarius Inorganic Pyrophosphatase: Structure, Thermostability, And Effect Of Metal Ion In An Archael Pyrophosphatase.
Protein Sci. V. 8 1218 1999
PubMed-ID: 10386872
(for further references see the PDB file header)

Molecule 1 - PROTEIN (INORGANIC PYROPHOSPHATASE)
	Atcc	:	DSM 639
	Cellular Location	:	CYTOPLASM
	Chains	:	A, B, C, D, E, F
	Collection	:	DSM 639
	EC Number	:	3.6.1.1
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Cellular Location	:	CYTOPLASM
	Expression System Plasmid	:	PET-3A
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Organism Scientific	:	SULFOLOBUS ACIDOCALDARIUS
	Organism Taxid	:	2285
	Other Details	:	GERMAN COLLECTION OF MICROORGANISMS (DSM)
	Synonym	:	PPASE, S-PPASE

		1	2	3	4	5	6
Asymmetric/Biological Unit	:	A	B	C	D	E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 6)

No.	Name	Count	Type	Full Name
1	MG	6	Ligand/Ion	MAGNESIUM ION

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP A:1062 , ASP A:1099 , HOH A:7014 , HOH A:7044 , HOH A:7070	BINDING SITE FOR RESIDUE MG A 1201
2	AC2	SOFTWARE	ASP B:2062 , ASP B:2099 , HOH B:7038 , HOH B:7046 , HOH B:7048 , HOH B:7049	BINDING SITE FOR RESIDUE MG B 2201
3	AC3	SOFTWARE	ASP C:3062 , ASP C:3099 , HOH C:7032 , HOH C:7037 , HOH C:7040	BINDING SITE FOR RESIDUE MG C 3201
4	AC4	SOFTWARE	ASP D:4062 , ASP D:4099 , HOH D:7013 , HOH D:7033 , HOH D:7050 , HOH D:7074	BINDING SITE FOR RESIDUE MG D 4201
5	AC5	SOFTWARE	ASP E:5062 , ASP E:5099 , HOH E:7034 , HOH E:7035 , HOH E:7047	BINDING SITE FOR RESIDUE MG E 5201
6	AC6	SOFTWARE	ASP F:6062 , ASP F:6099 , HOH F:7012 , HOH F:7015 , HOH F:7030 , HOH F:7051	BINDING SITE FOR RESIDUE MG F 6201

(no "SS Bond" information available for 1QEZ)

Asymmetric/Biological Unit

No.	Residues
1	Ala A:1009	-	Pro A:1010
2	Ala B:2009	-	Pro B:2010
3	Ala C:3009	-	Pro C:3010
4	Ala D:4009	-	Pro D:4010
5	Ala E:5009	-	Pro E:5010
6	Ala F:6009	-	Pro F:6010

(no "SAP(SNP)/Variant" information available for 1QEZ)

Asymmetric/Biological Unit (1, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PPASE	PS00387	Inorganic pyrophosphatase signature.	IPYR_SULAC	62-68	6	A:1062-1068 B:2062-2068 C:3062-3068 D:4062-4068 E:5062-5068 F:6062-6068

(no "Exon" information available for 1QEZ)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:170
 aligned with IPYR_SULAC | P50308 from UniProtKB/Swiss-Prot  Length:173

    Alignment length:170
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
          IPYR_SULAC      2 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG  171
               SCOP domains d1qeza_ A: Inorganic pyrophosphatase                                                                                                                                       SCOP domains
               CATH domains 1qezA00 A:1002-1171 Inorganic Pyrophosphatase                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeee.....eeeeee....eeeeeee.........eeee............eeeee.........eeeeeeeeeeeeee..eeeeeeeeee.....hhh.....hhh..hhhhhhhhhhhhh.........eeeeeee.hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PPASE  ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1qez A 1002 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG 1171
                                  1011      1021      1031      1041      1051      1061      1071      1081      1091      1101      1111      1121      1131      1141      1151      1161      1171

Chain B from PDB  Type:PROTEIN  Length:170
 aligned with IPYR_SULAC | P50308 from UniProtKB/Swiss-Prot  Length:173

    Alignment length:170
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
          IPYR_SULAC      2 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG  171
               SCOP domains d1qezb_ B: Inorganic pyrophosphatase                                                                                                                                       SCOP domains
               CATH domains 1qezB00 B:2002-2171 Inorganic Pyrophosphatase                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeee.....eeeeee....eeeeeee.........eeee............eeeee.........eeeeeeeeeeeeee..eeeeeeeeee.....hhh.....hhh..hhhhhhhhhhhhh.........eeeeeee.hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PPASE  ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1qez B 2002 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG 2171
                                  2011      2021      2031      2041      2051      2061      2071      2081      2091      2101      2111      2121      2131      2141      2151      2161      2171

Chain C from PDB  Type:PROTEIN  Length:170
 aligned with IPYR_SULAC | P50308 from UniProtKB/Swiss-Prot  Length:173

    Alignment length:170
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
          IPYR_SULAC      2 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG  171
               SCOP domains d1qezc_ C: Inorganic pyrophosphatase                                                                                                                                       SCOP domains
               CATH domains 1qezC00 C:3002-3171 Inorganic Pyrophosphatase                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeee.....eeeeee....eeeeeee.........eeee............eeeee.........eeeeeeeeeeeeee..eeeeeeeeee.....hhh.....hhh..hhhhhhhhhhhhh.........eeeeeee.hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PPASE  ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1qez C 3002 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG 3171
                                  3011      3021      3031      3041      3051      3061      3071      3081      3091      3101      3111      3121      3131      3141      3151      3161      3171

Chain D from PDB  Type:PROTEIN  Length:170
 aligned with IPYR_SULAC | P50308 from UniProtKB/Swiss-Prot  Length:173

    Alignment length:170
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
          IPYR_SULAC      2 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG  171
               SCOP domains d1qezd_ D: Inorganic pyrophosphatase                                                                                                                                       SCOP domains
               CATH domains 1qezD00 D:4002-4171 Inorganic Pyrophosphatase                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeee.....eeeeee....eeeeeee.........eeee............eeeee.........eeeeeeeeeeeeee..eeeeeeeeee.....hhh.....hhh..hhhhhhhhhhhhh.........eeeeeee.hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PPASE  ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1qez D 4002 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG 4171
                                  4011      4021      4031      4041      4051      4061      4071      4081      4091      4101      4111      4121      4131      4141      4151      4161      4171

Chain E from PDB  Type:PROTEIN  Length:170
 aligned with IPYR_SULAC | P50308 from UniProtKB/Swiss-Prot  Length:173

    Alignment length:170
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
          IPYR_SULAC      2 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG  171
               SCOP domains d1qeze_ E: Inorganic pyrophosphatase                                                                                                                                       SCOP domains
               CATH domains 1qezE00 E:5002-5171 Inorganic Pyrophosphatase                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeee.....eeeeee....eeeeeee.........eeee............eeeee.........eeeeeeeeeeeeee..eeeeeeeeee.....hhh.....hhh..hhhhhhhhhhhhh.........eeeeeee.hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PPASE  ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1qez E 5002 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG 5171
                                  5011      5021      5031      5041      5051      5061      5071      5081      5091      5101      5111      5121      5131      5141      5151      5161      5171

Chain F from PDB  Type:PROTEIN  Length:170
 aligned with IPYR_SULAC | P50308 from UniProtKB/Swiss-Prot  Length:173

    Alignment length:170
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
          IPYR_SULAC      2 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG  171
               SCOP domains d1qezf_ F: Inorganic pyrophosphatase                                                                                                                                       SCOP domains
               CATH domains 1qezF00 F:6002-6171 Inorganic Pyrophosphatase                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeee.....eeeeee....eeeeeee.........eeee............eeeee.........eeeeeeeeeeeeee..eeeeeeeeee.....hhh.....hhh..hhhhhhhhhhhhh.........eeeeeee.hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PPASE  ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1qez F 6002 KLSPGKNAPDVVNVLVEIPQGSNIKYEYDDEEGVIKVDRVLYTSMNYPFNYGFIPGTLEEDGDPLDVLVITNYQLYPGSVIEVRPIGILYMKDEEGEDAKIVAVPKDKTDPSFSNIKDINDLPQATKNKIVHFFEHYKELEPGKYVKISGWGSATEAKNRIQLAIKRVSG 6171
                                  6011      6021      6031      6041      6051      6061      6071      6081      6091      6101      6111      6121      6131      6141      6151      6161      6171

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: OB-fold (1179)

Superfamily: Inorganic pyrophosphatase (69)

Family: Inorganic pyrophosphatase (56)

Protein domain: Inorganic pyrophosphatase (41)

Sulfolobus acidocaldarius [TaxId: 2285] (1)

1a	d1qeza_	A:
1b	d1qezb_	B:
1c	d1qezc_	C:
1d	d1qezd_	D:
1e	d1qeze_	E:
1f	d1qezf_	F:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Alpha-Beta Complex (3881)

Topology: Inorganic Pyrophosphatase (59)

Homologous Superfamily: Inorganic Pyrophosphatase (59)

Sulfolobus acidocaldarius. Organism_taxid: 2285. (1)

1a	1qezA00	A:1002-1171
1b	1qezB00	B:2002-2171
1c	1qezC00	C:3002-3171
1d	1qezD00	D:4002-4171
1e	1qezE00	E:5002-5171
1f	1qezF00	F:6002-6171

(no "Pfam Domain" information available for 1QEZ)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D,E,F (IPYR_SULAC | P50308)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0004427	inorganic diphosphatase activity	Catalysis of the reaction: diphosphate + H(2)O = H(+) + 2 phosphate.
	GO:0000287	magnesium ion binding	Interacting selectively and non-covalently with magnesium (Mg) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0006796	phosphate-containing compound metabolic process	The chemical reactions and pathways involving the phosphate group, the anion or salt of any phosphoric acid.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ala A:1009 - Pro A:1010	[ RasMol ]
		Ala B:2009 - Pro B:2010	[ RasMol ]
		Ala C:3009 - Pro C:3010	[ RasMol ]
		Ala D:4009 - Pro D:4010	[ RasMol ]
		Ala E:5009 - Pro E:5010	[ RasMol ]
		Ala F:6009 - Pro F:6010	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1qez
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	IPYR_SULAC \| P50308
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.6.1.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	IPYR_SULAC \| P50308
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1QEZ)

(no "Related Entries Specified in the PDB File" available for 1QEZ)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 6)

Sites (6, 6)

SS Bonds (0, 0)

Cis Peptide Bonds (6, 6)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 6)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 6)

CATH Domains (1, 6)

Pfam Domains (0, 0)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
