(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

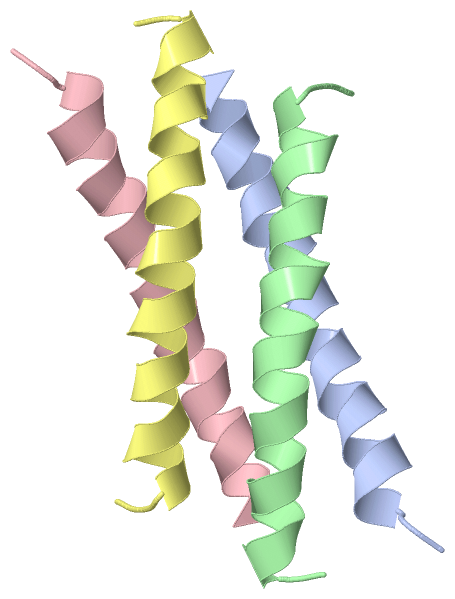

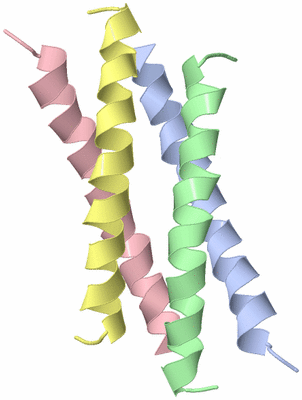

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

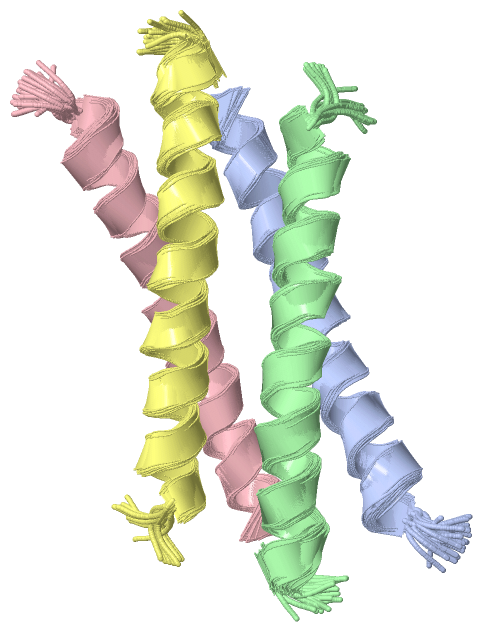

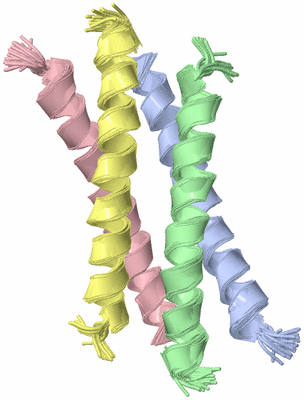

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE DETERMINATION OF THE TETRAMERIZATION DOMAIN OF THE MNT REPRESSOR: AN ASYMMETRIC A-HELICAL ASSEMBLY IN SLOW EXCHANGE

Authors :  I. M. A. Nooren, A. V. E. George, R. Kaptein, R. T. Sauer, R. Boelens
Date :  03 Apr 99  (Deposition) - 18 Aug 99  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B,C,D  (27x)
Keywords :  Oligomerization, Transcriptional Control, P22 Mnt Repressor, Gene Regulation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. M. Nooren, R. Kaptein, R. T. Sauer, R. Boelens
The Tetramerization Domain Of The Mnt Repressor Consists Of Two Right-Handed Coiled Coils.
Nat. Struct. Biol. V. 6 755 1999
PubMed-ID: 10426954  |  Reference-DOI: 10.1038/11531
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (REGULATORY PROTEIN MNT)
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PTM203-ST6
    Expression System Strain: X90
    Expression System Taxid: 562
    Fragment: C-TERMINAL TETRAMERIZATION DOMAIN
    Organism Scientific: ENTEROBACTERIA PHAGE P22
    Organism Taxid: 10754
    Other Details: CHYMOTRYPTIC FRAGMENT OF WILD-TYPE PROTEIN
    Synonym: MNT-C

 Structural Features

(-) Chains, Units


NMR Structure (27x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1QEY)

(-) Sites  (0, 0)

(no "Site" information available for 1QEY)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1QEY)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1QEY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1QEY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1QEY)

(-) Exons   (0, 0)

(no "Exon" information available for 1QEY)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:31
 aligned with RMNT_BPP22 | P03049 from UniProtKB/Swiss-Prot  Length:83

    Alignment length:31
                                    62        72        82
            RMNT_BPP22   53 RNDAERLADEQSELVKKMVFDTLKDLYKKTT 83
               SCOP domains d1qeya_ A:                      SCOP domains
               CATH domains ------------------------------- CATH domains
               Pfam domains ------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------- PROSITE
                 Transcript ------------------------------- Transcript
                  1qey A 52 RNDAERLADEQSELVKKMVFDTLKDLYKKTT 82
                                    61        71        81


Chain B from PDB  Type:PROTEIN  Length:31
 aligned with RMNT_BPP22 | P03049 from UniProtKB/Swiss-Prot  Length:83

    Alignment length:31
                                    62        72        82
            RMNT_BPP22   53 RNDAERLADEQSELVKKMVFDTLKDLYKKTT 83
               SCOP domains d1qeyb_ B:                      SCOP domains
               CATH domains ------------------------------- CATH domains
               Pfam domains ------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------- PROSITE
                 Transcript ------------------------------- Transcript
                  1qey B 52 RNDAERLADEQSELVKKMVFDTLKDLYKKTT 82
                                    61        71        81


Chain C from PDB  Type:PROTEIN  Length:31
 aligned with RMNT_BPP22 | P03049 from UniProtKB/Swiss-Prot  Length:83

    Alignment length:31
                                    62        72        82
            RMNT_BPP22   53 RNDAERLADEQSELVKKMVFDTLKDLYKKTT 83
               SCOP domains d1qeyc_ C:                      SCOP domains
               CATH domains ------------------------------- CATH domains
               Pfam domains ------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------- PROSITE
                 Transcript ------------------------------- Transcript
                  1qey C 52 RNDAERLADEQSELVKKMVFDTLKDLYKKTT 82
                                    61        71        81


Chain D from PDB  Type:PROTEIN  Length:31
 aligned with RMNT_BPP22 | P03049 from UniProtKB/Swiss-Prot  Length:83

    Alignment length:31
                                    62        72        82
            RMNT_BPP22   53 RNDAERLADEQSELVKKMVFDTLKDLYKKTT 83
               SCOP domains d1qeyd_ D:                      SCOP domains
               CATH domains ------------------------------- CATH domains
           Pfam domains (1) Repressor_Mnt-1qeyD01 D:52-81 - Pfam domains (1)
           Pfam domains (2) Repressor_Mnt-1qeyD02 D:52-81 - Pfam domains (2)
           Pfam domains (3) Repressor_Mnt-1qeyD03 D:52-81 - Pfam domains (3)
           Pfam domains (4) Repressor_Mnt-1qeyD04 D:52-81 - Pfam domains (4)
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------- PROSITE
                 Transcript ------------------------------- Transcript
                  1qey D 52 RNDAERLADEQSELVKKMVFDTLKDLYKKTT 82
                                    61        71        81
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

NMR Structure
(-)
Class: Coiled coil proteins (689)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1QEY)

(-) Pfam Domains  (1, 4)

NMR Structure
(-)
Clan: no clan defined [family: Repressor_Mnt] (2)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A,B,C,D   (RMNT_BPP22 | P03049)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1qey)

  Sites
(no "Sites" information available for 1qey)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1qey)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1qey
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RMNT_BPP22 | P03049
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RMNT_BPP22 | P03049
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RMNT_BPP22 | P03049: 1mnt

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1QEY)
