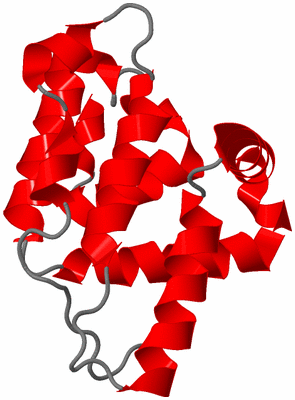

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE C-TERMINAL ACTIN BINDING DOMAIN OF SALMONELLA INVASION PROTEIN A (SIPA)

Authors :  C. E. Stebbins, M. Lilic, V. E. Galkin, A. Orlova, M. S. Vanloock, E. H. Egelman
Date :  11 Aug 03  (Deposition) - 07 Oct 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Cell Invasion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Lilic, V. E. Galkin, A. Orlova, M. S. Vanloock, E. H. Egelman, C. E. Stebbins
Salmonella Sipa Polymerizes Actin By Stapling Filaments With Nonglobular Protein Arms.
Science V. 301 1918 2003
PubMed-ID: 14512630  |  Reference-DOI: 10.1126/SCIENCE.1088433
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SIPA
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PGEX-4T-3
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: C-TERMINAL ACTIN BINDING DOMAIN
    Gene: SIPA
    Organism Scientific: SALMONELLA TYPHIMURIUM
    Organism Taxid: 602
    Synonym: SIPA

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1Q5Z)

(-) Sites  (0, 0)

(no "Site" information available for 1Q5Z)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Q5Z)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Q5Z)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Q5Z)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1Q5Z)

(-) Exons   (0, 0)

(no "Exon" information available for 1Q5Z)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:145
 aligned with SIPA_SALTS | E1WAC6 from UniProtKB/Swiss-Prot  Length:685

    Alignment length:145
                                   523       533       543       553       563       573       583       593       603       613       623       633       643       653
           SIPA_SALTS   514 PFSGLKFKQNSFLSTVPSVTNMHSMHFDARETFLGVIRKALEPDTSTPFPVRRAFDGLRAEILPNDTIKSAALKAQCSDIDKHPELKAKMETLKEVITHHPQKEKLAEIALQFAREAGLTRLKGETDYVLSNVLDGLIGDGSWRA 658
               SCOP domains d1q5za_ A: Invasion protein A (SipA) , C-terminal actin binding domain                                                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhh.hhhhhh....hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh..hhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q5z A 513 PFSGLKFKQNSFLSTVPSVTNMHSMHFDARETFLGVIRKALEPDTSTPFPVRRAFDGLRAEILPNDTIKSAALKAQCSDIDKHPELKAKMETLKEVITHHPQKEKLAEIALQFAREAGLTRLKGETDYVLSNVLDGLIGDGSWRA 657
                                   522       532       542       552       562       572       582       592       602       612       622       632       642       652


Chain A from PDB  Type:PROTEIN  Length:145
 aligned with SIPA_SALTY | P0CL52 from UniProtKB/Swiss-Prot  Length:685

    Alignment length:145
                                   523       533       543       553       563       573       583       593       603       613       623       633       643       653
           SIPA_SALTY   514 PFSGLKFKQNSFLSTVPSVTNMHSMHFDARETFLGVIRKALEPDTSTPFPVRRAFDGLRAEILPNDTIKSAALKAQCSDIDKHPELKAKMETLKEVITHHPQKEKLAEIALQFAREAGLTRLKGETDYVLSNVLDGLIGDGSWRA 658
               SCOP domains d1q5za_ A: Invasion protein A (SipA) , C-terminal actin binding domain                                                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhh.hhhhhh....hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh..hhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q5z A 513 PFSGLKFKQNSFLSTVPSVTNMHSMHFDARETFLGVIRKALEPDTSTPFPVRRAFDGLRAEILPNDTIKSAALKAQCSDIDKHPELKAKMETLKEVITHHPQKEKLAEIALQFAREAGLTRLKGETDYVLSNVLDGLIGDGSWRA 657
                                   522       532       542       552       562       572       582       592       602       612       622       632       642       652
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1Q5Z)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1Q5Z)

(-) Gene Ontology  (3, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (SIPA_SALTS | E1WAC6)
molecular function
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Chain A   (SIPA_SALTY | P0CL52)
molecular function
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1q5z)

  Sites
(no "Sites" information available for 1q5z)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1q5z)


(-) Still Images

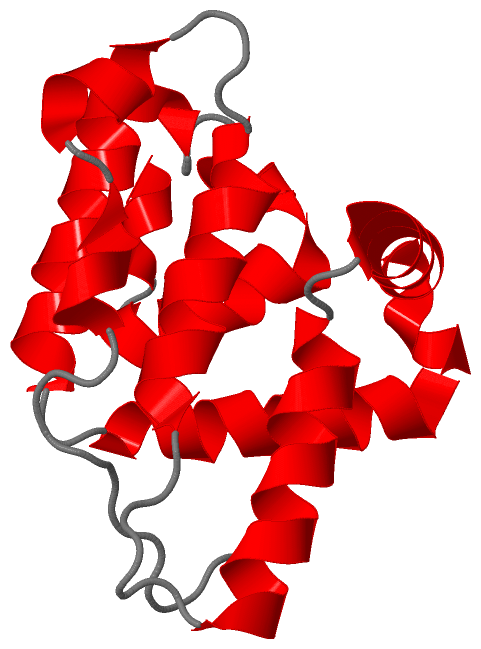

Jmol
