(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

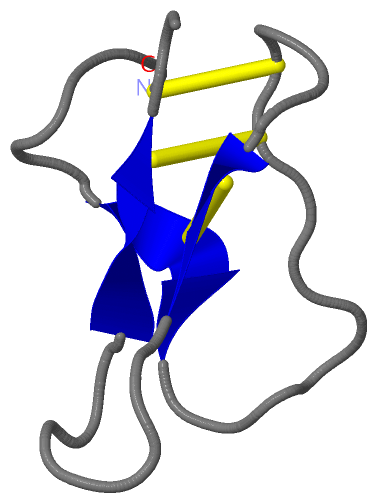

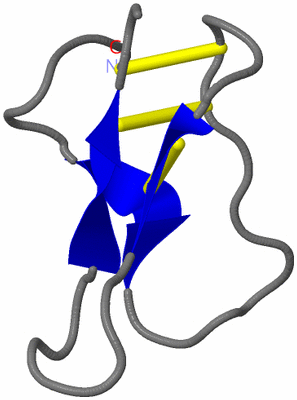

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

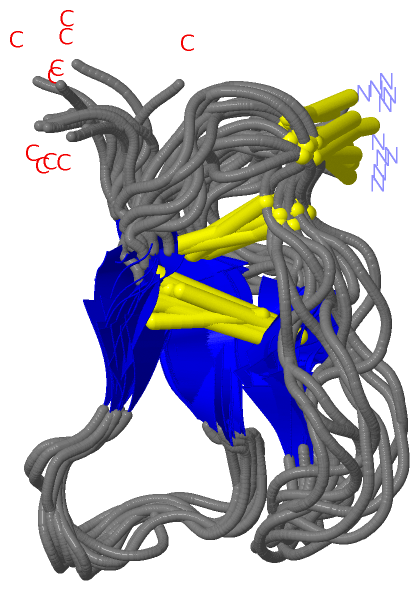

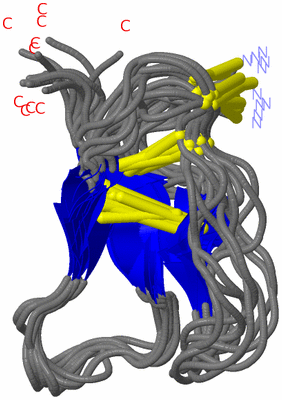

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF ALO3: A NEW KNOTTIN-TYPE ANTIFUNGAL PEPTIDE FROM THE INSECT ACROCINUS LONGIMANUS

Authors :  F. Barbault, C. Landon, M. Guenneugues, J. P. Meyer, V. Schott, J. L. Dim F. Vovelle
Date :  30 Jul 03  (Deposition) - 23 Dec 03  (Release) - 27 Mar 13  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
NMR Structure *:  A  (1x)
Keywords :  Knottin, Cystine-Knot, Antifungal Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Barbault, C. Landon, M. Guenneugues, J. P. Meyer, V. Schott, J. L. Dimarcq, F. Vovelle
Solution Structure Of Alo-3: A New Knottin-Type Antifungal Peptide From The Insect Acrocinus Longimanus.
Biochemistry V. 42 14434 2003
PubMed-ID: 14661954  |  Reference-DOI: 10.1021/BI035400O

(-) Compounds

Molecule 1 - ALO3
    Chains: A
    Engineered: YES
    Other Details: THE PEPTIDE WAS CHEMICALLY SYNTHESIZED. THE SEQUENCE OF THE PEPTIDE IS NATURALLY FOUND IN ACROCINUS LONGIMANUS (GIANT HARLEQUIN BEETLE).
    Synthetic: YES

 Structural Features

(-) Chains, Units

  1
NMR Structure (10x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1Q3J)

(-) Sites  (0, 0)

(no "Site" information available for 1Q3J)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:1 -A:18
2A:8 -A:22
3A:17 -A:33

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1Q3J)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Q3J)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PLANT_C6_AMPPS60011 Plant C6 type antimicrobial peptide (AMP) signature.ALO3_ACRLO1-33  1A:1-33
NMR Structure * (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PLANT_C6_AMPPS60011 Plant C6 type antimicrobial peptide (AMP) signature.ALO3_ACRLO1-33  1A:1-33

(-) Exons   (0, 0)

(no "Exon" information available for 1Q3J)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:36
 aligned with ALO3_ACRLO | P83653 from UniProtKB/Swiss-Prot  Length:36

    Alignment length:36
                                    10        20        30
            ALO3_ACRLO    1 CIKNGNGCQPNGSQGNCCSGYCHKQPGWVAGYCRRK 36
               SCOP domains d1q3ja_ A: Antifungal peptide Alo3   SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains Antifungal_pept-1q3jA01 A:1-36       Pfam domains
         Sec.struct. author ......eee............ee.......eee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE PLANT_C6_AMP  PDB: A:1-33        --- PROSITE
                 Transcript ------------------------------------ Transcript
                  1q3j A  1 CIKNGNGCQPNGSQGNCCSGYCHKQPGWVAGYCRRK 36
                                    10        20        30
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1Q3J)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: Antifungal_pept] (1)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (ALO3_ACRLO | P83653)
biological process
    GO:0050832    defense response to fungus    Reactions triggered in response to the presence of a fungus that act to protect the cell or organism.
    GO:0031640    killing of cells of other organism    Any process in an organism that results in the killing of cells of another organism, including in some cases the death of the other organism. Killing here refers to the induction of death in one cell by another cell, not cell-autonomous death due to internal or other environmental conditions.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
