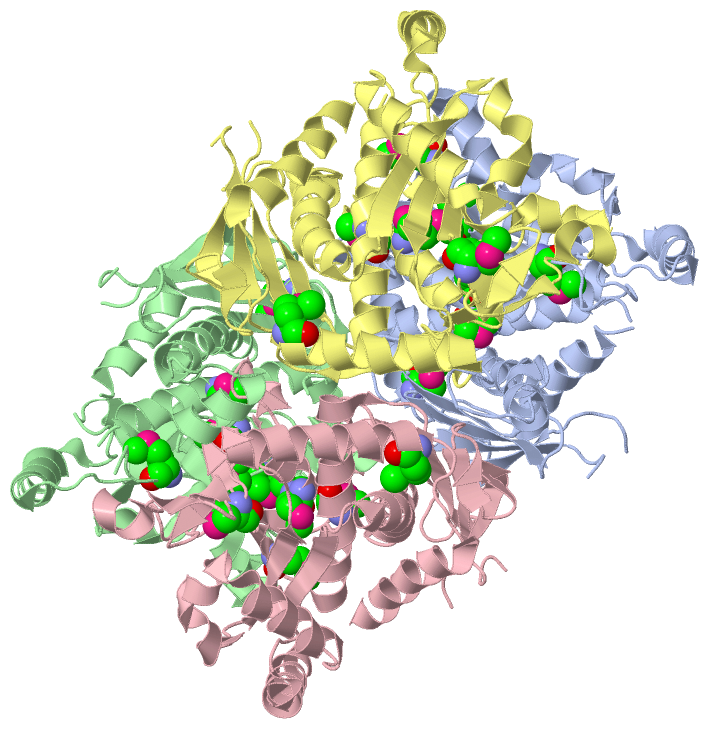

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CHORISMATE SYNTHASE

Authors :  C. M. Viola, V. Saridakis, D. Christendat, Midwest Center For Structural Genomics (Mcsg)
Date :  21 Jul 03  (Deposition) - 30 Sep 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.05
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Beta Alpha Beta Sandwich, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. M. Viola, V. Saridakis, D. Christendat
Crystal Structure Of Chorismate Synthase From Aquifex Aeolicus Reveals A Novel Beta Alpha Beta Sandwich Topology
Proteins: V. 54 166 2004 Struct. , Funct. , Genet.
PubMed-ID: 14705034  |  Reference-DOI: 10.1002/PROT.10592
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CHORISMATE SYNTHASE
    Chains: A, B, C, D
    EC Number: 4.2.3.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: AROC
    Organism Scientific: AQUIFEX AEOLICUS
    Organism Taxid: 63363
    Synonym: 5-ENOLPYRUVYLSHIKIMATE-3-PHOSPHATE PHOSPHOLYASE

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 24)

Asymmetric/Biological Unit (1, 24)
No.NameCountTypeFull Name
1MSE24Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1Q1L)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1Q1L)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ile B:323 -Pro B:324

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1Q1L)

(-) PROSITE Motifs  (2, 8)

Asymmetric/Biological Unit (2, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CHORISMATE_SYNTHASE_1PS00787 Chorismate synthase signature 1.AROC_AQUAE12-27


 		  4A:12-27
B:12-27
C:12-27
D:12-27
2CHORISMATE_SYNTHASE_2PS00788 Chorismate synthase signature 2.AROC_AQUAE132-148


 		  4A:132-148
B:132-148
C:132-148
D:132-148

(-) Exons   (0, 0)

(no "Exon" information available for 1Q1L)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:336
 aligned with AROC_AQUAE | O66493 from UniProtKB/Swiss-Prot  Length:398

    Alignment length:397
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
           AROC_AQUAE     2 SLRYLRFLTAGESHGKGLTAILEGIPANLPLSEEEINHELRRRQRGYGRGGRMKIEKDTAEILSGVRFGKTLGSPIALFIRNRDWENWKEKMAIEGEPSPSVVPFTRPRPGHADLSGGIKYNQRDLRNILERASARETAARVAVGAVCKKFLSEFGIKIGSFVVSIGQKEVEELKDKSYFANPEKLLSYHEKAEDSELRIPFPEKDEEFKTYIDEVKEKGESLGGVFEVFALNVPPGLGSHIQWDRRIDGRIAQAMMSIQAIKGVEIGLGFEAARRFGSQVHDEIGWSEGKGYFRHSNNLGGTEGGITNGMPIVVRVAMKPIPTLKNPLRSVDIETKEEMKAGKERTDIVAVPAASVVGEAMLAIVLADALLEKLGGDFMEEVKKRFEDYVNHVKSF 398
               SCOP domains d1q1la_ A: Chorismate synthase, AroC                                                                                                                                                                                                                                                                                                                                                                          SCOP domains
               CATH domains 1q1lA00 A:2-398 Chorismate synthase, AroC domain                                                                                                                                                                                                                                                                                                                                                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee......eeeeeee........hhhhhhhhhhhhhh...------.....eeeee.ee..ee....eeeeee....-------------------------------.........hhhhhhhhh..hhhhhhhhhhhhhhhhhh...eeeeeeeee..ee.hhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhh......eeeeeeee..........hhhhhhhhhhhhhhhh...eeeeee.hhhhhhhhhhhhh...eeee...eeee.......ee..ee....eeeeeee.....------------------------..hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------CHORISMATE_SYNTH--------------------------------------------------------------------------------------------------------CHORISMATE_SYNTHA---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q1l A   2 SLRYLRFLTAGESHGKGLTAILEGIPANLPLSEEEINHELRRRQRGYG------IEKDTAEILSGVRFGKTLGSPIALFIRNRDW-------------------------------GGIKYNQRDLRNILERASARETAARVAVGAVCKKFLSEFGIKIGSFVVSIGQKEVEELKDKSYFANPEKLLSYHEKAEDSELRIPFPEKDEEFKTYIDEVKEKGESLGGVFEVFALNVPPGLGSHIQWDRRIDGRIAQAmmSIQAIKGVEIGLGFEAARRFGSQVHDEIGWSEGKGYFRHSNNLGGTEGGITNGmPIVVRVAmKPIPT------------------------IVAVPAASVVGEAmLAIVLADALLEKLGGDFmEEVKKRFEDYVNHVKSF 398
                                    11        21        31        41       | -    |   61        71        81    |    -         -         -      |121       131       141       151       161       171       181       191       201       211       221       231       241       251     ||261       271       281       291       301       311|      321   |     -         -       351       361 |     371       381       391
                                                                          49     56                            86                             118                                                                                                                                        257-MSE                                                312-MSE 320-MSE5                      350          363-MSE           381-MSE
                                                                                                                                                                                                                                                                                          258-MSE


Chain B from PDB  Type:PROTEIN  Length:336
 aligned with AROC_AQUAE | O66493 from UniProtKB/Swiss-Prot  Length:398

    Alignment length:397
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
           AROC_AQUAE     2 SLRYLRFLTAGESHGKGLTAILEGIPANLPLSEEEINHELRRRQRGYGRGGRMKIEKDTAEILSGVRFGKTLGSPIALFIRNRDWENWKEKMAIEGEPSPSVVPFTRPRPGHADLSGGIKYNQRDLRNILERASARETAARVAVGAVCKKFLSEFGIKIGSFVVSIGQKEVEELKDKSYFANPEKLLSYHEKAEDSELRIPFPEKDEEFKTYIDEVKEKGESLGGVFEVFALNVPPGLGSHIQWDRRIDGRIAQAMMSIQAIKGVEIGLGFEAARRFGSQVHDEIGWSEGKGYFRHSNNLGGTEGGITNGMPIVVRVAMKPIPTLKNPLRSVDIETKEEMKAGKERTDIVAVPAASVVGEAMLAIVLADALLEKLGGDFMEEVKKRFEDYVNHVKSF 398
               SCOP domains d1q1lb_ B: Chorismate synthase, AroC                                                                                                                                                                                                                                                                                                                                                                          SCOP domains
               CATH domains 1q1lB00 B:2-398 Chorismate synthase, AroC domai         n                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee......eeeeeee........hhhhhhhhhhhhhh..---------...eeeee.ee..ee....eeeeee....---------------------------hhhhhhhhh....hhhhhhhhh..hhhhhhhhhhhhhhhhhh...eeeeeeeee..ee.hhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhh.....eeeeeeee..........hhhhhhhhhhhhhhhh...eeeeee..hhhhhhhhhhhh...ee.......ee.......ee..ee....eeeeeee.....-------------------------.hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------CHORISMATE_SYNTH--------------------------------------------------------------------------------------------------------CHORISMATE_SYNTHA---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q1l B   2 SLRYLRFLTAGESHGKGLTAILEGIPANLPLSEEEINHELRRRQRGY---------KDTAEILSGVRFGKTLGSPIALFIRNRDW---------------------------ADLSGGIKYNQRDLRNILERASARETAARVAVGAVCKKFLSEFGIKIGSFVVSIGQKEVEELKDKSYFANPEKLLSYHEKAEDSELRIPFPEKDEEFKTYIDEVKEKGESLGGVFEVFALNVPPGLGSHIQWDRRIDGRIAQAmmSIQAIKGVEIGLGFEAARRFGSQVHDEIGWSEGKGYFRHSNNLGGTEGGITNGmPIVVRVAmKPIPT-------------------------VAVPAASVVGEAmLAIVLADALLEKLGGDFmEEVKKRFEDYVNHVKSF 398
                                    11        21        31        41      |  -      | 61        71        81    |    -         -         -  |    121       131       141       151       161       171       181       191       201       211       221       231       241       251     ||261       271       281       291       301       311|      321   |     -         -       351       361 |     371       381       391
                                                                         48        58                          86                         114                                                                                                                                            257-MSE                                                312-MSE 320-MSE5                       351         363-MSE           381-MSE
                                                                                                                                                                                                                                                                                          258-MSE


Chain C from PDB  Type:PROTEIN  Length:333
 aligned with AROC_AQUAE | O66493 from UniProtKB/Swiss-Prot  Length:398

    Alignment length:397
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
           AROC_AQUAE     2 SLRYLRFLTAGESHGKGLTAILEGIPANLPLSEEEINHELRRRQRGYGRGGRMKIEKDTAEILSGVRFGKTLGSPIALFIRNRDWENWKEKMAIEGEPSPSVVPFTRPRPGHADLSGGIKYNQRDLRNILERASARETAARVAVGAVCKKFLSEFGIKIGSFVVSIGQKEVEELKDKSYFANPEKLLSYHEKAEDSELRIPFPEKDEEFKTYIDEVKEKGESLGGVFEVFALNVPPGLGSHIQWDRRIDGRIAQAMMSIQAIKGVEIGLGFEAARRFGSQVHDEIGWSEGKGYFRHSNNLGGTEGGITNGMPIVVRVAMKPIPTLKNPLRSVDIETKEEMKAGKERTDIVAVPAASVVGEAMLAIVLADALLEKLGGDFMEEVKKRFEDYVNHVKSF 398
               SCOP domains d1q1lc_ C: Chorismate synthase, AroC                                                                                                                                                                                                                                                                                                                                                                          SCOP domains
               CATH domains 1q1lC00 C:2-398 Chorismate synthase, AroC domai         n                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee......eeeeeee........hhhhhhhhhhhhhhh.---------...eeeee.ee..ee....eeeeee.....--------------------------.hhhhhhhhh...hhhhhhhhh..hhhhhhhhhhhhhhhhhh...eeeeeeeee..ee.hhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhh.....eeeeeeee..........hhhhhhhhhhhhhhhh...eeeeee.........hhhhhh..eeee...eeee.......ee..ee....eeeeeee...-----------------------------hhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------CHORISMATE_SYNTH--------------------------------------------------------------------------------------------------------CHORISMATE_SYNTHA---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q1l C   2 SLRYLRFLTAGESHGKGLTAILEGIPANLPLSEEEINHELRRRQRGY---------KDTAEILSGVRFGKTLGSPIALFIRNRDWE--------------------------ADLSGGIKYNQRDLRNILERASARETAARVAVGAVCKKFLSEFGIKIGSFVVSIGQKEVEELKDKSYFANPEKLLSYHEKAEDSELRIPFPEKDEEFKTYIDEVKEKGESLGGVFEVFALNVPPGLGSHIQWDRRIDGRIAQAmmSIQAIKGVEIGLGFEAARRFGSQVHDEIGWSEGKGYFRHSNNLGGTEGGITNGmPIVVRVAmKPI-----------------------------VPAASVVGEAmLAIVLADALLEKLGGDFmEEVKKRFEDYVNHVKSF 398
                                    11        21        31        41      |  -      | 61        71        81     |   -         -         -  |    121       131       141       151       161       171       181       191       201       211       221       231       241       251     ||261       271       281       291       301       311|      321 |       -         -         - |     361 |     371       381       391
                                                                         48        58                           87                        114                                                                                                                                            257-MSE                                                312-MSE 320-MSE                          353       363-MSE           381-MSE
                                                                                                                                                                                                                                                                                          258-MSE                                                          323


Chain D from PDB  Type:PROTEIN  Length:334
 aligned with AROC_AQUAE | O66493 from UniProtKB/Swiss-Prot  Length:398

    Alignment length:397
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
           AROC_AQUAE     2 SLRYLRFLTAGESHGKGLTAILEGIPANLPLSEEEINHELRRRQRGYGRGGRMKIEKDTAEILSGVRFGKTLGSPIALFIRNRDWENWKEKMAIEGEPSPSVVPFTRPRPGHADLSGGIKYNQRDLRNILERASARETAARVAVGAVCKKFLSEFGIKIGSFVVSIGQKEVEELKDKSYFANPEKLLSYHEKAEDSELRIPFPEKDEEFKTYIDEVKEKGESLGGVFEVFALNVPPGLGSHIQWDRRIDGRIAQAMMSIQAIKGVEIGLGFEAARRFGSQVHDEIGWSEGKGYFRHSNNLGGTEGGITNGMPIVVRVAMKPIPTLKNPLRSVDIETKEEMKAGKERTDIVAVPAASVVGEAMLAIVLADALLEKLGGDFMEEVKKRFEDYVNHVKSF 398
               SCOP domains d1q1ld_ D: Chorismate synthase, AroC                                                                                                                                                                                                                                                                                                                                                                          SCOP domains
               CATH domains 1q1lD00 D:2-398 Chorismate synthase, AroC domai         n                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee......eeeeeee........hhhhhhhhhhhhhhh.---------....eeee.ee..ee....eeeeee....---------------------------..hhhhhhh....hhhhhhhhh..hhhhhhhhhhhhhhhhhh...eeeeeeeee..ee.hhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhh.....eeeeeeee..........hhhhhhhhhhhhhhhh...eeeeee.hhhhhhhhhhhhhh..eeee...eeee.......ee..ee....eeeeeee...---------------------------.hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------CHORISMATE_SYNTH--------------------------------------------------------------------------------------------------------CHORISMATE_SYNTHA---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1q1l D   2 SLRYLRFLTAGESHGKGLTAILEGIPANLPLSEEEINHELRRRQRGY---------KDTAEILSGVRFGKTLGSPIALFIRNRDW---------------------------ADLSGGIKYNQRDLRNILERASARETAARVAVGAVCKKFLSEFGIKIGSFVVSIGQKEVEELKDKSYFANPEKLLSYHEKAEDSELRIPFPEKDEEFKTYIDEVKEKGESLGGVFEVFALNVPPGLGSHIQWDRRIDGRIAQAmmSIQAIKGVEIGLGFEAARRFGSQVHDEIGWSEGKGYFRHSNNLGGTEGGITNGmPIVVRVAmKPI---------------------------VAVPAASVVGEAmLAIVLADALLEKLGGDFmEEVKKRFEDYVNHVKSF 398
                                    11        21        31        41      |  -      | 61        71        81    |    -         -         -  |    121       131       141       151       161       171       181       191       201       211       221       231       241       251     ||261       271       281       291       301       311|      321 |       -         -       351       361 |     371       381       391
                                                                         48        58                          86                         114                                                                                                                                            257-MSE                                                312-MSE 320-MSE                        351         363-MSE           381-MSE
                                                                                                                                                                                                                                                                                          258-MSE                                                          323
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1Q1L)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (AROC_AQUAE | O66493)
molecular function
    GO:0010181    FMN binding    Interacting selectively and non-covalently with flavin mono nucleotide. Flavin mono nucleotide (FMN) is the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes.
    GO:0004107    chorismate synthase activity    Catalysis of the reaction: 5-O-(1-carboxyvinyl)-3-phosphoshikimate = chorismate + phosphate.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
biological process
    GO:0009073    aromatic amino acid family biosynthetic process    The chemical reactions and pathways resulting in the formation of aromatic amino acid family, amino acids with aromatic ring (phenylalanine, tyrosine, tryptophan).
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0009423    chorismate biosynthetic process    The chemical reactions and pathways resulting in the formation of the unsymmetrical ether derived from phosphoenolpyruvate and 5-phosphoshikimic acid formed as an intermediate in the biosynthesis of aromatic amino acids and many other compounds.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1q1l)

  Cis Peptide Bonds
    Ile B:323 - Pro B:324   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1q1l
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  AROC_AQUAE | O66493
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.2.3.5
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  AROC_AQUAE | O66493
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
