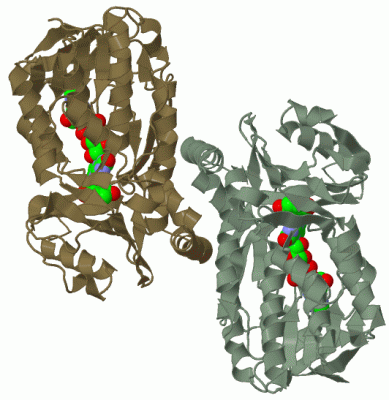

Biol.Unit 1 - manually (Jmol Viewer)

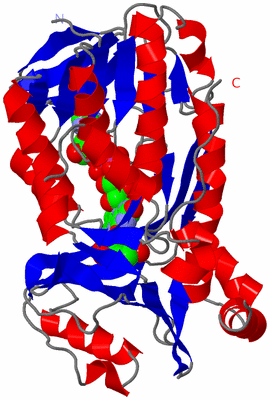

Asymmetric Unit (Jmol Viewer)

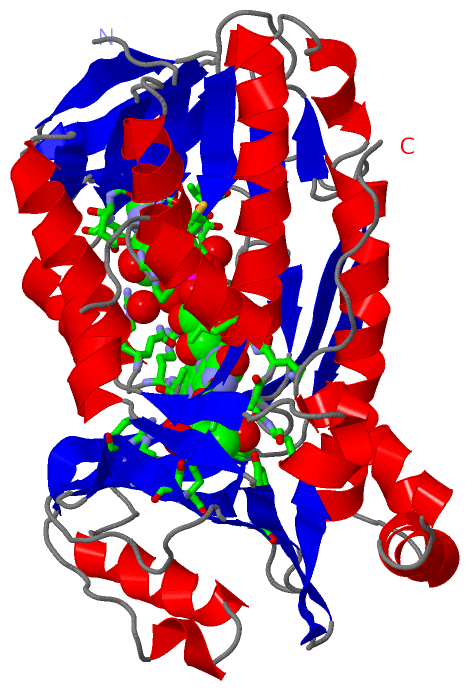

Asym. Unit - sites (Jmol Viewer)

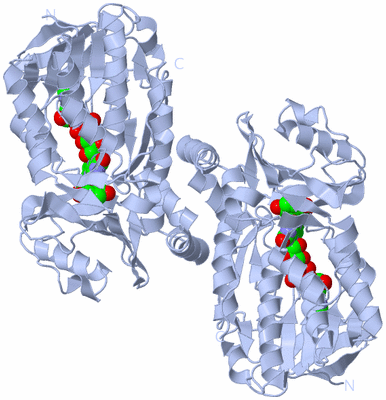

Biological Unit 1 (Jmol Viewer)

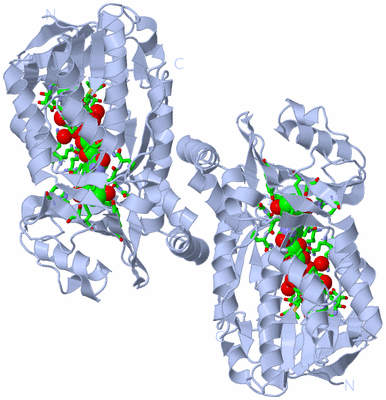

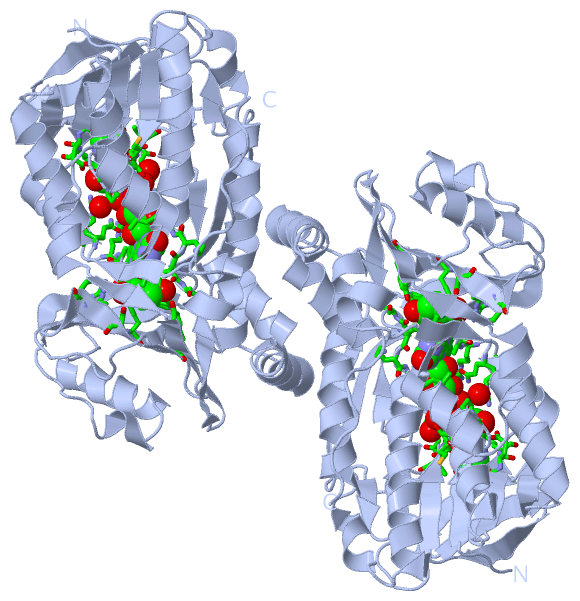

Biol. Unit 1 - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURES OF MUTANT PSEUDOMONAS AERUGINOSA P-HYDROXYBENZOATE HYDROXYLASE: THE TYR201PHE, TYR385PHE, AND ASN300ASP VARIANTS

Authors :   M. S. Lah, B. A. Palfey, H. A. Schreuder, M. L. Ludwig

Date :   27 Sep 94 (Deposition) - 27 Feb 95 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. S. Lah, B. A. Palfey, H. A. Schreuder, M. L. Ludwig
Crystal Structures Of Mutant Pseudomonas Aeruginosa P-Hydroxybenzoate Hydroxylases: The Tyr201Phe, Tyr385Phe, And Asn300Asp Variants.
Biochemistry V. 33 1555 1994
PubMed-ID: 8312276 | Reference-DOI: 10.1021/BI00172A036
(for further references see the PDB file header)

Molecule 1 - P-HYDROXYBENZOATE HYDROXYLASE
	Chains	:	A
	EC Number	:	1.14.13.2
	Engineered	:	YES
	Organism Scientific	:	PSEUDOMONAS AERUGINOSA
	Organism Taxid	:	287

		1
Asymmetric Unit	:	A
Biological Unit 1 (2x)	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 2)

No.	Name	Count	Type	Full Name
1	FAD	1	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE
2	PHB	1	Ligand/Ion	P-HYDROXYBENZOIC ACID

Biological Unit 1 (2, 4)

No.	Name	Count	Type	Full Name
1	FAD	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE
2	PHB	2	Ligand/Ion	P-HYDROXYBENZOIC ACID

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ILE A:8 , GLY A:9 , GLY A:11 , PRO A:12 , SER A:13 , LEU A:31 , GLU A:32 , ARG A:33 , ARG A:42 , ARG A:44 , ALA A:45 , GLY A:46 , VAL A:47 , GLN A:102 , CYS A:158 , ASP A:159 , GLY A:160 , GLY A:163 , ILE A:164 , ASP A:286 , ALA A:296 , LYS A:297 , GLY A:298 , LEU A:299 , PHB A:396 , HOH A:413 , HOH A:443 , HOH A:461 , HOH A:467 , HOH A:468	BINDING SITE FOR RESIDUE FAD A 395
2	AC2	SOFTWARE	ARG A:44 , GLY A:46 , TRP A:185 , TYR A:201 , SER A:212 , ARG A:214 , ARG A:220 , TYR A:222 , PRO A:293 , THR A:294 , ALA A:296 , FAD A:395	BINDING SITE FOR RESIDUE PHB A 396

(no "SS Bond" information available for 1PXA)

Asymmetric Unit

No.	Residues
1	Glu A:274	-	Pro A:275

(no "SAP(SNP)/Variant" information available for 1PXA)

(no "PROSITE Motif" information available for 1PXA)

(no "Exon" information available for 1PXA)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:394
 aligned with PHHY_PSEAE | P20586 from UniProtKB/Swiss-Prot  Length:394

    Alignment length:394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
           PHHY_PSEAE     1 MKTQVAIIGAGPSGLLLGQLLHKAGIDNVILERQTPDYVLGRIRAGVLEQGMVDLLREAGVDRRMARDGLVHEGVEIAFAGQRRRIDLKRLSGGKTVTVYGQTEVTRDLMEAREACGATTVYQAAEVRLHDLQGERPYVTFERDGERLRLDCDYIAGCDGFHGISRQSIPAERLKVFERVYPFGWLGLLADTPPVSHELIYANHPRGFALCSQRSATRSRYYVQVPLSEKVEDWSDERFWTELKARLPSEVAEKLVTGPSLEKSIAPLRSFVVEPMQHGRLFLAGDAAHIVPPTGAKGLNLAASDVSTLYRLLLKAYREGRGELLERYSAICLRRIWKAERFSWWMTSVLHRFPDTDAFSQRIQQTELEYYLGSEAGLATIAENYVGLPYEEIE 394
               SCOP domains d1pxaa1 A:1-173,A:276-394 p-Hydroxybenzoate hydroxylase, PHBH                                                                                                                d1pxaa2 A:174-275 p-Hydroxybenzoate hydroxylase (PHBH)                                                d1pxaa1 A:1-173,A:276-394 p-Hydroxybenzoate hydroxylase, PHBH                                                           SCOP domains
               CATH domains 1pxaA01 A:1-72,A:96-180,A:269-351  [code=3.50.50.60, no name defined]   1pxaA02                1pxaA01 A:1-72,A:96-180,A:269-351  [code=3.50.50.60, no name defined]                1pxaA02 A:73-95,A:181-268,A:352-388 D-Amino Acid Oxidase, subunit A, domain 2           1pxaA01 A:1-72,A:96-180,A:269-351  [code=3.50.50.60, no name defined]              1pxaA02 A:73-95,A:181-268,A:352-388  ------ CATH domains
               Pfam domains -FAD_binding_3-1pxaA01 A:2-343                                                                                                                                                                                                                                                                                                                         --------------------------------------------------- Pfam domains
         Sec.struct. author ....eeee...hhhhhhhhhhhh....eeeee...hhhhhh.....eeehhhhhhhhh....hhhhhh.eee.eeeeee..eeeeeehhhhh....eee..hhhhhhhhhhhhhhh..eeee..eeeeee.......eeeeee..eeeeee..eeee.................eeeeee...eeeeeee.........eee......eeeeeee..eeeeeeeee.........hhhhhhhhhhh..hhhh.......eeeeeee.eeeeeee..ee..eee.....ee.......hhhhhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh...hhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pxa A   1 MKTQVAIIGAGPSGLLLGQLLHKAGIDNVILERQTPDYVLGRIRAGVLEQGMVDLLREAGVDRRMARDGLVHEGVEIAFAGQRRRIDLKRLSGGKTVTVYGQTEVTRDLMEAREACGATTVYQAAEVRLHDLQGERPYVTFERDGERLRLDCDYIAGCDGFHGISRQSIPAERLKVFERVYPFGWLGLLADTPPVSHELIYANHPRGFALCSQRSATRSRYYVQVPLSEKVEDWSDERFWTELKARLPSEVAEKLVTGPSLEKSIAPLRSFVVEPMQHGRLFLAGDAAHIVPPTGAKGLDLAASDVSTLYRLLLKAYREGRGELLERYSAICLRRIWKAERFSWWMTSVLHRFPDTDAFSQRIQQTELEYYLGSEAGLATIAENYVGLPYEEIE 394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: D-Amino Acid Oxidase; Chain A, domain 2 (80)

Homologous Superfamily: D-Amino Acid Oxidase, subunit A, domain 2 (80)

Pseudomonas aeruginosa. Organism_taxid: 287 (10)

1pxaA02

A:73-95,A:181-268,A:352-388

Architecture: 3-Layer(bba) Sandwich (528)

Topology: FAD/NAD(P)-binding domain (373)

Homologous Superfamily: [code=3.50.50.60, no name defined] (373)

Pseudomonas aeruginosa. Organism_taxid: 287 (10)

1pxaA01

A:1-72,A:96-180,A:269-351

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: NADP_Rossmann (1239)

Family: FAD_binding_3 (21)

Pseudomonas aeruginosa (9)

FAD_binding_3-1pxaA01

A:2-343

Asymmetric Unit(hide GO term definitions)

Chain A (PHHY_PSEAE | P20586)

molecular function
	GO:0018659	4-hydroxybenzoate 3-monooxygenase activity	Catalysis of the reaction: 4-hydroxybenzoate + NADPH + H+ + O2 = protocatechuate + NADP+ + H2O.
	GO:0071949	FAD binding	Interacting selectively and non-covalently with the oxidized form, FAD, of flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes.
	GO:0050660	flavin adenine dinucleotide binding	Interacting selectively and non-covalently with FAD, flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes, in either the oxidized form, FAD, or the reduced form, FADH2.
	GO:0004497	monooxygenase activity	Catalysis of the incorporation of one atom from molecular oxygen into a compound and the reduction of the other atom of oxygen to water.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
	GO:0019439	aromatic compound catabolic process	The chemical reactions and pathways resulting in the breakdown of aromatic compounds, any substance containing an aromatic carbon ring.
	GO:0043639	benzoate catabolic process	The chemical reactions and pathways resulting in the breakdown of benzoate, the anion of benzoic acid (benzenecarboxylic acid), a fungistatic compound widely used as a food preservative; it is conjugated to glycine in the liver and excreted as hippuric acid.
	GO:0043640	benzoate catabolic process via hydroxylation	The chemical reactions and pathways resulting in the breakdown of benzoate, by its hydroxylation to cis-1,2-dihydroxybenzoate followed by dehydrogenation to catechol.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0044550	secondary metabolite biosynthetic process	The chemical reactions and pathways resulting in the formation of secondary metabolites, the compounds that are not necessarily required for growth and maintenance of cells, and are often unique to a taxon.

Asymmetric Unit

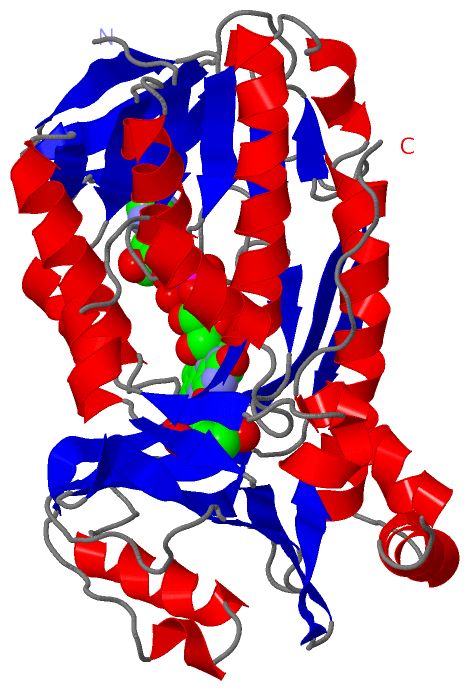

	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FAD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PHB	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Glu A:274 - Pro A:275	[ RasMol ]

Biological Unit
	Complete Structure

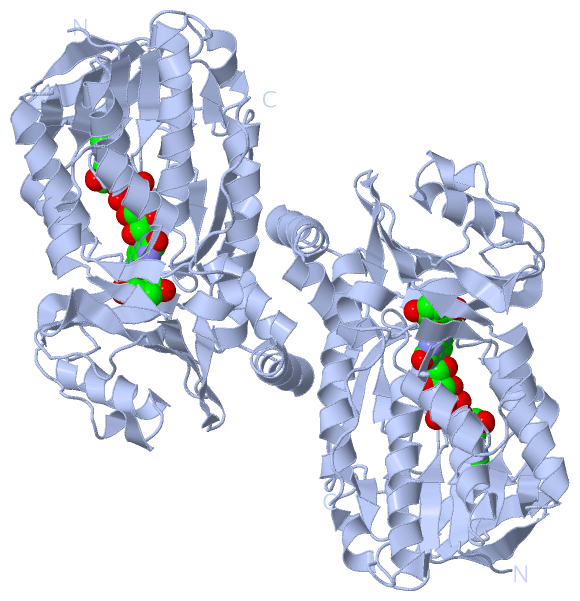

		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1pxa
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PHHY_PSEAE \| P20586
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.14.13.2
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PHHY_PSEAE \| P20586
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
