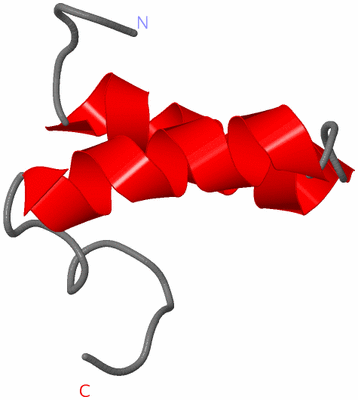

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

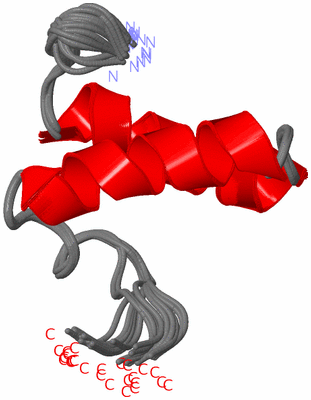

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE SDA ANTIKINASE

Authors :  S. L. Rowland, W. F. Burkholder, M. W. Maciejewski, A. D. Grossman, G. F. King
Date :  26 Jun 03  (Deposition) - 13 Apr 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (25x)
Keywords :  Sda, Kina, Antikinase, Histidine Kinase, Sporulation Phosphorelay, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. L. Rowland, W. F. Burkholder, K. A. Cunningham, M. W. Maciejewski, A. D. Grossman, G. F. King
Structure And Mechanism Of Sda: An Inhibitor Of The Histidine Kinases That Regulate Initiation Of Sporulation In Bacillus Subtilis
Mol. Cell V. 13 689 2004
PubMed-ID: 15023339  |  Reference-DOI: 10.1016/S1097-2765(04)00084-X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SDA
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PSLR65
    Expression System Strain: BL21(LAMBDA DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PET28A
    Gene: SDA
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units


NMR Structure (25x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1PV0)

(-) Sites  (0, 0)

(no "Site" information available for 1PV0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1PV0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1PV0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1PV0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1PV0)

(-) Exons   (0, 0)

(no "Exon" information available for 1PV0)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:46
 aligned with SDA_BACSU | Q7WY62 from UniProtKB/Swiss-Prot  Length:52

    Alignment length:46
                                    16        26        36        46
             SDA_BACSU    7 MRKLSDELLIESYFKATEMNLNRDFIELIENEIKRRSLGHIISVSS 52
               SCOP domains d1pv0a_ A: Sporulation inhibitor Sda           SCOP domains
               CATH domains ---------------------------------------------- CATH domains
               Pfam domains Sda-1pv0A01 A:1-46                             Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhh...hhhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------- Transcript
                  1pv0 A  1 MRKLSDELLIESYFKATEMNLNRDFIELIENEIKRRSLGHIISVSS 46
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1PV0)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: Sda] (1)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (SDA_BACSU | Q7WY62)
molecular function
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004860    protein kinase inhibitor activity    Stops, prevents or reduces the activity of a protein kinase, an enzyme which phosphorylates a protein.
biological process
    GO:0006469    negative regulation of protein kinase activity    Any process that stops, prevents, or reduces the frequency, rate or extent of protein kinase activity.
    GO:0030435    sporulation resulting in formation of a cellular spore    The process in which a relatively unspecialized cell acquires the specialized features of a cellular spore, a cell form that can be used for dissemination, for survival of adverse conditions because of its heat and dessication resistance, and/or for reproduction.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1pv0)

  Sites
(no "Sites" information available for 1pv0)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1pv0)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

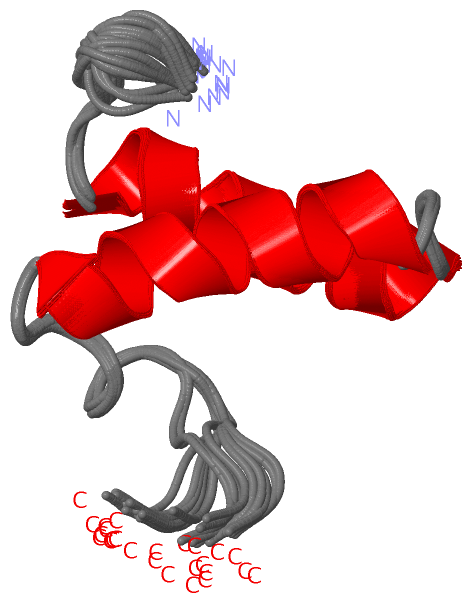

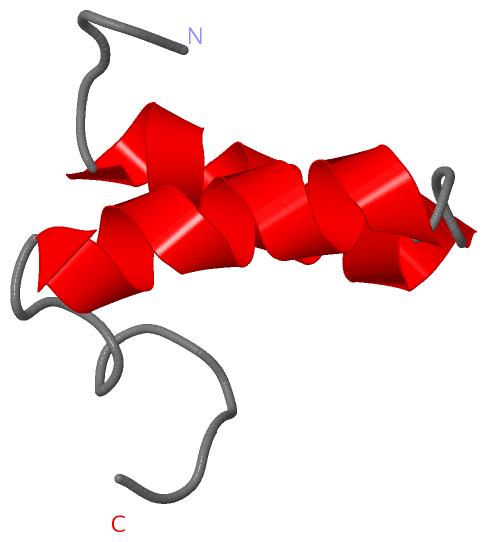

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1pv0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SDA_BACSU | Q7WY62
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SDA_BACSU | Q7WY62
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SDA_BACSU | Q7WY62: 3fyr

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1PV0)
