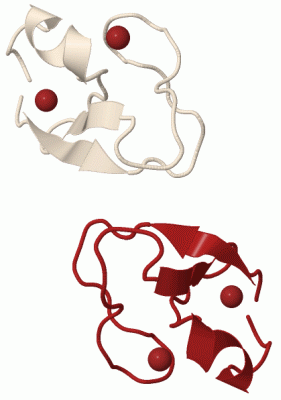

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

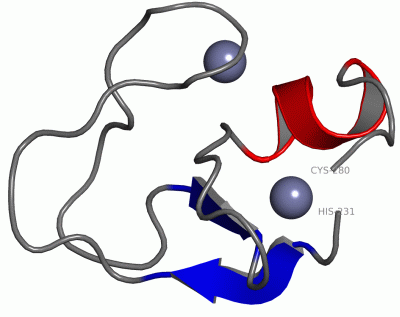

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

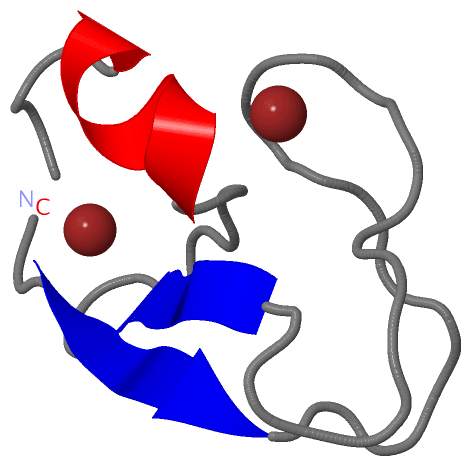

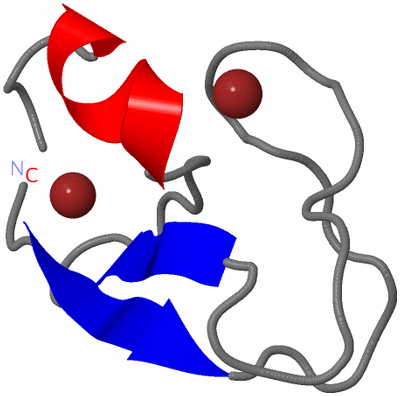

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

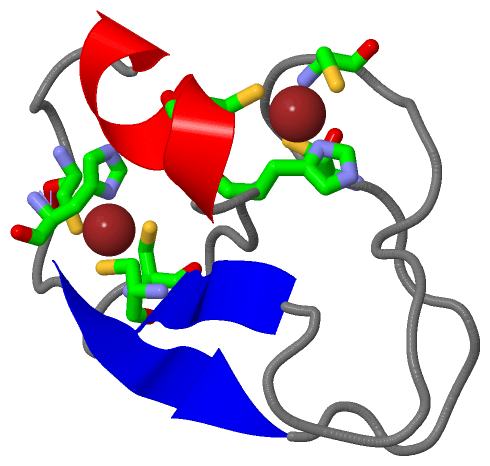

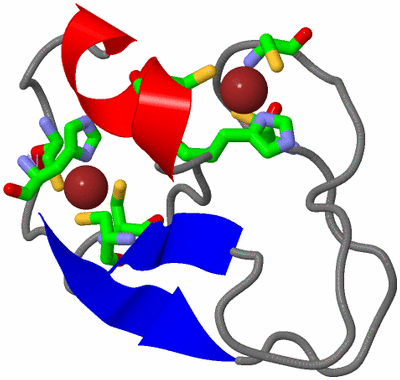

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

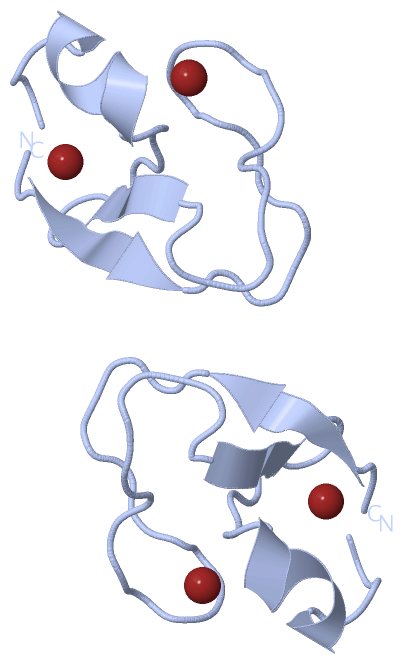

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

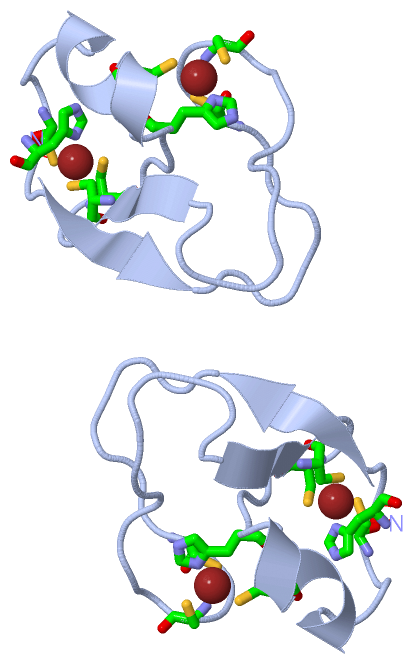

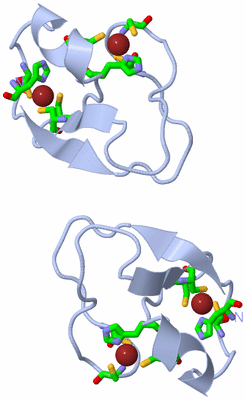

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  PROTEIN KINASE C DELTA CYS2 DOMAIN

Authors :  G. Zhang, J. H. Hurley
Date :  11 May 95  (Deposition) - 31 Jul 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.95
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Phosphotransferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  G. Zhang, M. G. Kazanietz, P. M. Blumberg, J. H. Hurley
Crystal Structure Of The Cys2 Activator-Binding Domain Of Protein Kinase C Delta In Complex With Phorbol Ester.
Cell(Cambridge, Mass. ) V. 81 917 1995
PubMed-ID: 7781068  |  Reference-DOI: 10.1016/0092-8674(95)90011-X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN KINASE C DELTA TYPE
    ChainsA
    EC Number2.7.1.-
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPGEX
    Expression System Taxid562
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit A
Biological Unit 1 (2x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1ZN2Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:231 , CYS A:261 , CYS A:264 , CYS A:280BINDING SITE FOR RESIDUE ZN A 1
2AC2SOFTWARECYS A:244 , CYS A:247 , HIS A:269 , CYS A:272BINDING SITE FOR RESIDUE ZN A 2

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1PTQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1PTQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1PTQ)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ZF_DAG_PE_1PS00479 Zinc finger phorbol-ester/DAG-type signature.KPCD_MOUSE159-208
231-280
  1-
A:231-280
Biological Unit 1 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ZF_DAG_PE_1PS00479 Zinc finger phorbol-ester/DAG-type signature.KPCD_MOUSE159-208
231-280
  2-
A:231-280

(-) Exons   (0, 0)

(no "Exon" information available for 1PTQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:50
 aligned with KPCD_MOUSE | P28867 from UniProtKB/Swiss-Prot  Length:674

    Alignment length:50
                                   240       250       260       270       280
           KPCD_MOUSE   231 HRFKVYNYMSPTFCDHCGSLLWGLVKQGLKCEDCGMNVHHKCREKVANLC 280
               SCOP domains d1ptqa_ A: Protein kinase C-delta (PKCdelta)       SCOP domains
               CATH domains 1ptqA00 A:231-280                                  CATH domains
               Pfam domains C1_1-1ptqA01 A:231-280                             Pfam domains
         Sec.struct. author ..eeee.....................eeee........hhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------- SAPs(SNPs)
                    PROSITE ZF_DAG_PE_1  PDB: A:231-280 UniProt: 231-280       PROSITE
                 Transcript -------------------------------------------------- Transcript
                 1ptq A 231 HRFKVYNYMSPTFCDHCGSLLWGLVKQGLKCEDCGMNVHHKCREKVANLC 280
                                   240       250       260       270       280

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: C1 (13)

(-) Gene Ontology  (66, 66)

Asymmetric Unit(hide GO term definitions)
Chain A   (KPCD_MOUSE | P28867)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0004699    calcium-independent protein kinase C activity    Catalysis of the reaction: ATP + a protein = ADP + a phosphoprotein. This reaction requires diacylglycerol but not calcium.
    GO:0008047    enzyme activator activity    Binds to and increases the activity of an enzyme.
    GO:0019899    enzyme binding    Interacting selectively and non-covalently with any enzyme.
    GO:0043560    insulin receptor substrate binding    Interacting selectively and non-covalently with any of the insulin receptor substrate (IRS) proteins, adaptor proteins that bind to the transphosphorylated insulin and insulin-like growth factor receptors, are themselves phosphorylated and in turn recruit SH2 domain-containing signaling molecules to form a productive signaling complex.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0019900    kinase binding    Interacting selectively and non-covalently with a kinase, any enzyme that catalyzes the transfer of a phosphate group.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004715    non-membrane spanning protein tyrosine kinase activity    Catalysis of the reaction: ATP + protein L-tyrosine = ADP + protein L-tyrosine phosphate by a non-membrane spanning protein.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004697    protein kinase C activity    Catalysis of the reaction: ATP + a protein = ADP + a phosphoprotein. This reaction requires diacylglycerol.
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0019901    protein kinase binding    Interacting selectively and non-covalently with a protein kinase, any enzyme that catalyzes the transfer of a phosphate group, usually from ATP, to a protein substrate.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0042100    B cell proliferation    The expansion of a B cell population by cell division. Follows B cell activation.
    GO:0032147    activation of protein kinase activity    Any process that initiates the activity of an inactive protein kinase.
    GO:0006915    apoptotic process    A programmed cell death process which begins when a cell receives an internal (e.g. DNA damage) or external signal (e.g. an extracellular death ligand), and proceeds through a series of biochemical events (signaling pathway phase) which trigger an execution phase. The execution phase is the last step of an apoptotic process, and is typically characterized by rounding-up of the cell, retraction of pseudopodes, reduction of cellular volume (pyknosis), chromatin condensation, nuclear fragmentation (karyorrhexis), plasma membrane blebbing and fragmentation of the cell into apoptotic bodies. When the execution phase is completed, the cell has died.
    GO:0060326    cell chemotaxis    The directed movement of a motile cell guided by a specific chemical concentration gradient. Movement may be towards a higher concentration (positive chemotaxis) or towards a lower concentration (negative chemotaxis).
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:1904385    cellular response to angiotensin    "Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an angiotensin stimulus. Angiotensin is any of three physiologically active peptides (angiotensin II, III, or IV) processed from angiotensinogen."
    GO:0070301    cellular response to hydrogen peroxide    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a hydrogen peroxide (H2O2) stimulus.
    GO:0071447    cellular response to hydroperoxide    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a hydroperoxide stimulus. Hydroperoxides are monosubstitution products of hydrogen peroxide, HOOH.
    GO:0090398    cellular senescence    A cell aging process stimulated in response to cellular stress, whereby normal cells lose the ability to divide through irreversible cell cycle arrest.
    GO:0042742    defense response to bacterium    Reactions triggered in response to the presence of a bacterium that act to protect the cell or organism.
    GO:0016572    histone phosphorylation    The modification of histones by addition of phosphate groups.
    GO:0016064    immunoglobulin mediated immune response    An immune response mediated by immunoglobulins, whether cell-bound or in solution.
    GO:0032613    interleukin-10 production    The appearance of interleukin-10 due to biosynthesis or secretion following a cellular stimulus, resulting in an increase in its intracellular or extracellular levels.
    GO:0032615    interleukin-12 production    The appearance of interleukin-12 due to biosynthesis or secretion following a cellular stimulus, resulting in an increase in its intracellular or extracellular levels.
    GO:0035556    intracellular signal transduction    The process in which a signal is passed on to downstream components within the cell, which become activated themselves to further propagate the signal and finally trigger a change in the function or state of the cell.
    GO:0043407    negative regulation of MAP kinase activity    Any process that stops, prevents, or reduces the frequency, rate or extent of MAP kinase activity.
    GO:0030837    negative regulation of actin filament polymerization    Any process that stops, prevents, or reduces the frequency, rate or extent of actin polymerization.
    GO:0051490    negative regulation of filopodium assembly    Any process that stops, prevents, or reduces the frequency, rate or extent of the assembly of a filopodium, a thin, stiff protrusion extended by the leading edge of a motile cell such as a crawling fibroblast or amoeba, or an axonal growth cone.
    GO:0034351    negative regulation of glial cell apoptotic process    Any process that stops, prevents, or reduces the frequency, rate, or extent of glial cell apoptotic process.
    GO:0046627    negative regulation of insulin receptor signaling pathway    Any process that stops, prevents, or reduces the frequency, rate or extent of insulin receptor signaling.
    GO:0050732    negative regulation of peptidyl-tyrosine phosphorylation    Any process that stops, prevents, or reduces the frequency, rate or extent of the phosphorylation of peptidyl-tyrosine.
    GO:0090331    negative regulation of platelet aggregation    Any process that decreases the rate, frequency or extent of platelet aggregation. Platelet aggregation is the adhesion of one platelet to one or more other platelets via adhesion molecules.
    GO:0042119    neutrophil activation    The change in morphology and behavior of a neutrophil resulting from exposure to a cytokine, chemokine, cellular ligand, or soluble factor.
    GO:0018105    peptidyl-serine phosphorylation    The phosphorylation of peptidyl-serine to form peptidyl-O-phospho-L-serine.
    GO:0018107    peptidyl-threonine phosphorylation    The phosphorylation of peptidyl-threonine to form peptidyl-O-phospho-L-threonine.
    GO:0018108    peptidyl-tyrosine phosphorylation    The phosphorylation of peptidyl-tyrosine to form peptidyl-O4'-phospho-L-tyrosine.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:2001235    positive regulation of apoptotic signaling pathway    Any process that activates or increases the frequency, rate or extent of apoptotic signaling pathway.
    GO:2000304    positive regulation of ceramide biosynthetic process    Any process that activates or increases the frequency, rate or extent of ceramide biosynthetic process.
    GO:0032079    positive regulation of endodeoxyribonuclease activity    Any process that activates or increases the frequency, rate or extent of endodeoxyribonuclease activity, the hydrolysis of ester linkages within deoxyribonucleic acid by creating internal breaks.
    GO:2000753    positive regulation of glucosylceramide catabolic process    Any process that activates or increases the frequency, rate or extent of glucosylceramide catabolic process.
    GO:1900163    positive regulation of phospholipid scramblase activity    Any process that activates or increases the frequency, rate or extent of phospholipid scramblase activity.
    GO:0035307    positive regulation of protein dephosphorylation    Any process that activates or increases the frequency, rate or extent of removal of phosphate groups from a protein.
    GO:0042307    positive regulation of protein import into nucleus    Any process that activates or increases the frequency, rate or extent of movement of proteins from the cytoplasm into the nucleus.
    GO:2001022    positive regulation of response to DNA damage stimulus    Any process that activates or increases the frequency, rate or extent of response to DNA damage stimulus.
    GO:2000755    positive regulation of sphingomyelin catabolic process    Any process that activates or increases the frequency, rate or extent of sphingomyelin catabolic process.
    GO:0032930    positive regulation of superoxide anion generation    Any process that activates or increases the frequency, rate or extent of enzymatic generation of superoxide by a cell.
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0032956    regulation of actin cytoskeleton organization    Any process that modulates the frequency, rate or extent of the formation, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising actin filaments and their associated proteins.
    GO:0023021    termination of signal transduction    The signaling process in which signal transduction is brought to an end rather than being reversibly modulated.
cellular component
    GO:0005911    cell-cell junction    A cell junction that forms a connection between two or more cells in a multicellular organism; excludes direct cytoplasmic junctions such as ring canals.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0016363    nuclear matrix    The dense fibrillar network lying on the inner side of the nuclear membrane.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0048471    perinuclear region of cytoplasm    Cytoplasm situated near, or occurring around, the nucleus.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
