Title :   ESCHERICHIA COLI PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH FORMYCIN B AND PHOSPHATE/SULFATE

Authors :   E. M. Bennett, C. Li, P. W. Allan, W. B. Parker, S. E. Ealick

Date :   19 Jun 03 (Deposition) - 25 Nov 03 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A,B,C  (2x)

Keywords :   Protein-Nucleoside Complex, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   E. M. Bennett, C. Li, P. W. Allan, W. B. Parker, S. E. Ealick
Structural Basis For Substrate Specificity Of Escherichia Coli Purine Nucleoside Phosphorylase.
J. Biol. Chem. V. 278 47110 2003
PubMed-ID: 12937174 | Reference-DOI: 10.1074/JBC.M304622200

Molecule 1 - PURINE NUCLEOSIDE PHOSPHORYLASE
	Chains	:	A, B, C
	EC Number	:	2.4.2.1
	Organism Common	:	,
	Organism Scientific	:	ESCHERICHIA COLI, ESCHERICHIA COLI O157:H7
	Organism Taxid	:	562,83334
	Synonym	:	INOSINE PHOSPHORYLASE, PNP

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (2x)	:	A	B	C

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 6)

No.	Name	Count	Type	Full Name
1	FMB	3	Ligand/Ion	FORMYCIN B
2	PO4	3	Ligand/Ion	PHOSPHATE ION

Biological Unit 1 (2, 12)

No.	Name	Count	Type	Full Name
1	FMB	6	Ligand/Ion	FORMYCIN B
2	PO4	6	Ligand/Ion	PHOSPHATE ION

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLY A:20 , ASP A:21 , ARG A:24 , ARG A:43 , ARG A:87 , GLY A:89 , SER A:90 , FMB A:245	BINDING SITE FOR RESIDUE PO4 A 248
2	AC2	SOFTWARE	GLY B:20 , ARG B:87 , GLY B:89 , SER B:90 , FMB B:246 , ARG C:43	BINDING SITE FOR RESIDUE PO4 B 249
3	AC3	SOFTWARE	ARG B:43 , PRO C:19 , GLY C:20 , ARG C:24 , ARG C:87 , GLY C:89 , SER C:90 , GLU C:181 , FMB C:247	BINDING SITE FOR RESIDUE PO4 C 250
4	AC4	SOFTWARE	HIS A:4 , MET A:64 , ARG A:87 , SER A:90 , CYS A:91 , GLY A:92 , PHE A:159 , VAL A:178 , GLU A:179 , GLU A:181 , SER A:203 , ASP A:204 , PO4 A:248	BINDING SITE FOR RESIDUE FMB A 245
5	AC5	SOFTWARE	MET B:64 , ARG B:87 , SER B:90 , CYS B:91 , GLY B:92 , PHE B:159 , VAL B:178 , GLU B:179 , MET B:180 , GLU B:181 , ASP B:204 , PO4 B:249 , HOH B:250 , HIS C:4 , ARG C:43	BINDING SITE FOR RESIDUE FMB B 246
6	AC6	SOFTWARE	HIS B:4 , MET C:64 , ARG C:87 , SER C:90 , CYS C:91 , GLY C:92 , PHE C:159 , VAL C:178 , GLU C:179 , MET C:180 , GLU C:181 , SER C:203 , ASP C:204 , ILE C:206 , PO4 C:250	BINDING SITE FOR RESIDUE FMB C 247

(no "SS Bond" information available for 1PR1)

(no "Cis Peptide Bond" information available for 1PR1)

(no "SAP(SNP)/Variant" information available for 1PR1)

Asymmetric Unit (1, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PNP_UDP_1	PS01232	Purine and other phosphorylases family 1 signature.	DEOD_ECO57	62-77	3	A:61-76 B:61-76 C:61-76
1	PNP_UDP_1	PS01232	Purine and other phosphorylases family 1 signature.	DEOD_ECOLI	62-77	3	A:61-76 B:61-76 C:61-76

Biological Unit 1 (1, 12)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PNP_UDP_1	PS01232	Purine and other phosphorylases family 1 signature.	DEOD_ECO57	62-77	6	A:61-76 B:61-76 C:61-76
1	PNP_UDP_1	PS01232	Purine and other phosphorylases family 1 signature.	DEOD_ECOLI	62-77	6	A:61-76 B:61-76 C:61-76

(no "Exon" information available for 1PR1)

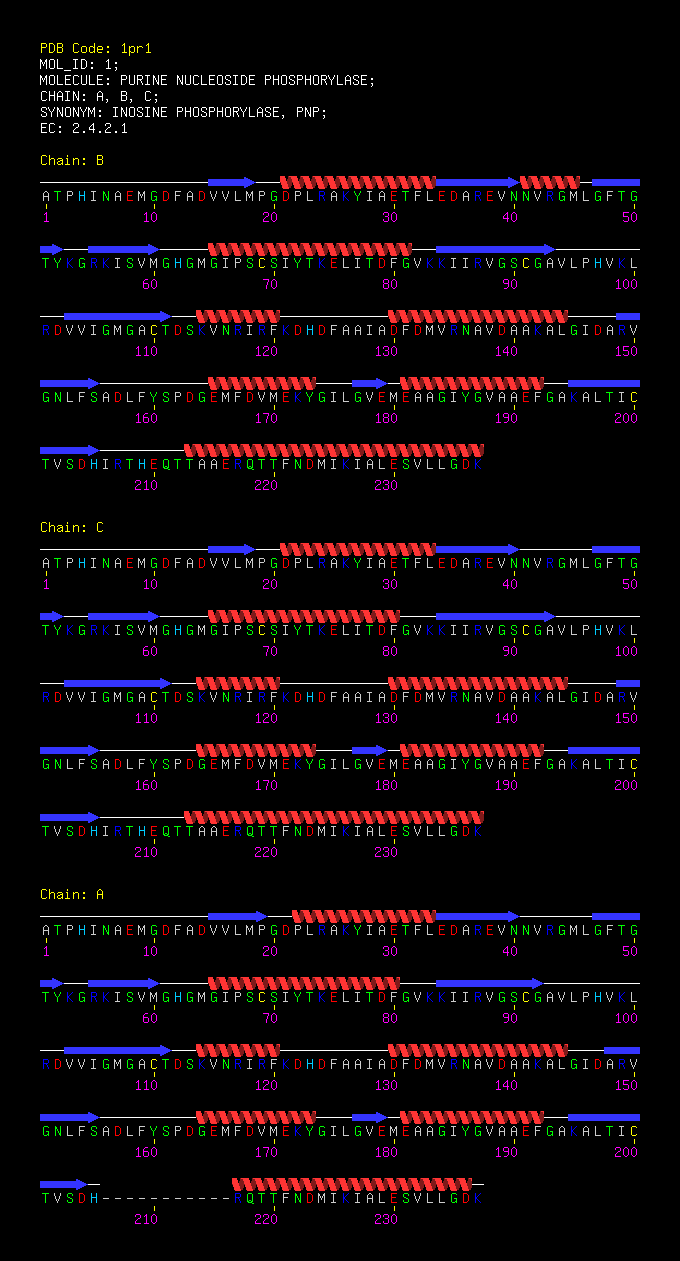

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:226
 aligned with DEOD_ECO57 | P0ABP9 from UniProtKB/Swiss-Prot  Length:239

    Alignment length:237
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
           DEOD_ECO57     2 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 238
               SCOP domains d1pr1a_ A: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                               SCOP domains
               CATH domains 1pr1A00 A:1-237  [code=3.40.50.1580, no name defined]                                                                                                                                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeeee..hhhhhhhhhhhheeeeeee......eeeeee..eeeeee....hhhhhhhhhhhhhhhh...eeeeeeeee..........eeeeeeeee..hhhhhhh.........hhhhhhhhhhhhhhh...eeeeeeee........hhhhhhhhhh...eee.hhhhhhhhhhhh..eeeeeeeeee.-----------hhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ------------------------------------------------------------PNP_UDP_1       ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pr1 A   1 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDH-----------RQTTFNDMIKIALESVLLGDK 237
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200    |    -      |220       230
                                                                                                                                                                                                                                      205         217

Chain A from PDB  Type:PROTEIN  Length:226
 aligned with DEOD_ECOLI | P0ABP8 from UniProtKB/Swiss-Prot  Length:239

    Alignment length:237
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
           DEOD_ECOLI     2 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 238
               SCOP domains d1pr1a_ A: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                               SCOP domains
               CATH domains 1pr1A00 A:1-237  [code=3.40.50.1580, no name defined]                                                                                                                                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeeee..hhhhhhhhhhhheeeeeee......eeeeee..eeeeee....hhhhhhhhhhhhhhhh...eeeeeeeee..........eeeeeeeee..hhhhhhh.........hhhhhhhhhhhhhhh...eeeeeeee........hhhhhhhhhh...eee.hhhhhhhhhhhh..eeeeeeeeee.-----------hhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PNP_UDP_1       ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pr1 A   1 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDH-----------RQTTFNDMIKIALESVLLGDK 237
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200    |    -      |220       230
                                                                                                                                                                                                                                      205         217

Chain B from PDB  Type:PROTEIN  Length:237
 aligned with DEOD_ECO57 | P0ABP9 from UniProtKB/Swiss-Prot  Length:239

    Alignment length:237
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
           DEOD_ECO57     2 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 238
               SCOP domains d1pr1b_ B: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                               SCOP domains
               CATH domains 1pr1B00 B:1-237  [code=3.40.50.1580, no name defined]                                                                                                                                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeee..hhhhhhhhhhhhheeeeeeehhhhh.eeeeee..eeeeee....hhhhhhhhhhhhhhhhh..eeeeeeeeee.........eeeeeeeee..hhhhhhh.........hhhhhhhhhhhhhhh....eeeeeee.........hhhhhhhhh...eee.hhhhhhhhhhhh..eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ------------------------------------------------------------PNP_UDP_1       ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pr1 B   1 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 237
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain B from PDB  Type:PROTEIN  Length:237
 aligned with DEOD_ECOLI | P0ABP8 from UniProtKB/Swiss-Prot  Length:239

    Alignment length:237
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
           DEOD_ECOLI     2 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 238
               SCOP domains d1pr1b_ B: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                               SCOP domains
               CATH domains 1pr1B00 B:1-237  [code=3.40.50.1580, no name defined]                                                                                                                                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeee..hhhhhhhhhhhhheeeeeeehhhhh.eeeeee..eeeeee....hhhhhhhhhhhhhhhhh..eeeeeeeeee.........eeeeeeeee..hhhhhhh.........hhhhhhhhhhhhhhh....eeeeeee.........hhhhhhhhh...eee.hhhhhhhhhhhh..eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PNP_UDP_1       ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pr1 B   1 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 237
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain C from PDB  Type:PROTEIN  Length:237
 aligned with DEOD_ECO57 | P0ABP9 from UniProtKB/Swiss-Prot  Length:239

    Alignment length:237
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
           DEOD_ECO57     2 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 238
               SCOP domains d1pr1c_ C: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                               SCOP domains
               CATH domains 1pr1C00 C:1-237  [code=3.40.50.1580, no name defined]                                                                                                                                                                                         CATH domains
           Pfam domains (1) -------------PNP_UDP_1-1pr1C01 C:14-233                                                                                                                                                                                                  ---- Pfam domains (1)
           Pfam domains (2) -------------PNP_UDP_1-1pr1C02 C:14-233                                                                                                                                                                                                  ---- Pfam domains (2)
           Pfam domains (3) -------------PNP_UDP_1-1pr1C03 C:14-233                                                                                                                                                                                                  ---- Pfam domains (3)
         Sec.struct. author ..............eeee..hhhhhhhhhhhhheeeeeee......eeeeee..eeeeee....hhhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeee..hhhhhhh.........hhhhhhhhhhhhhhh....eeeeeee........hhhhhhhhhh...eee.hhhhhhhhhhhh..eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ------------------------------------------------------------PNP_UDP_1       ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pr1 C   1 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 237
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain C from PDB  Type:PROTEIN  Length:237
 aligned with DEOD_ECOLI | P0ABP8 from UniProtKB/Swiss-Prot  Length:239

    Alignment length:237
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
           DEOD_ECOLI     2 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 238
               SCOP domains d1pr1c_ C: Purine nucleoside phosphorylase, PNP                                                                                                                                                                                               SCOP domains
               CATH domains 1pr1C00 C:1-237  [code=3.40.50.1580, no name defined]                                                                                                                                                                                         CATH domains
           Pfam domains (1) -------------PNP_UDP_1-1pr1C01 C:14-233                                                                                                                                                                                                  ---- Pfam domains (1)
           Pfam domains (2) -------------PNP_UDP_1-1pr1C02 C:14-233                                                                                                                                                                                                  ---- Pfam domains (2)
           Pfam domains (3) -------------PNP_UDP_1-1pr1C03 C:14-233                                                                                                                                                                                                  ---- Pfam domains (3)
         Sec.struct. author ..............eeee..hhhhhhhhhhhhheeeeeee......eeeeee..eeeeee....hhhhhhhhhhhhhhhh...eeeeeeeeee.........eeeeeeeee..hhhhhhh.........hhhhhhhhhhhhhhh....eeeeeee........hhhhhhhhhh...eee.hhhhhhhhhhhh..eeeeeeeeeee.......hhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------PNP_UDP_1       ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1pr1 C   1 ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGMGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDK 237
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Phosphorylase/hydrolase-like (558)

Superfamily: Purine and uridine phosphorylases (283)

Family: Purine and uridine phosphorylases (224)

Protein domain: Purine nucleoside phosphorylase, PNP (93)

Escherichia coli [TaxId: 562] (24)

1a	d1pr1a_	A:
1b	d1pr1b_	B:
1c	d1pr1c_	C:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1580, no name defined] (194)

Escherichia coli, escherichia coli o157:h7. ,. Organism_taxid: 562,83334. Strain: , o157:h7 (10)

1a	1pr1B00	B:1-237
1b	1pr1C00	C:1-237
1c	1pr1A00	A:1-237

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: PUP (121)

Family: PNP_UDP_1 (121)

Escherichia coli O157:H7 (16)

1a	PNP_UDP_1-1pr1C01	C:14-233
1b	PNP_UDP_1-1pr1C02	C:14-233
1c	PNP_UDP_1-1pr1C03	C:14-233

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (DEOD_ECOLI | P0ABP8)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0004731	purine-nucleoside phosphorylase activity	Catalysis of the reaction: purine nucleoside + phosphate = purine + alpha-D-ribose 1-phosphate.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016757	transferase activity, transferring glycosyl groups	Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
	GO:0016763	transferase activity, transferring pentosyl groups	Catalysis of the transfer of a pentosyl group from one compound (donor) to another (acceptor).
biological process
	GO:0006974	cellular response to DNA damage stimulus	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
	GO:0006139	nucleobase-containing compound metabolic process	Any cellular metabolic process involving nucleobases, nucleosides, nucleotides and nucleic acids.
	GO:0009116	nucleoside metabolic process	The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
	GO:0006152	purine nucleoside catabolic process	The chemical reactions and pathways resulting in the breakdown of purine nucleoside, one of a family of organic molecules consisting of a purine base covalently bonded to a sugar ribose (a ribonucleoside) or deoxyribose (a deoxyribonucleoside).
	GO:0019686	purine nucleoside interconversion	The chemical reactions and pathways by which a purine nucleoside is synthesized from another purine nucleoside.
	GO:0042278	purine nucleoside metabolic process	The chemical reactions and pathways involving one of a family of organic molecules consisting of a purine base covalently bonded to a sugar ribose (a ribonucleoside) or deoxyribose (a deoxyribonucleoside).
cellular component
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Chain A,B,C (DEOD_ECO57 | P0ABP9)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0004731	purine-nucleoside phosphorylase activity	Catalysis of the reaction: purine nucleoside + phosphate = purine + alpha-D-ribose 1-phosphate.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016757	transferase activity, transferring glycosyl groups	Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
	GO:0016763	transferase activity, transferring pentosyl groups	Catalysis of the transfer of a pentosyl group from one compound (donor) to another (acceptor).
biological process
	GO:0006139	nucleobase-containing compound metabolic process	Any cellular metabolic process involving nucleobases, nucleosides, nucleotides and nucleic acids.
	GO:0009116	nucleoside metabolic process	The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).
	GO:0042278	purine nucleoside metabolic process	The chemical reactions and pathways involving one of a family of organic molecules consisting of a purine base covalently bonded to a sugar ribose (a ribonucleoside) or deoxyribose (a deoxyribonucleoside).

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FMB	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1pr1)

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1pr1
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	DEOD_ECO57 \| P0ABP9
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	DEOD_ECOLI \| P0ABP8
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.4.2.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	DEOD_ECO57 \| P0ABP9
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	DEOD_ECOLI \| P0ABP8
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1a69	E COLI PNP WITH FORMYCIN B
1ecp	E COLI PNP
1k9s	E COLI PNP WITH FORMYCIN A ANALOG
1pk7	E COLI PNP WITH ADENOSINE
1pr0	ESCHERICHIA COLI PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH INOSINE AND PHOSPHATE/SULFATE
1pr2	ESCHERICHIA COLI PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH 9-BETA-D-[2-DEOXYRIBOFURANOSYL]-6-METHYLPURINE AND PHOSPHATE/SULFATE
1pr4	ESCHERICHIA COLI PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH 9-BETA-D-RIBOFURANOSYL-6-METHYLTHIOPURINE AND PHOSPHATE/SULFATE
1pr5	ESCHERICHIA COLI PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH 7-DEAZAADENOSINE AND PHOSPHATE/SULFATE
1pr6	ESCHERICHIA COLI PURINE NUCLEOSIDE PHOSPHORYLASE COMPLEXED WITH 9-BETA-D-XYLOFURANOSYLADENINE AND PHOSPHATE/SULFATE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 6)

Sites (6, 6)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 3)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 3)

CATH Domains (1, 3)

Pfam Domains (1, 3)

Gene Ontology (14, 22)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
