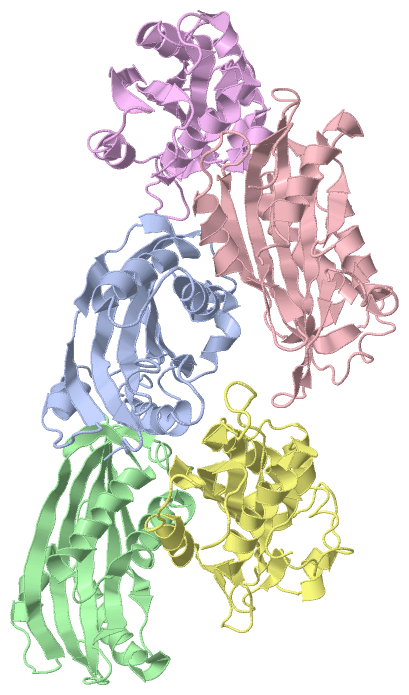

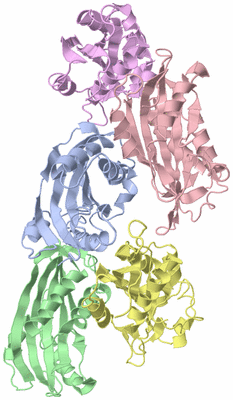

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

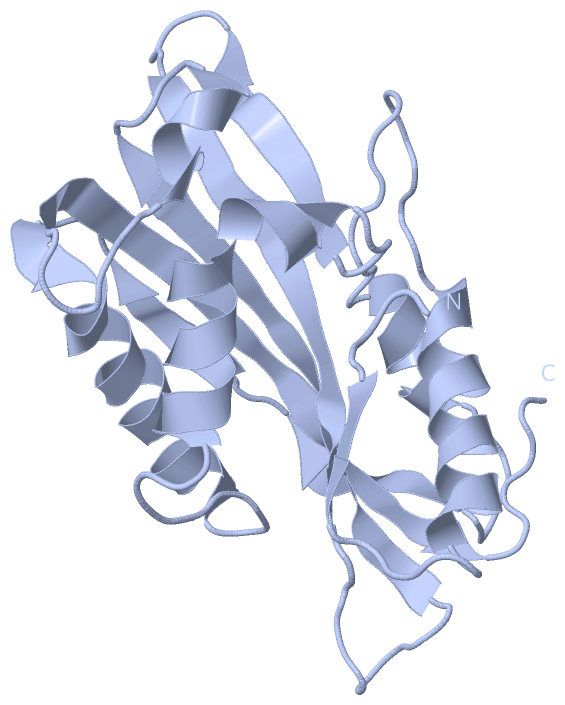

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

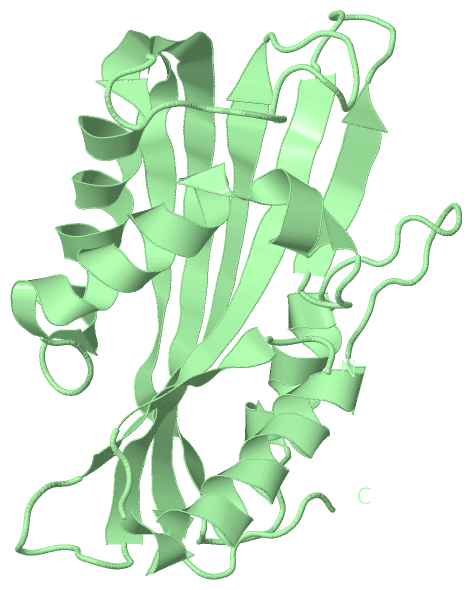

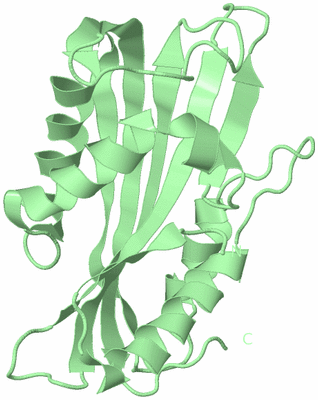

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

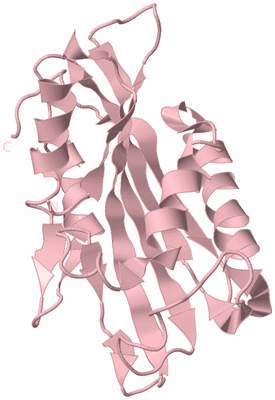

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

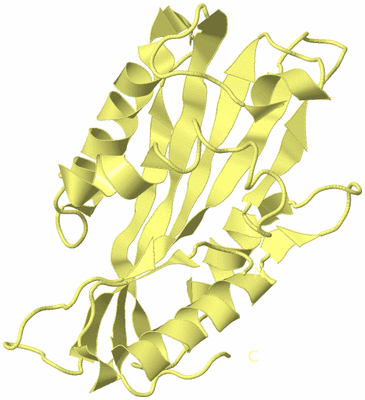

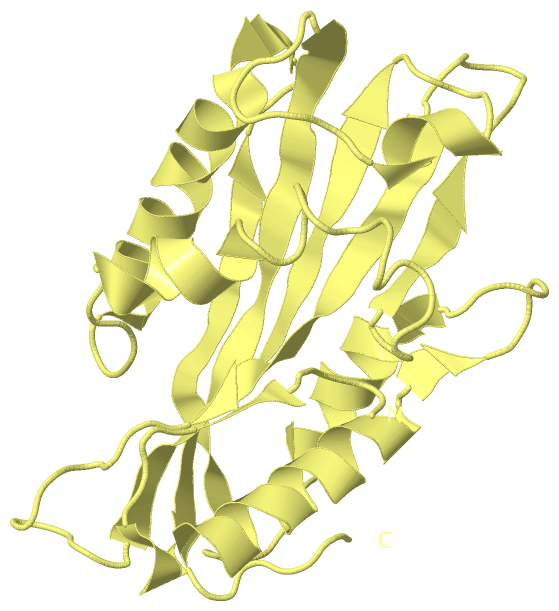

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

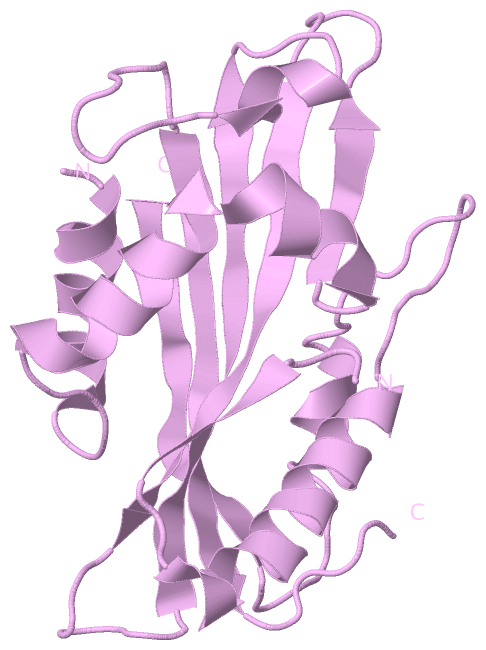

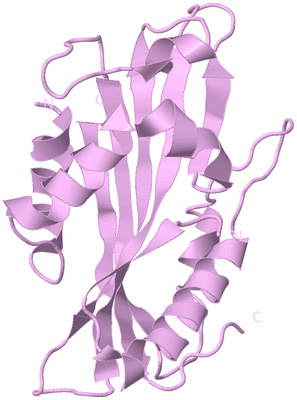

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

(-) Description

Title :  VVA2 (STRIP CRYSTAL FORM)

Authors :  S. -C. Lin, Y. -C. Lo, J. -Y. Lin, Y. -C. Liaw
Date :  16 Jun 03  (Deposition) - 24 Aug 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.20
Chains :  Asym. Unit :  A,B,C,D,E
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Biol. Unit 5:  E  (1x)
Keywords :  Volvatoxin A2, Strip Crystal Form (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. -C. Lin, Y. -C. Lo, J. -Y. Lin, Y. -C. Liaw
Crystal Structures And Electron Micrographs Of Fungal Volvatoxin A2
J. Mol. Biol. V. 343 477 2004
PubMed-ID: 15451675  |  Reference-DOI: 10.1016/J.JMB.2004.08.045
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - VOLVATOXIN A2
    Chains: A, B, C, D, E
    Organism Scientific: VOLVARIELLA VOLVACEA
    Organism Taxid: 36659

 Structural Features

(-) Chains, Units

  12345
Asymmetric Unit : ABCDE
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D
Biological Unit 5 (1x):     E

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1PP6)

(-) Sites  (0, 0)

(no "Site" information available for 1PP6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1PP6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1PP6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1PP6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1PP6)

(-) Exons   (0, 0)

(no "Exon" information available for 1PP6)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:194
 aligned with Q6USC4_9AGAR | Q6USC4 from UniProtKB/TrEMBL  Length:217

    Alignment length:194
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212
        Q6USC4_9AGAR     23 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP  216
               SCOP domains d1pp6a_ A: Volvatoxin A2                                                                                                                                                                           SCOP domains
               CATH domains 1pp6A00 A:5-198 Delta-endotoxin Cytb                                                                                                                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eee.....hhhhhhhhhhhhhh.............hhhhhhhh......eeeee..eeee...eeehhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhh....eeeeee....eeeeeeeeeee.........eeeeeeeeeeeee...hhhhhh......eeeeeeeeeeeeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1pp6 A    5 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP  198
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194


Chain B from PDB  Type:PROTEIN  Length:194
 aligned with Q6USC4_9AGAR | Q6USC4 from UniProtKB/TrEMBL  Length:217

    Alignment length:194
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212
        Q6USC4_9AGAR     23 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP  216
               SCOP domains d1pp6b_ B: Volvatoxin A2                                                                                                                                                                           SCOP domains
               CATH domains 1pp6B00 B:1005-1198 Delta-endotoxin Cytb                                                                                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..hhhhhhhhhhhhhhhhh...........hhhhhhhhhh......eeeeeeeeeeeeeeeeehhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh....eeeee......eeeeeeeeeeee.......eeeeeeeeeeeee...............eeeeeeeeeeeeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1pp6 B 1005 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP 1198
                                  1014      1024      1034      1044      1054      1064      1074      1084      1094      1104      1114      1124      1134      1144      1154      1164      1174      1184      1194


Chain C from PDB  Type:PROTEIN  Length:194
 aligned with Q6USC4_9AGAR | Q6USC4 from UniProtKB/TrEMBL  Length:217

    Alignment length:194
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212
        Q6USC4_9AGAR     23 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP  216
               SCOP domains d1pp6c_ C: Volvatoxin A2                                                                                                                                                                           SCOP domains
               CATH domains 1pp6C00 C:2005-2198 Delta-endotoxin Cytb                                                                                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..hhhhhhhhhhhhhh....eee....eeehhhhhhhhhh........eeeeeeee...eeeehhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh........ee..ee....eeeeeeeeeeeee.......eeeeeeeeeeeee...............eeee..eeeeeeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1pp6 C 2005 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP 2198
                                  2014      2024      2034      2044      2054      2064      2074      2084      2094      2104      2114      2124      2134      2144      2154      2164      2174      2184      2194


Chain D from PDB  Type:PROTEIN  Length:194
 aligned with Q6USC4_9AGAR | Q6USC4 from UniProtKB/TrEMBL  Length:217

    Alignment length:194
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212
        Q6USC4_9AGAR     23 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP  216
               SCOP domains d1pp6d_ D: Volvatoxin A2                                                                                                                                                                           SCOP domains
               CATH domains 1pp6D00 D:3005-3198 Delta-endotoxin Cytb                                                                                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee...hhhhhhhhhhhhhhhhh.ee......eehhhhhhhhh.......eeeeeeeeee...eeehhhhhhhhhhhhhhhhh......hhhhhhh...............eeee.......eeeeeeeee..........eeeeeeeeeeeee....hhhhh.......eeeeeeeeeeeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1pp6 D 3005 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP 3198
                                  3014      3024      3034      3044      3054      3064      3074      3084      3094      3104      3114      3124      3134      3144      3154      3164      3174      3184      3194


Chain E from PDB  Type:PROTEIN  Length:186
 aligned with Q6USC4_9AGAR | Q6USC4 from UniProtKB/TrEMBL  Length:217

    Alignment length:194
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212
        Q6USC4_9AGAR     23 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTINQQSQEVGAMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP  216
               SCOP domains d1pp6e_ E: Volvatoxin A2                                                                                                                                                                           SCOP domains
               CATH domains 1pp6E00 E:4005-4198 Delta-endotoxin Cytb                                                                                                                                                           CATH domains
           Pfam domains (1) ----------------------------Bac_thur_toxin-1pp6E01 E:4033-4193                                                                                                                               ----- Pfam domains (1)
           Pfam domains (2) ----------------------------Bac_thur_toxin-1pp6E02 E:4033-4193                                                                                                                               ----- Pfam domains (2)
           Pfam domains (3) ----------------------------Bac_thur_toxin-1pp6E03 E:4033-4193                                                                                                                               ----- Pfam domains (3)
           Pfam domains (4) ----------------------------Bac_thur_toxin-1pp6E04 E:4033-4193                                                                                                                               ----- Pfam domains (4)
           Pfam domains (5) ----------------------------Bac_thur_toxin-1pp6E05 E:4033-4193                                                                                                                               ----- Pfam domains (5)
         Sec.struct. author ...eeee..hhhhhhhhhhhhhhhhh.............hhhhhh........eeeeeeeeeee--------.hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhh..eeeee......eeeeeeeeeeee.......eeeeeeeeeeeee....hhhhh..........eeeeeeeeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1pp6 E 4005 NVFQPVDQLPEDLIPSSIQVLKFSGKYLKLEQDKAYFDWPGFKTAIDNYTGEDLSFDKYDQSTI--------AMVDKIAKFLHDAFAAVVDLSKLAAIILNTFTNLEEESSSGFLQFNTNNVKKNSSWEYRVLFSVPFGDNAPSYFYSLVTTILITADIEEKTGWWGLTSSTKKNFAVQIDALELVVKKGFKAP 4198
                                  4014      4024      4034      4044      4054      4064   |     -  |   4084      4094      4104      4114      4124      4134      4144      4154      4164      4174      4184      4194
                                                                                        4068     4077
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 5)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 5)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 5)

Asymmetric Unit
(-)
Clan: no clan defined [family: Bac_thur_toxin] (5)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E   (Q6USC4_9AGAR | Q6USC4)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1pp6)

  Sites
(no "Sites" information available for 1pp6)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1pp6)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1pp6
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q6USC4_9AGAR | Q6USC4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q6USC4_9AGAR | Q6USC4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q6USC4_9AGAR | Q6USC4: 1pp0 1vcy 1vgf

(-) Related Entries Specified in the PDB File

1pp0 VVA2 (INGOT CRYSTAL FORM)
1vcy VVA2 ISOFORM
1vgf VVA2 (DIAMOND CRYSTAL FORM)
