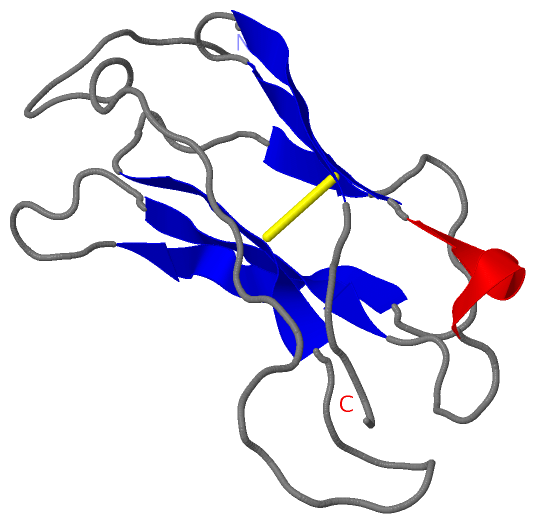

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

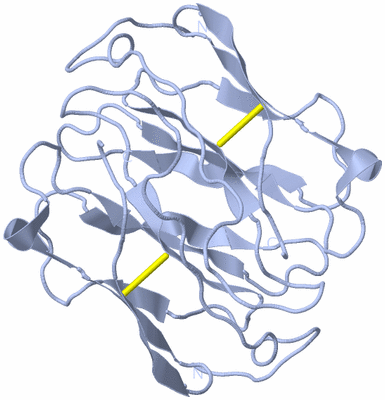

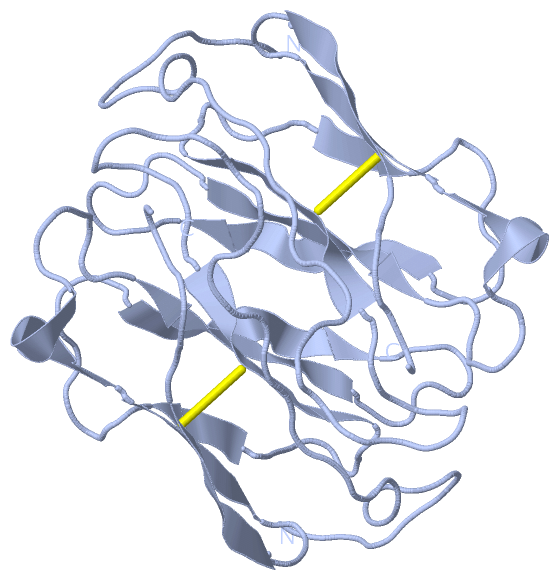

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  MOLECULAR-REPLACEMENT STRUCTURE OF GUINEA PIG IGG1 P*FC(PRIME) REFINED AT 3.1 ANGSTROMS RESOLUTION

Authors :  S. H. Bryant, L. M. Amzel, R. J. Poljak, R. P. Phizackerley
Date :  28 Oct 81  (Deposition) - 03 Feb 82  (Release) - 25 Aug 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.12
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Immunoglobulin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. H. Bryant, L. M. Amzel, R. P. Phizackerley, R. J. Poljak
Molecular-Replacement Structure Of Guinea Pig Igg1 Pfc(Prime) Refined At 3. 1 Angstroms Resolution
Acta Crystallogr. , Sect. B V. 41 362 1985
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - IGG1 PFC' FC
    Chains: A
    Engineered: YES
    Organism Common: DOMESTIC GUINEA PIG
    Organism Scientific: CAVIA PORCELLUS
    Organism Taxid: 10141

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1PFC)

(-) Sites  (0, 0)

(no "Site" information available for 1PFC)

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:367 -A:425

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Tyr A:373 -Pro A:374

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1PFC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1PFC)

(-) Exons   (0, 0)

(no "Exon" information available for 1PFC)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:111

               SCOP domains d1pfca_ A: Immunoglobulin heavy chain gamma constant domain 3, CH3-gamma                                        SCOP domains
               CATH domains 1pfcA00 A:334-446 Immunoglobulins                                                                               CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............................eeeeee.......eee........eeeeeee.......eeeeee......hhhhhh.eeeeee....eeeeee....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------- Transcript
                 1pfc A 334 RTISKAKGPPRIPEVYLLPPPRNELSKKKVSLTCMITGFYPADINVEWDSSEPSDYKNTPPVFDTDGSFFLYSRLKVDTDAWNNGESFTCSVMHEALPNHVIQKSISRSPG 446
                                   343       353       363       373       383 |||   395       405       415       425       435       445
                                                                             385||
                                                                              387|
                                                                               389
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1PFC)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1PFC)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1pfc)

  Sites
(no "Sites" information available for 1pfc)

  Cis Peptide Bonds
    Tyr A:373 - Pro A:374   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1pfc
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1PFC)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1PFC)
