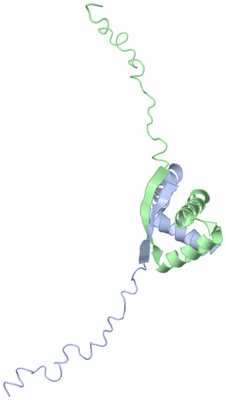

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

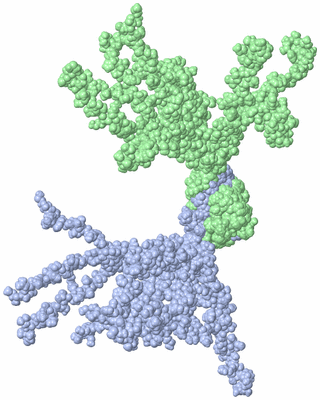

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF PARG SYMMETRIC DIMER

Authors :  A. P. Golovanov, D. Barilla, M. Golovanova, F. Hayes, L. Y. Lian
Date :  09 May 03  (Deposition) - 13 Jan 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (11x)
Keywords :  Ribbon-Helix-Helix, Dimer, Dna Binding, Cell Cycle (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. P. Golovanov, D. Barilla, M. Golovanova, F. Hayes, L. Y. Lian
Parg, A Protein Required For Active Partition Of Bacterial Plasmids, Has A Dimeric Ribbon-Helix-Helix Structure.
Mol. Microbiol. V. 50 1141 2003
PubMed-ID: 14622405  |  Reference-DOI: 10.1046/J.1365-2958.2003.03750.X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PLASMID PARTITION PROTEIN PARG
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET-22-B(+)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: PARG
    Organism Scientific: SALMONELLA ENTERICA
    Organism Taxid: 28901

 Structural Features

(-) Chains, Units


NMR Structure (11x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1P94)

(-) Sites  (0, 0)

(no "Site" information available for 1P94)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1P94)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1P94)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1P94)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1P94)

(-) Exons   (0, 0)

(no "Exon" information available for 1P94)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:76
 aligned with Q9KJ82_SALNE | Q9KJ82 from UniProtKB/TrEMBL  Length:76

    Alignment length:76
                                    10        20        30        40        50        60        70
          Q9KJ82_SALNE    1 MSLEKAHTSVKKMTFGENRDLERVVTAPVSSGKIKRVNVNFDEEKHTRFKAACARKGTSITDVVNQLVDNWLKENE 76
               SCOP domains d1p94a_ A: Plasmid partition protein ParG                                    SCOP domains
               CATH domains 1p94A00 A:1-76 Met repressor-like                                            CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .................................eeeeeeeeehhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                  1p94 A  1 MSLEKAHTSVKKMTFGENRDLERVVTAPVSSGKIKRVNVNFDEEKHTRFKAACARKGTSITDVVNQLVDNWLKENE 76
                                    10        20        30        40        50        60        70


Chain B from PDB  Type:PROTEIN  Length:76
 aligned with Q9KJ82_SALNE | Q9KJ82 from UniProtKB/TrEMBL  Length:76

    Alignment length:76
                                    10        20        30        40        50        60        70
          Q9KJ82_SALNE    1 MSLEKAHTSVKKMTFGENRDLERVVTAPVSSGKIKRVNVNFDEEKHTRFKAACARKGTSITDVVNQLVDNWLKENE 76
               SCOP domains d1p94b_ B: Plasmid partition protein ParG                                    SCOP domains
               CATH domains 1p94B00 B:1-76 Met repressor-like                                            CATH domains
           Pfam domains (1) ParG-1p94B01 B:1-76                                                          Pfam domains (1)
           Pfam domains (2) ParG-1p94B02 B:1-76                                                          Pfam domains (2)
         Sec.struct. author .................................eeeeeeeeehhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                  1p94 B  1 MSLEKAHTSVKKMTFGENRDLERVVTAPVSSGKIKRVNVNFDEEKHTRFKAACARKGTSITDVVNQLVDNWLKENE 76
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 2)

NMR Structure
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 2)

NMR Structure
(-)
Clan: Met_repress (26)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A,B   (Q9KJ82_SALNE | Q9KJ82)
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1p94)

  Sites
(no "Sites" information available for 1p94)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1p94)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

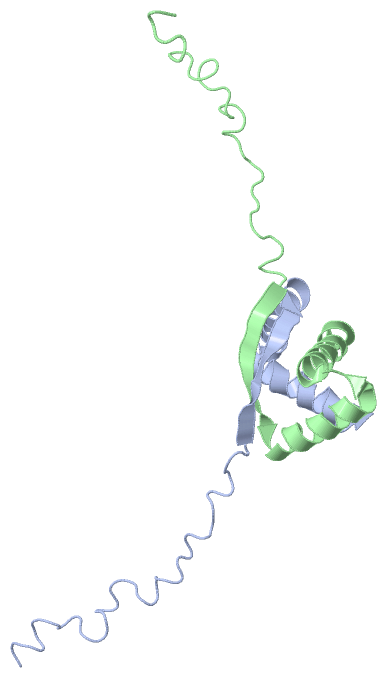

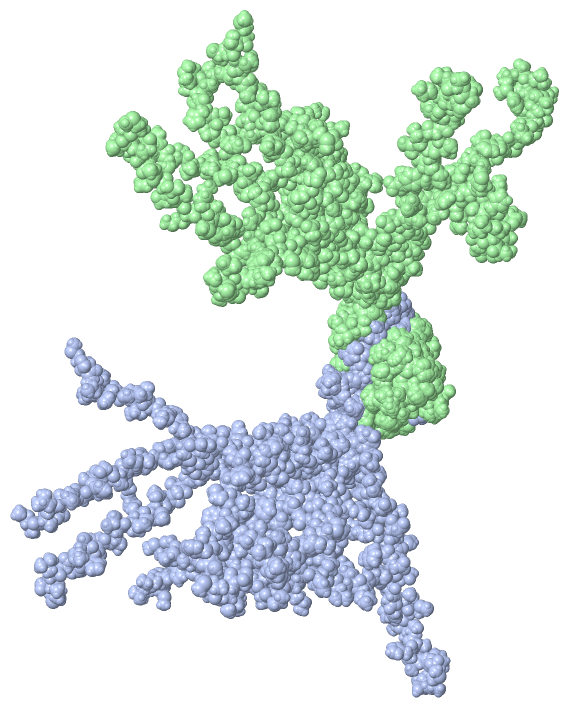

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1p94
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9KJ82_SALNE | Q9KJ82
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9KJ82_SALNE | Q9KJ82
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1P94)

(-) Related Entries Specified in the PDB File

5563 NMR SIGNAL ASSIGNMENTS, EXPERIMENTAL CONDITIONS
