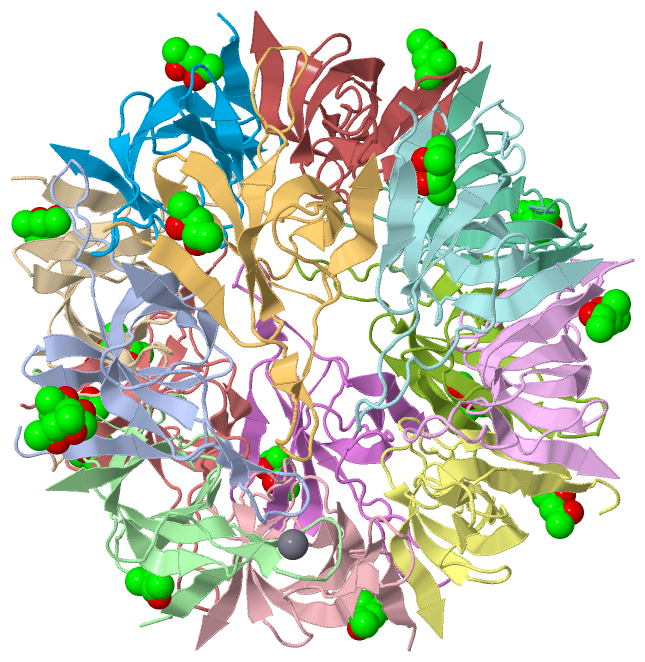

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

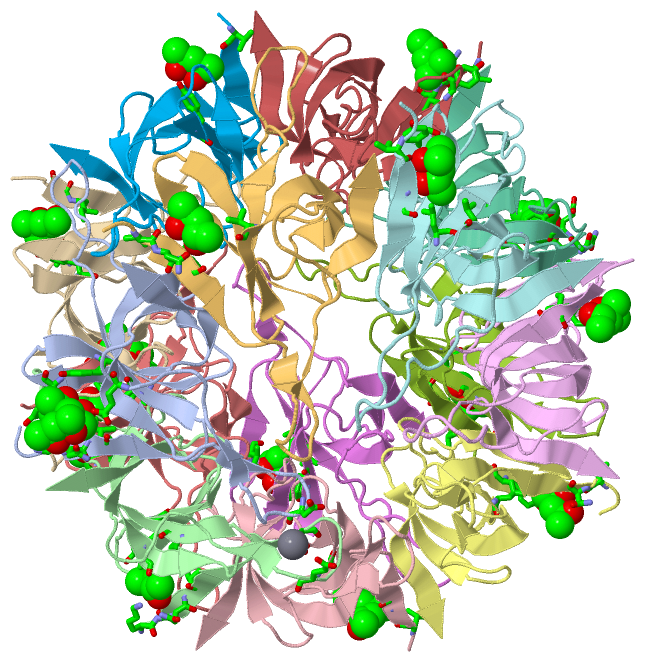

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

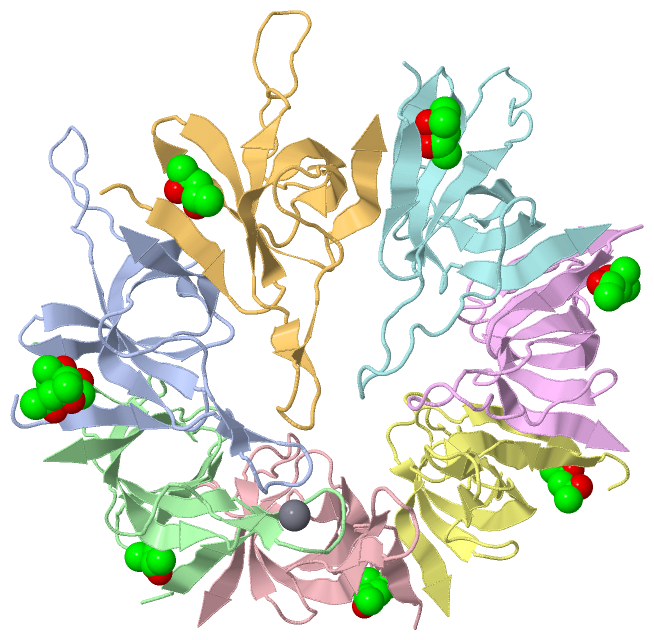

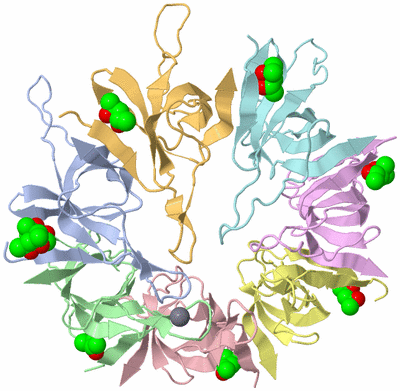

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

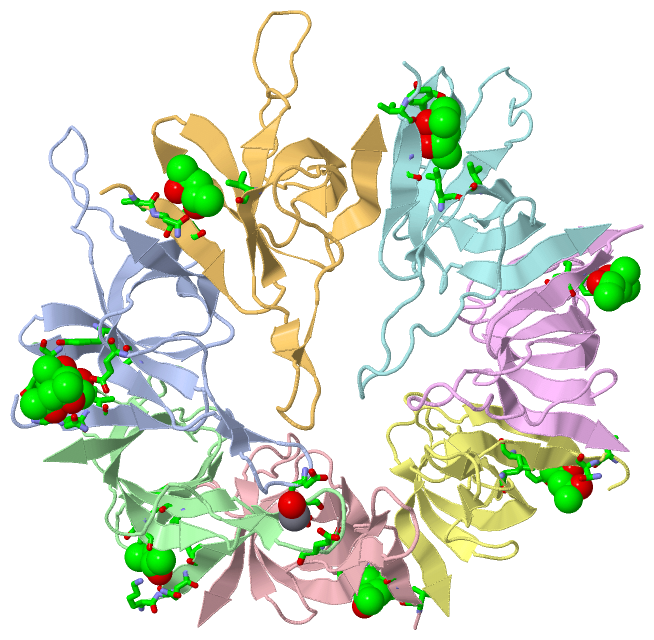

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

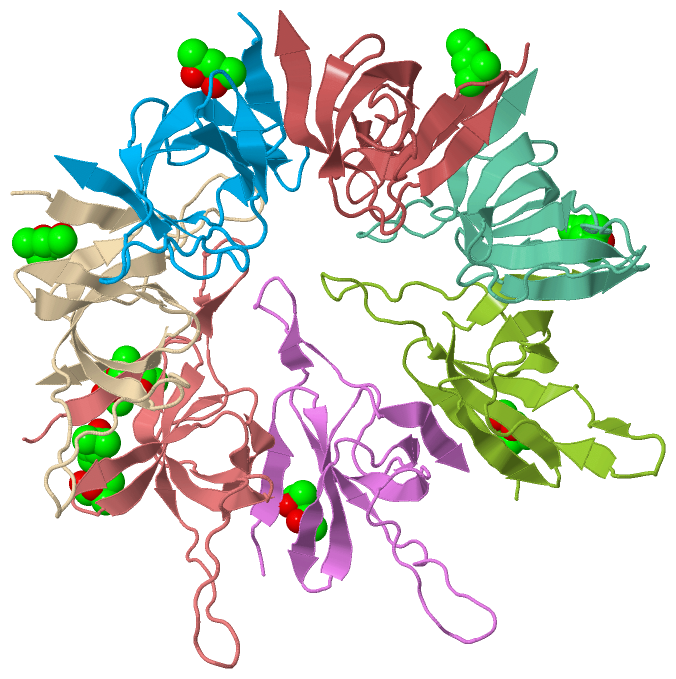

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

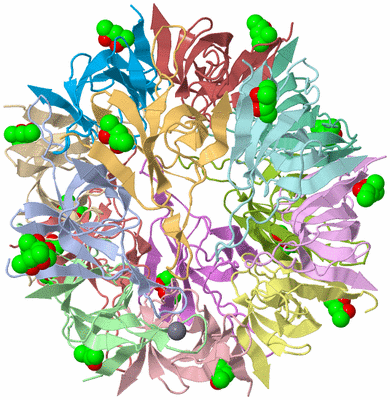

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE MYCOBACTERIUM TUBERCULOSIS CHAPERONIN 10 TETRADECAMER

Authors :  M. M. Roberts, A. R. Coker, G. Fossati, P. Mascagni, A. R. M. Coates, S. P. Wood, Tb Structural Genomics Consortium (Tbsgc)
Date :  17 Apr 03  (Deposition) - 15 Jul 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L,M,N
Biol. Unit 1:  A,B,C,D,E,F,G  (1x)
Biol. Unit 2:  H,I,J,K,L,M,N  (1x)
Biol. Unit 3:  A,B,C,D,E,F,G,H,I,J,K,L,M,N  (1x)
Keywords :  Beta Barrel, Acidic Cluster, Flexible Loop, Structural Genomics, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tbsgc, Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. M. Roberts, A. R. Coker, G. Fossati, P. Mascagni, A. R. M. Coates, S. P. Wood
Mycobacterium Tuberculosis Chaperonin 10 Heptamers Self-Associate Through Their Biologically Active Loops
J. Bacteriol. V. 185 4172 2003
PubMed-ID: 12837792  |  Reference-DOI: 10.1128/JB.185.14.4172-4185.2003
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 10 KDA CHAPERONIN
    Chains: A, B, C, D, E, F, G, H, I, J, K, L, M, N
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PUC18
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: GROS OR GROES OR MOPB OR CPN10 OR RV3418C OR MT3527 OR MTCY78.11
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 1773
    Synonym: PROTEIN CPN10, GROES PROTEIN, BCG-A HEAT SHOCK PROTEIN, 10 KDA ANTIGEN

 Structural Features

(-) Chains, Units

  1234567891011121314
Asymmetric Unit : ABCDEFGHIJKLMN
Biological Unit 1 (1x): ABCDEFG
Biological Unit 2 (1x):        HIJKLMN
Biological Unit 3 (1x): ABCDEFGHIJKLMN

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 19)

Asymmetric Unit (2, 19)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION
2MPD18Ligand/Ion(4S)-2-METHYL-2,4-PENTANEDIOL
Biological Unit 1 (1, 8)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2MPD8Ligand/Ion(4S)-2-METHYL-2,4-PENTANEDIOL
Biological Unit 2 (1, 10)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2MPD10Ligand/Ion(4S)-2-METHYL-2,4-PENTANEDIOL
Biological Unit 3 (1, 18)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2MPD18Ligand/Ion(4S)-2-METHYL-2,4-PENTANEDIOL

(-) Sites  (19, 19)

Asymmetric Unit (19, 19)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASP A:53 , HOH A:203 , ASP B:51 , GLU B:55BINDING SITE FOR RESIDUE CA A 200
02AC2SOFTWAREVAL A:3 , ASN A:4 , ILE A:5 , LEU A:13 , TYR A:80 , TYR A:85BINDING SITE FOR RESIDUE MPD A 101
03AC3SOFTWARELYS B:2 , VAL B:3 , ASN B:4 , ILE B:5 , LEU B:13 , VAL B:43 , TYR B:85BINDING SITE FOR RESIDUE MPD B 102
04AC4SOFTWAREVAL C:3 , ILE C:5 , TYR C:80 , TYR C:85BINDING SITE FOR RESIDUE MPD C 103
05AC5SOFTWAREVAL D:3 , ASN D:4 , LEU D:13 , TYR D:85BINDING SITE FOR RESIDUE MPD D 104
06AC6SOFTWAREILE E:5 , TYR E:85BINDING SITE FOR RESIDUE MPD E 105
07AC7SOFTWAREVAL F:3 , ILE F:5 , LEU F:13 , VAL F:43 , TYR F:80BINDING SITE FOR RESIDUE MPD F 106
08AC8SOFTWAREVAL G:3 , ASN G:4 , ILE G:5 , VAL G:43BINDING SITE FOR RESIDUE MPD G 107
09AC9SOFTWAREVAL H:3 , ILE H:5 , LEU H:13BINDING SITE FOR RESIDUE MPD H 108
10BC1SOFTWAREASN I:4 , ILE I:5 , VAL I:43 , TYR I:85 , ASN L:81 , GLY L:82 , GLU L:83BINDING SITE FOR RESIDUE MPD I 109
11BC2SOFTWAREVAL J:3 , TYR J:85BINDING SITE FOR RESIDUE MPD J 110
12BC3SOFTWAREVAL K:3 , ASN K:4 , ILE K:5 , TYR K:80BINDING SITE FOR RESIDUE MPD K 111
13BC4SOFTWAREVAL L:3 , ASN L:4 , ILE L:5 , LEU L:13 , TYR L:85BINDING SITE FOR RESIDUE MPD L 112
14BC5SOFTWAREVAL M:3 , ASN M:4 , ILE M:5 , LEU M:13 , TYR M:80 , TYR M:85BINDING SITE FOR RESIDUE MPD M 113
15BC6SOFTWAREASN N:4 , ILE N:5 , LEU N:13 , VAL N:43 , ALA N:44 , TYR N:85BINDING SITE FOR RESIDUE MPD N 114
16BC7SOFTWAREASN A:4 , GLU A:64BINDING SITE FOR RESIDUE MPD A 115
17BC8SOFTWAREGLN H:15 , GLU H:83BINDING SITE FOR RESIDUE MPD H 116
18BC9SOFTWAREVAL H:45 , GLU H:64 , MPD H:118BINDING SITE FOR RESIDUE MPD H 117
19CC1SOFTWAREMPD H:117BINDING SITE FOR RESIDUE MPD H 118

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1P3H)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1P3H)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1P3H)

(-) PROSITE Motifs  (1, 14)

Asymmetric Unit (1, 14)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CHAPERONINS_CPN10PS00681 Chaperonins cpn10 signature.CH10_MYCTO6-30












 		  14A:5-29
B:5-29
C:5-29
D:5-29
E:5-29
F:5-29
G:5-29
H:5-29
I:5-29
J:5-29
K:5-29
L:5-29
M:5-29
N:5-29
CH10_MYCTU6-30












 		  14A:5-29
B:5-29
C:5-29
D:5-29
E:5-29
F:5-29
G:5-29
H:5-29
I:5-29
J:5-29
K:5-29
L:5-29
M:5-29
N:5-29
Biological Unit 1 (1, 14)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CHAPERONINS_CPN10PS00681 Chaperonins cpn10 signature.CH10_MYCTO6-30












 		  7A:5-29
B:5-29
C:5-29
D:5-29
E:5-29
F:5-29
G:5-29
-
-
-
-
-
-
-
CH10_MYCTU6-30












 		  7A:5-29
B:5-29
C:5-29
D:5-29
E:5-29
F:5-29
G:5-29
-
-
-
-
-
-
-
Biological Unit 2 (1, 14)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CHAPERONINS_CPN10PS00681 Chaperonins cpn10 signature.CH10_MYCTO6-30












 		  7-
-
-
-
-
-
-
H:5-29
I:5-29
J:5-29
K:5-29
L:5-29
M:5-29
N:5-29
CH10_MYCTU6-30












 		  7-
-
-
-
-
-
-
H:5-29
I:5-29
J:5-29
K:5-29
L:5-29
M:5-29
N:5-29
Biological Unit 3 (1, 28)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CHAPERONINS_CPN10PS00681 Chaperonins cpn10 signature.CH10_MYCTO6-30












 		  14A:5-29
B:5-29
C:5-29
D:5-29
E:5-29
F:5-29
G:5-29
H:5-29
I:5-29
J:5-29
K:5-29
L:5-29
M:5-29
N:5-29
CH10_MYCTU6-30












 		  14A:5-29
B:5-29
C:5-29
D:5-29
E:5-29
F:5-29
G:5-29
H:5-29
I:5-29
J:5-29
K:5-29
L:5-29
M:5-29
N:5-29

(-) Exons   (0, 0)

(no "Exon" information available for 1P3H)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTO     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3ha_ A: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hA00 A:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h A   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain A from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTU     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3ha_ A: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hA00 A:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h A   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain B from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTO     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hb_ B: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hB00 B:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....ee.....ee........eeeeeeee...ee......ee........eeee.....eeee....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h B   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain B from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTU     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hb_ B: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hB00 B:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....ee.....ee........eeeeeeee...ee......ee........eeee.....eeee....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h B   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain C from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTO     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hc_ C: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hC00 C:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeee....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h C   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain C from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTU     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hc_ C: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hC00 C:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeee....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h C   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain D from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTO     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hd_ D: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hD00 D:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h D   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain D from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTU     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hd_ D: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hD00 D:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h D   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain E from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTO     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3he_ E: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hE00 E:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee.....................eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h E   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain E from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTU     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3he_ E: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hE00 E:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee.....................eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h E   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain F from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTO     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hf_ F: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hF00 F:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee.....................eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h F   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain F from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTU     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hf_ F: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hF00 F:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee.....................eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h F   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain G from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTO     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hg_ G: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hG00 G:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h G   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain G from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTU     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hg_ G: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hG00 G:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h G   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain H from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTO     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hh_ H: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hH00 H:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h H   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain H from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTU     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hh_ H: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hH00 H:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h H   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain I from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTO     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hi_ I: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hI00 I:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee.....................eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h I   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain I from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTU     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hi_ I: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hI00 I:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee.....................eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h I   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain J from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTO     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hj_ J: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hJ00 J:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee.....................eeeeeeee...ee......ee........eeee.....eeee....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h J   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain J from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTU     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hj_ J: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hJ00 J:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee.....................eeeeeeee...ee......ee........eeee.....eeee....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h J   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain K from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTO     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hk_ K: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hK00 K:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeee....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h K   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain K from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTU     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hk_ K: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hK00 K:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee...ee......ee........eeeee....eeee....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h K   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain L from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTO     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hl_ L: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hL00 L:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee.....................eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h L   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain L from PDB  Type:PROTEIN  Length:98
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:98
                                    12        22        32        42        52        62        72        82        92
           CH10_MYCTU     3 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hl_ L: Chaperonin-10 (GroES)                                                                   SCOP domains
               CATH domains 1p3hL00 L:2-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                            CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eeeeee....................eeeeeeeee.....................eeeee....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 1p3h L   2 KVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    11        21        31        41        51        61        71        81        91


Chain M from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTO     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hm_ M: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hM00 M:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....ee.....ee........eeeeeeee.....................eeee.....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h M   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain M from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTU     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hm_ M: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hM00 M:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee...eeeeee....ee.....ee........eeeeeeee.....................eeee.....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h M   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain N from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTO | P9WPE4 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTO     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hn_ N: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hN00 N:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
           Pfam domains (1) ---Cpn10-1p3hN01 N:4-97                                                                          -- Pfam domains (1)
           Pfam domains (2) ---Cpn10-1p3hN02 N:4-97                                                                          -- Pfam domains (2)
           Pfam domains (3) ---Cpn10-1p3hN03 N:4-97                                                                          -- Pfam domains (3)
           Pfam domains (4) ---Cpn10-1p3hN04 N:4-97                                                                          -- Pfam domains (4)
           Pfam domains (5) ---Cpn10-1p3hN05 N:4-97                                                                          -- Pfam domains (5)
           Pfam domains (6) ---Cpn10-1p3hN06 N:4-97                                                                          -- Pfam domains (6)
           Pfam domains (7) ---Cpn10-1p3hN07 N:4-97                                                                          -- Pfam domains (7)
           Pfam domains (8) ---Cpn10-1p3hN08 N:4-97                                                                          -- Pfam domains (8)
           Pfam domains (9) ---Cpn10-1p3hN09 N:4-97                                                                          -- Pfam domains (9)
          Pfam domains (10) ---Cpn10-1p3hN10 N:4-97                                                                          -- Pfam domains (10)
          Pfam domains (11) ---Cpn10-1p3hN11 N:4-97                                                                          -- Pfam domains (11)
          Pfam domains (12) ---Cpn10-1p3hN12 N:4-97                                                                          -- Pfam domains (12)
          Pfam domains (13) ---Cpn10-1p3hN13 N:4-97                                                                          -- Pfam domains (13)
          Pfam domains (14) ---Cpn10-1p3hN14 N:4-97                                                                          -- Pfam domains (14)
         Sec.struct. author ...eeee...eeeee......................eeeeeeee...ee......ee........eeee.....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h N   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90


Chain N from PDB  Type:PROTEIN  Length:99
 aligned with CH10_MYCTU | P9WPE5 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:99
                                    11        21        31        41        51        61        71        81        91
           CH10_MYCTU     2 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK 100
               SCOP domains d1p3hn_ N: Chaperonin-10 (GroES)                                                                    SCOP domains
               CATH domains 1p3hN00 N:1-99 10 Kd Chaperonin, Protein Cpn10; Chain O                                             CATH domains
           Pfam domains (1) ---Cpn10-1p3hN01 N:4-97                                                                          -- Pfam domains (1)
           Pfam domains (2) ---Cpn10-1p3hN02 N:4-97                                                                          -- Pfam domains (2)
           Pfam domains (3) ---Cpn10-1p3hN03 N:4-97                                                                          -- Pfam domains (3)
           Pfam domains (4) ---Cpn10-1p3hN04 N:4-97                                                                          -- Pfam domains (4)
           Pfam domains (5) ---Cpn10-1p3hN05 N:4-97                                                                          -- Pfam domains (5)
           Pfam domains (6) ---Cpn10-1p3hN06 N:4-97                                                                          -- Pfam domains (6)
           Pfam domains (7) ---Cpn10-1p3hN07 N:4-97                                                                          -- Pfam domains (7)
           Pfam domains (8) ---Cpn10-1p3hN08 N:4-97                                                                          -- Pfam domains (8)
           Pfam domains (9) ---Cpn10-1p3hN09 N:4-97                                                                          -- Pfam domains (9)
          Pfam domains (10) ---Cpn10-1p3hN10 N:4-97                                                                          -- Pfam domains (10)
          Pfam domains (11) ---Cpn10-1p3hN11 N:4-97                                                                          -- Pfam domains (11)
          Pfam domains (12) ---Cpn10-1p3hN12 N:4-97                                                                          -- Pfam domains (12)
          Pfam domains (13) ---Cpn10-1p3hN13 N:4-97                                                                          -- Pfam domains (13)
          Pfam domains (14) ---Cpn10-1p3hN14 N:4-97                                                                          -- Pfam domains (14)
         Sec.struct. author ...eeee...eeeee......................eeeeeeee...ee......ee........eeee.....eeeee..eeeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----CHAPERONINS_CPN10        ---------------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1p3h N   1 AKVNIKPLEDKILVQANEAETTTASGLVIPDTAKEKPQEGTVVAVGPGRWDEDGEKRIPLDVAEGDTVIYSKYGGTEIKYNGEEYLILSARDVLAVVSK  99
                                    10        20        30        40        50        60        70        80        90
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 14)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 14)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 14)

Asymmetric Unit
(-)
Clan: GroES (70)

(-) Gene Ontology  (18, 21)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J,K,L,M,N   (CH10_MYCTU | P9WPE5)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0051087    chaperone binding    Interacting selectively and non-covalently with a chaperone protein, a class of proteins that bind to nascent or unfolded polypeptides and ensure correct folding or transport.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0051082    unfolded protein binding    Interacting selectively and non-covalently with an unfolded protein.
biological process
    GO:0034605    cellular response to heat    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a heat stimulus, a temperature stimulus above the optimal temperature for that organism.
    GO:0051085    chaperone mediated protein folding requiring cofactor    The process of assisting in the correct posttranslational noncovalent assembly of proteins, which is dependent on additional protein cofactors. This process occurs over one or several cycles of nucleotide hydrolysis-dependent binding and release.
    GO:0040007    growth    The increase in size or mass of an entire organism, a part of an organism or a cell.
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.
    GO:0009408    response to heat    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a heat stimulus, a temperature stimulus above the optimal temperature for that organism.
    GO:0006986    response to unfolded protein    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an unfolded protein stimulus.
cellular component
    GO:1990220    GroEL-GroES complex    Bacterial chaperonin complex consisting of a heptameric 10kDa chaperonin subunit GroES and a tetradecameric (2x7) 60kDa chaperonin subunit GroEL. The 60kDa subunit possesses ATPase activity while the holo-enzyme is responsible for the correct folding of proteins.
    GO:0005618    cell wall    The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Chain A,B,C,D,E,F,G,H,I,J,K,L,M,N   (CH10_MYCTO | P9WPE4)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
biological process
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MPD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1p3h)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1p3h
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CH10_MYCTO | P9WPE4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  CH10_MYCTU | P9WPE5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CH10_MYCTO | P9WPE4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  CH10_MYCTU | P9WPE5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CH10_MYCTO | P9WPE4: 1hx5 1p82 1p83
        CH10_MYCTU | P9WPE5: 1hx5 1p82 1p83

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1P3H)
