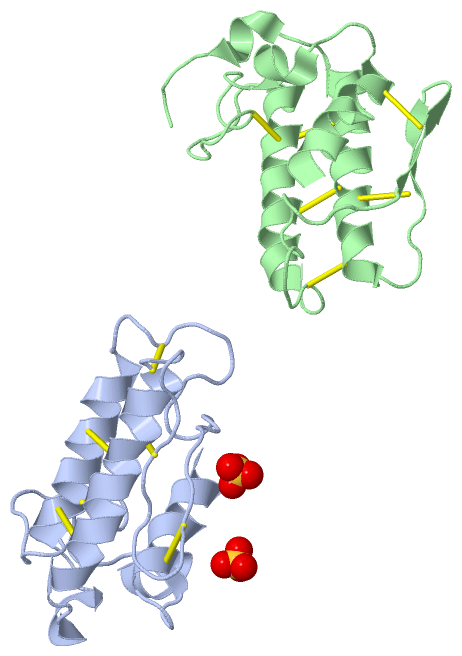

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

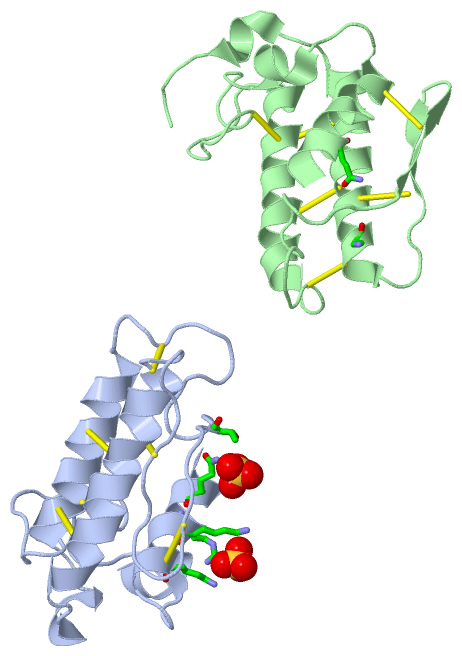

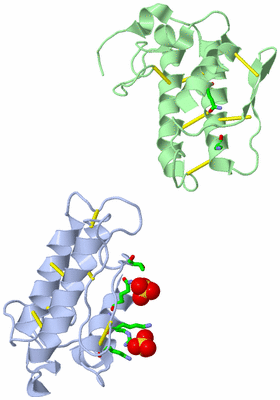

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

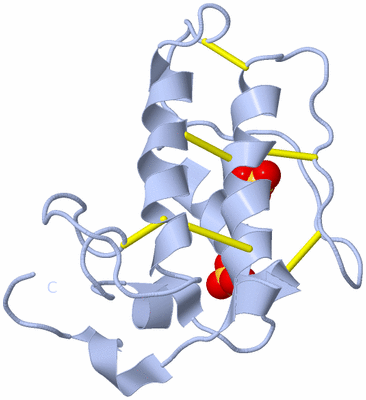

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

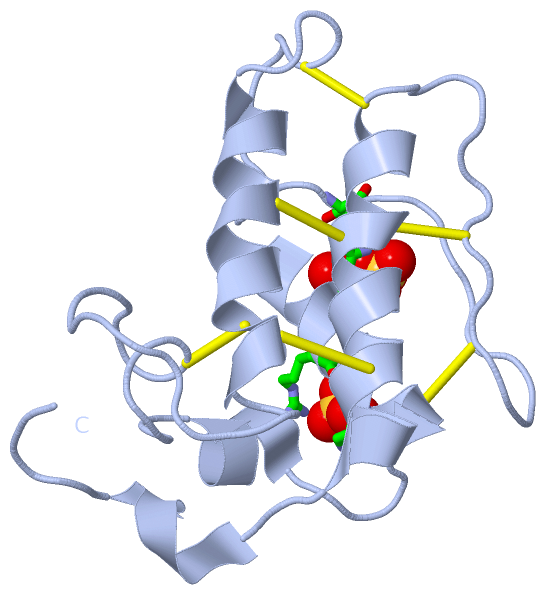

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

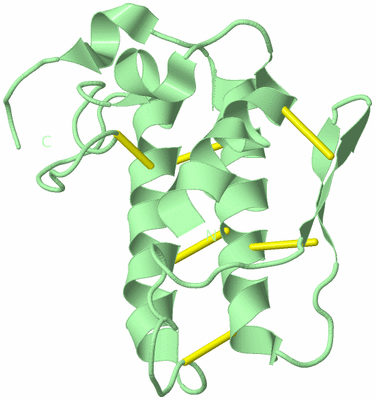

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

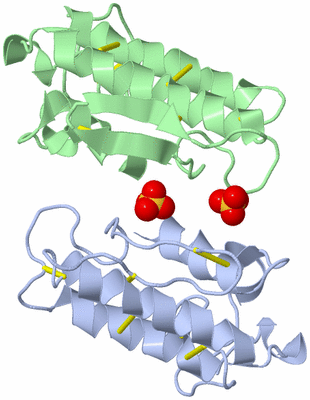

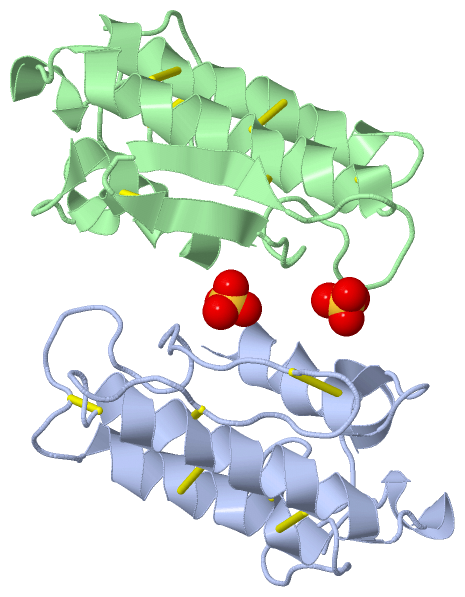

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PHOSPHOLIPASE A2 (MIPLA3) FROM MICROPECHIS IKAHEKA

Authors :  S. M. Lok, K. Swaminathan
Date :  10 Apr 03  (Deposition) - 28 Sep 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  A (1x),B (1x)
Keywords :  Phospholipase A2, Micropechis Ikaheka, Pancreatic Loop, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. M. Lok, R. Gao, M. Rouault, G. Lambeau, P. Gopalakrishnakone, K. Swaminathan
Structure And Function Comparison Of Micropechis Ikaheka Snake Venom Phospholipase A2 Isoenzymes
Febs J. V. 272 1211 2005
PubMed-ID: 15720395  |  Reference-DOI: 10.1111/J.1742-4658.2005.04547.X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PHOSPHOLIPASE A2
    Chains: A, B
    EC Number: 3.1.1.4
    Organism Scientific: MICROPECHIS IKAHEKA
    Organism Taxid: 66188
    Synonym: MIPLA3

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x): A (1x)B (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1SO4-1Ligand/IonSULFATE ION
Biological Unit 3 (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:6 , LYS A:7 , LYS A:10 , LYS B:92BINDING SITE FOR RESIDUE SO4 A 122
2AC2SOFTWAREGLN A:4 , THR A:72 , HOH A:218 , GLN B:4BINDING SITE FOR RESIDUE SO4 A 123

(-) SS Bonds  (12, 12)

Asymmetric Unit
No.Residues
1A:11 -A:77
2A:29 -A:45
3A:44 -A:105
4A:51 -A:98
5A:61 -A:91
6A:84 -A:96
7B:11 -B:77
8B:29 -B:45
9B:44 -B:105
10B:51 -B:98
11B:61 -B:91
12B:84 -B:96

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1OZY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1OZY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1OZY)

(-) Exons   (0, 0)

(no "Exon" information available for 1OZY)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:121

               SCOP domains d1ozya_ A: Snake phospholipase A2                                                                                         SCOP domains
               CATH domains 1ozyA00 A:1-121 Phospholipase A2                                                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhh....hhhhhh...................hhhhhhhhhhhhhhh..................................hhhhhhhhhhhhhhhhhhh..hhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ozy A   1 NLLQFRKMIKCTIPGIEPLLAFSNYGCYCGKGGSGTPVDELDRCCQTHDYCYDKAKIHPECRGILSGPSFNTYAYDCTDGKLTCNDQKDKCKLFICNCDRTAAMCFAKAPYKEENNRIDAS 121
                                    10        20        30        40        50        60        70        80        90       100       110       120


Chain B from PDB  Type:PROTEIN  Length:121

               SCOP domains d1ozyb_ B: Snake phospholipase A2                                                                                         SCOP domains
               CATH domains 1ozyB00 B:1-121 Phospholipase A2                                                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhh...hhhhhh................hhhhhhhhhhhhhhhhhhhh................eeee..eeee....hhhhhhhhhhhhhhhhhhhhh..hhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ozy B   1 NLLQFRKMIKCTIPGIEPLLAFSNYGCYCGKGGSGTPVDELDRCCQTHDYCYDKAKIHPECRGILSGPSFNTYAYDCTDGKLTCNDQKDKCKLFICNCDRTAAMCFAKAPYKEENNRIDAS 121
                                    10        20        30        40        50        60        70        80        90       100       110       120
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1OZY)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1OZY)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ozy)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
