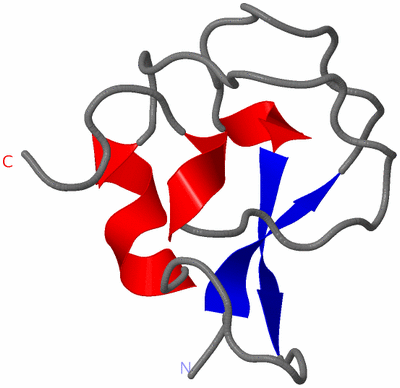

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  ICE-BINDING SURFACE ON A TYPE III ANTIFREEZE PROTEIN FROM OCEAN POUT

Authors :  D. S. C. Yang, W. -C. Hon, S. Bubanko, Y. Xue, J. Seetharaman, C. L. Hew, F. Sicheri
Date :  17 Nov 97  (Deposition) - 20 May 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Antifreeze Protein, Ice Crystal Growth Inhibition, Pretzel Fold, Glycoprotein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. S. Yang, W. C. Hon, S. Bubanko, Y. Xue, J. Seetharaman, C. L. Hew, F. Sicheri
Identification Of The Ice-Binding Surface On A Type Iii Antifreeze Protein With A "Flatness Function" Algorithm.
Biophys. J. V. 74 2142 1998
PubMed-ID: 9591641
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TYPE III ANTIFREEZE PROTEIN
    Chains: A
    Organism Common: OCEAN POUT
    Organism Scientific: MACROZOARCES AMERICANUS
    Organism Taxid: 8199
    Other Details: ISOFORM HPLC-3
    Synonym: TYPE III AFP
    Tissue: SERUM

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1OPS)

(-) Sites  (0, 0)

(no "Site" information available for 1OPS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1OPS)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Asn A:28 -Pro A:29

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1OPS)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1AFP_LIKEPS50844 Antifreeze protein-like domain profile.ANP1_ZOAAM3-62  1A:4-63

(-) Exons   (0, 0)

(no "Exon" information available for 1OPS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:64
 aligned with ANP1_ZOAAM | P19608 from UniProtKB/Swiss-Prot  Length:64

    Alignment length:64
                                    10        20        30        40        50        60
            ANP1_ZOAAM    1 SQSVVATQLIPMNTALTPVMMEGKVTNPIGIPFAEMSQIVGKQVNTPVAKGQTIMPNMVKTYAA 64
               SCOP domains d1opsa_ A: Type III antifreeze protein, AFP III                  SCOP domains
               CATH domains 1opsA00 A:2-65 Type Iii Antifreeze Protein Isoform Hplc 12       CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...........hhheeee........hhhhhh.................hhh...... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --AFP_LIKE  PDB: A:4-63 UniProt: 3-62                         -- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                  1ops A  2 SQSVVATQLIPMNTALTPAMMEGKVTNPIGIPFAEMSQLVGKQVNTPVAKGQTLMPNMVKTYAA 65
                                    11        21        31        41        51        61
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1OPS)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ANP1_ZOAAM | P19608)
biological process
    GO:0050826    response to freezing    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a freezing stimulus, temperatures below 0 degrees Celsius.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ops)

  Sites
(no "Sites" information available for 1ops)

  Cis Peptide Bonds
    Asn A:28 - Pro A:29   [ RasMol ]


(-) Still Images

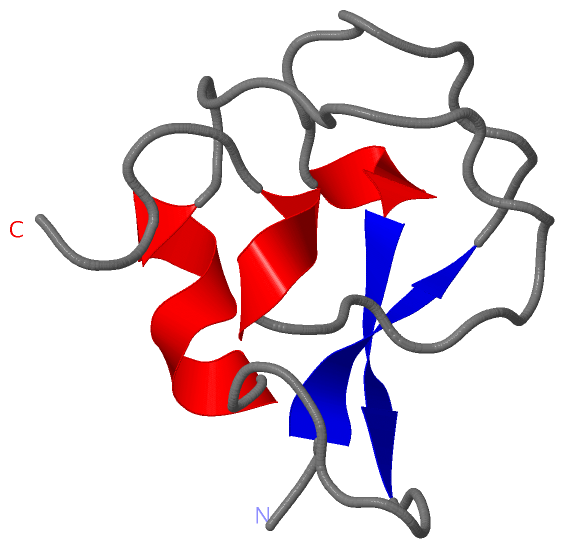

Jmol
