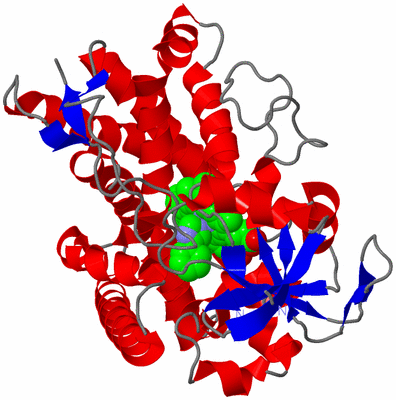

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  1.85 A STRUCTURE OF CYP154A1 FROM STREPTOMYCES COELICOLOR A3(2)

Authors :  L. M. Podust, Y. Kim, M. Arase, H. Bach, D. H. Sherman, D. C. Lamb, S. L. Kelly, M. R. Waterman
Date :  19 Feb 03  (Deposition) - 02 Jan 04  (Release) - 15 Apr 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym./Biol. Unit :  A
Keywords :  P450 Monooxygenase, Streptomyces, Cytochrome, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. M. Podust, H. Bach, Y. Kim, D. C. Lamb, M. Arase, D. H. Sherman, S. L. Kelly, M. R. Waterman
Comparison Of The 1. 85 A Structure Of Cyp154A1 From Streptomyces Coelicolor A3(2) With The Closely Related Cyp154C1 And Cyps From Antibiotic Biosynthetic Pathways.
Protein Sci. V. 13 255 2004
PubMed-ID: 14691240  |  Reference-DOI: 10.1110/PS.03384804

(-) Compounds

Molecule 1 - PUTATIVE CYTOCHROME P450 154A1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET17B
    Expression System Strain: HMS174(DE3)
    Expression System Taxid: 562
    Organism Scientific: STREPTOMYCES COELICOLOR
    Organism Taxid: 100226
    Other Details: HEME CONTAINING PROTEIN
    Strain: A3(2)
    Synonym: CYP154A1, SCO2884, SCE6.21

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE
2PIM1Ligand/Ion4-PHENYL-1H-IMIDAZOLE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREMET A:87 , HIS A:95 , ARG A:99 , PHE A:106 , MET A:239 , ALA A:242 , THR A:246 , THR A:247 , LEU A:283 , ARG A:295 , TYR A:319 , ALA A:346 , PHE A:347 , HIS A:352 , CYS A:354 , GLY A:356 , PIM A:1408 , HOH A:2409 , HOH A:2454BINDING SITE FOR RESIDUE HEM A1407
2AC2SOFTWARETRP A:81 , PHE A:88 , LEU A:238 , SER A:241 , ALA A:242 , THR A:246 , HEM A:1407 , HOH A:2314BINDING SITE FOR RESIDUE PIM A1408

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ODO)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Pro A:293 -Leu A:294

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ODO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ODO)

(-) Exons   (0, 0)

(no "Exon" information available for 1ODO)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:396
 aligned with Q9KZR7_STRCO | Q9KZR7 from UniProtKB/TrEMBL  Length:408

    Alignment length:401
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406
         Q9KZR7_STRCO     7 ALVLDPTGADHHTEHRTLREGGPATWVDVLGVQAWSVSDPVLLKQLLTSSDVSKDARAHWPAFGEVVGTWPLALWVAVENMFTAYGPNHRKLRRLVAPAFSARRVDAMRPAVEAMVTGLVDRLAELPAGEPVDLRQELAYPLPIAVIGHLMGVPQDRRDGFRALVDGVFDTTLDQAEAQANTARLYEVLDQLIAAKRATPGDDMTSLLIAARDDEGDGDRLSPEELRDTLLLMISAGYETTVNVIDQAVHTLLTRPDQLALVRKGEVTWADVVEETLRHEPAVKHLPLRYAVTDIALPDGRTIARGEPILASYAAANRHPDWHEDADTFDATRTVKEHLAFGHGVHFCLGAPLARMEVTLALESLFGRFPDLRLADPAEELPPVPSLISNGHQRLPVLLHA 407
               SCOP domains d1odoa_ A: Cyp154a1 monooxygenase                                                                                                                                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains 1odoA00 A:7-407 Cytochrome p450                                                                                                                                                                                                                                                                                                                                                                                   CATH domains
           Pfam domains (1) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------p450-1odoA01 A:275-393                                                                                                 -------------- Pfam domains (1)
           Pfam domains (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------p450-1odoA02 A:275-393                                                                                                 -------------- Pfam domains (2)
         Sec.struct. author .ee......hhhhhhhhhhh...eeeeee..eeeeee.hhhhhhhhh....ee.hhhhhh.hhhhhh.....hhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eehhhhh.hhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh.-----..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh.....eeeeee...ee.....ee....eeeehhhhhh................................hhhhhhhhhhhhhhhhhhhh...ee.....................eee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1odo A   7 ALVLDPTGADHHTEHRTLREGGPATWVDVLGVQAWSVSDPVLLKQLLTSSDVSKDARAHWPAFGEVVGTWPLALWVAVENMFTAYGPNHRKLRRLVAPAFSARRVDAMRPAVEAMVTGLVDRLAELPAGEPVDLRQELAYPLPIAVIGHLMGVPQDRRDGFRALVDGVFDTTLDQAEAQANTARLYEVLDQLIAAKRATPGDDMTSLLIAARDD-----RLSPEELRDTLLLMISAGYETTVNVIDQAVHTLLTRPDQLALVRKGEVTWADVVEETLRHEPAVKHLPLRYAVTDIALPDGRTIARGEPILASYAAANRHPDWHEDADTFDATRTVKEHLAFGHGVHFCLGAPLARMEVTLALESLFGRFPDLRLADPAEELPPVPSLISNGHQRLPVLLHA 407
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216   |   226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406
                                                                                                                                                                                                                                               220   226
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: p450] (161)
(-)
Family: p450 (161)

(-) Gene Ontology  (11, 11)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q9KZR7_STRCO | Q9KZR7)
molecular function
    GO:0036199    cholest-4-en-3-one 26-monooxygenase activity    Catalysis of the reaction: cholest-4-en-3-one + NADH + H+ + O2 = 26-hydroxycholest-4-en-3-one + NAD+ + H2O. This reaction involves the hydroxylation of the C26 carbon, followed by oxidation of the alcohol to the carboxylic acid via the aldehyde intermediate.
    GO:0020037    heme binding    Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
    GO:0005506    iron ion binding    Interacting selectively and non-covalently with iron (Fe) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004497    monooxygenase activity    Catalysis of the incorporation of one atom from molecular oxygen into a compound and the reduction of the other atom of oxygen to water.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016705    oxidoreductase activity, acting on paired donors, with incorporation or reduction of molecular oxygen    Catalysis of an oxidation-reduction (redox) reaction in which hydrogen or electrons are transferred from each of two donors, and molecular oxygen is reduced or incorporated into a donor.
    GO:0008395    steroid hydroxylase activity    Catalysis of the formation of a hydroxyl group on a steroid by incorporation of oxygen from O2.
biological process
    GO:0006707    cholesterol catabolic process    The chemical reactions and pathways resulting in the breakdown of cholesterol, cholest-5-en-3 beta-ol, the principal sterol of vertebrates and the precursor of many steroids, including bile acids and steroid hormones.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    HEM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PIM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Pro A:293 - Leu A:294   [ RasMol ]


(-) Still Images

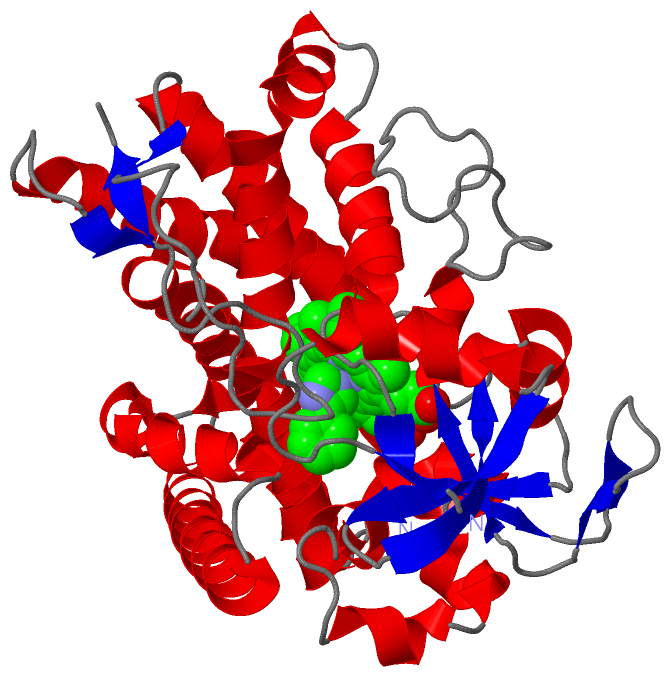

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

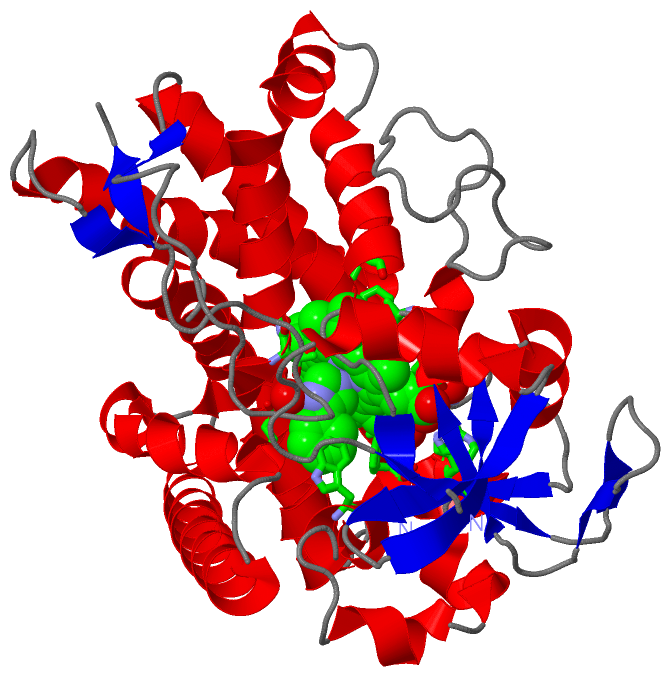

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
